CIP Training Pro C9200 series
Control Panel Information
Guide to the Names and Functions of the Machine's Control Panel.
DWP109
2 3 4 5 61
13
7
8
9
10
16
1112
15
14
17
CIP Training Pro C9200 series
Control Panel Information
1. Display panel
This is a touch panel display that features icons, keys, shortcuts, and widgets that allow you to
navigate the screens of the various functions and applications and provide you with information
about operation status and other messages. See "How to Use the [Home] Screen".
2. [Check Status] key
Press to check the machine's system status, operational status of each function, and current jobs.
You can also display the job history and the machine's maintenance information.
3. Status indicator
Indicates the status of the system. Stays lit when an error occurs or the toner runs out.
4. [Energy Saver] key
Press to switch to Low Power mode or Sleep mode. When the machine is in Sleep mode, press
the key again to recover the machine from sleep. See page 81 "Saving Energy".
5. Energy saver indicator
When the machine is in Low Power mode, the energy saver indicator is lit. In Sleep mode, the
energy saver indicator flashes slowly.
6. Main power indicator
The main power indicator goes on when you turn on the main power switch.
7. Data In indicator
Flashes when the machine is receiving print jobs from a computer.
8. [ ] key (Enter key)
Press to confirm values entered or items specified.
9. [Start] key
Press to start printing.
10. [Clear] key
Press to delete a number entered.
11. [Stop] key
Press to stop a job in progress, such as printing.
12. Number keys
Use to enter the numbers for copies and data for the selected function.
13. Display adjustment keys
Allows you to adjust the displayed image.
See "Adjusting the Display".
14. Control panel reset key
Press to restart the control panel. Used when operating from the control panel becomes
unresponsive.
15. Media slots
Use to insert an SD card or a USB flash memory device. For details, see "Inserting/Removing a
Memory Storage Device", Preparation.
16. Media access lamp
Lights up when an SD card is inserted in the media slot.
17. USB Host Interface
Connect a keyboard, mouse, or other USB device.
Adjusting the Angle of the Control Panel.
CIP Training Pro C9200 series
Control Panel Information
To improve usability, you can adjust the angle of the control panel.
1. Position the control panel at the horizontal angle that you require.
DWQ120
2. Position the control panel at the vertical angle that you require.
DWQ121
Adjusting the Display.
You can adjust the color, brightness and display position of the control panel screen using the display
adjustment keys in the bottom right part of the control panel.
To adjust the display and unlock it, press and hold the Up and Down buttons at the same time for five
seconds.
CIP Training Pro C9200 series
Control Panel Information
DWP083
1 2 3
1. Mode button
Press this button to start or end display adjustment. This button also selects or deselects the setting
item when you are adjusting the display.
2. Up button
Press this button to move between the setting items, or change the setting value.
The cursor moves to the item above when moving between the items.
The value increases when changing a setting value.
It is also used to enable the display adjustment function.
3. Down button
Press this button to move between the setting items, or change the setting value.
The cursor moves to the item below when moving between the items.
The value decreases when changing a setting value.
It is also used to enable the display adjustment function.
DWP146

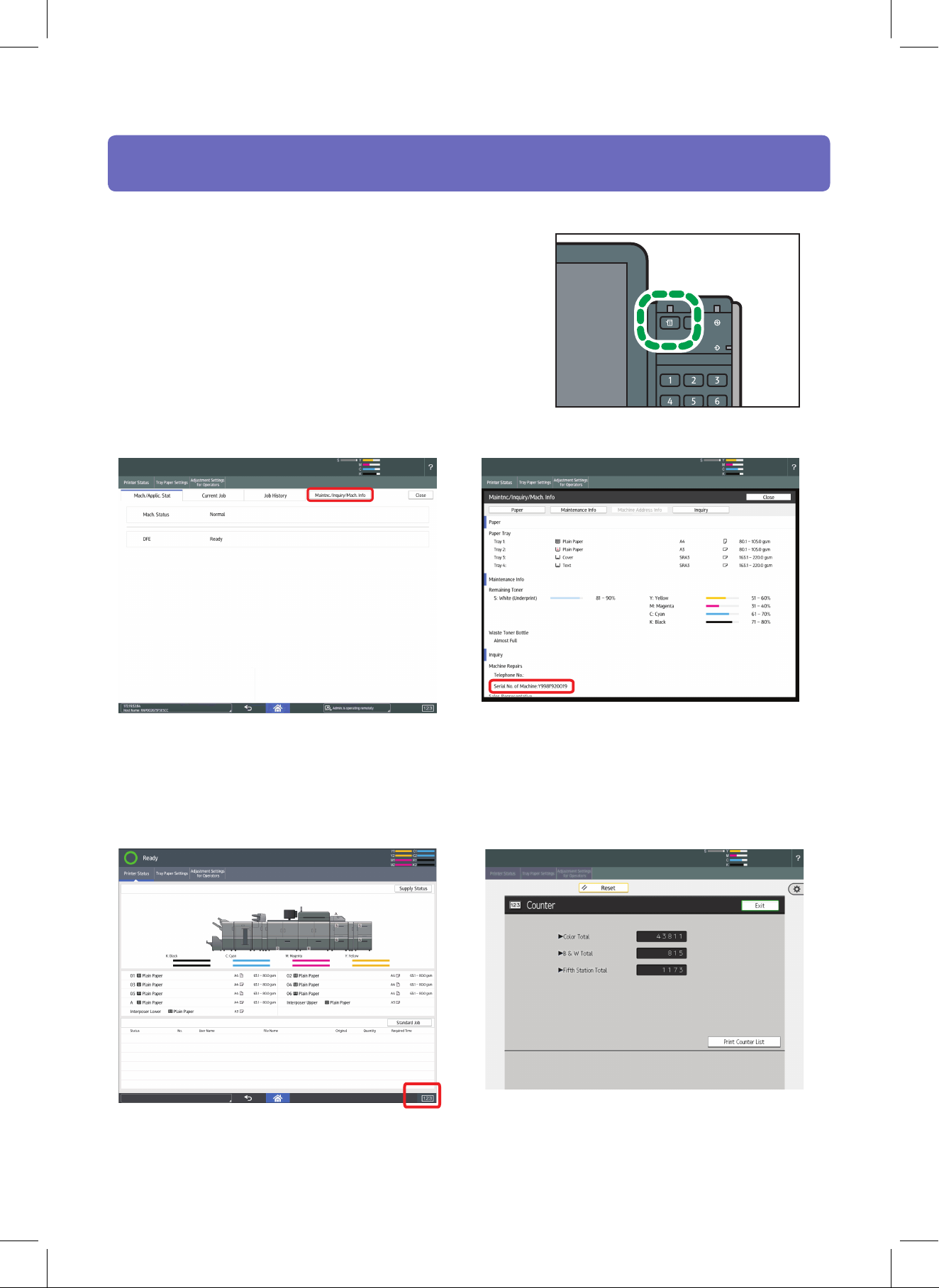

Information Inquiry.
Press the “Check Status” key to display information
such as machine and controller status. This button will
also light up when any errors occur.
Press “Maintnc./Inquiry/Mach. Info” This screen will provide Tray information,
consumable levels and the Serial number of
your device required to place Service Calls and
order consumables such as Toner and Waste
Toner containers etc.
Back at the home screen Press “123” for
Machine meter readings.
CIP Training Pro C9200 series
Control Panel Information
CIP Training Pro C9200 series
Self Help/Service Call
Our Customer Care Centre is a phone call away on 1300 887 414
Alternatively, head to www.ricoh.com.au/support to place a service call, order consumables or have
further access to “How to” documents and videos.
Your Ricoh Pro C9200 series interface has direct access to the Ricoh knowledge base. This can be accessed
using the following procedure.
Choose the relevant category i.e. Paper Feed
You will then be taken through relevant
topics related to your selection.
You can display the [Help] screen by pressing
the help icon on the upper right of the Home
screen.
1. Function Keys
[Printer Status], [Tray Paper Settings] and [Adjustment Settings for Operators] are fixed items, and cannot be changed.
You can assign frequently used functions to the 6 other keys to the right. See User Guide (Soft copy supplied).
CIP Training Pro C9200 series
Control Panel
You can add icons to the [Home] screen to customize the machine. For details about adding icons to the
[Home] screen, see User Guide (Soft copy supplied).
Changing Modes by Pressing the Function Keys
You can switch modes by pressing the function keys on the top of the screen.
DWQ103
1
1. Press [Home] ( ) at the bottom of the screen in the center.
2. Press the [User Tools] icon ( ).
3. Press [Screen Features].
4. Press [Screen Device Settings].
5. Press [Function Key Settings].
6. Select the [Function Key] check box.
7. Select from [Function Key 1]-[Function Key 6] to which you want to assign a function.
8. Press [Allocated Function].
9. Select a function you want to register from the list.
10. Press [Display Name].
11. Enter the function name to display on the key.
12. Press [OK].
13. Press [Home] ( ) at the bottom of the screen in the center.
The function key is registered to the top of the screen.
[Printer Status] Screen
Press [Printer Status] among the function keys to display the device information screen.
In the device information screen, you can view the status of the supplies and paper in the main unit and
in each optional unit, and the list of jobs.
1. Supply / Paper Information
Displays errors prompting to replenish supplies or notifying the waste toner bottle being full,
and information such as the set status and remaining amount of toner. Also displays the
settings and remaining amount of paper in each tray.
2. Job Information
Displays the list of jobs.
3. [Supply Status]
Press [Supply Status] to view the Paper, Maintenance Info, Machine Address Info, and inquiry
information.
For details, see "Checking Machine Status and Settings", Preparation.
4. Machine Front View
Shows the machine configuration, the tray used for printing, error status, and other
information.
CIP Training Pro C9200 series
Control Panel
EDD104
4
1
2
3
