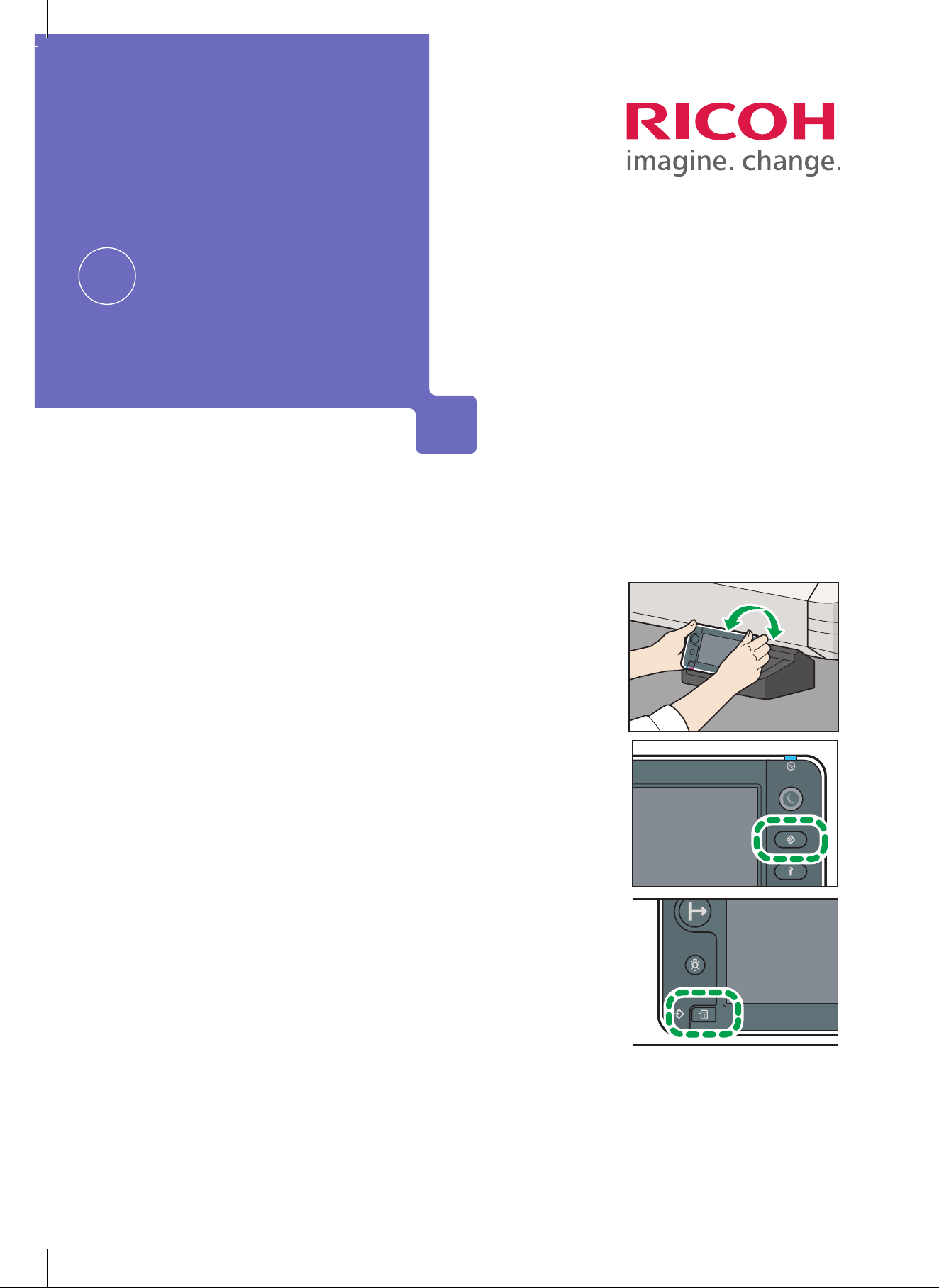

L5160/L5130

Control Panel

CIP Training L5160/L5130

Control Panel Information

Names and Functions of the Machine's Control Panel

This section explains the names and functions of the machine’s control panel.

DWU100

1. Display panel

Displays the machine conditions, setting items, and errors. See "How to Use the Home

Screen".

2. [Off Line/On Line] key

Sets the machine to be offline or online. Press the key during printing to interrupt printing.

3. [Lighting] key

Turns on or off the lighting inside the machine. It is used to check the print result.

4. [Check Status] key

Press to check the machine's system status and error status. For details about the [Check

Status] screen, see "When the Indicator Lamp for the [Check Status] Key Is Lit".

5. Data In indicator

Flashes when the machine is receiving data from a computer. Lights when there is a job in

the print queue.

6. Status indicator

Indicates that an error has occurred.

7. Main power indicator

The main power indicator lights when you turn on the power.

8. [Energy Saver] key

Press the [Energy Saver] key to switch to Sleep mode. Press the key again to exit Sleep mode.

See "Saving Energy". In Sleep mode, the [Energy Saver] key flashes slowly.

9. [User Tools] key

Press to change and check the settings of each item on the [Initial Setting] screen. See

"[Initial Setting] Screen".

CIP Training L5160/L5130

Control Panel Information

10. [Maintenance] key

Press to change and check the settings about each item of the [Maintenance] screen. See

"[Maintenance] Screen".

11. [Standard Procedure] key

Press to change and check the settings about each item of the [Print Adjustment] screen.

See "[Print Adjustment] Screen".

•To improve usability, you can adjust the angle of the control panel. For details, see

"Adjusting the Angle of the Control Panel".

How to Use the Home Screen

The operation status, messages, and function menus are displayed on the home screen. Select or

specify the displayed items by pressing each function item gently.

•Do not apply strong impact or force to the screen, or it may be damaged. Maximum force

allowable is approx. 30N (approx. 3 kgf). (N = Newton, kgf = Kilogram force. 1 kgf = 9.8N.)

1 3 4 52

EDP015

1. Operational status or messages

Displays the operation status, messages, and the reason for canceling printing.

2. Remaining ink display icon

The state and remaining amount of each ink and displacement liquid is indicated by this

icon.

3. Waste ink full display icon

The available state of the waste ink bottle is indicated by this icon.

4. Remaining flushing liquid display icon

The remaining amount of flushing liquid is indicated by this icon.

5. Remaining cleaning cartridge display icon

The remaining amount of cleaning cartridge is indicated by this icon.

CIP Training L5160/L5130

Control Panel Information

6. [Heater Setting]

Changes whether the heater is enabled/disabled as well as the temperature of the heater. See

"Adjusting the Heater Temperature".

7. [Origin Setting/Cut]

Sets the printing origin and cuts media. During printing, it switches to [Job Status]. See

"Changing Print Origin", "Cutting Media".

8. Error message

The contents of errors such as abnormalities or warnings are displayed.

9. Remaining media display

The remaining amount of media and width is displayed. The remaining amount is displayed

only when the roll media is set.

10. Heater temperature display

See "Checking the state of the heater".

11. Offline/Online display

The machine is offline while in the print standby state, and is online during printing.

Checking the state of the heater

The temperature and state of each heater are displayed.

EDP016

5 46 3

1. Current temperature

2. Set temperature

3. The cure heater has not reached the required temperature.

4. Heating in progress

5. The heater is disabled.

6. The heater reaches the set temperature.

Adjusting the Angle of the Control Panel

To improve usability, you can adjust the angle of the control panel.

CIP Training L5160/L5130

Control Panel

1. Hold the control panel by both the left and right sides and tilt it at an appropriate angle.

DWT111

•You can tilt the control panel from 12 to 90 degrees.

Changing the Display Language

You can switch the language to be displayed on the control panel.

The available languages are Japanese, English, French, German, Italian, Spanish, Dutch,

Portuguese, and Russian.

1. Press the [User Tools] key.

DWU101

2. Press [General Settings].

3. Press [Language].

4. Select the language you want to display. Press [ ] or [ ] to switch the screen to be

displayed.

5. Press [Close].

6. Press [End].

CIP Training L5160/L5130

Self Help/Service Call

Our Customer Care Centre is a phone call away on 1300 887 414

Alternatively, head to www.ricoh.com.au/support to place a service call, order consumables or have

further access to “How to” documents and videos.

Web Image Monitor

Web Image Monitor is a screen to confirm the machine status and settings on the computer.

When the machine and a computer can be connected to a network, you can access to Web Image Monitor

by entering the IP address of the machine on the address bar of the Web browser.

1. Enter the IP address of the machine in the address bar of the Web browser.

Example: when the IP address of the machine is "192.168.1.10"

•If SSL is specified

https://192.168.1.10/

•If SSL is not specified

http://192.168.1.10/

When you do not know whether SSL is specified on the machine, enter the address starting with https.

When you fail the connection, enter the address starting with http.

When entering the IPv4 address, do not enter "0" for each segment. If "192.168.001.010" is entered, you

cannot access the machine.

The machine status and remaining amount of consumables are displayed.

You can access Web Image Monitor more quickly by registering the machine's URL as a bookmark. Note

that the URL you register must be the URL of the top page, which is the page that appears before login.

If you register the URL of a page that appears after login, Web Image Monitor will not open properly

from the bookmark.

To change the settings, click [Login] at the top right on the screen and enter the User Name and

Password. Defaults: User Name: Admin, no password

CIP Training L5160/L5130

Self Help/Service Call

DWU108

1. Menu area

If you select a menu item, its content will be shown.

2. Header area

The available languages menu is displayed.

This area also displays [Login] and [Logout], which allows you to switch between the

administrator and guest mode.

3. Refresh

(Update): Click at the upper right in the work area to update the machine information. Click

the web browser's [Refresh] button to refresh the entire browser screen.

4. Work area

Display the current machine status on the top page, and also the contents of the item selected

in the menu area.

5. Basic Information area

Display the basic information of the machine.

About Guest Mode and Administrator Mode

There are two modes available with Web Image Monitor: guest mode and administrator mode.

Guest Mode

This mode requires no login to enter. In the guest mode, machine status and

settings can be viewed, but the machine settings cannot be changed.

Administrator Mode

This mode requires an administrator login to enter. In the administrator mode,

you can configure various machine settings.

CIP Training L5160/L5130

Self Help/Service Call

Access in the Administrator Mode

1. On Top Page, click [Login].

The window for entering a login password appears.

2. Enter your login password, and then click [Login].

For details about the login password, consult your administrator.

Depending on the configuration of your web browser, the login password might be

saved. If you do not want to save them, configure your web browser's settings so that

this information is not saved.

Confirming the Machine Status

You can check the current status on the [Home] tab.

[Home] tab

Item Description

Model Name Displays the name of the machine.

Machine ID Displays the serial number.

Version Displays the version of the machine.

MAC Address Displays the MAC address of the machine.

Machine Status

Item Description

Icons and messages Displays the machine status as icons and messages.

CIP Training L5160/L5130

Self Help/Service Call

Media

Item Description

Roll/Leaf The media type is displayed. When using leaf media,

displays whether the media has been set.

Remaining Enter the remaining amount of roll media. Select a unit from

m, inch, or feet.

Supplies

Item Description

Ink cartridge Displays the remaining amount of ink for each ink cartridge

and displacement cartridge. The expiration date and

messages are displayed. For details about how to replace

the cartridge, see "Replacing an Ink Cartridge".

Waste ink bottle Displays the used capacity of the waste ink bottle. For

details about how to replace the bottle, see "Replacing

a Waste Ink Bottle".

Cleaning cartridge Notifies the replacement interval for cleaning cartridge. For

details about how to replace the cleaning cartridge, see

"Replacing a Cleaning Cartridge".

Flushing cartridge The remaining amount of flushing liquid in the flushing

cartridge and the expiration date are displayed. For details

about how to replace the cartridge, see

"Replacing a Flushing Cartridge".
