Ricoh Aficio SG 3110DN Manuel utilisateur
v20140113
DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.
DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES.
DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW
THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES CLEAR.
CAUTION
Ricoh SG 3110DN
INsTALLATION GUIDE
PowerDriver V4
Windows 7 & 8
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Step 1 of 2: PowerDriver V4 Download & Installation
PAGE 4 of 15 >>
7) Select the appropriate language and click OK to continue (see FIGURE 7).
FIGURE 7
A
B
8) Verify that the PowerDriver is for the correct printer. If so, click Next (see FIGURE 8).
FIGURE 8
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Step 1 of 2: PowerDriver V4 Download & Installation
PAGE 5 of 15 >>
9) If you agree with the terms of the License Agreement, click I Agree (see FIGURE 9).
FIGURE 9
10) Click Install to allow PowerDriver to be installed into the correct destination folder (see FIGURE 10).
FIGURE 10
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Step 1 of 2: PowerDriver V4 Download & Installation
PAGE 6 of 15 >>
11) If the appropriate Ricoh OEM printer driver is not currently installed, it will begin to download. The
following status screen will be displayed during this process (see FIGURE 11).
FIGURE 11
FIGURE 12
12) Once the download has complete the Ricoh OEM driver will be installed.You will need to accept the
Software License Agreement for installation to continue. If you agree with the terms select I accept the
agreement and click Next (see FIGURE 12).
A
B
Note: If the appropriate OEM printer driver is already installed and what is displayed in Figure 11 does
not appear, skip to step 22.
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Step 1 of 2: PowerDriver V4 Download & Installation
PAGE 7 of 15 >>
13) Select Add a new printer and click Next (see FIGURE 13).
FIGURE 13
A
B
14) Select how the printer is connected to your computer and click Next (see FIGURE 14). For this example
we will select Connect USB cable.
FIGURE 14
A
B
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Step 1 of 2: PowerDriver V4 Download & Installation
PAGE 8 of 15 >>
15) The following screen will appear asking you to select your printer (see FIGURE 15). Highlight RICOH
AcioSG3110DN RPCS-R and click Next.
FIGURE 15 B
A
16) Ensure your printer is powered OFF and click Next to continue (see FIGURE 16).
FIGURE 16
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Step 1 of 2: PowerDriver V4 Download & Installation
PAGE 9 of 15 >>
17) Once the les are nished copying, ensure your printer is powered ON and the computer will begin auto-
detecting the port (see FIGURE 17).
FIGURE 17
18) In the following screen you are asked to customize the Status Monitor (see FIGURE 18). Adjust the
settings according to your preferences and click Next to continue.
FIGURE 18
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Step 1 of 2: PowerDriver V4 Download & Installation
PAGE 10 of 15 >>

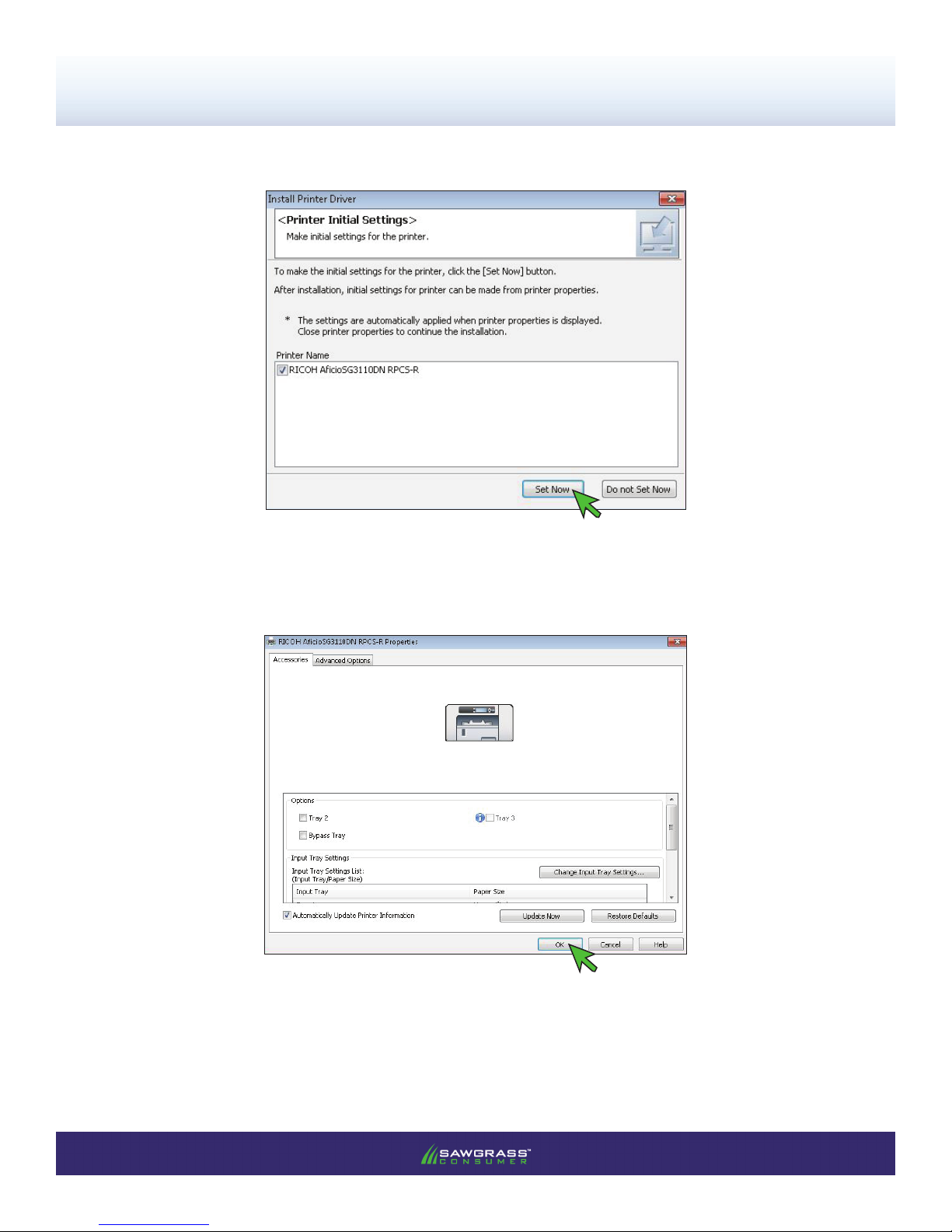

19) Click Set Now to continue (see FIGURE 19)
FIGURE 19
20) Click OK to continue (see FIGURE 20).
FIGURE 20
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Step 1 of 2: PowerDriver V4 Download & Installation
PAGE 11 of 15 >>

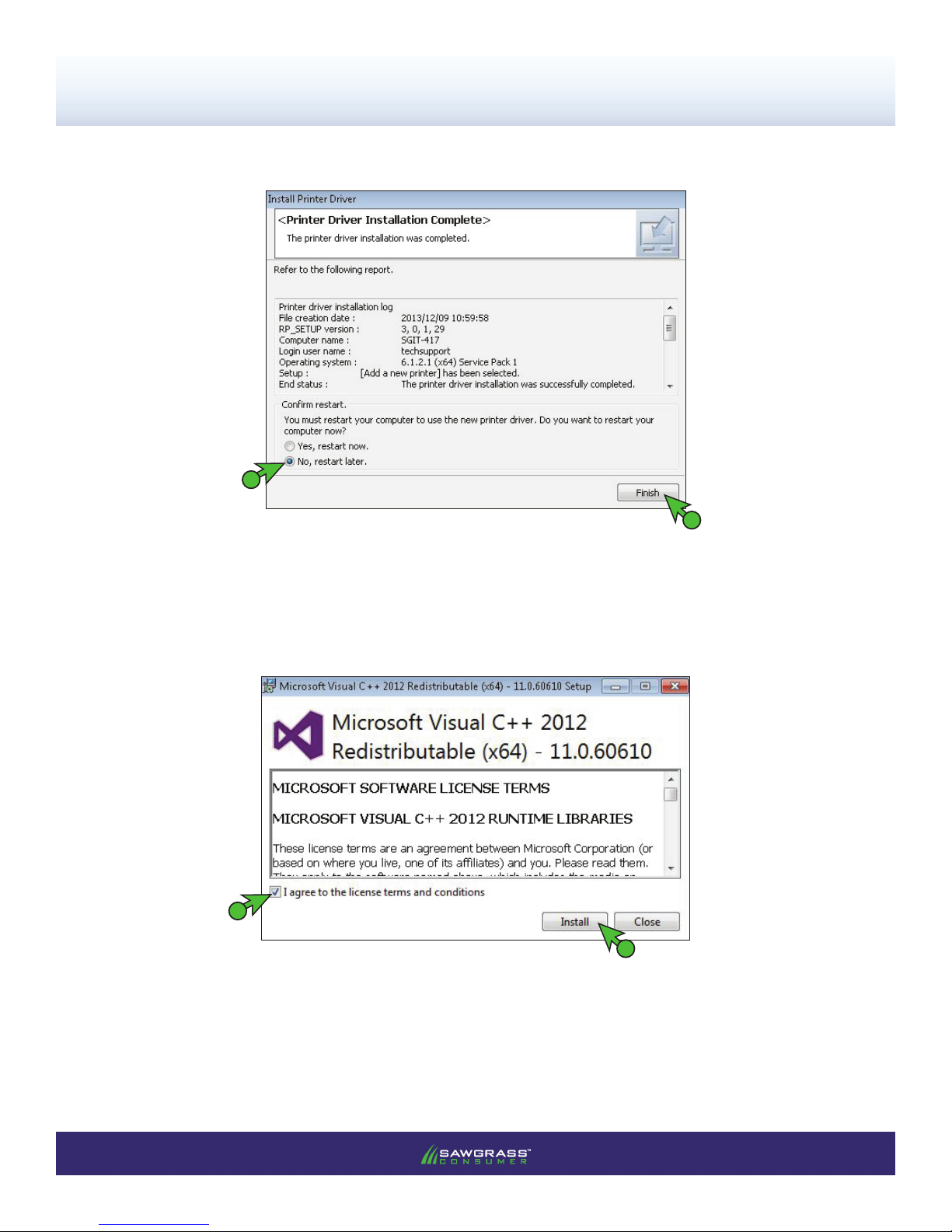

21) Select No, restart later. Click Finish to continue PowerDriver installation (see FIGURE 21).
FIGURE 21
22) The following screen may or may not appear. If it does, you will need to accept the software license
terms for the installation to continue. If you agree with the terms select I agree to the license terms
and conditions and click Install. If it does not appear, continue to step #24 (see FIGURE 22).
FIGURE 22
B
A
B
A
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Step 1 of 2: PowerDriver V4 Download & Installation
PAGE 12 of 15 >>

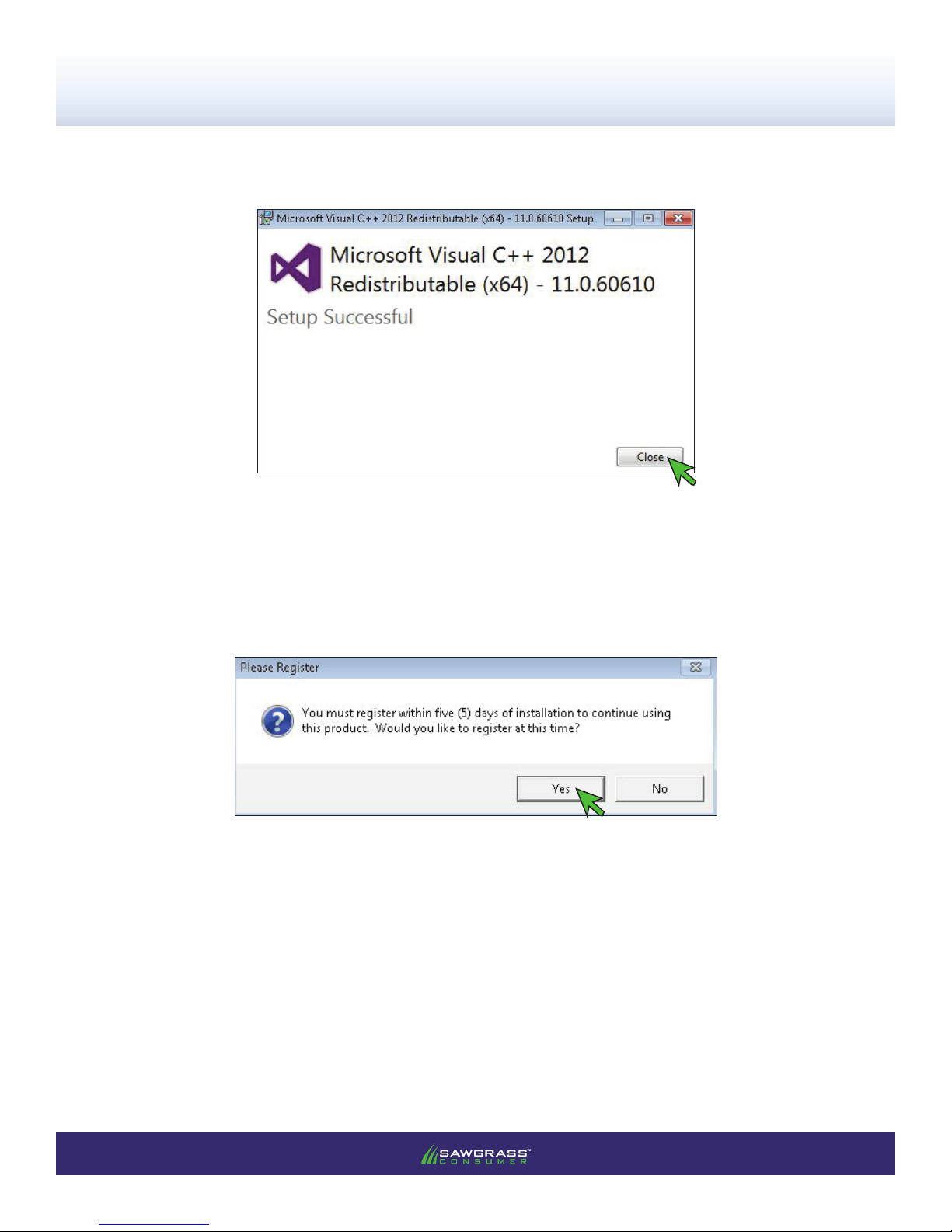

23) Once this portion of the installation is complete the following screen will appear. Click Close to continue
(see FIGURE 23).
FIGURE 23
24) Click Yes when prompted to Register the PowerDriver. A separate Registration window will appear
(see FIGURE 24).
FIGURE 24
