Printer Hard Disk Type 4510

(Code: G065)

For Machine Code: G065

INSTALLATION GUIDE

Preparation

For a safe operation, read "Safety

Information" in the Setup Guide.

RCAUTION:

Important

❒Check the printer nameplate to

confirm the model code.

❒The Printer Hard Disk can be dam-

aged by a small amount of static

electricity. You should touch some

metal to discharge static electricity.

❒When the bidirectional transmis-

sion is not in operation, you must

set up the installed hard disk drive

using the printer driver in order to

use it. See the Setup Guide for set-

ting up options. See the Setup

Guide for information about bidi-

rectional transmission.

❒When the Printer Hard Disk is be-

ing accessed, the Data In indicator

blinks. Do not turn off the printer

power when the Data In indicator

is blinking as it may destroy the

hard disk.

❒When a print job is being spooled,

the printer sends data to the hard

disk, and the Data In indicator

blinks. Do not turn off the printer

or computer while a print job is be-

ing spooled, as it may destroy the

hard disk or the spooled job will

remain in the hard disk and be

printed repeatedly until erased.

ACheck the contents of the box for

the following items:

• Printer Hard Disk

• Installation Guide

•PowerCord

•Connector

BTurn off the printer.

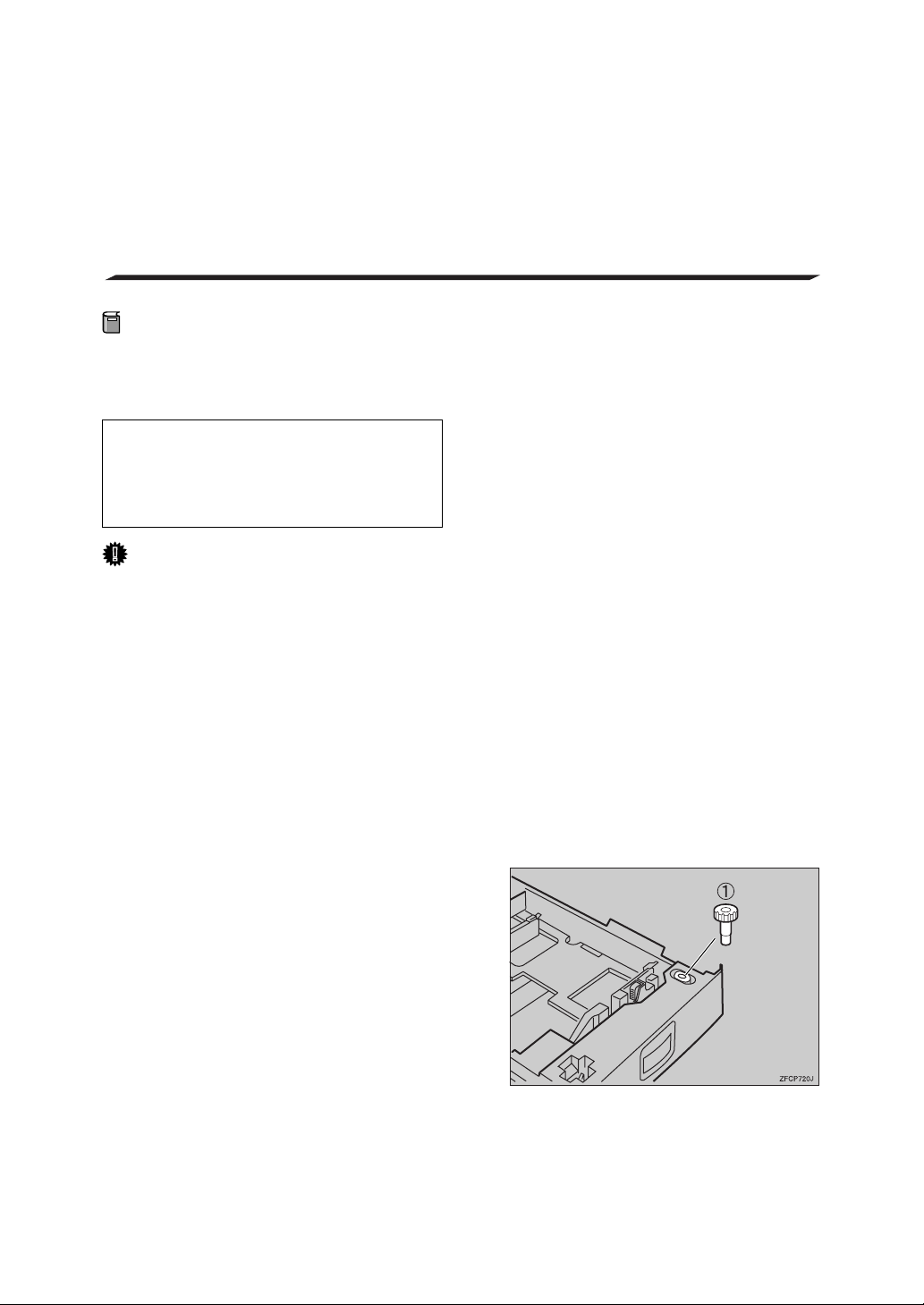

CPull out the first paper tray (Tray

1) and take the screwdriver (A

from the tray. Each screw to be re-

moved requires this screwdriver.

•Do not touch the inside of the

printer board compartment. It

may cause a machine malfunc-

tion or a burn.

G065-8539

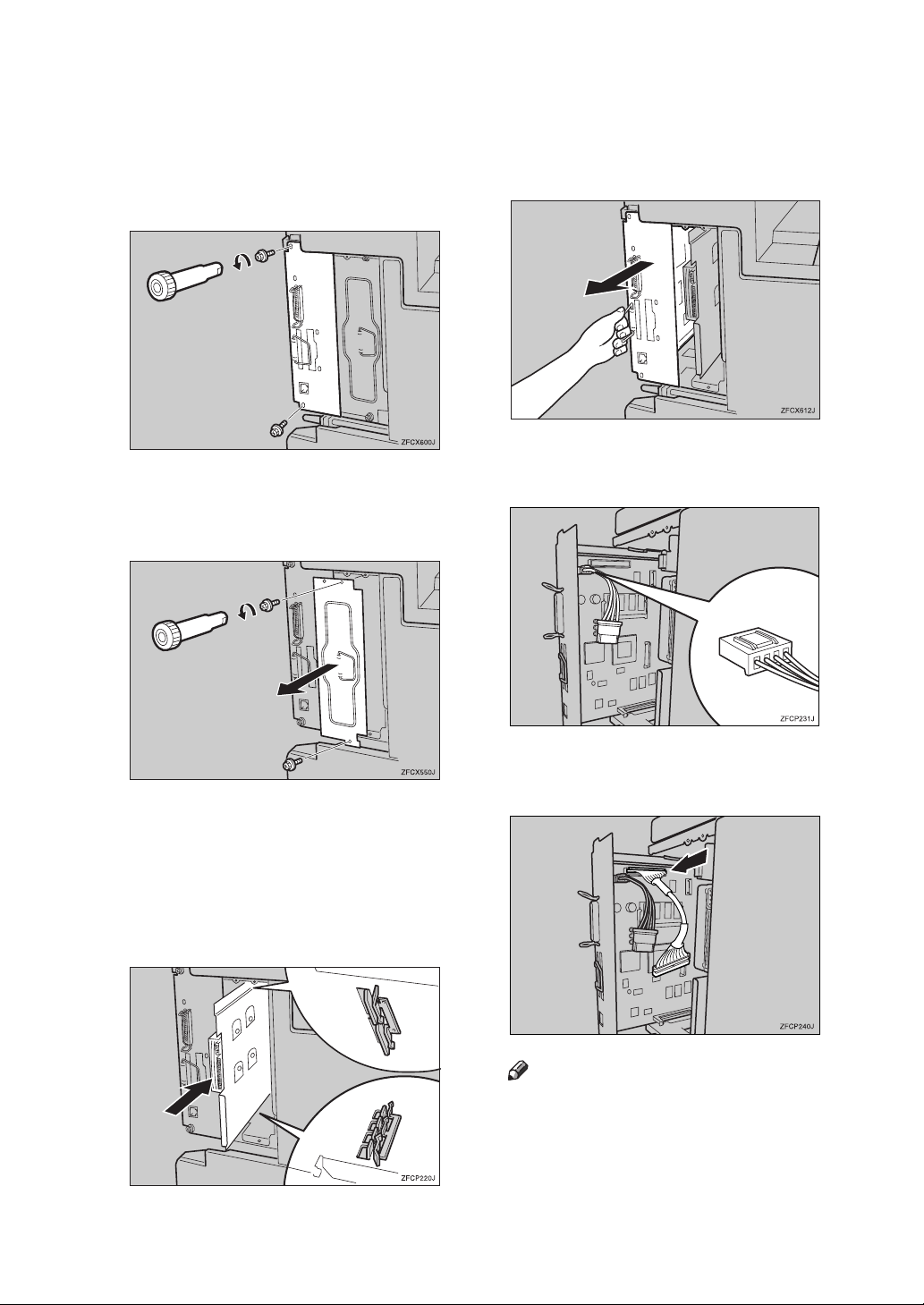

DRemove the two screws locking

the printer board.

The screws are needed to lock the

printer board afterwards.

ERemove the two screws locking

the hard disk drive cover next to

the printer board.

The screws are needed to lock the

cover afterwards.

FAlign the Printer Hard Disk with

the top and bottom rails , and then

insert the Printer Hard Disk slow-

ly until it stops.

GHold the handle, and carefully

pull out the printer board half-

way.

HConnect the bigger plug of the

power cord to the printer board.

IConnect the connector to the

printer board.

Note

❒Connect either side of the con-

nector.

JConnect the power cord to the

Printer Hard Disk.

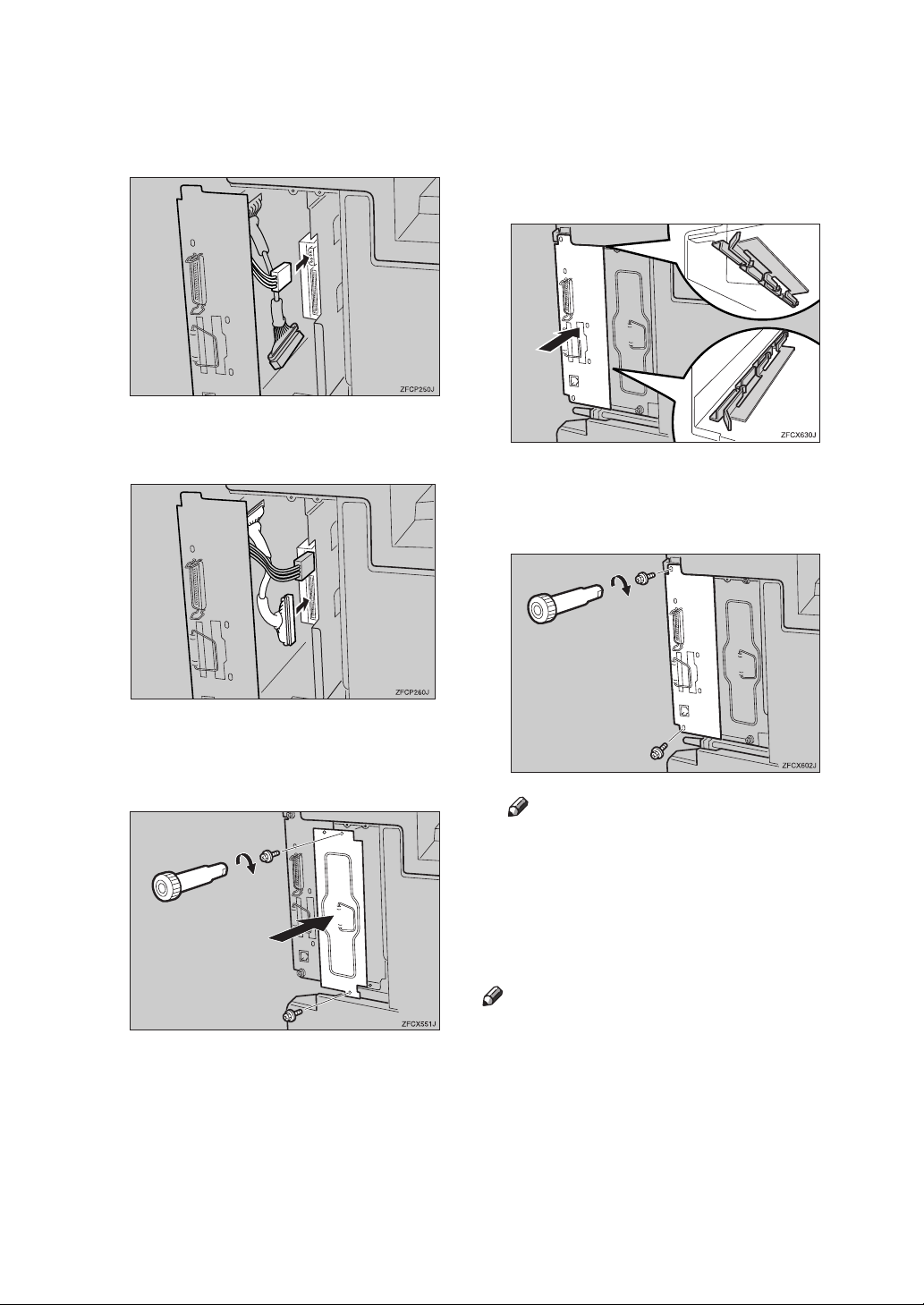

KConnect the connector to the

Printer Hard Disk.

LLock the Printer Hard Disk cover

with the two screws you removed

in step E.

MAlign the printer board with the

top and bottom rails in the print-

er, and then insert the printer

board slowly until it stops.

NLock the printer board with the

two screws you removed in step

Note

❒Be sure to return the screwdriv-

er to the paper tray after using

it.

The Printer Hard Disk will be for-

matted automatically when the

power is turned on.

Note

❒Print a configuration page to con-

firm that the Printer Hard Disk is

properly installed. See "Printing a

Configuration Page" in the Printer

Reference on the CD-ROM labeled

"Operating Instructions".

Formatting Printer Hard Disk

Type 4510

If you are formatting the Printer Hard

Disk from the menu, follow the pro-

cedures below while using the control

panel.

APress {

{{

{Menu}

}}

“Menu” appears on the panel dis-

play.

BPress {

{{

}}

}or {

{{

}}

}to display the

“Maintenance” menu.

Menu:

Maintenance

CPress {

{{

{Enter q

}}

The following message appears on

the panel display.

Menu:

Image Density

DPress {

{{

}}

}or {

{{

}}

}to display

“HDD Format”.

Menu:

HDD Format

Note

❒If "HDD Format" is not dis-

played, the Printer Hard Disk is

not installed properly. In such a

case, reinstall from step B.

EPress {

{{

{Enter q

}}

The following message appears on

the panel display.

HDD Format:

Press# To Start

FPress {

{{

{Enter q

}}

Important

❒Do not turn off the printer while

formatting the Printer Hard

Disk. Turning off the printer

while formatting the Printer

Hard Disk can damage the

Printer Hard Disk.

If you successfully format the

Printer Hard Disk, the following

message appears on the panel dis-

play.

Format Completed

Restart Printer

Note

❒If you fail, see “Troubleshooting”

in the Printer Reference, on the

CD-ROM labeled "Operating

Instructions".

GTurn off the power switch, and

then back on.

G065-8539
