Ricoh PS430 Manuel utilisateur

Caution

•

Before installing options, the machine should be turned off and unplugged for

at least thirty minutes.Components inside the machine become very hot, and

can cause a burn injury if touched.

•

Before moving the machine, unplug the power cord from the outlet.If the cord

is unplugged abruptly, it could become damaged.Damaged plugs or cords can

cause an electrical or fire hazard.

•

Whenlifting themachine, use the gripson bothsides.The machinecould break

or cause an injury if dropped.

PS430

(Code: G520)

For Machine Code:G035

INSTALLATION GUIDE

G520-8610B

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Confirm that the printer is turned off, and pull the plug out

of the wall outlet.

Remove the tape that holds the paper bank, and remove

the packing material.

Important

❒Do not remove the tape that holds the connector cable on the

backside of the paper bank in this step. It is removed at step .

TAPP801E

TAPP811E

Remove the screw, knob screw and lock plate from inside

the packing material.

TAPD011E

1. Screw

2. Knob Screw (Finger type)

3. Lock Plate

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Align the printer over the paper bank, and then lower it

gently onto the paper bank.

TAPP021E

Important

❒When lifting the printer, pull out the grips from the front side

ofthe printer. Holdthe front sidegrips, andhold the insetgrips

on the rear side.

❒The printer should be held by at least two people.

TAPH120E

Push the grips into the printer.Take out the cover inside

theTray 2 and attach it between the paper tray and the

front cover.

TAPP040E

Important

❒The instructions for installation in this installation guide and in the "Setup Guide" may differ. In this case, follow the instructions in this guide.

❒Confirm a code by the nameplate of the printer.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

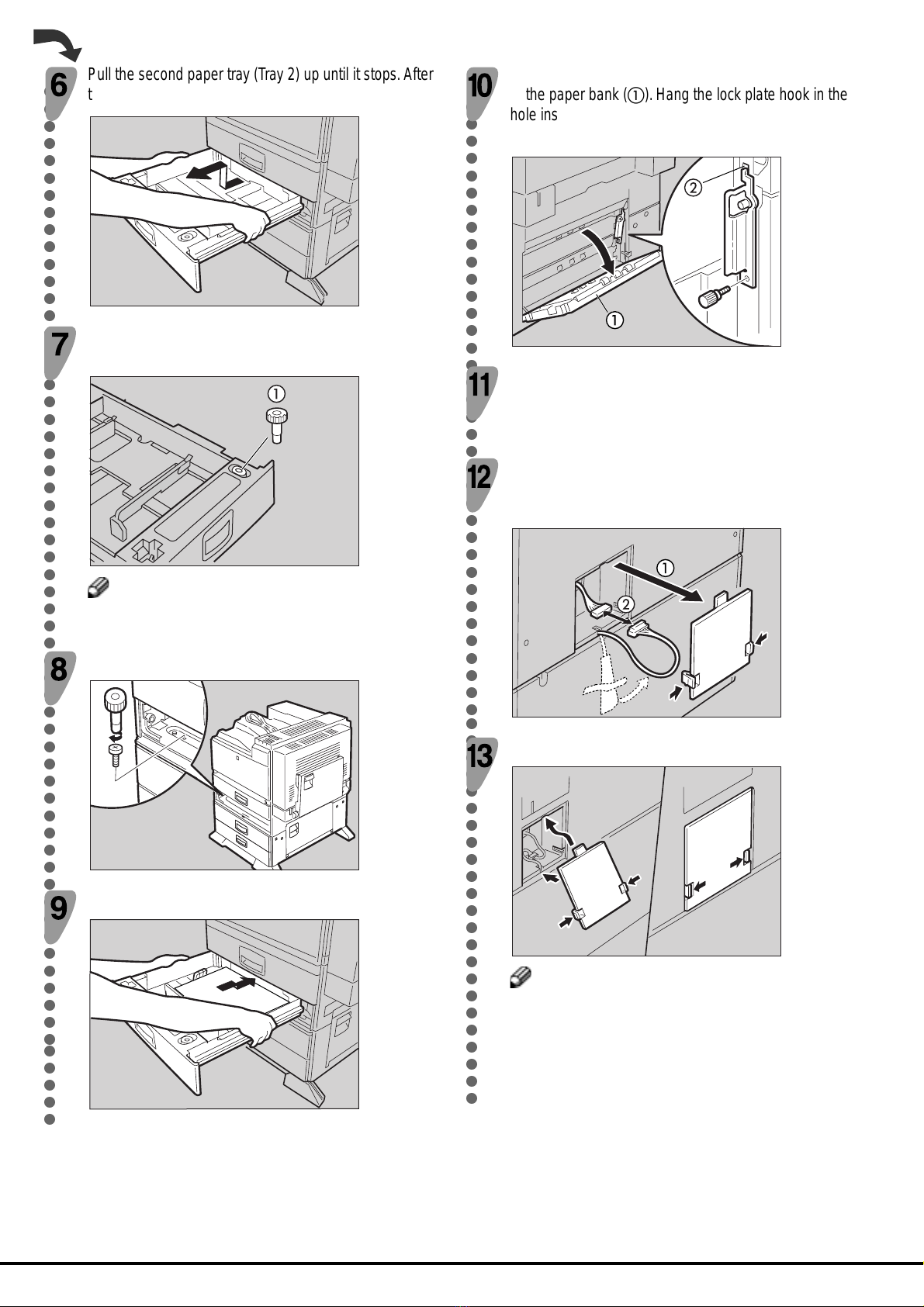

Pull the second paper tray (Tray 2) up until it stops.After

that, lift it slightly, then pull it out.

TAPH210E

Pull out the first paper tray (Tray 1), and take the

screwdriver (

) from the tray.

TAPP720E

Note

❒Be sure to return the screwdriver to the paper tray after using

it.

Lock the paper bank and the printer with the screw.

TAPP031E

Replace the second paper tray (Tray 2) into the printer.

TAPH221E

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Open the lower vertical paper feed cover on the right side

of the paper bank (

).Hang the lock plate hook in the

hole inside (

), and then fasten the plate with the knob

screw using your fingers.

TAPP050E

Close the lower vertical paper feed cover.

Open the connector cover (

), remove the tape that

holds the connector cable and attach the connector

cables (

) as shown in the illustration.

TAPP061E

Close the connector cover.

TAPP070E

Note

❒Print a configuration page to confirm that the paper bank is

properly installed. For instructions on how to print a

configurationpage,see“Printingthe TestPage”inthe “Operating

Instructions” that comes with the printer .

Caution

•

Before installing options, the machine should be turned off and unplugged for

at least thirty minutes.Components inside the machine become very hot, and

can cause a burn injury if touched.

•

Before moving the machine, unplug the power cord from the outlet.If the cord

is unplugged abruptly, it could become damaged.Damaged plugs or cords can

cause an electrical or fire hazard.

•

Whenlifting themachine, use the gripson bothsides.The machinecould break

or cause an injury if dropped.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

PS430

(Code: G520)

For Machine Code: G065

INSTALLATION GUIDE

Important

❒The instructions for installation in this installation guide and in the "Setup Guide" may differ. In this case, follow the instructions in this guide.

❒Confirm a code by the nameplate of the printer.

Confirm that the printer is turned off, and pull the plug out

of the wall outlet.

Remove the tape that holds the paper bank, and remove

the packing material.

Important

❒Do not remove the tape that holds the connector cable on the

backside of the paper bank in this step. It is removed at step .

TAPP801E

TAPP811E

Remove the screw, knob screw and lock plate from inside

the packing material.

TAPD011E

1. Screw

2. Knob Screw (Finger type)

3. Lock Plate

Align the printer over the paper bank, and then lower it

gently onto the paper bank.

Important

❒When lifting the printer, pull out the grips from the front side

ofthe printer. Holdthe front sidegrips, andhold the insetgrips

on the rear side.

❒The printer should be held by at least two people.

Push the grips into the printer.Take out the cover inside

theTray 2 and attach it between the paper tray and the

front cover.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Pull the second paper tray (Tray 2) up until it stops.After

that, lift it slightly, then pull it out.

TAPH210E

Pull out the first paper tray (Tray 1), and take the

screwdriver (

) from the tray.

Note

❒Be sure to return the screwdriver to the paper tray after using

it.

Lock the paper bank and the printer with the screw.

Replace the second paper tray (Tray 2) into the printer.

TAPH221E

Open the lower vertical paper feed cover on the right side

of the paper bank (

).Hang the lock plate hook in the

hole inside (

), and then fasten the plate with the knob

screw using your fingers.

TAPP050E

Close the lower vertical paper feed cover.

Open the connector cover (

), remove the tape that

holds the connector cable and attach the connector

cables (

) as shown in the illustration.

Close the connector cover.

Note

❒Print a configuration page to confirm that the paper bank is

properly installed. For instructions on how to print a

configuration page, see “Printing a Configuration Page” in the

“Printer Reference” on the CD-ROM labeled “Operating

Instructions” that comes with the printer .
