Rextron AcroGear DAG12 Manuel utilisateur
Package Contents:
DAG12
2-Port AcroGear (DAG12) x 1
User’s manual x 1
Rubber foot pad x 1 set
DAG14
4-Port AcroGear (DAG14) x 1
User’s manual x 1
Rubber foot pad x 1 set
Copyright Rextron Technology, Inc.
PP5-T7300-000
Printed in Taiwan
Table of Content
Introduction
Overview.......................................................... 1
Features .......................................................... 2
System Requirements
Console side.................................................... 3
Computer side ................................................. 3
Installations
PC BIOS Notice............................................... 4
Console Connection ........................................ 5
Computers Connection.................................... 6
Operations
Front Panel operation...................................... 7
Rack Mount Kit ................................................ 9
Appendices
Specifications................................................. 10
Troubleshooting ...........................................11
Please read this manual thoroughly and
follow the Installation procedures to prevent any
damage to the AcroGear or any connecting
device.
1
----------------- Introduction
Overview
The DAG12 and DAG14, fully compatible with USB
specification, are combination of USB KVM
(keyboard/Video/mouse) switch and USB peripherals
sharing device. With the DAG12 or DAG14, you can
easily operate up to 2 or 4 PCs, G3/G4 Macs, or iMacs
respectively from 1 USB keyboard, 1 USB mouse, and
1 monitor saving you space, time, equipment and
money. Its peripheral sharing function enables you to
share more USB peripherals among all computers.
Installation is as easy as connecting USB A-B cables
to computers and to the DAG switch. Computer
selecting is as easy as front panel button pressing.
The built-in USB hub ensures smooth switching from
one computer to the other. The DAG switches
provide the easiest way to manage multiple computers
with USB interface and share USB peripherals among
computers. No more tangled cables and messy
working environment; let the DAG switch do the
computer switching for you.
2
Features
Manage 2 or 4 PCs, G3/G4 Macs, or iMacs from
one USB keyboard, mouse and monitor with
DAG12 and DAG14 respectively.
2 or 4 computers share up to 3 or 4 different USB
peripherals with DAG12 and DAG14 respectively.
Front panel push buttons for easy computer
selection.
No drivers needed for keyboard and mouse
operation.
Support keyboard and mouse plug-n-play.
DVI interface.
Buzzer sound for computer switching confirmation.
Activate Auto Scan by front buttons pressing.
Selectable Scan Time interval.
Support the DVI-I monitor.
Saves time, space, equipment and power.
USB self-power operation.
No software required.
3
----------------- System Requirements
Console side
One DVI monitor
One USB keyboard
One USB mouse
Computer side
Each USB-enabled computer must be connected to
the DAG switch by

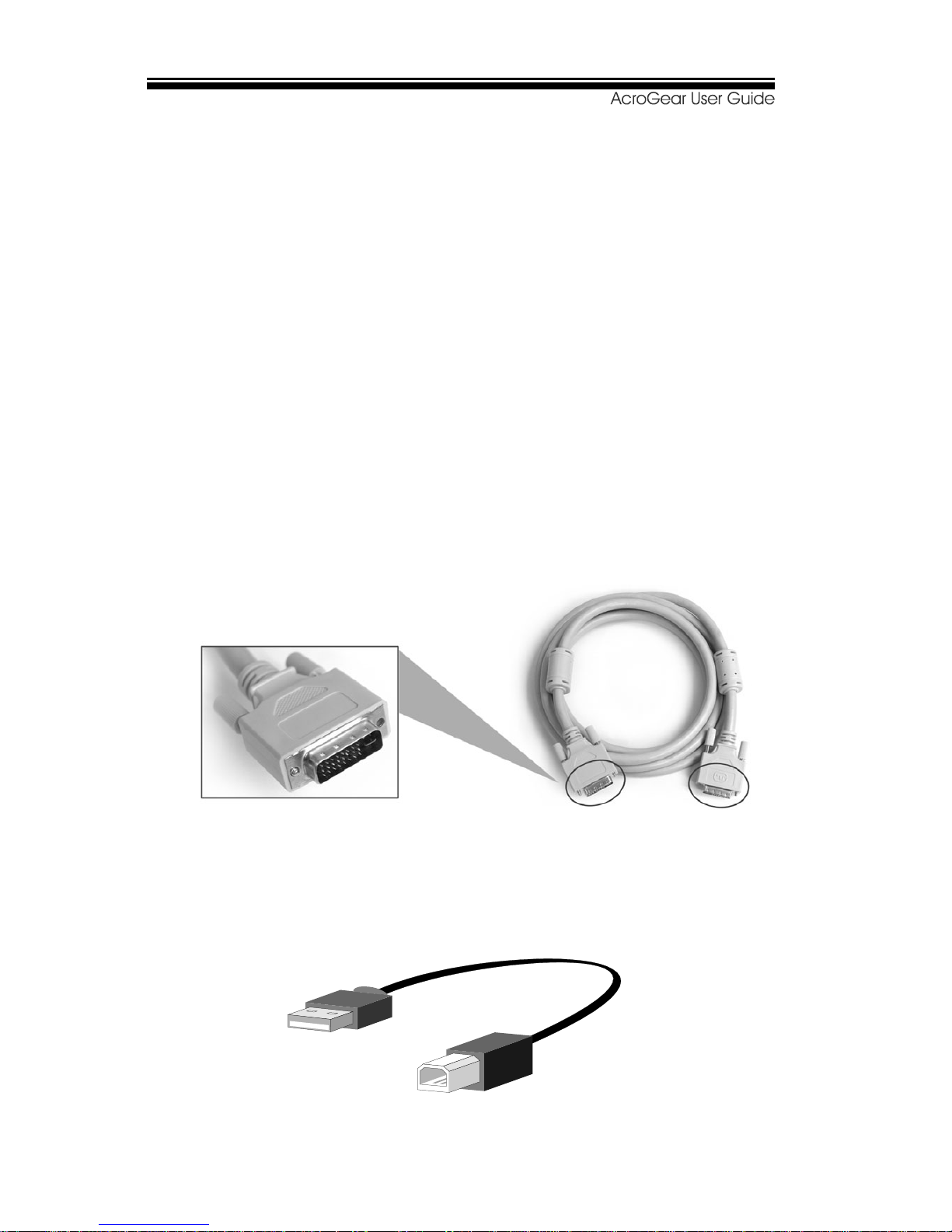

One DVI-I cable for monitor, as shown in figure 1.
Figure 1. DVI-I cable
One USB A-B cable with Type-A and Type-B plug
for USB devices, as shown in figure 2.
Figure 2. USB A-B cable
4
----------------- Installation
PC BIOS Notice
The following BIOS setup changes are necessary for
PC users and not necessary for Mac users:
1. In STANDARD CMOS, set HALT ON ERROR to
ALL BUT KEYBOARD.
2. In PNP AND PCI SETUP, set PNP OS INSTALLED
to YES and set USB IRQ to ENABLED.
Note: The DAG switch is applicable for USB keyboard
and mouse switching from one computer to the
other. If you plan to share other peripherals
such as a CCD camera, printer or scanner, it is
required to shut down the driver of the computer
before switching to another computer.
Because port switching is equivalent to
unplugging the USB cable from one computer
and plugging it to another one, some USB
drivers check attached USB peripherals all the
time and do not accept plug-n-play function.
5
Console Connection
Before installation, make sure all devices and
computers to be connected to the DAG switch have
been turned off.

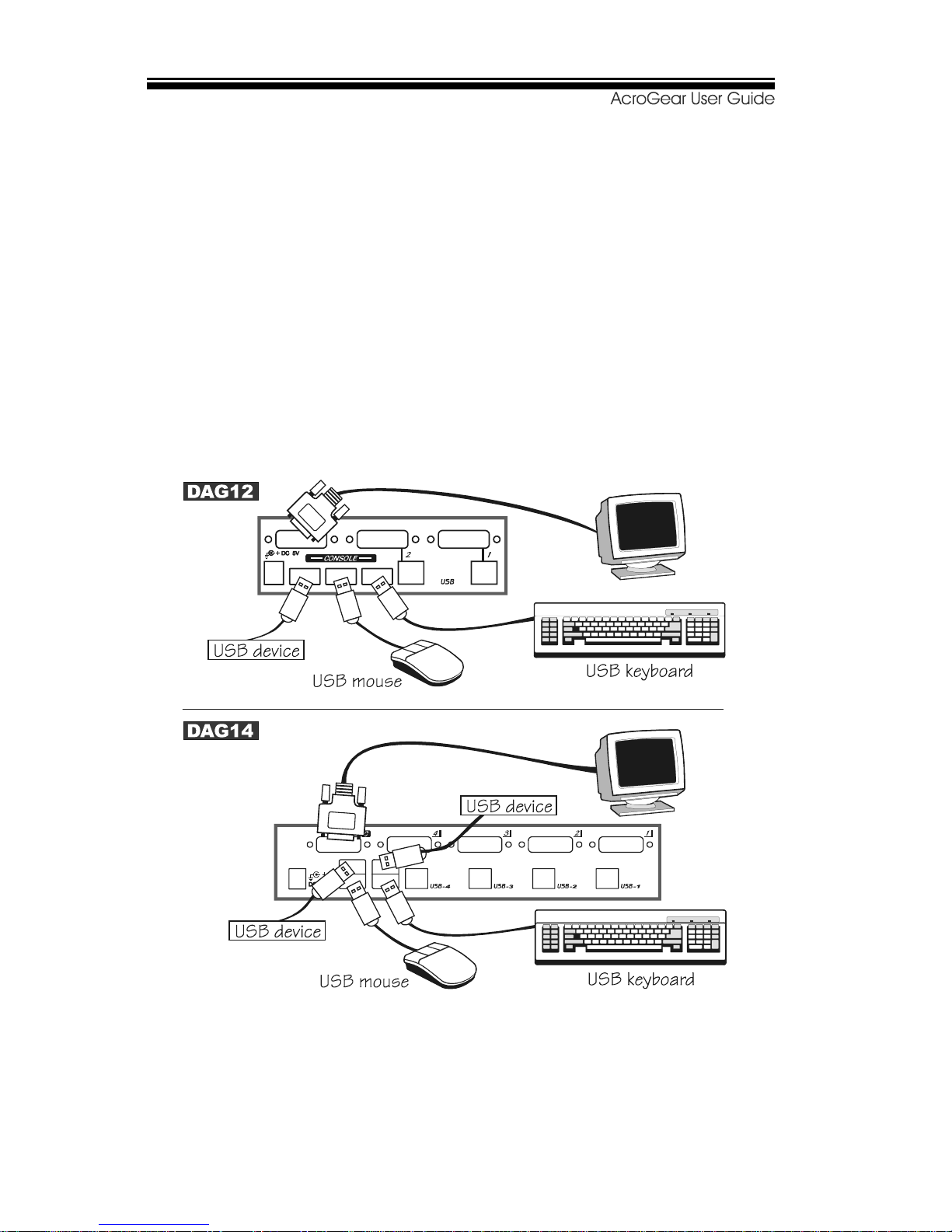

Plug a monitor to the Console's DVI-I port; plug a USB
keyboard and a USB mouse to any two of the
Console's USB ports as shown in figure 3.
Figure 3. Console Connection
6
Computers Connection

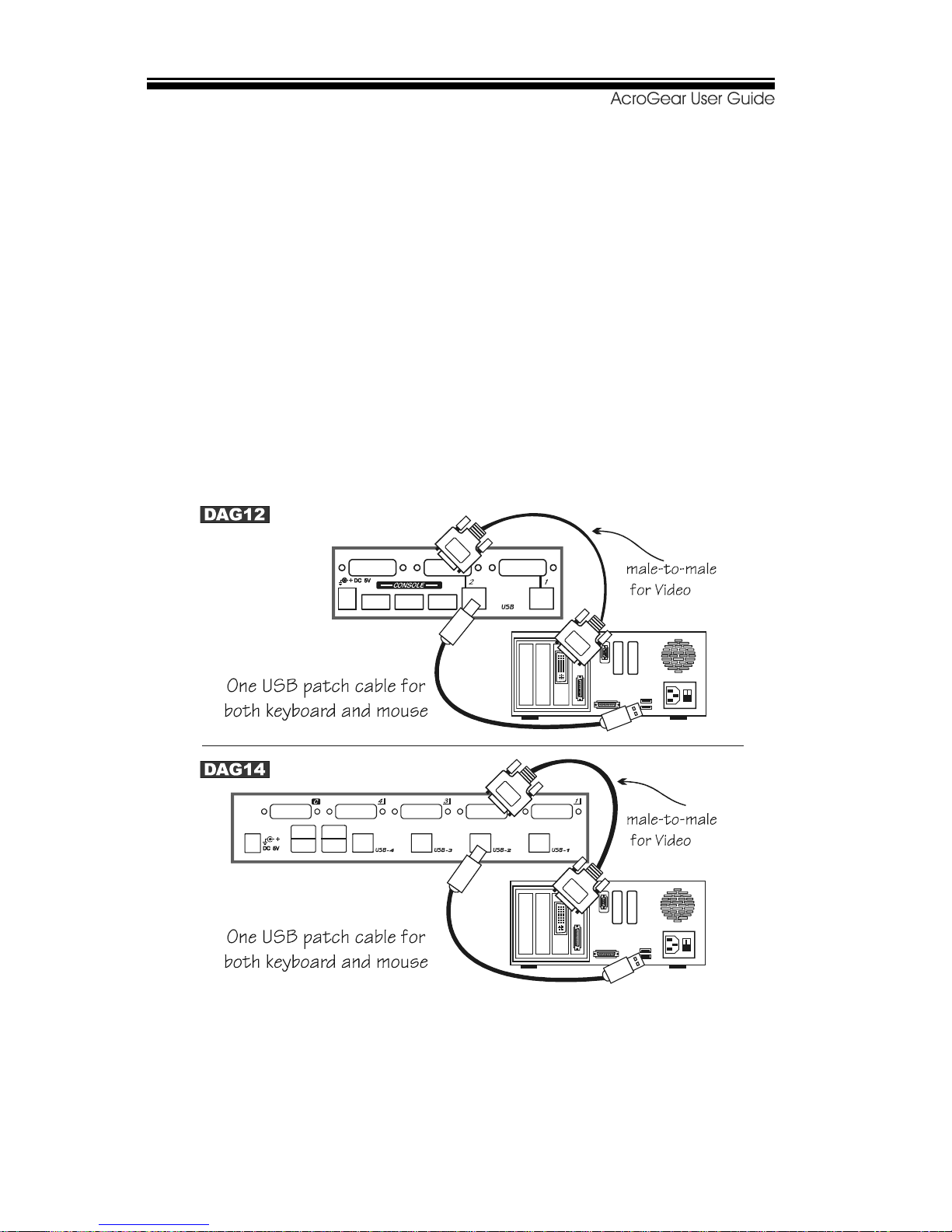

Use a male-to-male cable to connect from a
computer's DVI-I port to DAG's DVI-I port of PC side,
as shown in figure 4.
Use a USB A-B Cable to connect from the DAG's USB
port (B connector, square connector) to the USB port
on the corresponding computer (A connector, flat
connector), as shown in figure 4.
Figure. 4 Computer Connection
Now, you can turn on all devices and computers.
7
----------------- Operations
Front Panel
1. On-line LED & Selected LED
When the LED turns green, the connected
computer is powered-on. When a computer is
selected, its corresponding red LED illuminates.
2. Pushbuttons
Each computer has a button associated with it on
the front panel for selection.
Auto Scan
Auto Scan automatically scan through computers one
by one in a fixed interval (see Scan Time below).
Note: keyboard and mouse are not operable during
Auto Scan.
Scan Time
It sets the scan interval for Auto Scan. The Scan
Time options are 3, 8, 15 and 30 seconds.
Note: Scan Time is automatically set to the default of
3 seconds when the DAG switch loses power.
