Retrotec DM32 Manuel utilisateur

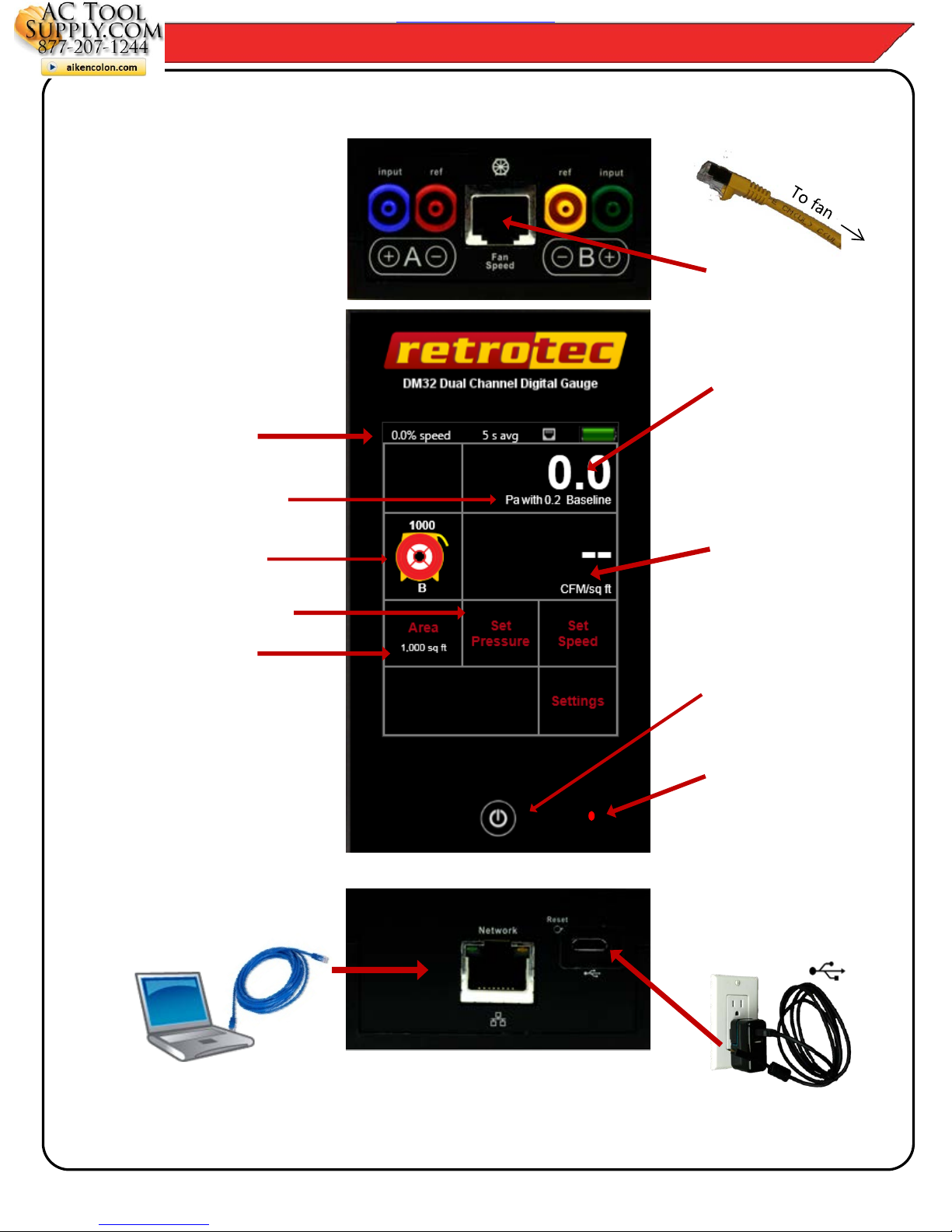

[Channel A]
pressure difference
across blue “input” and
red “ref” ports
[Channel B]
….across green “input”
and yellow “ref” ports
Tap in the boxes on
the touch sensitive
Home screen
Control fan speed
Computer connection
with Ethernet cable
Fan speed, time average,
network and battery
status
On for charging,
off when charged
QuickGuide
DM32 Dual-Channel Digital Gauge
Recharge using micro-
USB to USB cable
Made in Everson, WA USA
QG160 Page 1 of 4 2013-04-15
On/Off and Home
Select Device and Range
Get latest updates online
Set to any pressure
Dimensions eliminate
calculations
Baseline being subtracted
actoolsupply.com
actoolsupply.com
actoolsupply.com
actoolsupply.com
actoolsupply.com
Retrotec US1312 Blower Door System
Retrotec US1311 Blower Door System
Retrotec US1211 Blower Door System
Retrotec US1112 Blower Door System
Retrotec US1111 Blower Door System
Retrotec US1102 Blower Door System
Retrotec US1101 Blower Door System
Retrotec US1212 Blower Door System
Tap [Channel B]
Plug in color-
coded tubes
Connect ethernet-style Cable
from gauge to fan

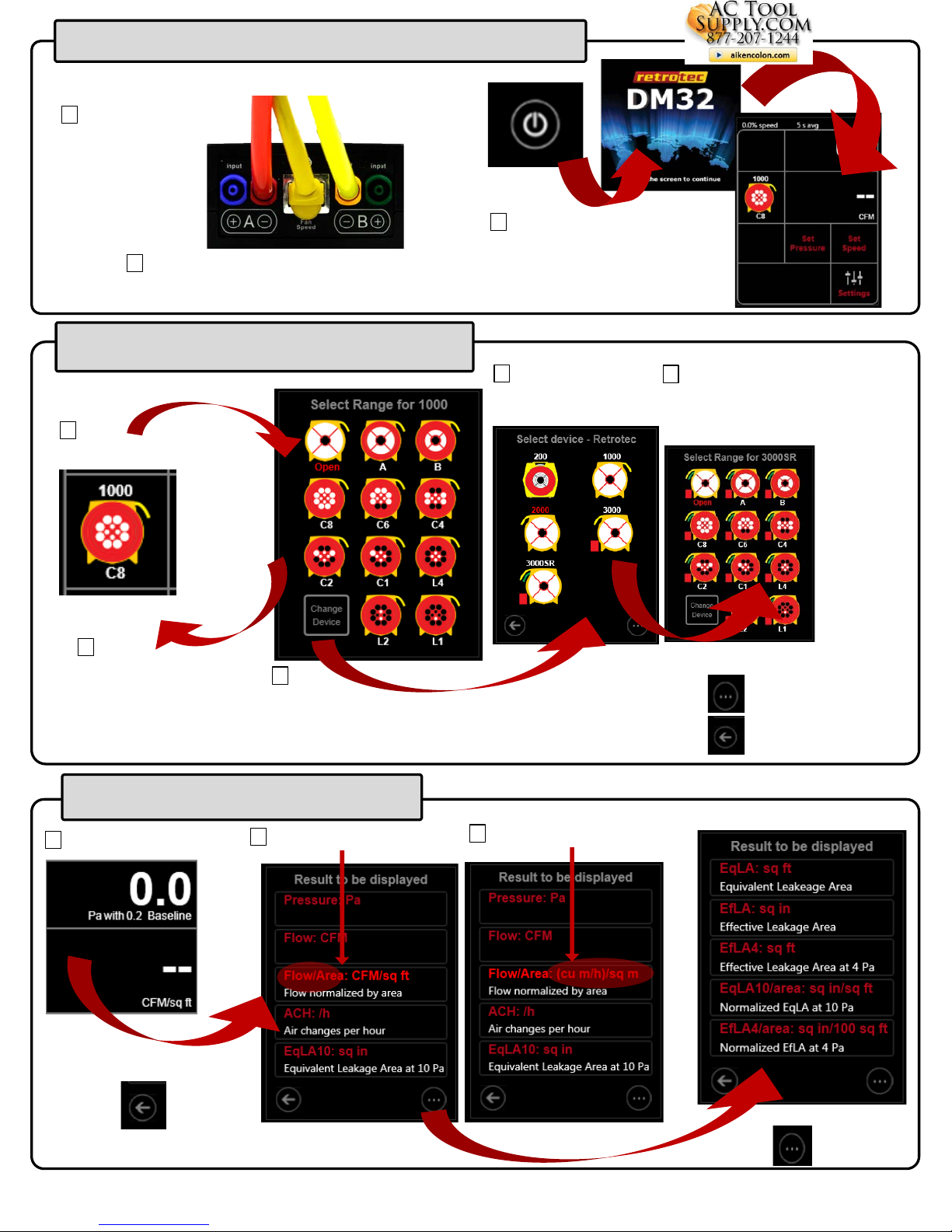

1: Make connections and power On
3: Choose desired Result
2: Set Range or Device
Tap for options
Tap
Tap to return Home
Tap for more choices
to see Device options
Press for 2 seconds
to turn On /Off
Tap to change units
Tap
for previous screen Tap for more
Tap
to select Device
Tap to select and
return Home
Tap
to select Range
OR
Page 2 of 4
Tap to select Result
actoolsupply.com
actoolsupply.com
to target a pressure
to set to a speed
Tap to “Hold”,
Tap to release
OR
Tap to turn fan Off
c
a
b

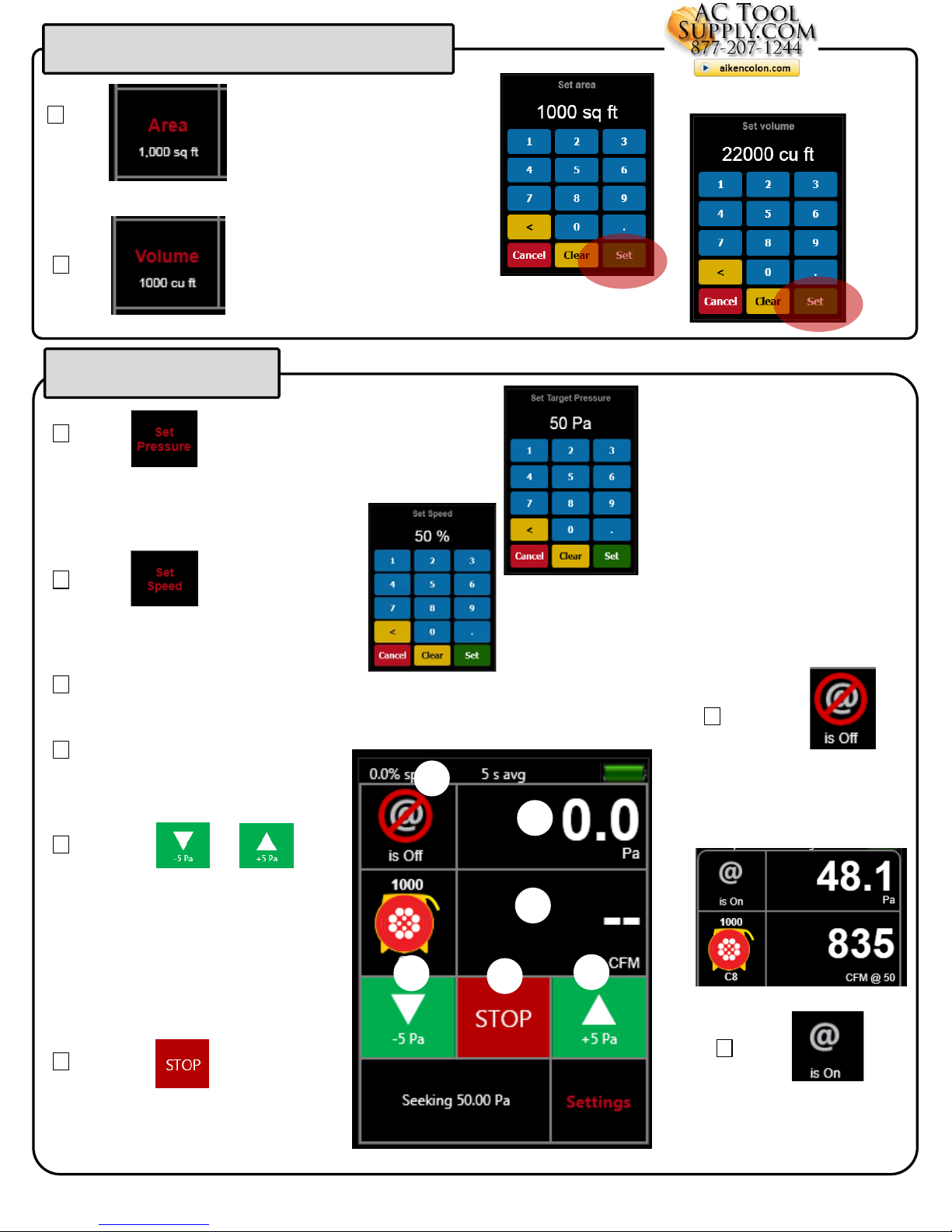

5: Run a test
Tap to change Result
to decrease or increase
c
Tap to calculate Result
exactly at (@) the “Set
Pressure”
4: Set Area and Volume
Tap and [Set] volume for:
Tap and [Set] area for:
Flow/Area
EqLA10/Area
EfLA4/Area
Tap
Tap
Tap or
a
b
e
d
c
to remove @
d
e
Page 3 of 4
ACH (Air Changes per Hour)
Tap
Tap
actoolsupply.com
actoolsupply.com
If connecting to Hub/Switch or PC,
tap [Mode] and select “Static “.
For 2nd gauge enter IP Address: 169.254.1.2
For 3rd gauge enter IP Address: 169.254.1.3
……
Tap [Capture Baseline] to begin sampling
Tap [End Capture] after 15 to 60 seconds
The displayed Baseline pressure is subtracted from all
future [Channel A] readings.
Tap [Settings]>>[Baseline] >>[Clear Baseline] to
remove.
Tap
[Network] Shows connection information.
[Default @ Pressure] Adjust the pressure to which results
are extrapolated.
[Power down time] Enter time, “Off” means never.
[Sound] On or off.
[Ducts=0.6, House=0.65] Enter “n” for ducts or house.

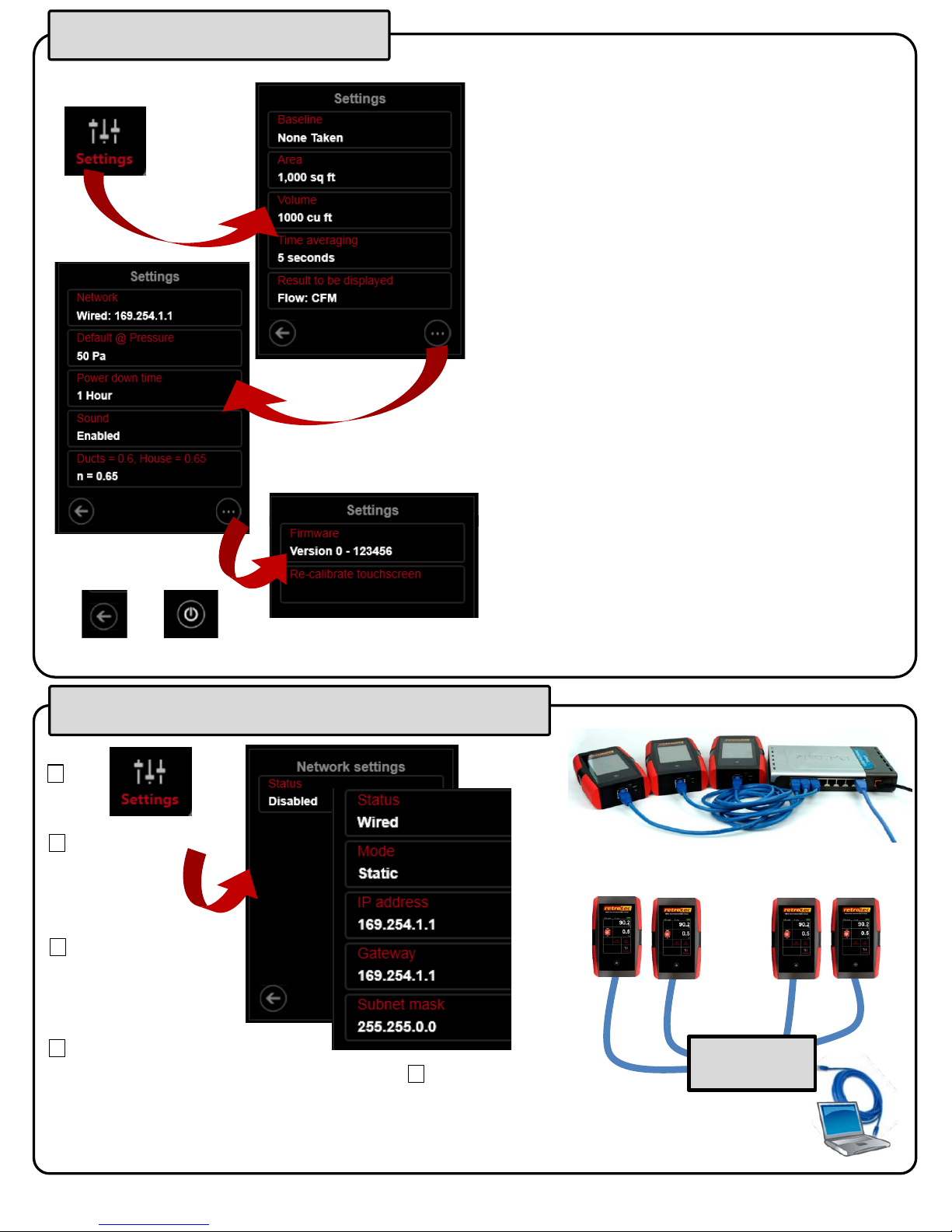

[Settings] allows you to change:
[Area]
[Volume]
[Time Averaging]
[Result to be displayed]
[Baseline]: Measure and remove Bias/Baseline pressures.
Change gauge Settings
to return to Home
Tap
[Firmware]: View current version or initiate update process.
[Re-calibrate touchscreen] Adjust the sensitivity.
Tap [Network]
Connect many gauges to a computer
Tap
If connecting to a Router just
tap [Mode] and select “DHCP “
Tap [Status] and
select “Wired “
OR
OR
Hub/Switch
or Router
…
Page 4 of 4
actoolsupply.com
actoolsupply.com
