ReSound RS DELHI Manuel utilisateur

Technical Manual

RS DELHI Platform

ReSound A/S

Global Technical Operations

http://gto.gnresound.com

Lautrupbjerg 7

DK-2750 Ballerup

Denmark

Doc 0213850 rev M

Page 2 of 22

Not subject to issue control when printed

Table of Contents

Form-Factor-Matrix & Product information.............................................................................3-4

Part list ............................................................................................................................................... 5

Part list - test equipment................................................................................................................. 6

Part list - programmed service modules/ASM FRAME ............................................................. 7

Part list - HSG parts.................................................................................................................... 8-10

Part list, thin tubes/domes .....................................................................................................11-12

BICROS set up - Delhi 90 ...............................................................................................................13

Disassemble procedure...........................................................................................................14-15

Replace / reassembling.................................................................................................................16

Service & postponement procedure...........................................................................................17

Test equipment...............................................................................................................................18

Prepare for HI test....................................................................................................................19-20

Testing ........................................................................................................................................21-22

Doc 0213850 rev M

Page 3 of 22

Not subject to issue control when printed

Platform Product

Name Model Data Sheet

DELHI

(60 models - 312 batt size) VEA 3 VE360-DI 400052000

DELHI

(70 models - 13 batt size)

VEA 3 VE370-DVI

400053000VEA 2 VE270-DVI

VEA 1 VE170-VI

DELHI

(80 models - 13 batt size)

VEA 3 VE380-DVI

400054000VEA 2 VE280-DVI

VEA 1 VE180-VI

DELHI

(90 models - 675 batt size)

MAGNA 4 MG490-DVI 400265000

MAGNA 2 MG290-DVI

This Technical Manual serves to outline the service & postponement procedure for products listed in the form-factor-matrix below:

Available colours:

BEIGE (BGE), DARK BROWN (DBR), MEDIUM BLONDE (MBL), MARBLE GREY (MGR)*, BLACK (BLK) & STERLING GREY (STG).

Please note that MG290-DVI is available in these colours only: MBL, MGR*, BLK & STG

HI STG: HSG parts are GRY3

*HI & parts in MGR have been terminated in May 2017 and will therefore no longer be available. Possible stock of spare parts can be used up

VEx60 & VEx70 are delivered with TUBE ADAPT for thin tubes/open conﬁguration & HOOK ASM

VEx80 is delivered with HOOK ASM - open conﬁguration is not possible

MGx90 is delivered with HOOK ASM & HOOK ASM W/FILTER - open conﬁguration is not possible

Form-Factor-Matrix & Product Information

DELHI 90 DELHI 60DELHI 70/80

Doc 0213850 rev M

Page 4 of 22

Not subject to issue control when printed

Late 2012 new improved HSG parts, prog service module/ASM FRAME, hooks & thin tube adapt were introduced for the 60-70-80 models. A

small overview for a repair situation:

“Old” version:

HSG parts require only one pin. TOP and BOT HSG are glued to be ﬁxed and cannot be reused. HSG parts will ﬁt old and new version of prog

service modules. If only replacing the hook/adapt,the old hooks & thin tube adapt must be chosen due to the visual look (tiny dierences in outer

dimensions). If old HSG parts are replaced to new HSG parts, the hook and prog service module must be replaced to new version too. Old HSG

parts, prog service module/ASM FRAME, hooks & thin tube adapt are now terminated. P/n’s are removed from this manual

“New” version:

HSG parts require two pins. TOP and BOT HSG are NOT glued and can be reused if not scratched. HSG parts will only ﬁt new version of prog

service modules due to the new module has two holes for the two pins. If replacing the hook/adapt, the new hooks/thin tube adapt must be

chosen due to the visual look (tiny dierences in outer dimensions). P/n’s for new HSG parts, prog service module/ASM FRAME, hooks & thin

tube adapt to be found in this manual

For pin For pin

For pin

Old 1 pin version New 2 pins version

Product Information - Delhi 60/70/80

Doc 0213850 rev M

Page 5 of 22

Not subject to issue control when printed

Description Part No

PIN,0.60X5.90 (for 60 HSG parts) 15344200

PIN,0.60X8.20 (for 60 HSG parts) 16342400

PIN,0.60X6.05 (for 70/80/90 HSG parts) 16059700

PIN,0.60X8.80 (for 70/80 HSG parts) 15344000

PIN,0.60X9.20 (for 90 HSG parts) 18537500

PB CAP, SLG 17007700

BABY HOOK,ASM,DELHI 18577200

HOOK ASM,DELHI,UPDATED 18576300

HOOK ASM,DELHI,W/FILTER 18978800

COLOR MARKER,BLUE,DELHI 17465000

COLOR MARKER,RED,DELHI 17465001

TUBE ADAPTOR,DELHI (for 60/70 models only) 18575700

MANDREL FOR BATTERY LOCK 0490-059

PIN REMOVAL TOOL. PACKED 15502500

Description Part No

AUTOPHONE MAGNETS (3 pcs) 17294600

GENERIC BRUSH, BLK 17435000

AUD SHOE ASM,W/O TRMR,DELHI (60/70/80/90) 17631100

AUD SHOE ASM,W/TRMR,DELHI (90) 17598100

BICROS AUD SHOE ASM,DELHI (90) 17637300

BICROS,DELHI90,MBL (90) 18939002

Cord For Audio 1.8 200 MM * 7000-409

Cord For Audio 1.8 220 MM * 7000-439

Cord F.Cros 1.8 260 MM * 7000-459

Cord For Audio 1.8 240 MM * 7000-469

Cord F.Cros 1.8 280 MM * 7000-479

Cord F.Cros 1.8 300 MM * 7000-489

CORD FOR AUDIO 1.8 500 MM * 7000-499

Pin removal

tool

Mandrel

Magnet

Cleaning

loop

Brush, black

Aud shoe w/o trimmer

3 pin

Euro plug

* Cords with 3 pin Euro for CROS set up (di lengths)

The trim. on the Aud shoe w/trim is

placed underneath the on/o button.

Aud shoe w/o trim is shown on this pic

Thin tube adapt

Colour Markers

Part List

Doc 0213850 rev M

Page 6 of 22

Not subject to issue control when printed

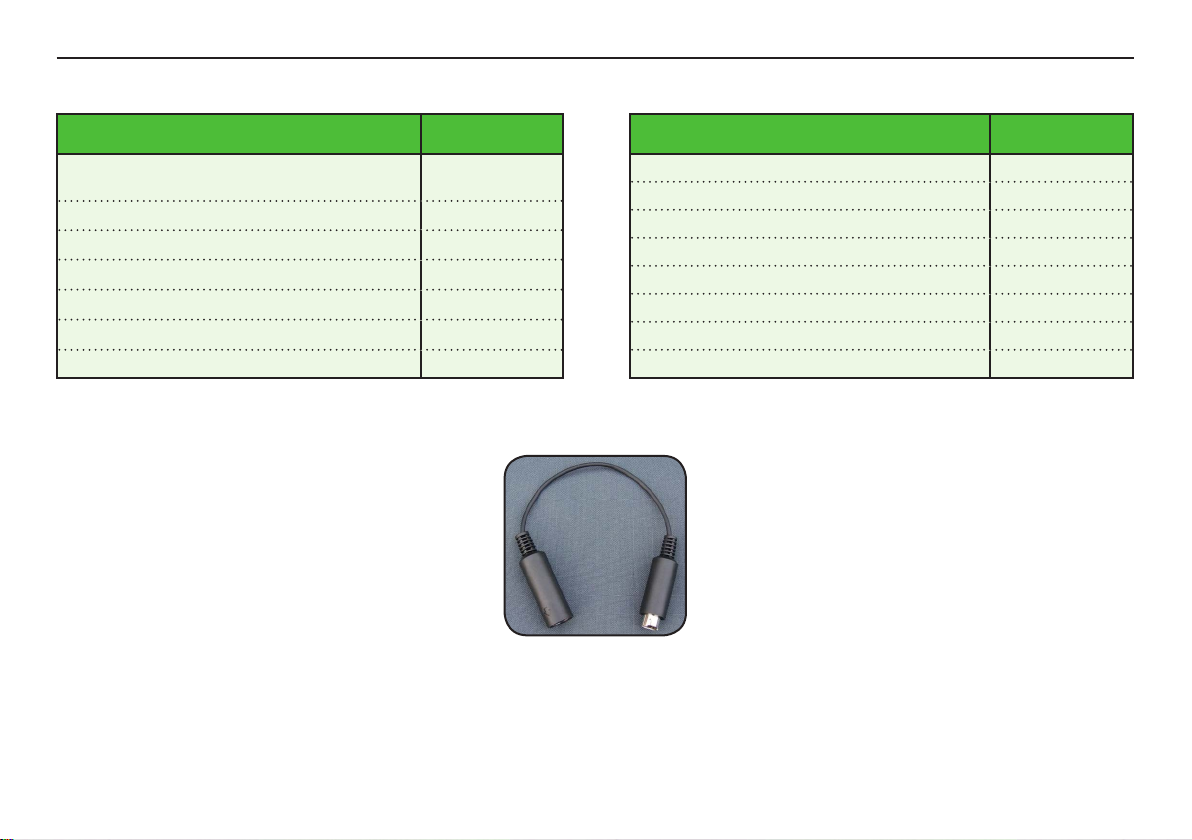

TEST EQUIP DELHI90 Part No

TEST JIG, DELHI90

(white ﬁxture attached to the brown test frame) 18985500

TEST RING (for good sealing during HI test) 15472600

BATTERY PILL, 675+ 17449500

PROG. CABLE EXTENSION, MILANO* 17517800

PROG CABLE R 9022 907 69019

PROG CABLE L 9022 907 69029

PROG ADAPTOR,W/ CS44 SOCKET,DELHI 17598200

Please ﬁnd pictures of test equipment in the last pages

TEST EQUIP DELHI60 / 70 / 80 Part No

SERVICE JIG/FIXTURE 18097500

TEST FRAME (HI test) 16902800

BATTERY PILL, 13+ (70/80 models) 17449400

BATTERY PILL, 312+ (60 models) 17449300

PROG. CABLE EXTENSION, MILANO* 17517800

PROG CABLE R 9022 907 69019

PROG CABLE L 9022 907 69029

PROG ADAPTOR,W/ CS44 SOCKET,DELHI 17598200

* is mandatory when performing HI test for some models (due to the current measurement). It is NOT mandatory for models belonging to the DELHI

platform shown in this Tech Man. However if it is already attached to the DSA6000, there is no need to remove it as it will not have any impact on the

test of DELHI models

PROG. CABLE EXTENSION, MILANO

P/n 17517800

Part List - Test Equipment

Doc 0213850 rev M

Page 7 of 22

Not subject to issue control when printed

Service Module DELHI 70/80

(dual mic is shown)

Service Module DELHI 60

Description Part No

ASM,FRAME,VE360-DI,PROG 18731400

COLOUR VE370-DVI VE270-DVI VE170-VI VE380-DVI VE280-DVI VE180-VI MG490-DVI MG290-DVI

BGE 18732400 18733500 18734200 18734400 18734600 18734800 18992400 N/A

DBR 18732401 18733501 18734201 18734401 18734601 18734801 18992401 N/A

MBL 18732402 18733502 18734202 18734402 18734602 18734802 18992402 18992502

MGR 18732403 18733503 18734203 18734403 18734603 18734803 18992403 18992503

BLK 18732404 18733504 18734204 18734404 18734604 18734804 18992404 18992504

GRY3 18732420 18733520 18734220 18734420 18734620 18734820 18992420 18992520

Programmed service modules/ASM FRAME are nano coated

Service Module DELHI 90

70/80/90 prog service modules are available in dierent colours due to a VC in dierent colours is mounted

Part List - Programmed Service Modules/ASM FRAME

Note: HI & spare parts in MGR colour have been terminated in May 2017 and will therefore no longer be available. Possible stock of spare parts

can be used up

Doc 0213850 rev M

Page 8 of 22

Not subject to issue control when printed

COLOUR PB COVER HSG TOP HSG BOT

(printed)

BAT T

DOOR

BGE 18191000 18730600 18730500 18730700

DBR 18191001 18730601 18730501 18730701

MBL 18191002 18730602 18730502 18730702

MGR 18191003 18730603 18730503 18730703

BLK 18191004 18730604 18730504 18730704

GRY3 18191020 18730620 18730520 18730720

Note:

The serial No printed PC cover is not an available

spare part. When replacing the housing parts, the

PC cover must be transferred to new BOT HSG

All housing parts are nano coated

Part List - Housing Parts DELHI 60

Note: HI & spare parts in MGR colour have been terminated in May 2017 and will therefore no longer be available. Possible stock of spare parts can

be used up. If a MGR HI comes in for replacement of e.g. a broken batt door and no MGR batt door is available from stock, then all HSG parts can be

replaced to GRY3 HSG parts instead

Doc 0213850 rev M

Page 9 of 22

Not subject to issue control when printed

COLOUR HSG TOP HSG BOT

(printed)

(single mic)

DVI

(dual mic) VE370-DVI VE270-DVI VE170-VI VE380-DVI VE280-DVI VE180-VI

BGE 18734000 18732500 18732700 18733400 18734100 18734300 18734500 18734700

DBR 18734001 18732501 18732701 18733401 18734101 18734301 18734501 18734701

MBL 18734002 18732502 18732702 18733402 18734102 18734302 18734502 18734702

MGR 18734003 18732503 18732703 18733403 18734103 18734303 18734503 18734703

BLK 18734004 18732504 18732704 18733404 18734104 18734304 18734504 18734704

GRY3 18734020 18732520 18732720 18733420 18734120 18734320 18734520 18734720

COLOUR PB COVER BAT T

DOOR

BGE 18191000 18732600

DBR 18191001 18732601

MBL 18191002 18732602

MGR 18191003 18732603

BLK 18191004 18732604

GRY3 18191020 18732620

Note:

The serial No printed PC cover is not an available spare part.

When replacing the housing parts, the PC cover must be

transferred to new BOT HSG

All housing parts are nano coated

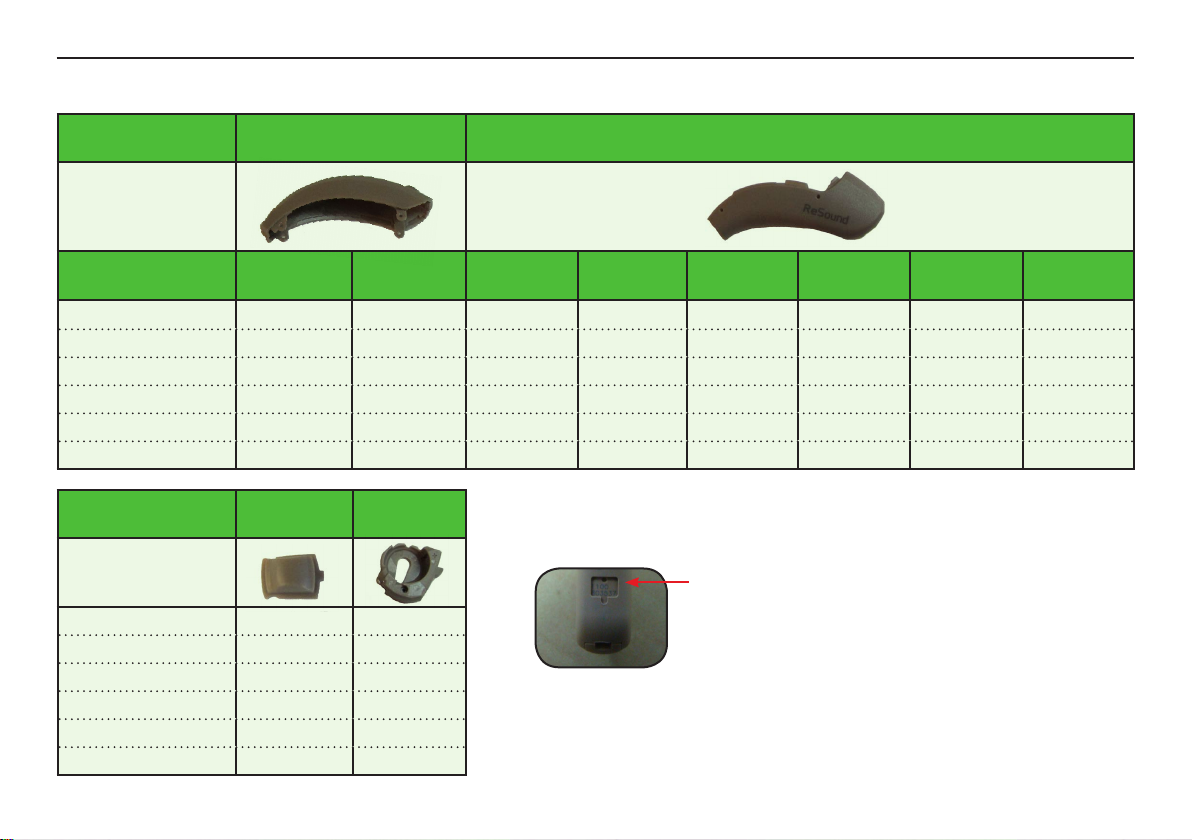

Part List - Housing Parts DELHI 70 & 80

Note: HI & spare parts in MGR colour have been terminated in May 2017 and will therefore

no longer be available. Possible stock of spare parts can be used up. If a MGR HI comes in

for replacement of e.g. a broken batt door and no MGR batt door is available from stock,

then all HSG parts can be replaced to GRY3 HSG parts instead

Doc 0213850 rev M

Page 10 of 22

Not subject to issue control when printed

COLOUR HSG TOP HSG BOT

(printed) PB COVER BAT T

DOOR

MG490-DVI MG290-DVI

BGE 18994400 18994600 N/A 18191000 18994500

DBR 18994401 18994601 N/A 18191001 18994501

MBL 18994402 18994602 18994702 18191002 18994502

MGR 18994403 18994603 18994703 18191003 18994503

BLK 18994404 18994604 18994704 18191004 18994504

GRY3 18994420 18994620 18994720 18191020 18994520

Part List - Housing Parts DELHI 90

Note:

The serial No printed PC cover is not an available

spare part. When replacing the housing parts, the

PC cover must be transferred to new BOT HSG

All housing parts are nano coated

Note: HI & spare parts in MGR colour have been terminated in May 2017 and will therefore no longer be available. Possible stock of spare parts can

be used up. If a MGR HI comes in for replacement of e.g. a broken batt door and no MGR batt door is available from stock, then all HSG parts can be

replaced to GRY3 HSG parts instead
