ResMed VPAP ST-A Manuel utilisateur

Making quality of care easy

Respiratory Care Solutions

Welcome Guide

English

VPAP™ST-A

NONINVASIVE VENTILATOR

H5i™

HEATED HUMIDIFIER

Making quality of care easy

Respiratory Care Solutions

Welcome

Thank you for choosing the VPAP ST-A or H5i. Before operating the device, please read the entire

Welcome and Information Guides.

VPAP ST-A at a glance

The VPAP ST-A system comprises the following elements:

• VPAP ST-A device • Air tubing • 90W power supply unit • S9 Travel bag • SD card • S9 SD card

protective folder.

Optional components include:

• H5i heated humidifier • Standard air tubing • SlimLine air tubing • 3 m air tubing • ClimateLine

heated air tubing • ClimateLineMAX heated air tubing • 30W power supply unit (does not support H5i)

• Power Station II battery pack • DC/DC Converter 24V/90W.

Traveling tips

When traveling with your VPAP ST-A only:

• Ensure you pack the SlimLine or Standard air tubing as the ClimateLine or ClimateLineMAX heated air

tubing is not designed to connect directly to the device.

• Ensure you purchase and travel with the approved power cord for the region where you will be using

the device.

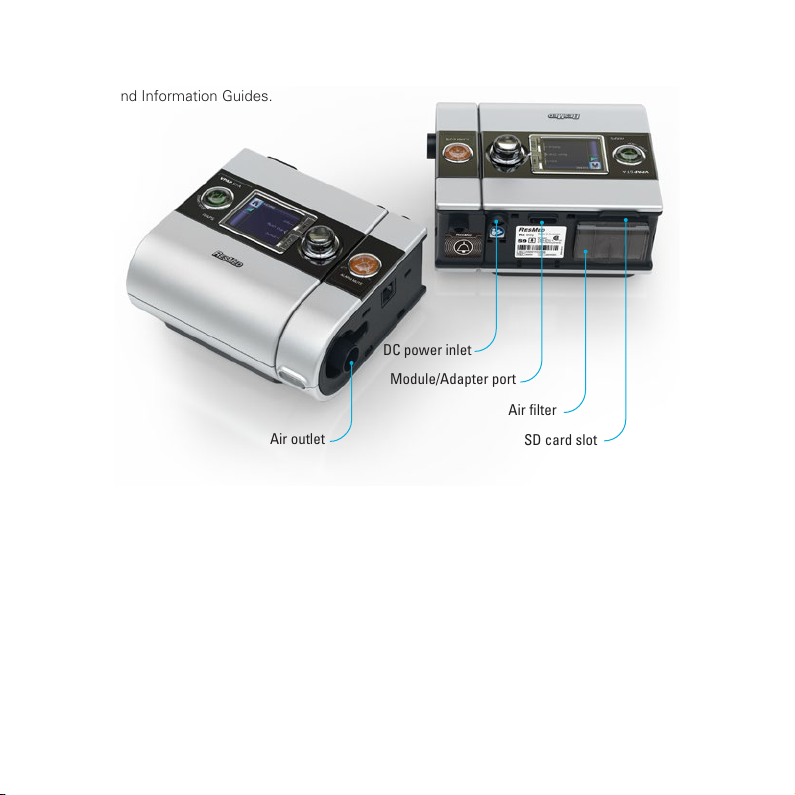

Air filter

DC power inlet

SD card slot

Module/Adapter port

Air outlet

English

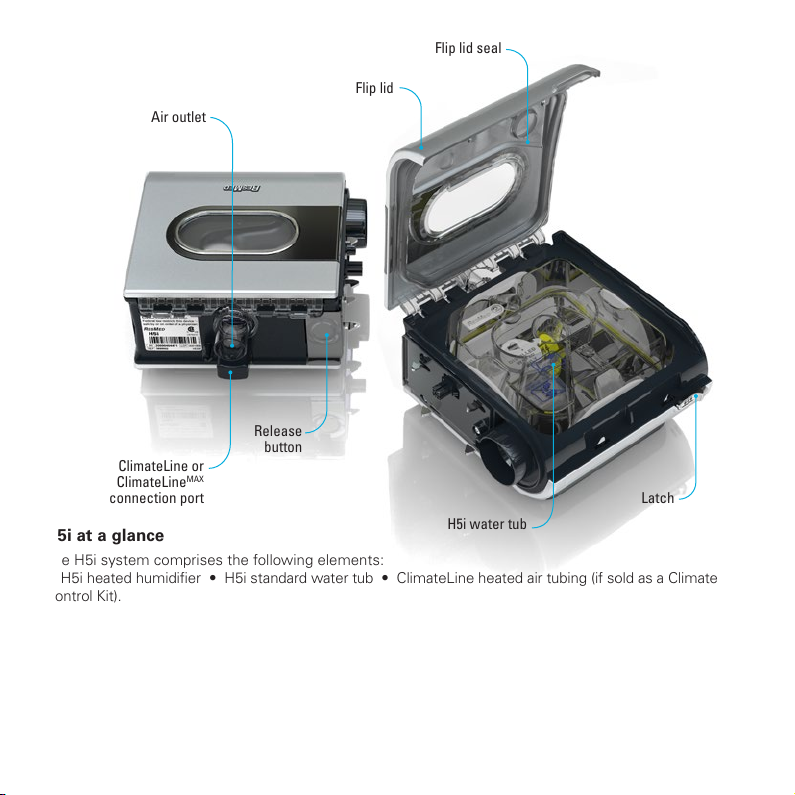

H5i at a glance

The H5i system comprises the following elements:

• H5i heated humidifier • H5i standard water tub • ClimateLine heated air tubing (if sold as a Climate

Control Kit).

Optional components include:

• ClimateLineMAX heated air tubing • H5i cleanable water tub.

Traveling tips

When moving or traveling with your H5i:

• Ensure that the water tub is empty.

• Disconnect the H5i from the device by using the release button.

Latch

Flip lid

Air outlet

H5i water tub

Release

button

Flip lid seal

ClimateLine or

ClimateLineMAX

connection port

Setting up

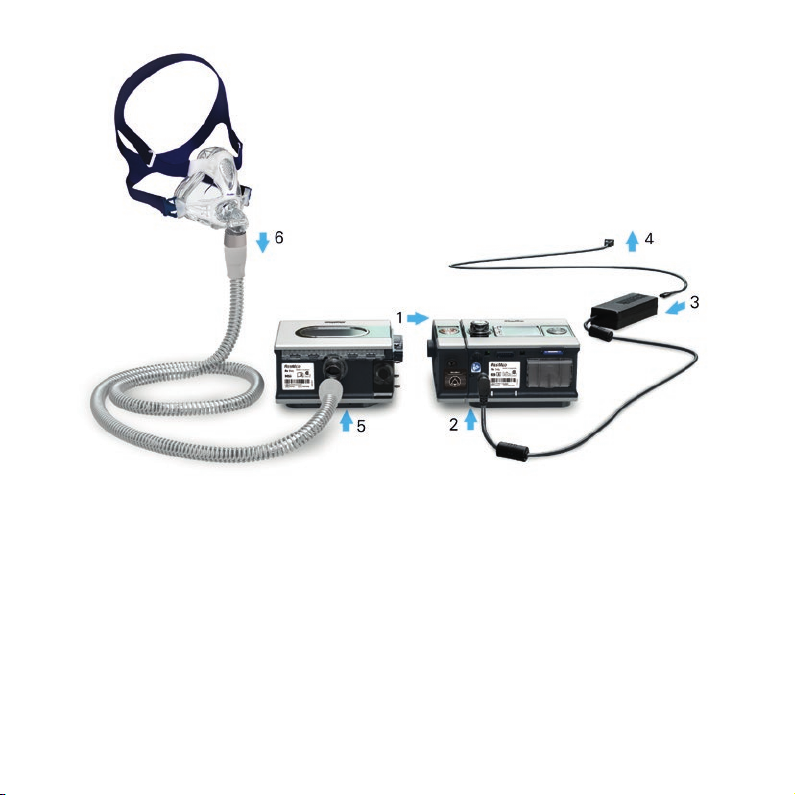

1. Align your H5i with the VPAP ST-A and push them together until they click into place.

2. Connect the DC plug of the power supply unit to the rear of the device.

3. Connect the power cord to the power supply unit.

4. Plug the other end of the power cord into the power outlet.

5. Connect one end of the air tubing firmly onto the air outlet.

6. Connect the assembled mask system to the free end of the air tubing.

Notes:

•Always ensure that the VPAP ST-A and H5i are placed on a stable, level surface for proper operation.

•Always ensure that the VPAP ST-A is placed in an area where the alarm LED indicators are clearly visible.

•Place the power supply unit away from the H5i to allow for adequate ventilation.

•For more information on assembling your mask see your mask user guide.

•Recommended masks are available on www.resmed.com on the Products page under Service & Support.

English

Filling the water tub

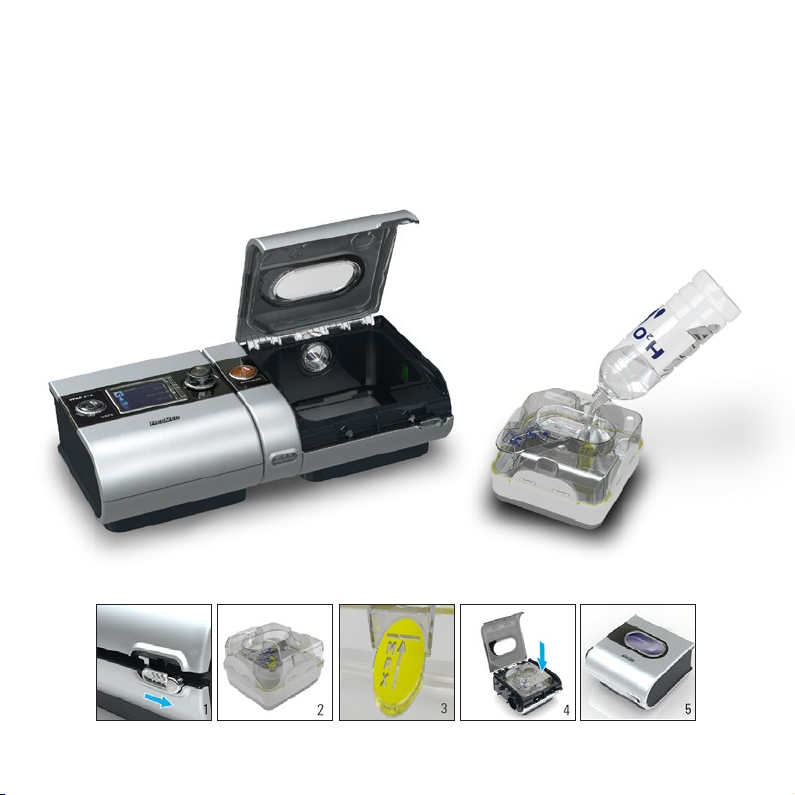

1. Slide the latch and lift open the flip lid.

2. Remove the water tub.

3. Fill the water tub (through the center hole) with distilled or deionized water up to the maximum water

level mark (12.5 fl oz / 380 mL).

4. Return the water tub to the H5i.

5. Close the flip lid ensuring that it clicks into place.

Filling the water tub

1. Slide the latch and lift open the flip lid.

2. Remove the water tub.

3. Fill the water tub (through the center hole) with distilled or deionized water up to the maximum water

level mark (12.5 fl oz / 380 mL).

4. Return the water tub to the H5i.

5. Close the flip lid ensuring that it clicks into place.

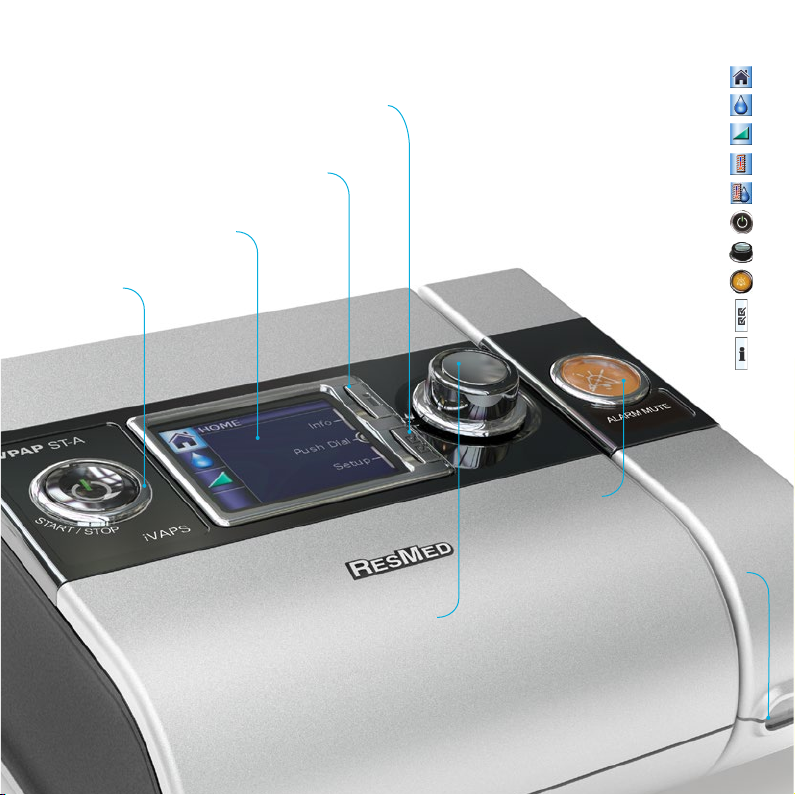

VPAP ST-A basics

Info menu*

Allows you to view your sleep statistics or

exit from the menu.

Setup menu*

Allows you to make changes to settings or

exit from the menu.

Start/Stop button

Starts or stops

treatment.

LCD screen

Displays the menus, treatment

screens and reminders.

Push dial

Turning the dial allows you to scroll through the

menu and change settings. Pushing the dial allows

you to enter into a menu and confirm your choice.

Alarm mute

Press once to mute

alarms. Press a second

time to unmute.

Alarm and therapy LEDs

Yellow—flashes during an alarm.

Blue—on during therapy (if enabled

by clinician).

Key:

Home

Humidity Level

Ramp

Heated Tube

Climate Control

Start/Stop

Push dial

Alarm mute

Setup menu

Info menu

*The Info and Setup menus are disabled if S9 Essentials has been

enabled by your clinician.

English

Adjusting humidity level

Ranging from OFF to 6, you can adjust the humidity level at any time to find the setting that is most

comfortable for you. To adjust the humidity level:

Warming the H5i

The warm-up feature is used to pre-heat the water before starting

treatment.

To start warming:

1. Navigate to the humidity level icon.

2. Push and hold for three seconds.The Warming Up status

bar is displayed.

You can stop warm-up at any time by pressing for at least three

seconds. You can start treatment at any time by pressing .

Note: In order to assist the heater plate in cooling, your device will

continue to blow air for up to an hour after treatment has stopped.

However, you can unplug the device from the power outlet at any

timeand allow the heater plate to cool without air flow.

1. From your HOME

screen, turn

until the HUMIDITY

LEVEL screen is

displayed in blue.

2. Press .

The selection

ishighlighted

inorange.

3. Turn until

the humidity level

that you require

isdisplayed.

4. Press to

confirm your choice.

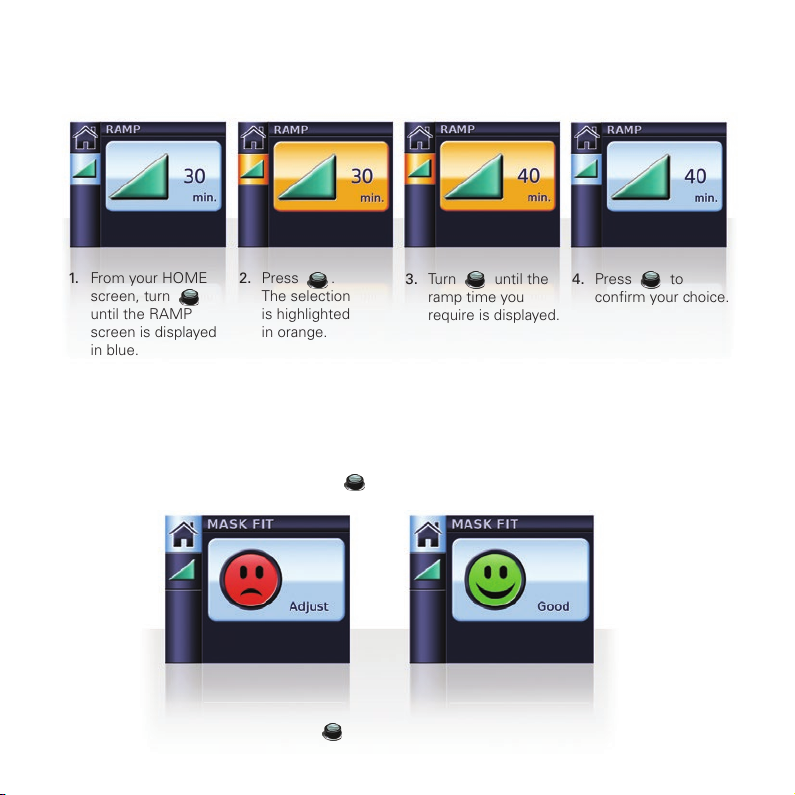

Adjusting ramp time

Designed to make the beginning of treatment more comfortable, ramp time is the period during which

the pressure increases from a low start pressure to the treatment pressure. To adjust your ramp time:

Using Mask Fit

You can use Mask Fit to help you fit your mask properly. This feature delivers CPAP pressure for

athree-minute period, prior to starting treatment, during which you can check and adjust your Mask

Fit to minimize leaks.

1. Fit your mask as described in the mask user guide.

2. From your HOME screen, push and hold for three seconds.

One of the following MASK FIT screens is displayed:

3. If necessary, adjust your mask, mask cushion and headgear until Mask Fit indicates Good.

After three minutes, the pressure reverts to the set pressure and treatment will begin. You can

endMask Fit at any time by pressing .

1. From your HOME

screen, turn

until the RAMP

screen is displayed

in blue.

2. Press .

The selection

ishighlighted

inorange.

3. Turn until the

ramp time you

require is displayed.

4. Press to

confirm your choice.

English

S9 Essentials

S9 Essentials is designed to make device interaction and menu navigation easier for you. If enabled by

the clinician, S9 Essentials disables the Info and Setup functionality so that you can simply start and stop

therapy and adjust ramp, humidification and Climate Control.

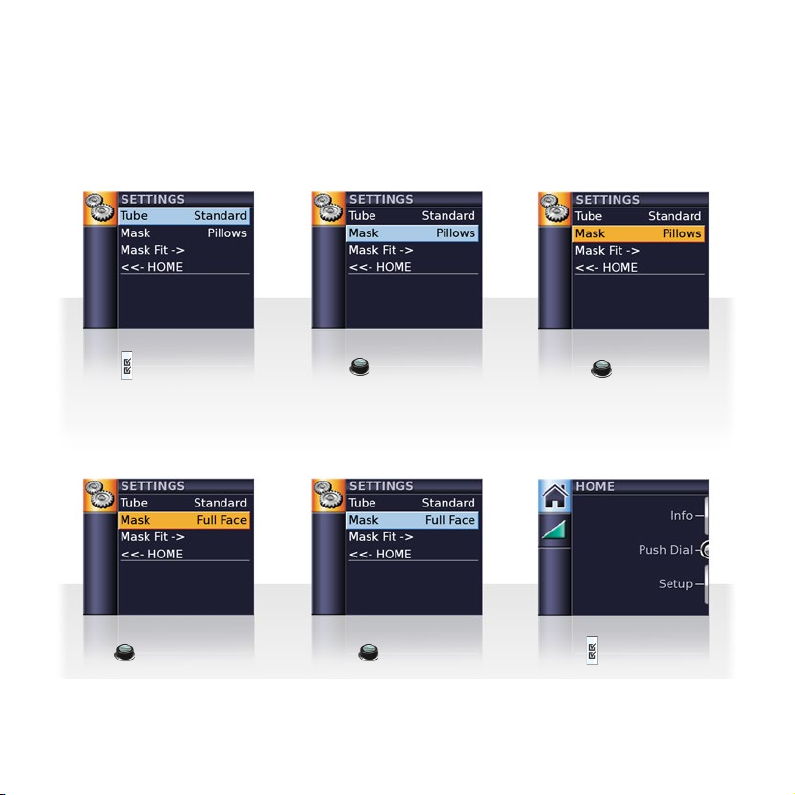

Selecting the mask type

To select your type of mask:

1. Press . The SETTINGS

screen is displayed. 2. Turn until Mask

isdisplayed in blue.

3. Press . The selection

ishighlighted in orange.

4. Turn until the mask

setting that you require

isdisplayed.

5. Press to confirm

yourchoice.

6. Push to return to the

HOME screen.

Note: Selecting the mask type is not possible if S9 Essentials has been enabled by your clinician.
