Repotec WR5822 Manuel utilisateur

Quick Installation Guide

V1.0

802.11ac Dual Band Concurrent

Gigabit WLAN Router

802.11ac Dual Band Concurrent GbE WLAN Router

WEEE Directive & Product Disposal

At the end of its serviceable life,

this product should not be treated as household or general

waste.

It should be handed over to the applicable collection point for

the recycling of electrical and electronics equipment,

or returned to the supplier for disposal.

802.11ac Dual Band Concurrent GbE WLAN Router

System Requirements

1. Pentium 200MHZ processor or above

2. Windows 98SE, Windows Me, Windows 2000,

Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1 and

Windows 10.

3. 64MB of RAM or above.

4. 25MB free disk space

Package Content

1. 802.11ac Dual Band Concurrent GbE WLAN Router

2. CD-ROM (Software & Manual)

3. Quick Installation Guide

4. Ethernet Cable (RJ-45)

5. Power Adaptor

802.11ac Dual Band Concurrent GbE WLAN Router

Installation & Setup

Follow each STEP carefully and only go to the next step

once you have completed the previous STEP.

STEP 1

Connection of 802.11ac WLAN AP Router

Step 1. Connect the Ethernet cable to WAN Port

Connect the RJ45 Ethernet cable from your xDSL/Cable Modem's

Ethernet port to 802.11ac WLAN Router's WAN Port.

Step 2. Connect the Ethernet cable to LAN Port

Connect the supplied RJ45 Ethernet cable from your PC's Ethernet

port to any of the 4 802.11ac WLAN Router's LAN Ports.

Step 3. Attach the power connector

Connect the power adapter to the power inlet “POWER” of the

802.11ac WLAN Router and turn the power switch “ON/OFF

SWITCH” of your 802.11ac WLAN Router on.

802.11ac Dual Band Concurrent GbE WLAN Router

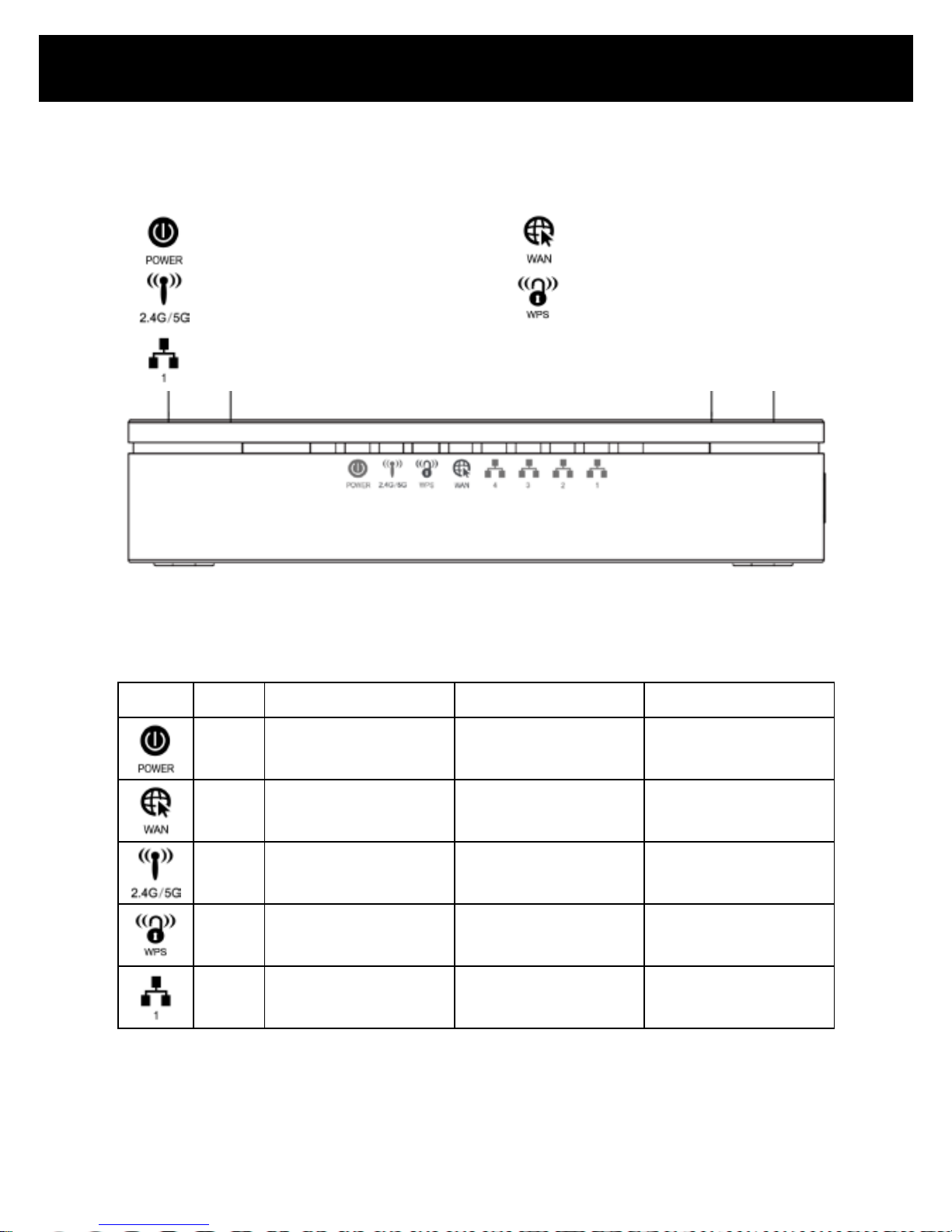

LED Meaning

Your 802.11ac WLAN Router has indicator lights on the front side. Please see

below for an explanation of the function of each indicator light.

Power indicator

Ethernet Active indicator

Wireless Active indicator

WPS Active indicator

Ethernet Active indicator

Table1. LED function

Label

Color

Flash

Off

Green Ready Waiting for device

ready Power Off

Green

The device has a WAN

IP address from

xDSL/Cable Modem

Transmit / Receive

Data

No WAN IP address

from xDSL/Cable

Modem

Green WLAN Ready Transmit / Receive

Data WLAN Off

Green N/A Start WPS pairing

within 2 minutes WPS Idle

Green Ethernet Connected Transmit / Receive

Data Ethernet

Disconnected

The icons appear on the products are for application indication only.

The trademark or intellectual property is belonging to their respective owners.

802.11ac Dual Band Concurrent GbE WLAN Router

Connectors

Table 2 shows the function of each connector and switch of the device.

Table 2. Function / Description of Connectors

Connector

Description

ANTENNA

2 fixed Antenna

ON/OFF

SWITCH

Power on / off the device

POWER

Connects to the supplied power adaptor

LAN 4/3/2/1

Connects the device via LAN Ethernet to up to 4 PCs

WAN

Connects the device via WAN Ethernet to xDSL / Cable

Modem

WPS

Press this button for at least 3 full seconds and the WPS

LED will flash to start WPS.

Now go to the wireless adapter or device and press its

WPS button. Make sure to press the button within 120

seconds (2 minutes) after pressing the router's WPS

button.

WLAN

Press this button for at least 3 full second to turn off/on

wireless signals

RESET

Reset button. RESET the 802.11ac WLAN router to its

default settings.

Press this button for at least 6 full seconds to RESET

device to its default settings.

802.11ac Dual Band Concurrent GbE WLAN Router

Figure1. Rear View of the 802.11ac WLAN Router

Figure2. WPS/ WLAN button

Figure3. RESET button

802.11ac Dual Band Concurrent GbE WLAN Router

STEP 2

Configuration Procedures

Before starting the 802.11ac WLAN Router configuration, please kindly

configure the PC computer as below, to have automatic IP address / DNS

Server.

For Windows 98SE/ME/2000/XP

1. Click on "Start" -> "Control Panel" (in Classic View). In the Control

Panel, double click on "Network Connections" to continue.

2. Single RIGHT click on "Local Area connection", then click "Properties".

802.11ac Dual Band Concurrent GbE WLAN Router

3. Double click on "Internet Protocol (TCP/IP)".

4. Check "Obtain an IP address automatically" and "Obtain DNS server

address automatically" then click on "OK" to continue

5. Click "Show icon in notification area when connected" (see screen

image in 3. above) then Click on "OK" to complete the setup procedures.
