Reliable F3-80 Series Manuel utilisateur

(Note: Not all versions of sprinkler shown,

please see pages 2-10)

Sprinkler Model

K-Factor

gpm/psi1/2

(lpm/bar1/2)

Approvals*

Max. Working

Pressure

psi (bar)

Sprinkler

Identication

Number (SIN)

F3-80 Dry Pendent 8.0 (115) cULus 175 (12.0) RA6012

F3-80 Dry Horizontal Sidewall 8.0 (115) cULus 175 (12.0) RA6032

Table A

Model F3-80 Dry Sprinkler Summary

*Note: Approvals may not apply to all trim, inlet thread, temperature, and/or nish combinations. See pages 2-10 for additional technical

information.

Features

•Various trim options available

•Sprinklers and trim available in a wide variety of standard and

special application nishes

•Standard 1” NPT or ISO7-R1 inlet tting

•Listed corrosion resistant combinations of sprinkler and trim

available

Product Description

Model F3-80 dry sprinklers are standard-response, standard

coverage sprinklers with a nominal K-factor of 8.0 (115 metric).

Available in pendent and horizontal sidewall congurations,

Model F3-80 dry sprinklers utilize a 5mm glass bulb ordinary,

intermediate, or high temperature classication operating

element.

Model F3-80 dry sprinklers are intended for installation on wet

pipe, dry pipe, or preaction systems in accordance with NFPA 13

or other applicable installation standards.

Model F3-80 dry sprinklers are available in a variety of trim

options and nish combinations as shown on the following pages.

The Reliable escutcheons and cover plates shown are the only

escutcheons and cover plates listed for use with the sprinkler.

The use of any other escutcheon or cover plate will void all

guarantees, warranty, listing, and approvals.

Table A provides a basic summary of Model F3-80 dry sprinklers.

Additional technical information is provided on the following

individual sprinkler pages.

www.reliablesprinkler.com

K-factor 8.0 (115 metric)

Model F3-80 Series

Standard-Response Dry Sprinkler

Bulletin 060 November 2023

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

2” to 36” (50mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table B

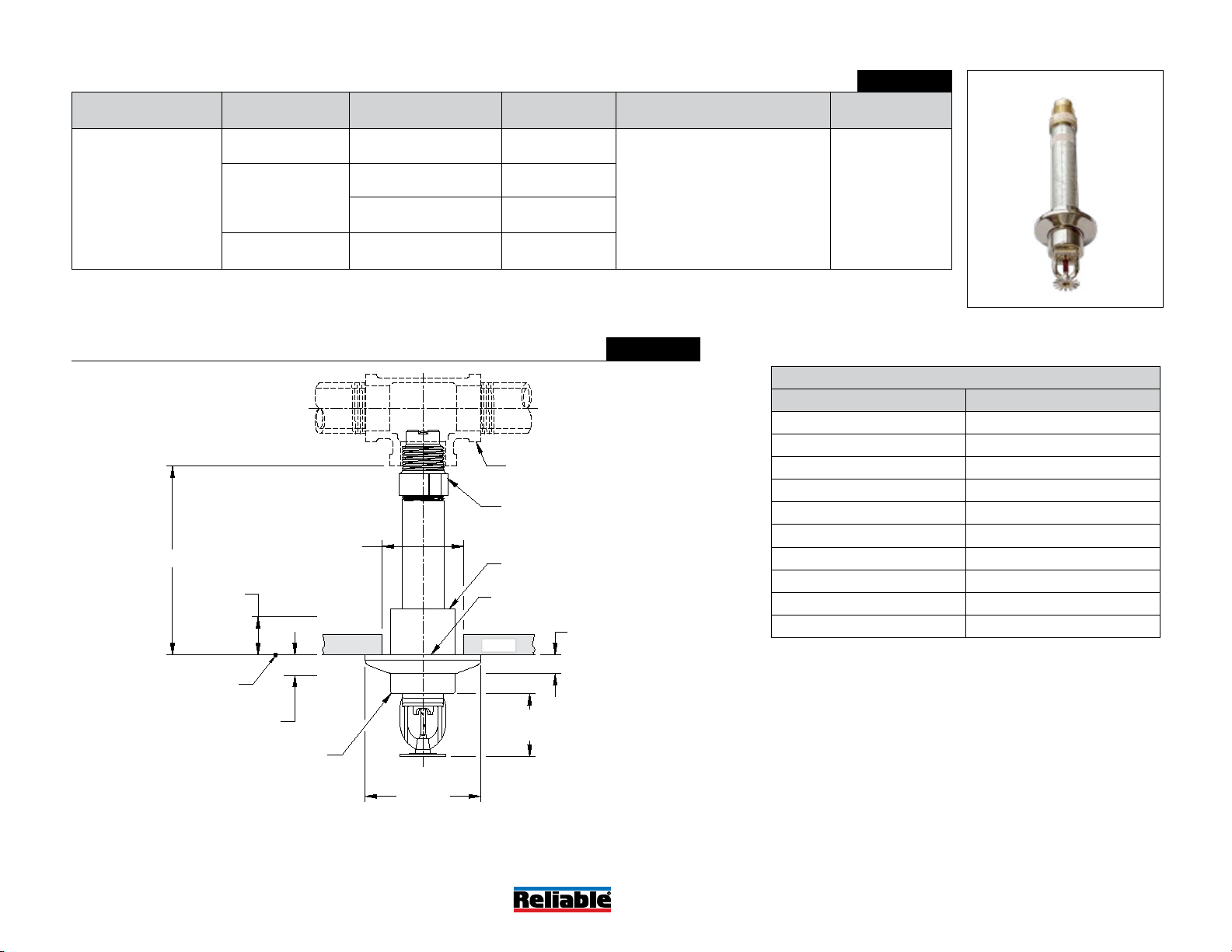

Model F3-80 Dry Pendent: Standard Escutcheon - SIN RA6012

Model F3-80 Dry Pendent Sprinkler: Standard Escutcheon Figure 1

System Fitting

Inlet Fitting

1-5/8"

[41mm]

3" [76mm]

DIA.

2-1/8"

[54mm] Dia.

Hole in Ceiling

1/2" [12mm]

Nominal Protrusion

"A" Dimension Sprinkler Can

Escutcheon

Ceiling

1" [25mm]

Escutcheon

Adjustment

1/2" [12mm]

Escutcheon Adjustment

Nominal

Escutcheon

Position

1/2" [12mm]

COMDRYDET1

Note: The sprinkler can protrudes 1/2” (12mm) when escutcheon is in nominal position. Escutcheon ad-

justment provides -1/2” (12mm) to +1” (25mm) “A” dimension adjustment range.

Finish Combinations: Standard Escutcheon

Sprinkler Escutcheon(3)(4)

Bronze Polished Stainless

Bronze Laquered Brass

Chrome Polished Stainless

White Polyester(1) White Polyester

Black Polyester(1) Black Polyester

Custom Color Polyester(1) Custom Color Polyester

Electroless Nickel PTFE(1) Polished Stainless

Wax(1)(2) Polished Stainless

Lead(1) Polished Stainless

Wax over Lead(1)(2) Polished Stainless

Notes:

1. UL Listed as Corrosion Resistant.

2. Clear wax used on ordinary temperature rated sprinklers; brown

wax used on intermediate temperature rated sprinklers. Brown

wax may be used on high temperature rated sprinklers where the

ambient temperature does not exceed 150°F (66°C).

3. Escutcheons do not carry corrosion resistant listings.

4. Base material is 316 stainless steel unless noted.

Bulletin 060

November 2023

Page 2 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

F (C) Glass Bulb Color Approvals Sprinkler Guard

3½” to 36” (90mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table C

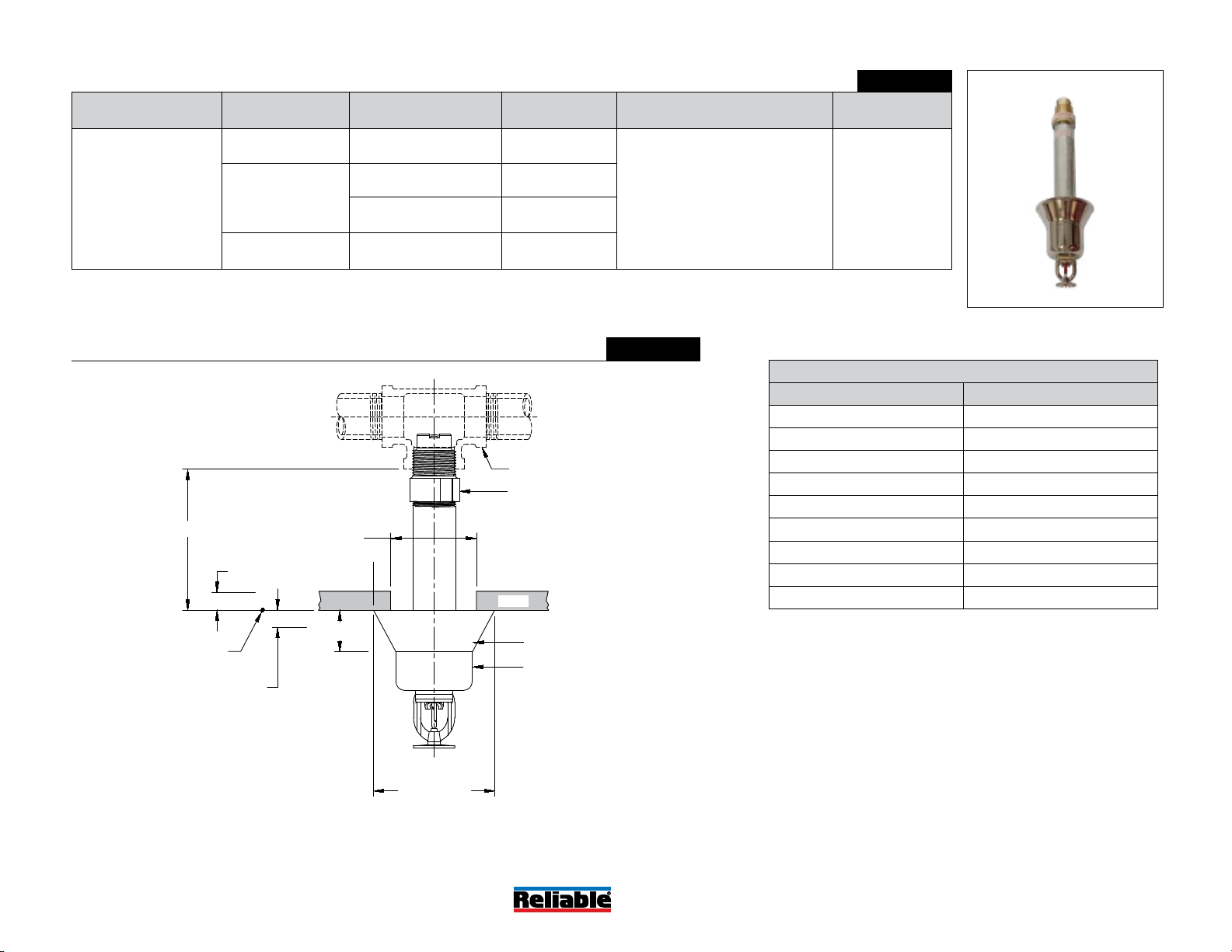

Model F3-80 Dry Pendent: HB Escutcheon - SIN RA6012

Model F3-80 Dry Pendent Sprinkler: HB Escutcheon Figure 2

Note: The sprinkler can protrudes 1¼” when escutcheon is in nominal position. Escutcheon adjustment

provides -½” (-12.7mm) to +½” (+12.7mm) “A” dimension adjustment range.

COMDRYDET2

System tee

2-1/2" [64 mm] Dia. Hole

in Ceiling

3-1/2" [89 mm]

Escutcheon Dia.

Ceiling

Sprinkler Can

Escutcheon

"A" Dimension

Inlet fitting

1-1/4" [32mm]

1/2" [13mm] Escutcheon

Adjustment

1/2" [13mm] Escutcheon

Adjustment

Nominal Position of

Escutcheon

Deflector distance below ceiling

is 3-1/2" (89mm) minimum,

4-1/2" (114mm) maximum.

Finish Combinations: HB Escutcheon

Sprinkler Escutcheon(3)(4)

Bronze Chrome

Chrome Chrome

White Polyester(1) White Polyester

Black Polyester(1) Black Polyester

Custom Color Polyester(1) Custom Color Polyester

Electroless Nickel PTFE(1) Stainless Steel

Wax(1)(2) Chrome

Lead(1) Stainless Steel

Wax over Lead(1)(2) Stainless Steel

Notes:

1. UL Listed as Corrosion Resistant.

2. Clear wax used on ordinary temperature rated sprinklers; brown

wax used on intermediate temperature rated sprinklers. Brown

wax may be used on high temperature rated sprinklers where the

ambient temperature does not exceed 150°F (66°C).

3. Escutcheons do not carry corrosion resistant listings.

4. Base material is cold rolled steel unless noted.

Bulletin 060

November 2023

Page 3 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

31/2” to 36” (90mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table D

Model F3-80 Dry Pendent: FP Escutcheon - SIN RA6012

Model F3-80 Dry Pendent Sprinkler: FP Escutcheon Figure 3

Note: Do not install the Model F3-80 Dry Pendent sprinkler with the Model FP escutcheon in ceilings which

have positive pressure in the space above.

COMDRYDET3

Inlet Fitting

3-7/32"

[82 mm] Dia.

2-5/8" [67 mm] Dia.

Hole in Ceiling

"A" Dimension

Sprinkler

Cup

System Tee

Escutcheon

1/4" [6 mm]

Escutcheon Adjustment

1/4" [6 mm]

Escutcheon Adjustment

Nominal

Escutcheon Position

3/4" [19 mm] Nom.

Finish Combinations: FP Recessed

Sprinkler(1) Escutcheon(3)(4)

Bronze Brass

Chrome Chrome

White Polyester(2) White Polyester

Black Polyester(2) Black Polyester

Custom Color Polyester(2) Custom Color Polyester

Electroless Nickel PTFE(2) Stainless Steel

Notes:

1. Cup for FP Recessed is unnished galvanized steel except electro-

less nickel PTFE sprinklers which are provided with a stainless steel

cup

2. UL Listed as Corrosion Resistant.

3. Escutcheons do not carry corrosion resistant listings.

4. Base material is cold rolled steel unless noted.

Bulletin 060

November 2023

Page 4 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

F (C) Glass Bulb Color Approvals Sprinkler Guard

31/2” to 36” (90mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table E

Model F3-80 Dry Pendent: CCP Cover Plate - SIN RA6012

Model F3-80 Dry Pendent Sprinkler: CCP Cover Plate Figure 4

Note: Do not install the Model F3-80 Dry Pendent sprinkler with the Model CCP cover plate in ceilings

which have positive pressure in the space above.

COMDRYDET4

Ceiling

Inlet Fitting

3-5/16"

[84 mm] Dia.

2-1/2" [64 mm] Dia.

Hole in Ceiling

3/16" [5 mm]

Cover Plate Adjustment

"A" Dimension

3/16" [5 mm]

Cover Plate Adjustment

Sprinkler Cup

System Tee

Model CCP 1/2

Cover Plate Assembly

Nominal Cover

Plate Position

7/8"

[22 mm]

Finish Combinations: CCP Concealed

Sprinkler(1) Cover Plate(2)

Bronze

White Polyester

Chrome Bright

Chrome Dull

Bright Brass

Unnished Bronze

Black Plate

Custom Color

Notes:

1. Cup for CCP Concealed is unnished galvanized steel.

2. Cover plates do not carry corrosion resistant listings.

Bulletin 060

November 2023

Page 5 of 16

www.reliablesprinkler.com

Order Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

5” to 36” (125mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table F

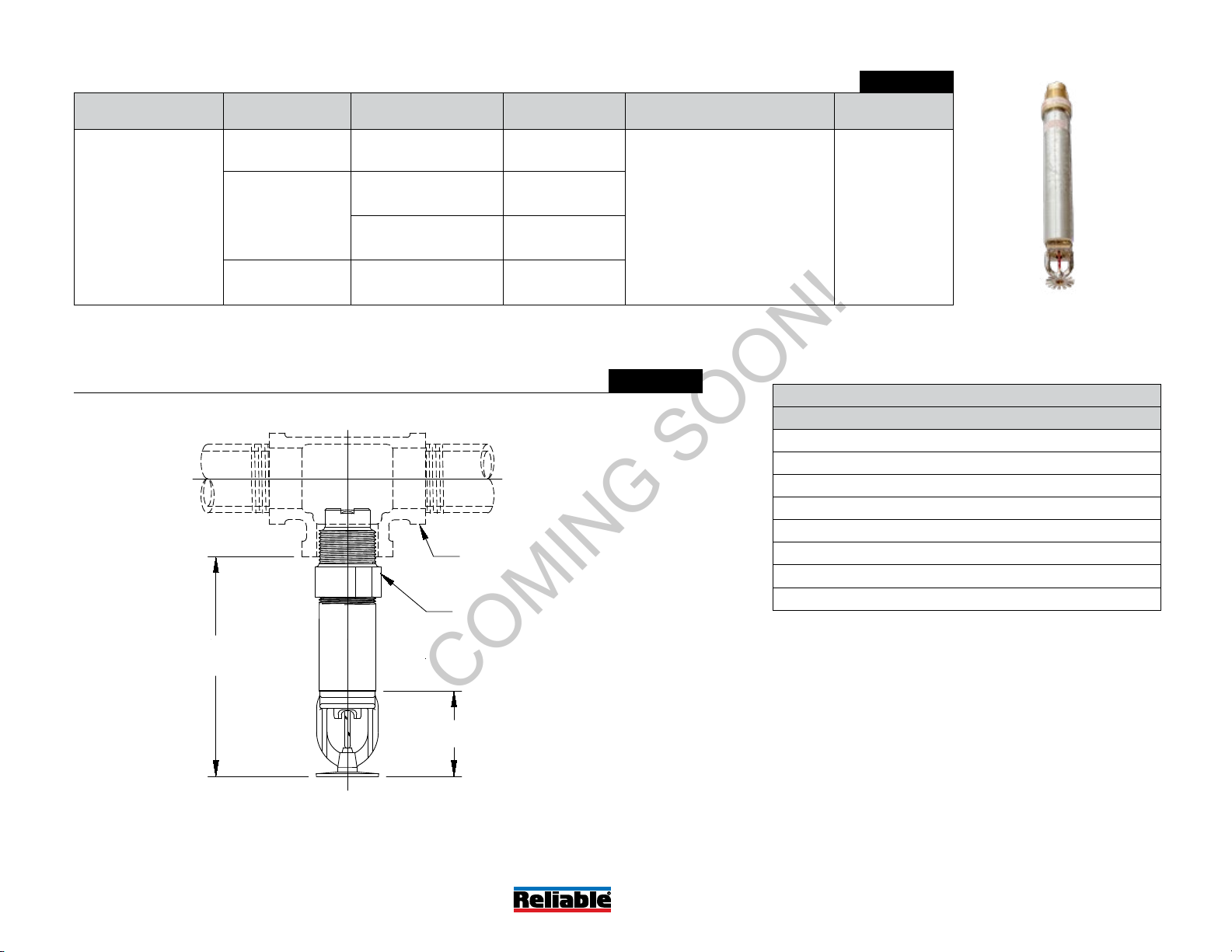

Model F3-80 Dry Pendent: No Escutcheon - SIN R6012

Model F3-80 Dry Pendent Sprinkler: No Escutcheon Figure 5

System Fitting

Inlet Fitting

1-5/8" [41mm]

Ordering

Dimension COMDRYDET_NOCAN_PEND

Note: Customer is responsible for

determining the correct deflector distance

from the ceiling or structure above.

Ref.

Available Finishes

No Escutcheon Dry Pendent Sprinkler

Bronze

Chrome

White Polyester(1)

Custom Color Polyester(1)

Wax(1)(2)

Lead(1)

Wax Over Lead(1)(2)

Electroless Nickel PTFE(1)

COMING SOON!

Notes:

1. UL Listed as Corrosion Resistant.

2. Clear wax used on ordinary temperature rated sprinklers;

brown wax used on intermediate temperature rated sprin-

klers. Brown wax may be used on high temperature rated

sprinklers where the ambient temperature does not exceed

150°F (66°C).

Bulletin 060

November 2023

Page 6 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

2” to 36” (50mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus

(Light & Ordinary Hazard Only)

N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table G

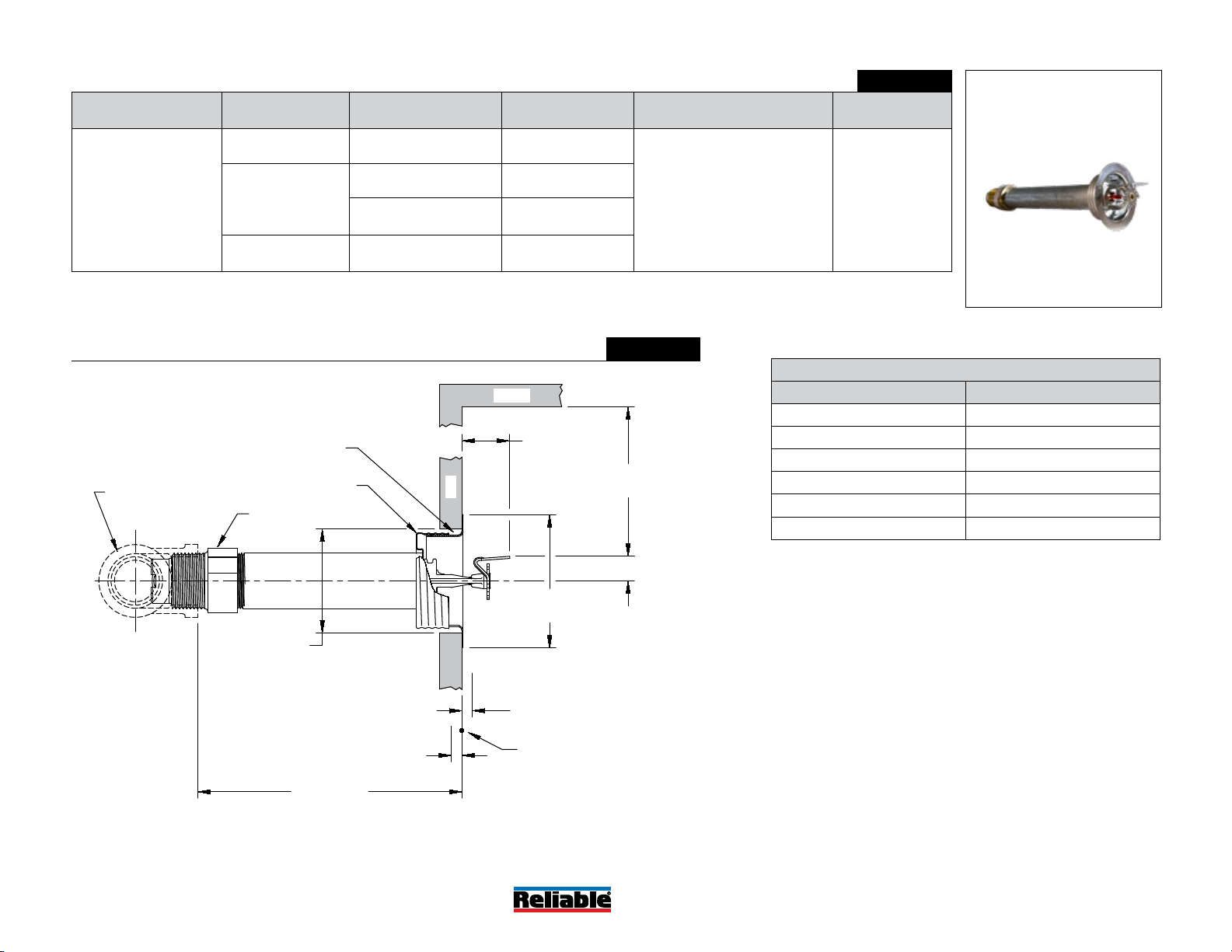

Model F3-80 Dry Horizontal Sidewall: Standard Escutcheon - SIN RA6032

Model F3-80 Dry Horizontal Sidewall: Standard Escutcheon Figure 5

System Fitting

[76mm]

Wall

1" [25mm]

Escutcheon

Adjustment

2-3/32"

[53mm]

Ceiling

1/2" [12mm]

Escutcheon Adjustment

2-1/8"

[54mm] Dia.

Hole in Wall

4" [100mm] Min.

12" [300mm] Max.

COMDRYDET6-A

Inlet Fitting

"A" Dimension

5/8" [16mm]

Nominal Escutcheon Position

Sprinkler Can 1/2" [12mm]

1/2" [12mm] Nominal Protrusion

Escutcheon

Note: The sprinkler can protrude 1/2” when escutcheon is in nominal position. Escutcheon adjustment

provides -1/2” (-12mm) to +1” (25mm) “A” dimension adjustment range.

Finish Combinations: Standard Escutcheon

Sprinkler Escutcheon(3)(4)

Bronze Polished Stainless

Bronze Laquered Brass

Chrome Polished Stainless

White Polyester(1) White Polyester

Black Polyester(1) Black Polyester

Custom Color Polyester(1) Custom Color Polyester

Electroless Nickel PTFE(1) Polished Stainless

Wax(1)(2) Polished Stainless

Lead(1) Polished Stainless

Wax over Lead(1)(2) Polished Stainless

Notes:

1. UL Listed as Corrosion Resistant.

2. Clear wax used on ordinary temperature rated sprinklers; brown

wax used on intermediate temperature rated sprinklers. Brown

wax may be used on high temperature rated sprinklers where the

ambient temperature does not exceed 150°F (66°C).

3. Escutcheons do not carry corrosion resistant listings.

4. Base material is 316 stainless steel unless noted.

Bulletin 060

November 2023

Page 7 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

31/2” to 36” (90mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus

(Light & Ordinary Hazard Only) N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table H

Model F3-80 Dry Horizontal Sidewall: HB Escutcheon - SIN RA6032

Model F3-80 Dry Horizontal Sidewall: HB Escutcheon Figure 6

Note: The sprinkler can protrudes 1¼” when escutcheon is in nominal position. Escutcheon adjustment

provides -½” (-12.7mm) to +½” (+12.7mm) “A” dimension adjustment range.

COMDRYDET7

System Tee

3-1/2"

[89mm]

Escutcheon Dia.

Nominal Position

of Escutcheon

Inlet Fitting

1/2" [13mm]

Escutcheon Adjustment

2 3/32"

[53mm]

Ceiling

"A" Dimension

Sprinkler Can

2 1/2" Dia.

[64mm]

Hole in Wall

4" [102mm] Min.

12" [305mm] Max.

Wall

1/2" [13mm]

Escutcheon

Adjustment

Escutcheon

1-1/4" [32mm] Nominal Protrusion

1-1/4"

[32mm]

5/8" [16mm]

Finish Combinations: HB Escutcheon

Sprinkler Escutcheon(3)(4)

Bronze Chrome

Chrome Chrome

White Polyester(1) White Polyester

Black Polyester(1) Black Polyester

Custom Color Polyester(1) Custom Color Polyester

Electroless Nickel PTFE(1) Stainless Steel

Wax(1)(2) Chrome

Lead(1) Stainless Steel

Wax over Lead(1)(2) Stainless Steel

Notes:

1. UL Listed as Corrosion Resistant.

2. Clear wax used on ordinary temperature rated sprinklers; brown

wax used on intermediate temperature rated sprinklers. Brown

wax may be used on high temperature rated sprinklers where the

ambient temperature does not exceed 150°F (66°C).

3. Escutcheons do not carry corrosion resistant listings.

4. Base material is cold rolled steel unless noted.

Bulletin 060

November 2023

Page 8 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

31/2” to 48” (90mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus

(Light & Ordinary Hazard Only) N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table J

Model F3-80 Dry Horizontal Sidewall: FP Escutcheon - SIN RA6032

Model F3-80 Dry Horizontal Sidewall: FP Escutcheon Figure 8

Note: Do not install the Model F3-80 Dry Horizontal Sidewall sprinkler with the Model FP escutcheon in

walls which are positively pressurized with respect to the protected space.

COMDRYDET8

Hole in Wall

3-7/32"

[82 mm] Dia.

2-1/2"

[64 mm] Dia.

"A" Dimension

1-1/4"

[32 mm]

System Tee

Wall

4" [100 mm] Min.

12" [300 mm] Max.

Ceiling

Sprinkler Cup

Escutcheon

1/4" [6 mm]

Escutcheon Adjustment

Nominal Escutcheon Position

5/8" [16 mm]

Inlet Fitting

Nom.

Finish Combinations: FP Recessed

Sprinkler(1) Escutcheon(3)(4)

Bronze Brass

Chrome Chrome

White Polyester(2) White Polyester

Black Polyester(2) Black Polyester

Custom Color Polyester(2) Custom Color Polyester

Electroless Nickel PTFE(2) Stainless Steel

Notes:

1. Cup for FP Recessed is unnished galvanized steel except electro-

less nickel PTFE sprinklers which are provided with a stainless steel

cup

2. UL Listed as Corrosion Resistant.

3. Escutcheons do not carry corrosion resistant listings.

4. Base material is cold rolled steel unless noted.

Bulletin 060

November 2023

Page 9 of 16

www.reliablesprinkler.com

Order Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

5” to 36” (125mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus

(Light & Ordinary Hazard Only)

N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

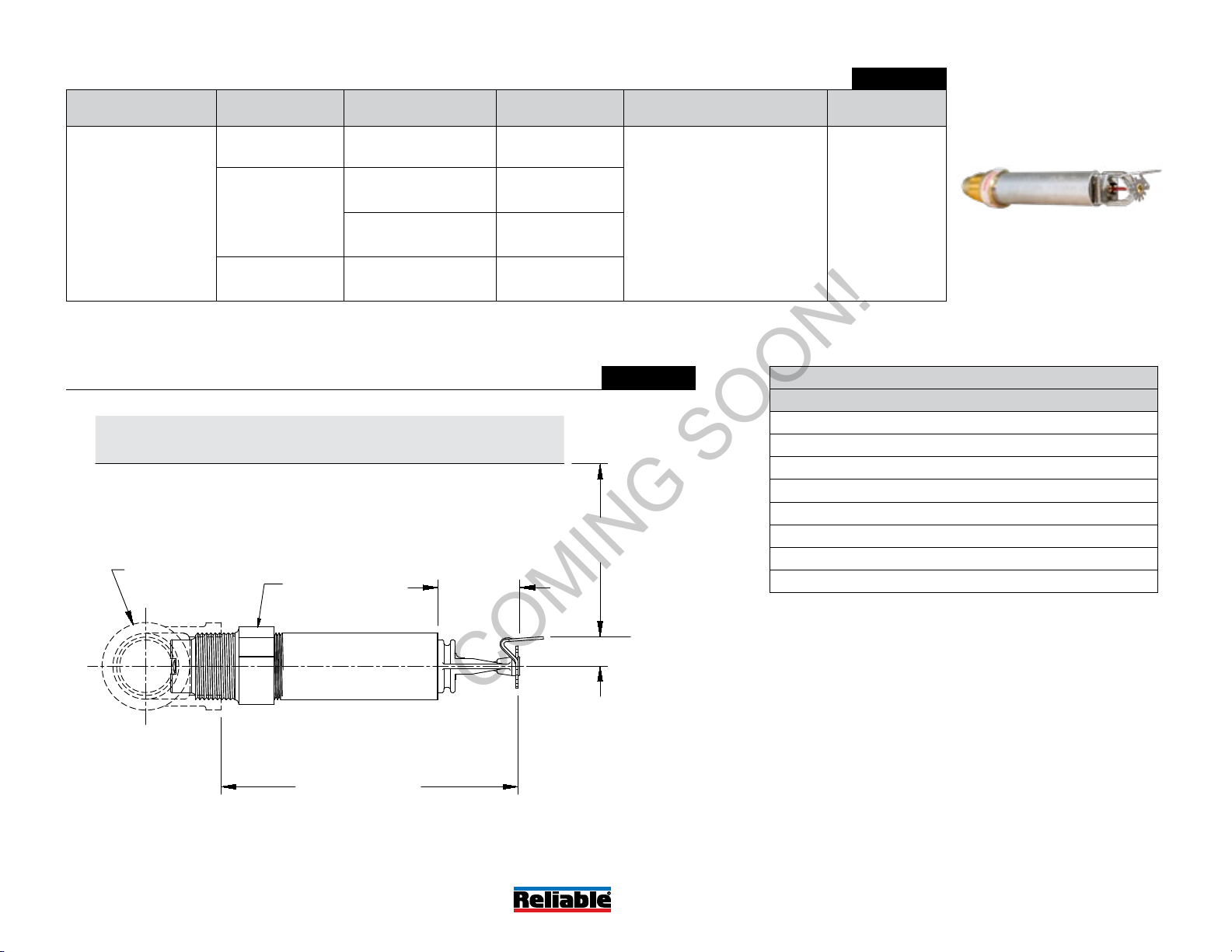

Table I

Model F3-80 Dry Horizontal Sidewall: No Escutcheon - SIN R5334

Model F3-80 Dry Horizontal Sidewall: No Escutcheon Figure 7

System Fitting 1-5/8"

[41mm]

Ref.

4" [100mm] Min.

12" [300mm] Max.

COMDRYDET_NOCAN_HSW

Inlet Fitting

Ordering Dimension

5/8" [16mm]

Bottom of Deck or Ceiling

Note: Customer is responsible for determining the correct distance

from the wall to the sprinkler deflector.

Available Finishes

No Escutcheon Dry Pendent Sprinkler

Bronze

Chrome

White Polyester(1)

Custom Color Polyester(1)

Wax(1)(2)

Lead(1)

Wax Over Lead(1)(2)

Electroless Nickel PTFE(1)

Notes:

1. UL Listed as Corrosion Resistant.

2. Clear wax used on ordinary temperature rated sprinklers;

brown wax used on intermediate temperature rated sprin-

klers. Brown wax may be used on high temperature rated

sprinklers where the ambient temperature does not exceed

150°F (66°C).

Bulletin 060

November 2023

Page 10 of 16

www.reliablesprinkler.com

COMING SOON!

Autres manuels pour F3-80 Series

Table des matières

Autres manuels Reliable Système d'irrigation

Reliable

Reliable F3QR80 Series Manuel utilisateur

Reliable

Reliable DH56 HSW-PL Manuel utilisateur

Reliable

Reliable DH80 Dry Manuel utilisateur

Reliable

Reliable DH56 HSW-PL Manuel utilisateur

Reliable

Reliable DH80 Manuel utilisateur

Reliable

Reliable F1FR56 Manuel utilisateur

Reliable

Reliable RFC30 Manuel utilisateur

Reliable

Reliable F1FR56-300 Series Manuel utilisateur

Reliable

Reliable HL22 Manuel utilisateur

Reliable

Reliable F1FR56 Manuel

Reliable

Reliable F1FR-SS Series Manuel

Reliable

Reliable F3-80 Series Manuel

Reliable

Reliable F1FR Manuel utilisateur

Reliable

Reliable GFR VELO–ECOH Manuel

Reliable

Reliable F1FR-FS56 Manuel

Reliable

Reliable J112 Pendent Manuel

Reliable

Reliable G5 Series Manuel utilisateur

Reliable

Reliable F3QR80 Dry Pendent Manuel de l'opérateur

Reliable

Reliable DH80 Manuel

Reliable

Reliable F1S5-FSLO Manuel utilisateur

Reliable

Reliable Pantman F1 Manuel utilisateur

Reliable

Reliable DD56-6 Manuel

Reliable

Reliable G4-300 Manuel utilisateur

Reliable

Reliable H PrePak Manuel d'entretien

Manuels Système d'irrigation populaires d'autres marques

Hunter

Hunter Institutional Series Manuel utilisateur

Cellfast

Cellfast 52-305 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL A Manuel utilisateur

Oral Care Technologies

Oral Care Technologies Hydro Floss Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F892 Manuel utilisateur

Netafim

Netafim NETBEAT Manuel utilisateur

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manuel utilisateur

Tyco

Tyco CC3 Manuel utilisateur

OpenSprinkler

OpenSprinkler OSPi Manuel utilisateur

EINHELL

EINHELL GE-WW 5537 E Manuel utilisateur

Valley

Valley Bender160 Manuel utilisateur

Toro

Toro 730 Series Guide rapide

Eden

Eden 97063-EDAMZ Manuel utilisateur

Tyco

Tyco TY-L Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Manuel utilisateur

Johnson Controls

Johnson Controls tyco ESFR-17 Manuel utilisateur

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Manuel utilisateur
