Model F3QR56

Dry K5.6 (80 metric)

Quick-Response,

Standard Spray Sprinklers

Features

1. Available in the following conﬁgurations:

• Pendent with standard escutcheon

• Pendent with Model HB extended escutcheon

• Pendent with Model FP recessed escutcheon

• Pendent with Model F1 recessed escutcheon

• Concealed Pendent with Model CCP cover plate

• Horizontal Sidewall with Standard escutcheon

• Horizontal Sidewall with Model HB extended

escutcheon

• Horizontal Sidewall with Model FP

recessed escutcheon (FM Standard Response)

• Horizontal Sidewall with Model F1

recessed escutcheon (FM Standard Response)

2. Available with 1" NPT, ISO 7‑1R1, 3/4" NPT, or ISO 7‑1

3/4inlet ﬁtting.

3. 3/4" NPT inlet ﬁttings permit replacement of older 3/4"

inlet dry sprinklers without changing to a larger sprinkler

ﬁtting.

4. Sprinklers, escutcheons, and cover plates are available

in a wide variety of standard and special application

ﬁnishes.

5. White polyester, black polyester, and Electroless

Nickel PTFE (ENT) ﬁnish sprinklers are cULus Listed as

Corrosion Resistant.

6. Available with cULus Listed 250 psi (17.2 bar) pressure

rating for Dry Pendent and select HSW conﬁgurations.

FM Approved for 175 psi (12 bar).

Product Description

Model F3QR56 Dry sprinklers are quick‑response,

standard coverage sprinklers with a nominal K‑factor of

5.6 (80 metric). Available in Dry Pendent or Dry Horizontal

Sidewall conﬁgurations, Model F3QR56 Dry sprinklers all use

a 3 mm glass bulb operating element. See the Temperature

Ratings table in this Bulletin for available temperature ratings.

Model F3QR56 Dry sprinklers are intended for installation

on wet‑pipe, dry‑pipe, or preaction sprinkler systems in

accordance with NFPA 13, FM Property Loss Prevention

Data Sheets, and other applicable installation standards.

Model F3QR56 Dry sprinklers are available with a variety

of escutcheon options as illustrated in Figs. 1 through 3 and

Figs. 5 through 9. In addition, Model F3QR56 Dry Pendent

sprinklers are also available with the Model CCP conical

concealed cover plate as illustrated in Fig. 4. Available

sprinkler, escutcheon, and cover plate ﬁnishes are identiﬁed

in the Finishes table in this Bulletin. The Model F1 escutcheon,

Model FP escutcheon, and Model CCP cover plate are the

Concealed

(See Fig. 4)

Recessed FP Pendent

(See Fig. 3)

Recessed F1

Horizontal Sidewall

(See Fig. 9)

Horizontal Sidewall

(See Fig. 6)

Pendent

(See Fig. 1)

Recessed F1 Pendent

(See Fig. 5)

Recessed FP

Horizontal Sidewall

(See Fig. 8)

Pendent / HB

(See Fig. 2)

Horizontal Sidewall / HB

(See Fig. 7)

Bulletin 157 Rev. M_Multilingual

only recessed escutcheons and cover plate listed for use with

Model F3QR56 Dry sprinklers; the use of any other recessed

escutcheon or cover plate with Model F3QR56 Dry sprinklers

will void all guarantees, warranties, listings and approvals.

Inlet ﬁttings are available with 1" NPT, ISO 7‑1R1, 3/4"

NPT, or ISO 7‑1R

3/4threads. Sprinklers with 3/4" NPT

and ISO 7‑1R

3/4inlet ﬁttings are intended primarily for

replacement of existing 3/4" or ISO 7‑1R

3/4inlet dry

sprinklers, but may also be used in new installations.

See the Available Conﬁgurations, Listings, and Approvals

table in this Bulletin for further information on Model F3QR56

Dry sprinklers.

Available Conﬁgurations, Listings, and Approvals

Sprinkler Model Escutcheon or

Cover Plate Available Length

(See Figs. 1-9) Listings and

Approvals(1) Inlet Threads Sprinkler Identiﬁcation

Number (SIN)

F3QR56 Dry Pendent

Standard Escutcheon 2"‑36" (50‑900 mm)

cULus, NYC

3/4" NPT

ISO 7‑1R

3/4

R5714

HB Extended Escutcheon

‑

1/2"‑36"

(90‑900 mm)

F1 Recessed Escutcheon

FP Recessed Escutcheon

CCP Cover Plate

Standard Escutcheon 2"‑48" (50‑1200 mm)

cULus, FM, NYC 1" NPT

ISO 7‑1R1

HB Extended Escutcheon

‑

1/2"‑48"

(90‑1200 mm)

F1 Recessed Escutcheon

FP Recessed Escutcheon

CCP Cover Plate

F3QR56 Dry

Horizontal Sidewall

Standard Escutcheon 2"‑48" (50‑1200 mm)

cULus(2), NYC(2)

3/4" NPT

ISO 7‑1R

3/4

R5734

HB Extended Escutcheon

‑

1/2"‑48"

(90‑1200 mm)

F1 Recessed Escutcheon

FP Recessed Escutcheon

Standard Escutcheon 2"‑48" (50‑1200 mm)

cULus(2), FM(3), NYC(2)

1" NPT

ISO 7‑1R1

HB Extended Escutcheon 3

‑

1/2"‑48"

(90‑1200 mm)

F1 Recessed Escutcheon 3

‑

1/2"‑48"

(90‑1200 mm) cULus(2), FM(3)(4), NYC(2)

FP Recessed Escutcheon

(1) For available temperature ratings and ﬁnishes see the Temperature Ratings and Finishes tables, respectively, in this Bulletin.

(2) cULus Listing and NYC for Light Hazard and Ordinary Hazard only.

(3) FM Approved for Light Hazard only.

(4) Model F3QR56 Dry Horizontal Sidewall with Model F1 or Model FP recessed escutcheon are FM Approved as Standard Response.

Patents

Model F3QR56 Dry series sprinklers may be covered by one or more of the following patents:

US Patent No. 5.775.431

US Patent No. 5.967.240

Listing and Approval Agencies

See the Available Conﬁgurations, Listings, and Approvals table in this Bulletin for listings and approvals applicable to each

available conﬁguration.

1. Listed by Underwriters Laboratories, Inc. and UL Certiﬁed for Canada (cULus)

2. Certiﬁed by FM Approvals (FM)

3. Permitted in New York City based on UL Listing per Local Law 33/2007 (NYC)

Technical Data

Nominal K‑factor: 5.6 gpm/psi½(80 l/min/bar½)

Sprinkler Listing or Approval Deﬂector to Ceiling Distance Maximum Working Pressure

F3QR56 Dry Pendent cULus, NYC —250 psi (17.2 bar)

FM —175 psi (12 bar)

F3QR56 Dry Horizontal Sidewall cULus, NYC 4"‑6" 250 psi (17.2 bar)

6"‑12" 175 psi (12 bar)

FM —175 psi (12 bar)

Temperature

Classiﬁcation Glass Bulb Color Sprinkler

Temperature Rating Cover Plate

Temperature Rating Maximum Ceiling

Temperature Listings and Approvals(1)

Ordinary Orange 135 °F (57 °C) 135 °F (57 °C) 100 °F (38 °C) cULus, FM, NYC

Red 155 °F (68 °C)

Intermediate Yellow 175 °F (79 °C) 165 °F (74 °C) 150 °F (66 °C) cULus, NYC

Intermediate Green 200 °F (93 °C) 165 °F (74 °C) 150 °F (66 °C) cULus, FM, NYC

High Blue 286 °F (141 °C) None 225 °F (107 °C) cULus, FM(2), NYC

165 °F (74 °C) 150 °F (66 °C) cULus, NYC

(1) For listed and approved sprinkler, escutcheon, and inlet conﬁgurations see the Available Conﬁgurations, Listings, and Approvals table in this Bulletin.

(2) High temperature classiﬁcation is FM Approved with Standard and Model HB escutcheons only.

Finishes

Component Sprinkler Escutcheon(1) Cover Plate

Standard Finishes

Bronze Brass(3) White Paint

White Polyester(2) White Polyester Chrome

Chrome Chrome

Special Application Finishes

Electroless Nickel PTFE(2)

Electroless Nickel PTFE

Black Polyester

Customer Color Polyester

Satin Chrome

Black Paint

Custom Color Paint

Black Plating

Black Polyester(2)

Custom Color Polyester

(1) Standard and Model HB escutcheons are supplied with both the can and escutcheon ﬁnished. Model F1 escutcheons are supplied with both the collar

and escutcheon ﬁnished. Model FP escutcheons are supplied with the escutcheon ﬁnished; the cup is galvanized steel with no further ﬁnish.

(2) cULus Listed as a Corrosion Resistant Sprinkler.

(3) Brass ﬁnish available for standard, Model F1, and Model FP escutcheons only.

153FG01-G

Note: The sprinkler can protrudes 1/4" when escutcheon is in nominal position. Escutcheon adjustment provides −1/4" (−6 mm) to +1

‑

1/4" (+32 mm) “A”

dimension adjustment range.

Sprinkler Guard: Model C2

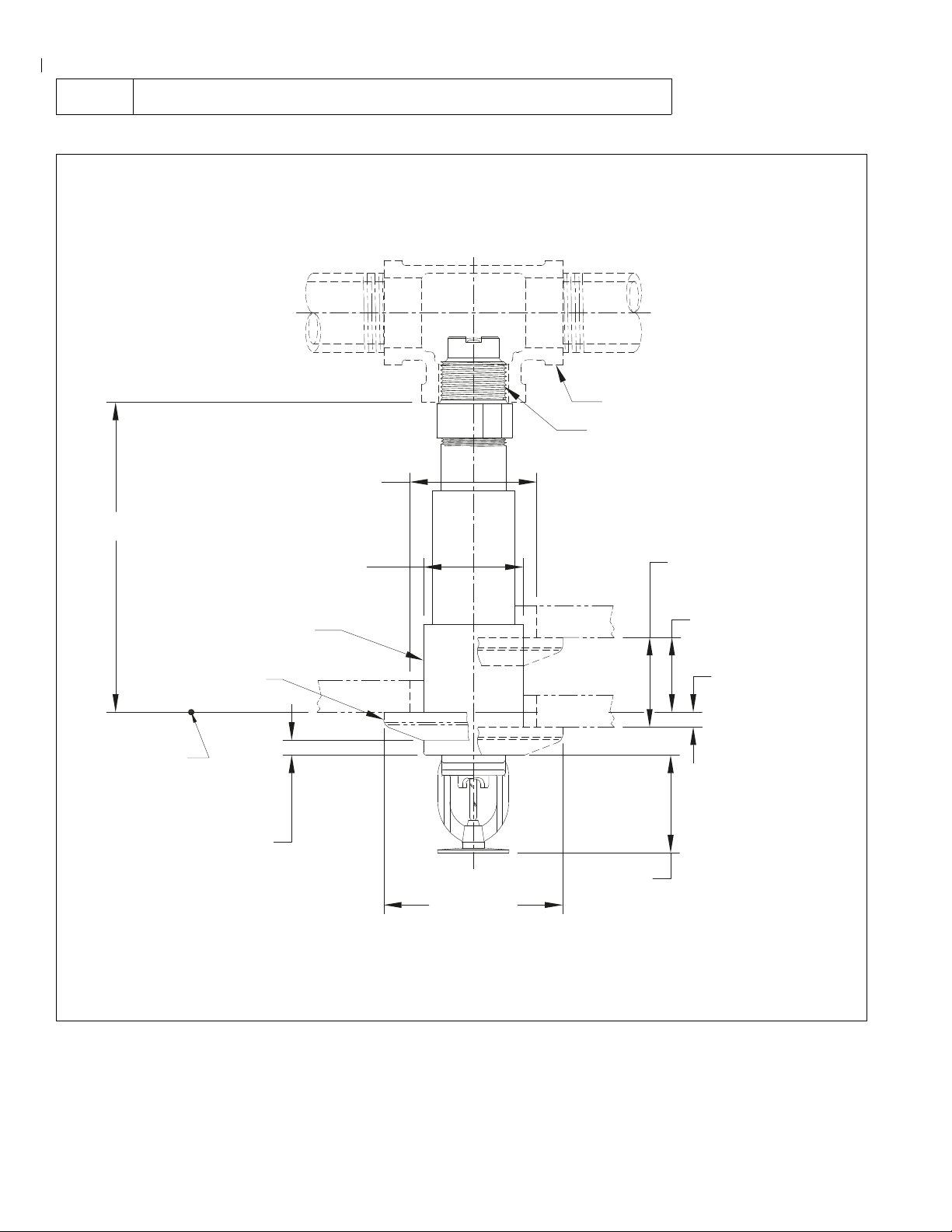

Fig. 1

Model F3QR56 Dry Pendent Sprinkler with Standard Escutcheon (SIN R5714)

“A” Dim. 2" to 48" (51 mm to 1219 mm) in 1/4" (6 mm) increments for 1" connections or

2" to 36" (51 mm to 914 mm) in 1/4" (6 mm) increments for 3/4" connections

SYSTEM FITTING

INLET FITTING

“A” DIMENSION

‑

1/8" (54 mm DIA.

HOLE IN CEILING

‑

21/32" DIA. (42 mm)

SPRINKLER CAN

ESCUTCHEON

NOMINAL

ESCUTCHEON

POSITION

1/4" (6 mm) PROTRUSION AT

NOMINAL ESCUTCHEON POSITION

‑

1/2" (38 mm)

TOTAL ADJUSTMENT

‑

1/4" (32 mm)

ESCUTCHEON ADJUSTMENT

1/4" (6 mm)

ESCUTCHEON ADJUSTMENT

‑

5/8" (41 mm)

3" (76 mm) DIA.

CEILING

157FG02B

Model F3QR56 Dry Pendent Sprinkler with Model HB Extended Escutcheon (SIN R5714)

“A” Dim. 3

‑

1/2" to 48" (89 mm to 1219 mm) in 1/4" (6 mm) increments for 1" connections or

‑

1/2" to 36" (89 mm to 914 mm) in 1/4" (6 mm) increments for 3/4" connections

Note: The sprinkler can protrudes 1

‑

1/4" when escutcheon is in nominal position. Escutcheon adjustment provides −1/2" (−12.7 mm) to +1/2" (+12.7 mm) “A”

dimension adjustment range.

Sprinkler Guard: Model C2

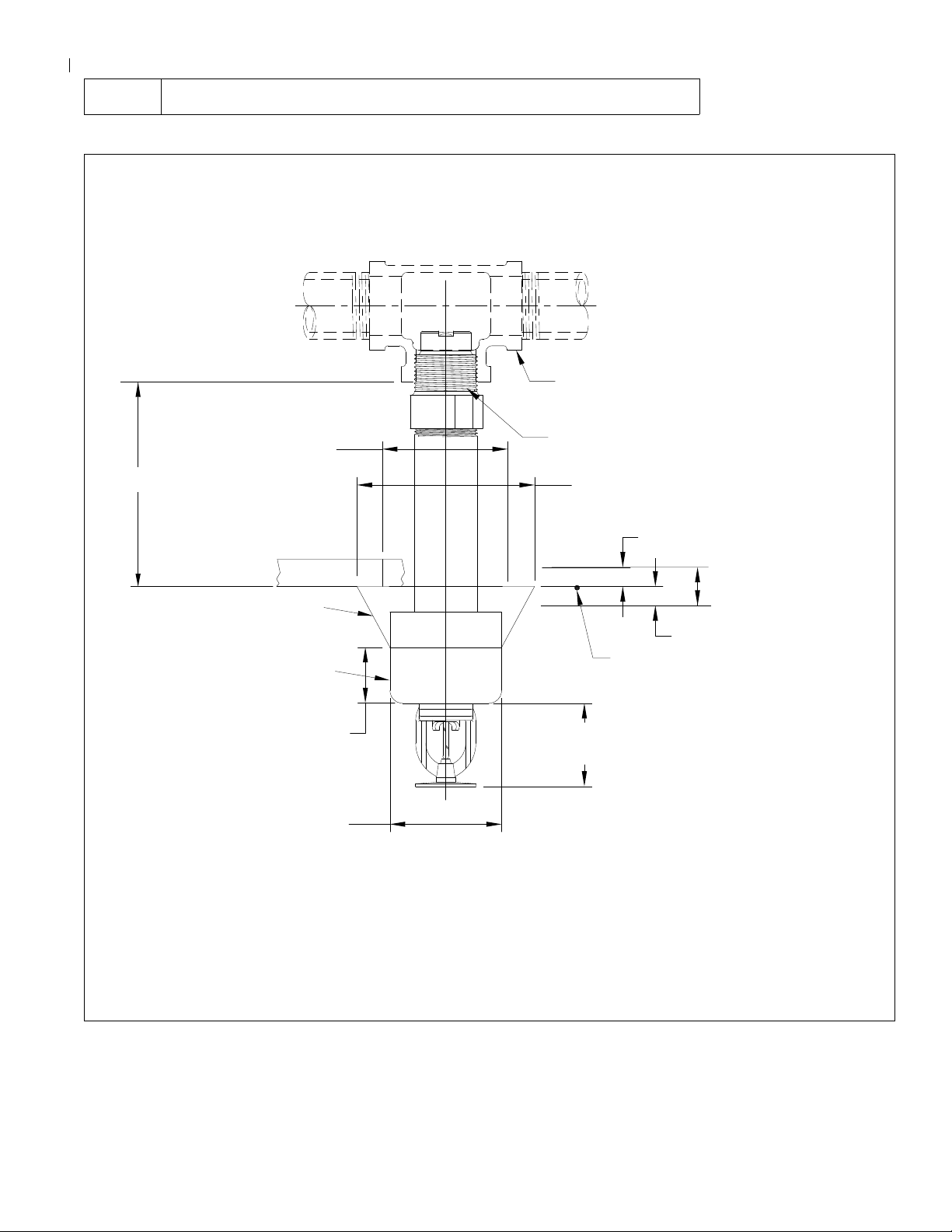

Fig. 2

SYSTEM FITTING

INLET FITTING

1/2" (12.5 mm)

ESCUTCHEON ADJUSTMENT

1" (25 mm) TOTAL

ESCUTCHEON ADJUSTMENT

1/2" (12.5 mm)

ESCUTCHEON ADJUSTMENT

NOMINAL POSITION

OF ESCUTCHEON

‑

5/8" (41 mm)

‑

1/2" (89 mm)

ESCUTCHEON DIA.

‑

1/2" (64 mm DIA.

HOLE IN CEILING

“A” DIMENSION

CEILING

ESCUTCHEON

‑

1/4" (32 mm) PROTRUSION AT

NOMINAL ESCUTCHEON POSITION

‑

3/16" (56 mm) DIA.

SPRINKLER CAN

153FG02-F

Note: Do not install the Model F3QR56 Dry Pendent sprinkler with the Model FP escutcheon in ceilings which have positive pressure in the space above.

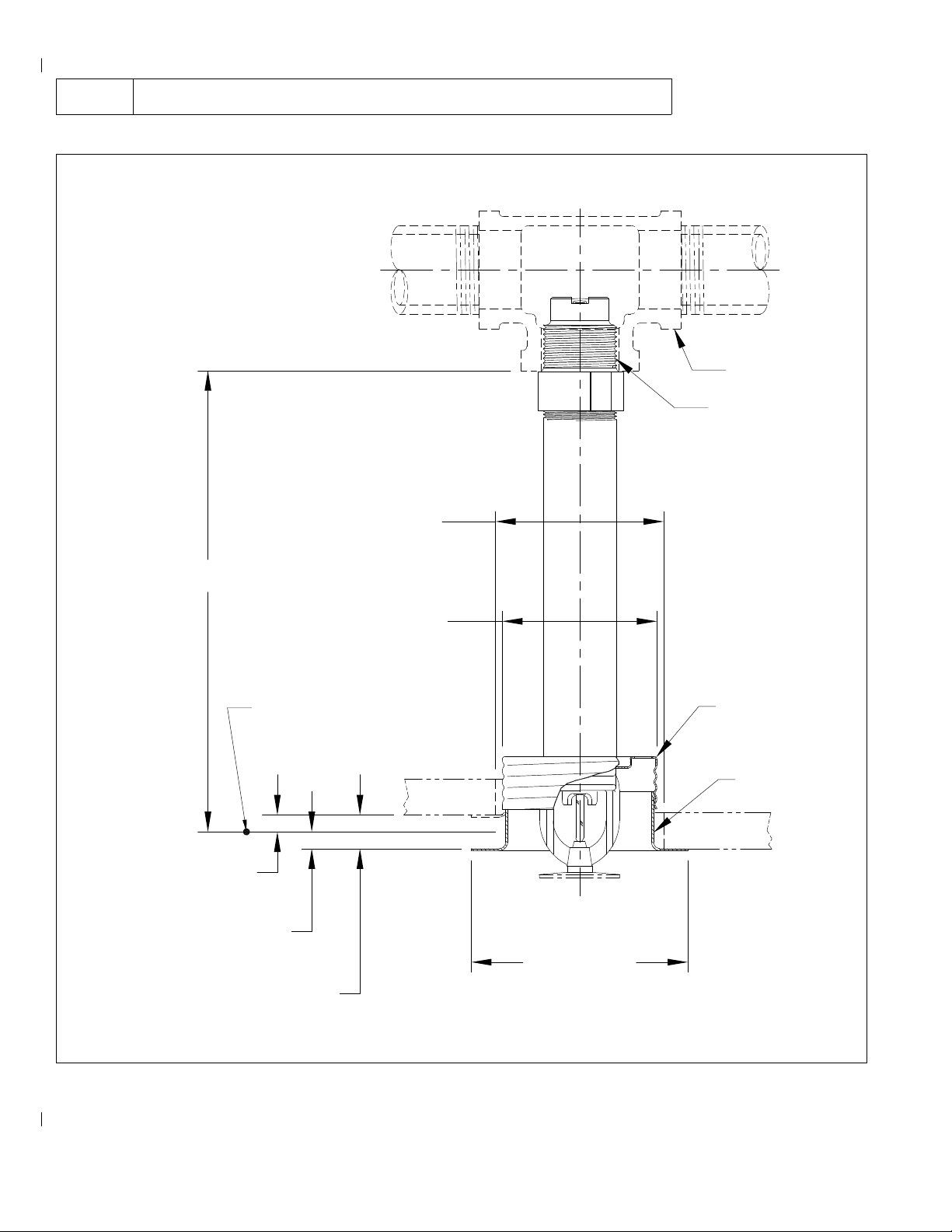

Fig. 3

Model F3QR56 Dry Pendent Sprinkler with Model FP Recessed Escutcheon (SIN R5714)

“A” Dim. 3

‑

1/2" to 48" (89 mm to 1219 mm) in 1/4" (6 mm) increments for 1" connections or

‑

1/2" to 36" (89 mm to 914 mm) in 1/4" (6 mm) increments for 3/4" connections

SYSTEM FITTING

INLET FITTING

1/4" (6 mm)

ESCUTCHEON ADJUSTMENT

‑

1/2" (64 mm DIA.

HOLE IN CEILING

“A” DIMENSION

CEILING

ESCUTCHEON

NOMINAL

ESCUTCHEON

POSITION

‑

7/32" (82 mm) DIA.

SPRINKLER

CUP

CEILING

1/4" (6 mm)

ESCUTCHEON ADJUSTMENT

1/2" (12 mm) TOTAL

ESCUTCHEON ADJUSTMENT

‑

9/32" (58 mm) DIA.

153FG03-F

Model F3QR56 Dry Pendent Sprinkler with Model CCP Cover Plate (SIN R5714)

“A” Dim. 3

‑

1/2" to 48" (89 mm to 1219 mm) in 1/4" (6 mm) increments for 1" connections or

‑

1/2" to 36" (89 mm to 914 mm) in 1/4" (6 mm) increments for 3/4" connections

Note: Do not install the Model F3QR56 Dry Pendent sprinkler with the Model CCP cover plate in ceilings which have positive pressure in the space above.

Fig. 4

‑

1/2" (64 mm DIA.

HOLE IN CEILING

NOMINAL COVER

PLATE POSITION

3/16" (5 mm) COVER

PLATE ADJUSTMENT

3/16" (5 mm) COVER

PLATE ADJUSTMENT

3/8" (10 mm) TOTAL COVER

PLATE ADJUSTMENT

SYSTEM FITTING

INLET FITTING

SPRINKLER CUP

ASSEMBLY

MODEL CCP 1/2 COVER PLATE

ASSEMBLY (ADJUSTMENT

LIMITED TO 3/8" [10 mm])

CEILING

‑

5/16"

(84 mm) DIA.

‑

9/32" (58 mm) DIA.

“A” DIMENSION

157FG05B

Model F3QR56 Dry Pendent Sprinkler with Model F1 Recessed Escutcheon (SIN R5714)

“A” Dim. 3

‑

1/2" to 48" (89 mm to 1219 mm) in 1/4" (6 mm) increments for 1" connections or

‑

1/2" to 36" (89 mm to 914 mm) in 1/4" (6 mm) increments for 3/4" connections.

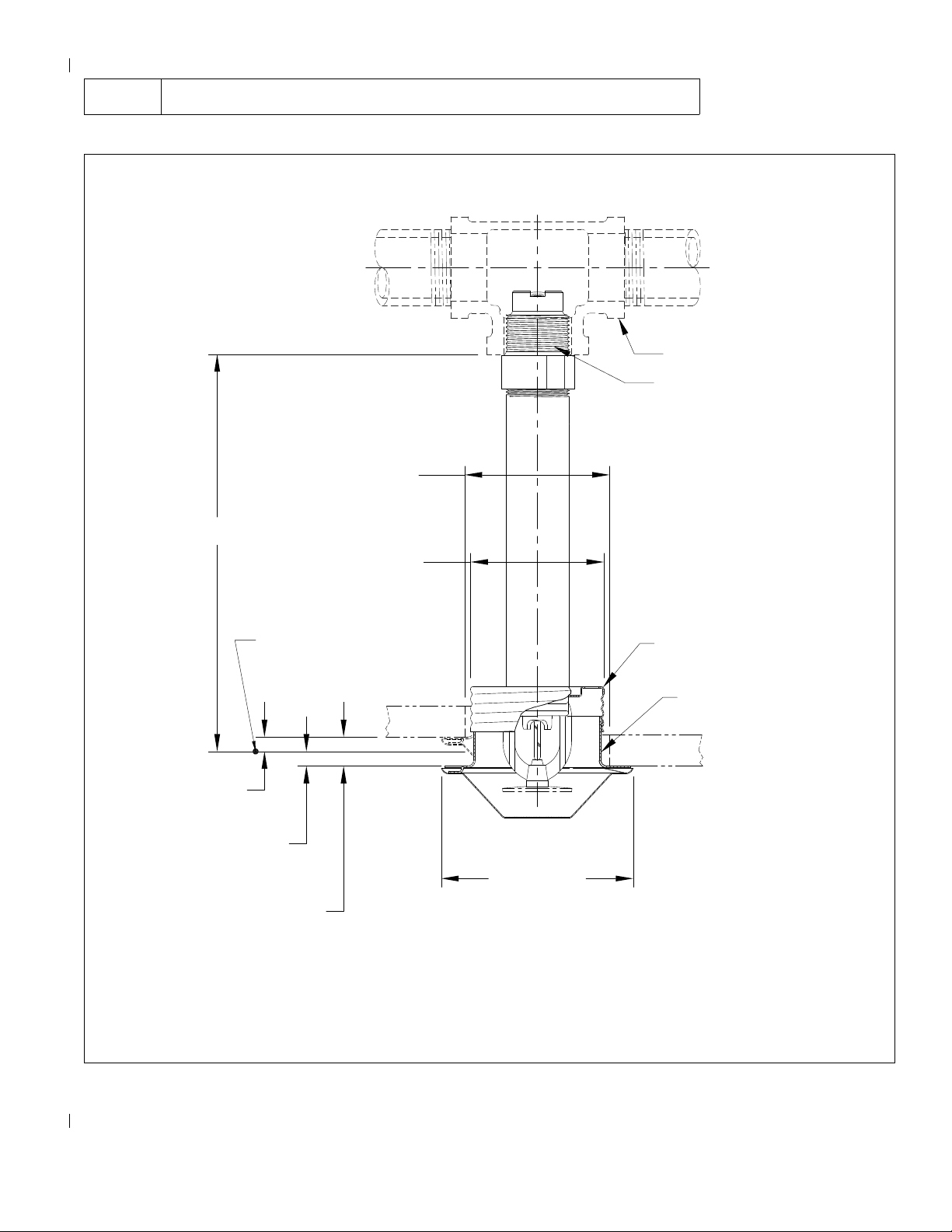

Fig. 5

SYSTEM FITTING

INLET FITTING

1/4" (6 mm)

ESCUTCHEON ADJUSTMENT

‑

1/4" (57 mm DIA.

HOLE IN CEILING

“A” DIMENSION

CEILING

ESCUTCHEON

CEILING

‑

27/32" (72 mm) DIA.

1/4" (6 mm)

ESCUTCHEON ADJUSTMENT

1/2" (12 mm) ADJUSTMENT

‑

15/16" (49 mm) DIA.

1/8" (3 mm)

NOMINAL

ESCUTCHEON POSITION

157FG06B

Note: The sprinkler can protrudes 1/4" when escutcheon is in nominal position. Escutcheon adjustment provides −1/4" (−6 mm) to +1

‑

1/4" (+32 mm) “A”

dimension adjustment range.

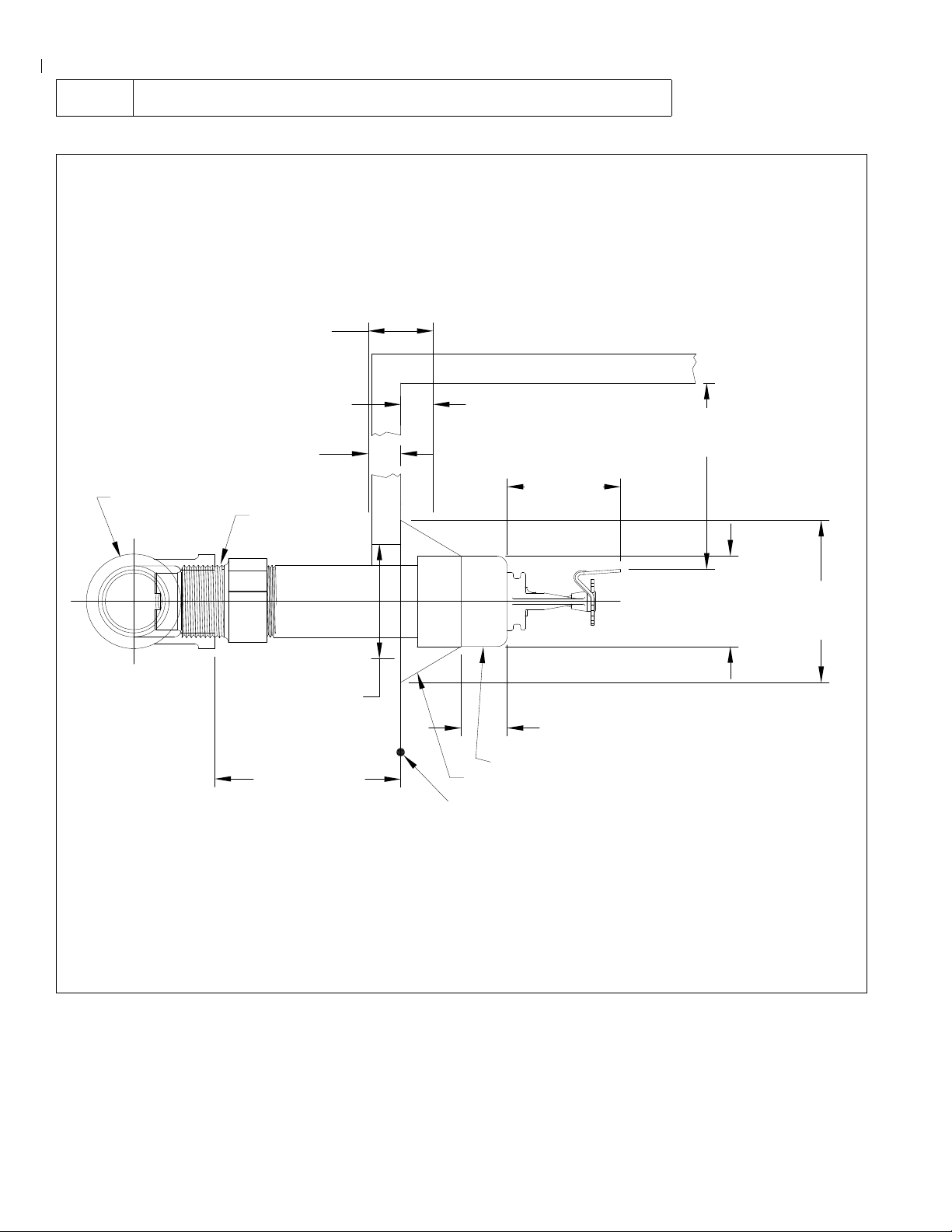

Fig. 6

Model F3QR56 Dry Horizontal Sidewall Sprinkler with Standard Escutcheon (SIN R5734)

“A” Dim. 2" to 48" (51 mm to 1219 mm) in 1/4" (6 mm) increments for 1" connections or

2" to 36" (51 mm to 914 mm) in 1/4" (6 mm) increments for 3/4" connections

‑

1/8" (54 mm) DIA.

HOLE IN WALL

‑

1/4" (32 mm)

ESCUTCHEON ADJUSTMENT

‑

1/2" (38 mm) TOTAL COVER

PLATE ADJUSTMENT

SYSTEM FITTING

INLET FITTING

SPRINKLER CAN

1/4" (6 mm) PROTRUSION AT

NOMINAL ESCUTCHEON POSITION

CEILING

WALL

5/8" (16 mm)

“A” DIMENSION

1/4" (6 mm)

ESCUTCHEON ADJUSTMENT

3" (76 mm)

NOMINAL ESCUTCHEON POSITION

WALL

4" (102 mm) MIN.

12" (305 mm) MAX.

‑

3/32"

(53 mm)

157FG07B

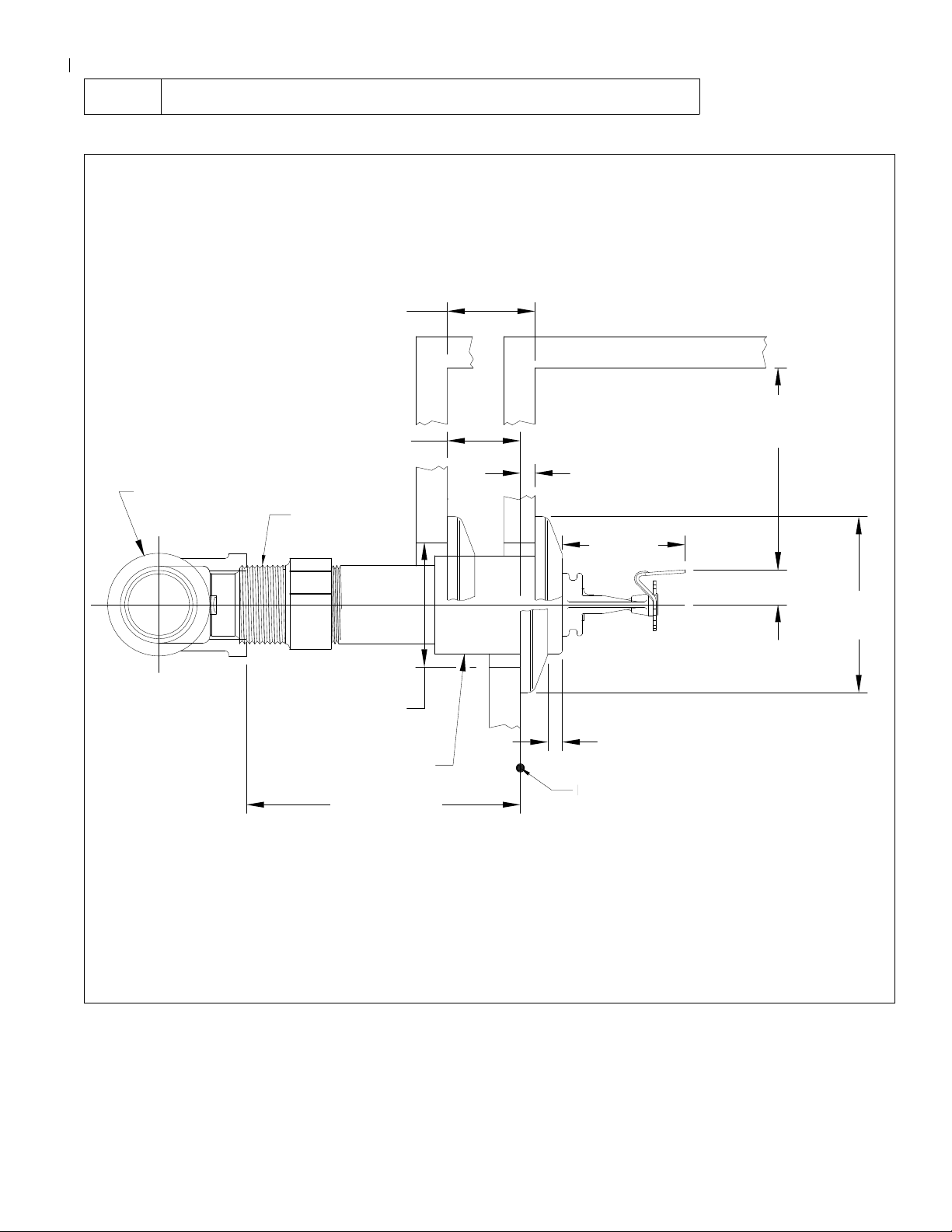

Model F3QR56 Dry Horizontal Sidewall Sprinkler with Model HB Escutcheon (SIN R5734)

“A” Dim. 3

‑

1/2" to 48" (89 mm to 1219 mm) in 1/4" (6 mm) increments for 1" connections or

‑

1/2" to 36" (89 mm to 914 mm) in 1/4" (6 mm) increments for 3/4" connections

Note: The sprinkler can protrudes 1

‑

1/4" when escutcheon is in nominal position. Escutcheon adjustment provides −1/2" (−12.7 mm) to +1/2" (+12.7 mm) “A”

dimension adjustment range.

Fig. 7

SYSTEM TEE INLET FITTING

1/2" (12.7 mm)

ESCUTCHEON ADJUSTMENT

‑

1/2" (63.5 mm) DIA.

HOLE IN WALL

“A” DIMENSION

CEILING

ESCUTCHEON

WALL

‑

1/2" (88.9 mm)

ESCUTCHEON

DIA.

4" (101.60 mm) MIN.

12" (304.80 mm) MAX.

‑

13/64"

(55.88 mm)

DIA.

NOMINAL POSITION

OF ESCUTCHEON

SPRINKLER CAN

‑

3/32"

(53.18 mm)

DIA.

‑

1/4" (31.75 mm) NOMINAL PROTRUSION

1/2" (12.7 mm)

ESCUTCHEON ADJUSTMENT

1" (25.4 mm) TOTAL ADJUSTMENT

Autres manuels pour F3QR56

Ce manuel convient aux modèles suivants

Autres manuels Reliable Système d'irrigation

Reliable

Reliable H PrePak Manuel d'entretien

Reliable

Reliable F1FR42 Series Manuel utilisateur

Reliable

Reliable F1FR56-300 QREC Series Manuel

Reliable

Reliable F1-SS Series Manuel utilisateur

Reliable

Reliable F1FR56 Manuel

Reliable

Reliable Sidewall Concealer SWC Manuel utilisateur

Reliable

Reliable DDX PrePaK D Manuel d'entretien

Reliable

Reliable GFR Series Manuel utilisateur

Reliable

Reliable F1FR-FS Series Manuel utilisateur

Reliable

Reliable KFR-CCS Manuel utilisateur

Reliable

Reliable F3QR80 Dry Pendent Manuel de l'opérateur

Reliable

Reliable JL14 Manuel utilisateur

Reliable

Reliable KFR-CCS Manuel utilisateur

Reliable

Reliable F1FR 300 QREC Manuel

Reliable

Reliable N252 Manuel utilisateur

Reliable

Reliable JL-17 Guide de l'utilisateur

Reliable

Reliable F1 Res 30 LL Manuel utilisateur

Reliable

Reliable F4FR-NF Manuel

Reliable

Reliable F1FR56-300 Series Manuel utilisateur

Reliable

Reliable DH56 Dry Manuel utilisateur

Reliable

Reliable RFS42 Manuel

Reliable

Reliable F1 Res 30 LL Manuel utilisateur

Reliable

Reliable KFR56 Manuel utilisateur

Reliable

Reliable DH56 HSW-PL Manuel utilisateur

Manuels Système d'irrigation populaires d'autres marques

Hunter

Hunter Institutional Series Manuel utilisateur

Cellfast

Cellfast 52-305 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL A Manuel utilisateur

Oral Care Technologies

Oral Care Technologies Hydro Floss Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F892 Manuel utilisateur

Netafim

Netafim NETBEAT Manuel utilisateur

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manuel utilisateur

Tyco

Tyco CC3 Manuel utilisateur

OpenSprinkler

OpenSprinkler OSPi Manuel utilisateur

EINHELL

EINHELL GE-WW 5537 E Manuel utilisateur

Valley

Valley Bender160 Manuel utilisateur

Toro

Toro 730 Series Guide rapide

Eden

Eden 97063-EDAMZ Manuel utilisateur

Tyco

Tyco TY-L Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Manuel utilisateur

Johnson Controls

Johnson Controls tyco ESFR-17 Manuel utilisateur

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Manuel utilisateur
