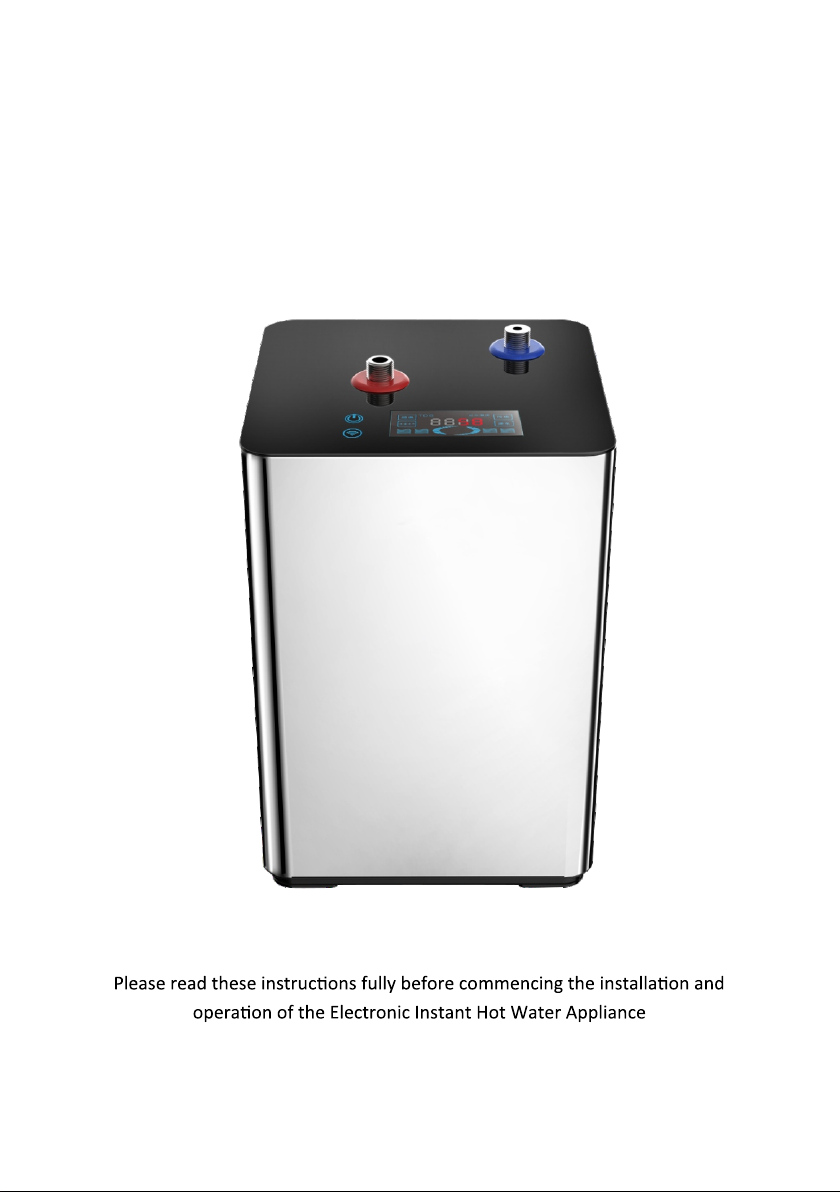

Reginox Amanzi Manuel utilisateur

USER MANUAL

Please read and follow our step by step guide to the installation, operation and care for the

electronic instant hot water appliance and you will soon be making that ﬁrst cup of coﬀee or

tea from your new appliance.

We are delighted that you have chosen our instant boiler and tap. This unique electronic

instant hot water appliance will save you time and eﬀort when requiring near boiling water

for making tea and coﬀee and we are sure you will discover many new uses each day.

WHAT YOU NEED TO KNOW BEFORE YOU STAT

For your safety and satisfaction please read all the instructions, cautions and

warnings before installing or using this electronic instant hot water appliance.

This electronic instant hot water appliance is not intended for commercial use

IMPORTANT NOTICE: This product can cause harm if installed incorrectly and

should only be installed by a competent person, if you feel for any reason

unsure about the installation please contact a qualiﬁed plumber or electrician to

ins-tall the appliance.

Make sure all electrical wiring and connections conform to local standards.

Make sure all water connections conform to local standards.

A standard 220/240v grounded 13 amp switched electrical outlet is required

under the sink for the electronic instant hot water appliance electrical power and

must supply electrical power continuously to the appliance.

The power outlet must be connected to the 13amp fused plug supplied.

The instant hot water appliance is an open vented system appliance when

not being operated the pressure is 1.0bar.The operating pressure is 1.5

bar to 5 bar.

The water ﬁlter must be connected to the electronic instant hot water appliance.

Failure to change ﬁlter every 6 months may invalidate your warranty.

Equipment Required:

Tape Measure Adjustable Wrench

SAFETY INSTRUCTIONS PLEASE READ BEFORE YOU STARTCOMPONENTS INCLUDED

The alert symbols displayed on the right point to

important safety information to make you aware of

potential hazards that can cause serious injury or

death. Please pay special attention to the

informaion following these warning alerts. Failure to

comply with these instructions could result in

property damage, serious injury or death.

Electric Shock: Using an ungrounded connection or improper connection

of the power supply to the product can result in a serious injury or death

from electrical shock.

Electric Shock: Do not remove the earthing terminal

Do not reconstruct the plug

Do not disassemble main box and any part for the power.

Please read this chapter carefully for your own safety and the safety of

those around you. Please read the safety information in this instruction,

installation guide and on the product in order to install and use the product

accordingly, so as to avoid any injury. The safety information will tell you

what the potential danger is, how to avoid it, and identify what will happen

if you do not operate following the instruction.

Important

The instructions are only intended as a guide, if there is any doubt then

please contact a certiﬁed plumber or electrician or point of purchase and

avoid using the product until it has been checked.

The electronic instant hot water appliance is supplied with the following:

Electronic Instant Hot Water Appliance with 13amp UK Plug

The water connections are to allow correct connections from the instant

hot water tap to the electronic instant hot water Appliance.

Inlet and Outlet Connectors 3/8"BSP to Silicon

Inlet and Outlet Connectors 3/8"BSP to 1/2"BSP.

When using all electrical appliances, basic safety precautions should

always be followed including the information below:

To protect against electrical shock, do not place cord, plugs or unit near or

in water or other liquids and do not operate the electronic instant hot water

appliance controls or power socket with wet hands.

Check the power rating of your electronic instant hot water appliance is

suitable for the power rating of the electrical circuit it is being installed on.

Do not operate or install the electronic instant hot water appliance if it

appears to have any missing parts, be damaged / faulty eg damaged cord,

plug.

Do not use outdoors or in a damp area.

Do not use the electronic instant hot water appliance for anything other th-

an the intended Domestic use.

The electronic instant hot water appliance must be installed vertically as

shown on front cover with inlet and outlet connections at the top of

appliance.

Ensure the front of the unit is visible and the front temperature dial can be

easily reached.

Do not attempt to open, modify or service this electronic instant hot water

appliance. Repairs should be carried out by Authorised Service

personnel. Opening the unit may void the guarantee.

The instant hot water appliance is an open vented system appliance

when not being operated the pressure is 1.0.bar. The operating

pressure is 1.5 bar to 5 bar.

Turn off all controls before unplugging.

Do not unplug by pulling the cable. To unplug, grasp the plug, not the cable.

Property Damage: To avoid the risk of ﬂooding, regularly inspect the unit for any

signs of leakage.

This electronic instant water appliance is not intended for use by

persons (including children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have

been give-n supervision or instruction concerning use of the appliance

by a person responsible for their safety. Children should be supervised

to ensure that they do not play with the electronic instant hot water

appliance or instant hot water tap, a safety spring back handle is used to

control the ﬂow of the near boiling water for additional safety.

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ ALL INSTRUCTIONS CAREFULLY

INSTALLATION REQUIREMENTS

A 220/240-volt, 50 Hz, AC -only 13 amp fused, grounded electrical power

supply is required. It is recommended that a separate circuit serving only

electronic instant hot water appliance be provided or use an outlet that

can be turned on/off by a switch.

This electronic instant hot water appliance is equipped with a power supp-

ly cord with a power plug. To minimise possible shock hazard, the cord m-

ust be plugged into mating, ground-type outlet, grounded in accordance

with all national and local codes and ordinances.If a socket outlet is not

available, it is the responsibility and obligation of the customer to have a

properly grounded outlet installed by a qualiﬁed electrician.

Don’t install the electronic instant hot water appliance outdoors or in

location that may fall below zero degrees C, otherwise the pipes and the

tap will be frozen and there will be serious safety trouble, possible

bodilyinjury, accidents and damage caused.

It’s forbidden to wash the electronic instant hot water appliance with water

directly.

The installation environment should be ventilated, with protection from

the direct sunshine.

When installing the electronic instant hot water appliance, provide

approximately 10cm to 15cm (4-51/2") of air space on the sides of the unit

for air circulation and approximately 2.5cm(1") from the mounting wall.

The environment humidity should be in the range of 10% to 60%. Be sure

there is no dew.

If local codes permit, the instant hot water tap feed line should be

connected to the hot and cold water supply line using isolation valves or

another means for providing the hot and cold water to the tap.

IMPORTANT: If local codes do not permit the use of isolation valves,

special feed valves can be obtained from your local plumbing supply

distributor.

Connecting a standard Tap may cause injury and will damage the

electronic instant hot water appliance and void the guarantee. Due to high

water temperature, and for safety reasons, the electronic instant hot

water appliance is not under pressure.

PREPERATION FOR INSTALLATION

INSTALLATION

Unlike other household hot water appliances, this electronic instant hot

water appliance is Non Pressurised for safety reasons. For this electronic

instant hot water appliance, the Instant Hot Tap is placed before the

electronic instant hot water appliance, creating an "open vent" system

and consequently no pressure is built up inside the appliance.

IMPORTANT: Install the Instant Hot Water Tap in accordance with the

ﬁtting Instructions provided with the Hot Water Tap.

Preparation for the electronic instant hot water appliance

installation

IMPORTANT: Observe all local governing codes and

ordinances.

The electronic instant hot water appliance must be mounted vertically and

level.

Before you begin, select a suitable location ideally directly under the

instant hot water tap or close to it to ensure the connection pipes will

connect from the instant hot water tap to the electronic instant hot water

appliance.

The electronic instant hot water appliance is not under pressure,

consequently, there is a slight delay in water ﬂow after the Hot Water

Handle has been turned on. This is normal and indicates that the

electronic instant hot water appliance is functioning properly.

It is recommended that you have access to a separate power circuit

serving only your electronic instant hot water appliance. See previous

pages for more information on “ELECTRICAL REQUIREMENTS”.

Ensure that the electronic instant hot water appliance is placed so that

you will be able to view and reach the touch control on the front face for

adjustments.

Step

1–

Ensure the electronic instant hot water appliance is NOT connected to the

Electric Power during installation.

Place the electronic instant hot water appliance in position and check to

ensure that the instant hot water tap connection pipes and the power cord

will reach without being stretched.

The electronic instant hot water appliance must be positioned so the

tubes from and to the instant hot water tap do not twist or kink.

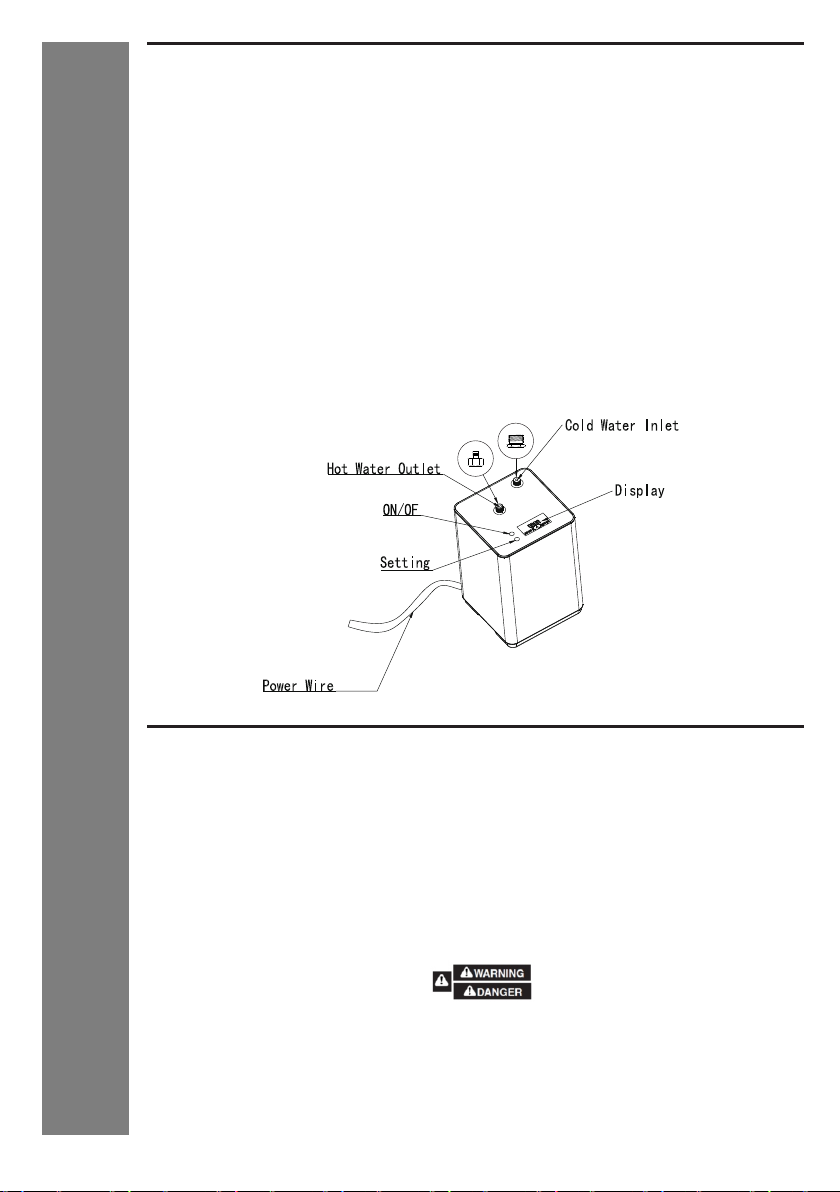

The electronic instant hot water appliance inlet connection is a 3/8"BSP

male threaded connector. The outlet connector is 3/8"BSP male thread

connected to a push on connector.

Check the connections type and size on the instant hot water tap for the

inlet connections.

Put the 3/8"BSP to Silicon adapter on the hot water outlet and put

3/8"BSP to 1/2"BSP adapter on the cold water inlet. Screw both adapters

with wrench.

Connect the tank with the tap according to the boiling water tap manual.

Fitting a pressure reducing valve to the cold mains inlet if the mains

pressure is above 5bar. Tighten with a wrench and move to check if the

complete installation leaks.

INSTALLATION CONTINUED

Step 2– Connect Tap

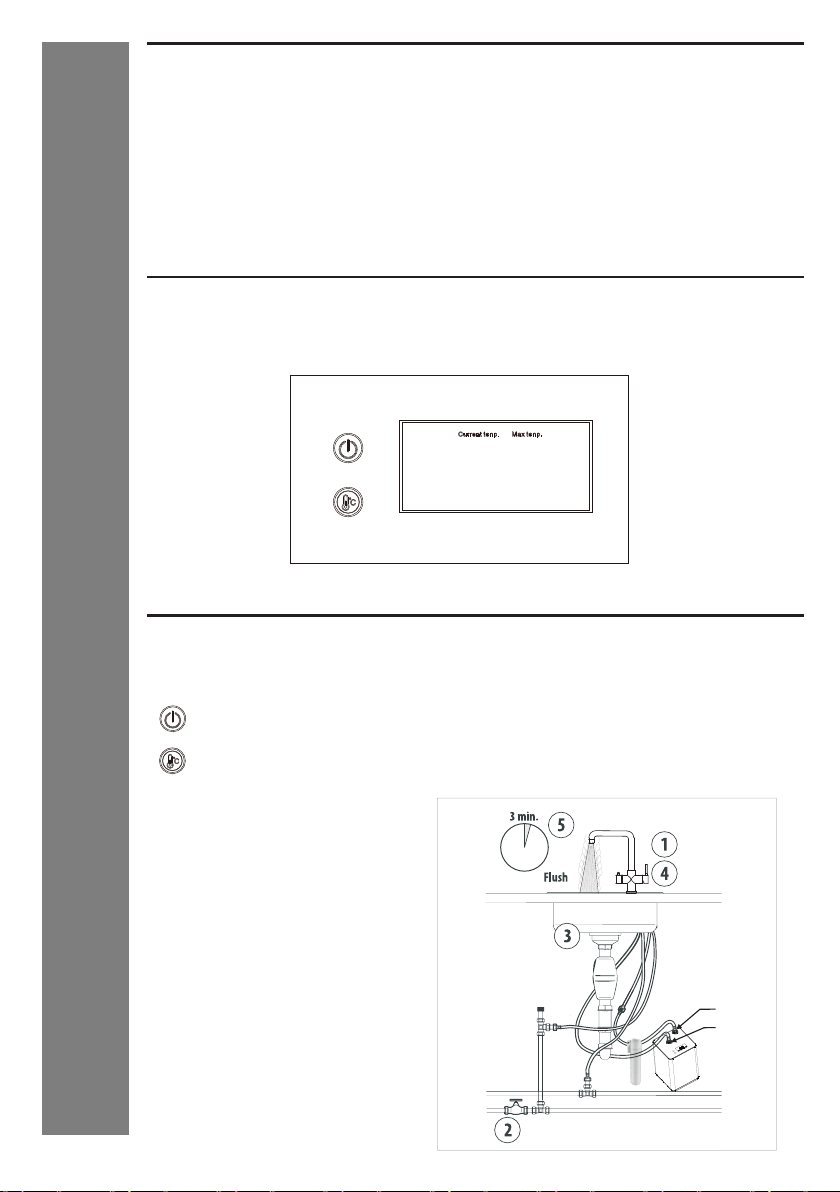

Step 3 Priming and Checking for Water Tightness–

Before the electronic instant hot water appliance is plugged into the power

socket it must be tested for water tightness and no leaks.

Open all water valves to allow water to ﬂow to the instant hot water tap.

Turn the spring back instant hot water handle and hold to ﬁll the electronic

instant hot water appliance this will take about 90 seconds.

When the electronic instant hot water appliance is full, water will ﬂow from

the instant hot water tap spout.

Turn the instant hot water handle off and check all connections for water

tightness and leaks.

Any leaking joint must be tightened to ensure no water leakage and the

above priming undertaken again and checked for water tightness before

connecting to the power socket.

Connect the plug to the power socket and turn on the power socket at the

switch.

The electronic instant hot water appliance display panel will now light up

with the on/off

INSTALLATION CONTINUED

Step 4–

Step 5–

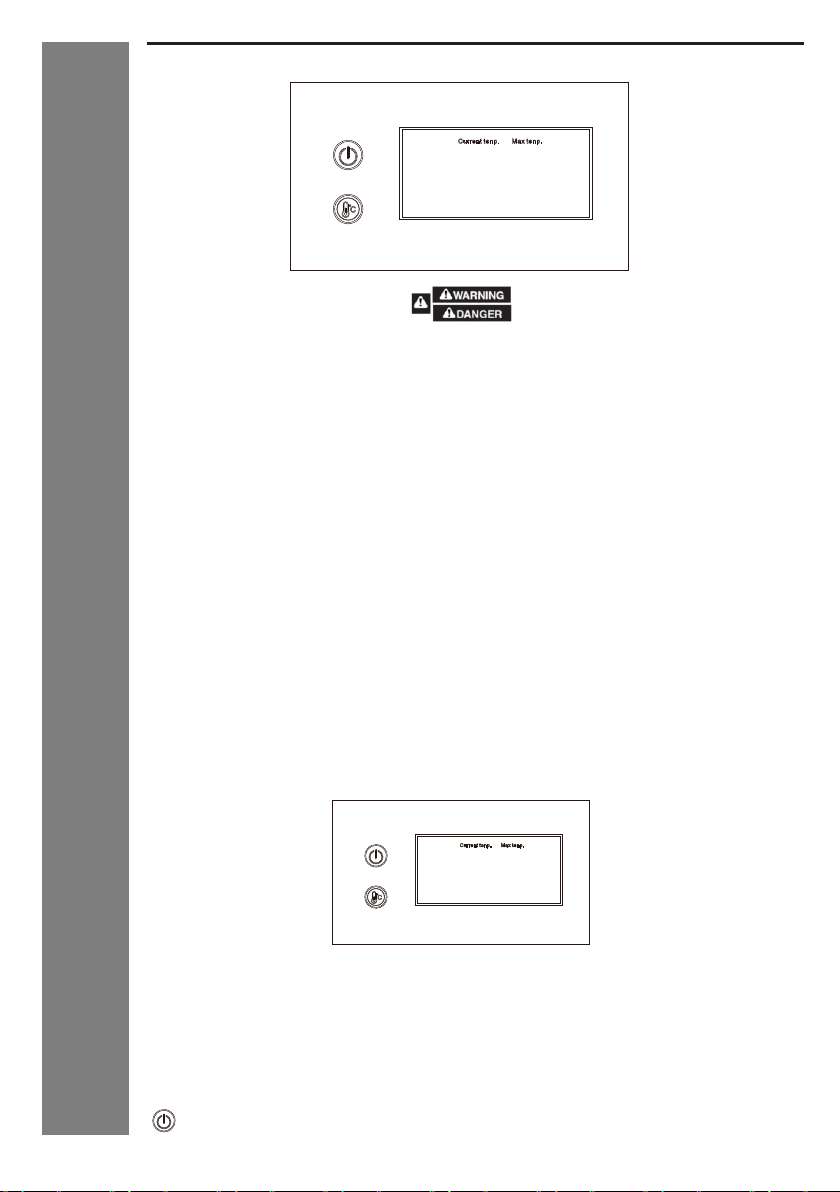

Electronic Control Display Panel

ON/OFF to control the power. The light will illuminate Green.

Temperature setting: press to select one of 5 temperature:

75℃,85℃,90℃,95℃,98℃

OUT

INSTALLATION CONTINUED

If the electronic instant hot water appliance is empty of water and is turned

ON then this will be automatically sensed, the display will show "E3". The

tank needs to ﬁll with water through the boiling water control handle on the

tap.

When the display shows "E4", please unplug and plug the boiler. If the

problem still exists, please contact service center to have the tank

checked and repaired.

lf the electronic instant hot water appliance is not powered off or ﬁlled with

water then after approximately 5 minutes the electronic instant hot water

appliance will automatically power down until it is primed with water using

the instruction set out earlier.

Once the Temperature is set the light will show Red while the tank is being

heated. Once the temperature has been reached the light will turn to

Green

When the instant hot water is drawn from the instant hot water tap or the

water temperature falls in the electronic instant hot water appliance falls

below the required temperature setting then it will automatically re heat to

the required temperature setting.

To turn off the electronic instant hot water appliance at any time push the

off button.

NOTICE MAINTENANCE AND CARE INSTRUCTIONS CONTINUED

Maintenance & power Saving

The electronic instant hot water appliance like any water heater has a

limited operational life span and will eventually fail. ln order to ensure

maxim-um protection and to avoid possible damage to any property or

personal injury the electronic instant hot water appliance should be

inspected regularly for any water leakage or damage.

Regularly check for any signs of water leakage, if there is any water

leakage then replace any loose or split silicon tubes or ﬂexi tails which can

cause water leakage and damage.

To provide additional water security to avoid property damage the

electronic instant hot water appliance can be placed in a drain pan and

connected to a suitable drain outlet to avoid any water damage. The drain

pan should be installed using the manufacturers installation instructions.

lf the electronic instant hot water appliance is not being used for long

periods of time ie:

over 7 days, to save power we recommend you switch off using

the"ON/OFF"switch.

Seasonal Shutdown

The hot water system(tank and tap)must not be exposed to freezing

temperatures. lf there is a possibility of this the system must be drained of

water. Shut-off the mains supply and unplug the unit from the electricity

mains and allow the tank to cool for at least 1 hour. Disconnect the inlet

supply to the tank and remove the silicone hose outlet pipe, lift the unit to

the sink, turn upside down and drain all the water from the tank. When

reinstalling follow the original installation instructions.

Table des matières

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
