Regency Fireplace Products Pro CI2700 Guide de démarrage rapide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

920-047f

MODEL: CI2700/HI500

Pro Series

Wood

Fireplace

Insert

06.08.21

Owners & Installation Manual

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

www.regency-ﬁre.com

Report #0219WN017S

French Manual: https://bit.ly/3vaoKti

Manuel en Français : https://bit.ly/3vaoKti

2| CI2700/HI500 Wood Insert

Thank-you for purchasing a REGENCY FIREPLACE PRODUCT.

The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions

about your product that are not covered in this manual, please contact the REGENCY DEALER in your area.

Keep those REGENCY FIRES burning.

“This wood heater has a manufacturer set minimum low burn rate that must not be altered. It is against federal regulations to alter this set-

ting or otherwise operate this wood heater in a manner inconsistent with operating instructions in this manual." Failure to follow the manual

details can lead to smoke and CO emissions spilling into the home. It is recommended to have monitors in areas that are expected to

generate CO such as heater fuelling areas.

“U.S. ENVIRONMENTAL PROTECTION AGENCY Certiﬁed to comply with 2020 particulate emission standards using cordwood.” Model

Regency CI2700 and HI500 – 1.3g/hr."

SAFETY NOTE: If this wood stove is not properly installed, a house ﬁre may result. For your safety, follow the installation instructions,

contact local building, ﬁre ofﬁcials, or authority having jurisdiction about restrictions and installation inspection requirements in your area.

The following statements are required by the Environmental Protection Agency:

“This manual describes the installation and operation of the Regency CI2700 and HI500 catalytic equipped wood heater. This heater meets

the 2020 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters. Under speciﬁc test conditions this heater has

been shown to deliver heat at rates ranging from 8,292 BTU/hr to 29,511 BTU/hr.” Efﬁciency is determined using the B415 method resulting

in lower and higher heat values. This heater generates the best efﬁciency when operated using well-seasoned wood and installed in the main

living areas where the majority of the chimney is within the building envelope and fully lined."

‘‘This wood heater contains a catalytic combustor, which needs periodic inspection and replacement for proper operation. It is against fed-

eral regulations to operate this wood heater in a manner inconsistent with operating instructions in this manual, or if the catalytic element is

deactivated or removed.’’

CAUTION: BURN UNTREATED WOOD ONLY. OTHER MATERIALS SUCH AS WOOD PRESERVATIVES, METAL FOILS, COAL,

PLASTIC,GARBAGE, SULPHUR OR OIL MAY DAMAGE THE CATALYST

"This heater is designed to burn natural wood only. Higher efﬁciencies and lower emissions generally result when burning air dried sea-

soned hardwoods, as compared to softwoods or to green or freshly cut hardwoods."

DO NOT BURN:

• Treated wood • Lawn clippings or yard waste • Manure or animal remains

• Coal • Materials containing rubber including tires • Saltwater driftwood or other previously salt water

saturated materials

• Garbage • Materials containing plastic • Unseasoned wood

• Cardboard • Waste petroleum products , paints or paint thinners or asphalt products • Paper products, cardboard, plywood or particle

board. The prohibition against burning these

materials does not prohibit the use of ﬁre starters

made from paper, cardboard, saw dust, wax and

similar substances for the purpose of starting a

ﬁre in a wood heater

• Solvents • Materials containing asbestos

• Colored Paper • Construction or demolition debris

• Trash • Railroad ties

Burning these materials may result in release of toxic fumes or render the heater ineffective and cause smoke.

The authority having jurisdiction (such as Municipal Building Department, Fire Department, Fire Prevention Bureau, etc.) should

be consulted before installation to determine the need to obtain a permit.

This unit must be connected to either a listed factory built chimney suitable for use with solid fuels and conforming to, UL1777,ULCS635

and ULCS640, or code approved masonry chimney with ﬂue liner.

CI2700/HI500 is tested and certiﬁed to UL-1482 (R2015), and ULC-S628 (R1997).

SAVE THESE INSTRUCTIONS

CI2700/HI500 Wood Insert | 3

table of contents

Copy of Safety Decal .....................................................................4

Dimensions

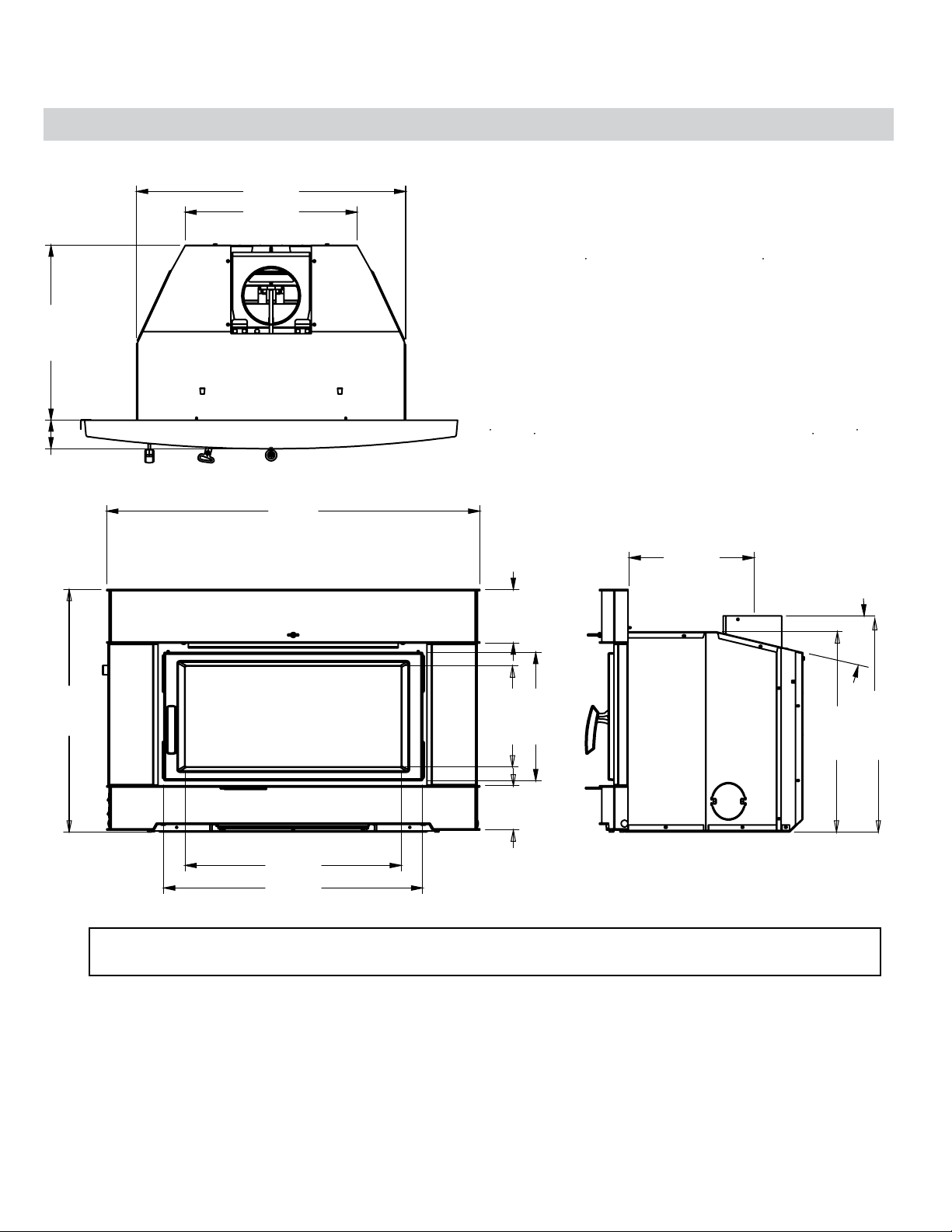

Dimensions - Contemporary Faceplate .........................................5

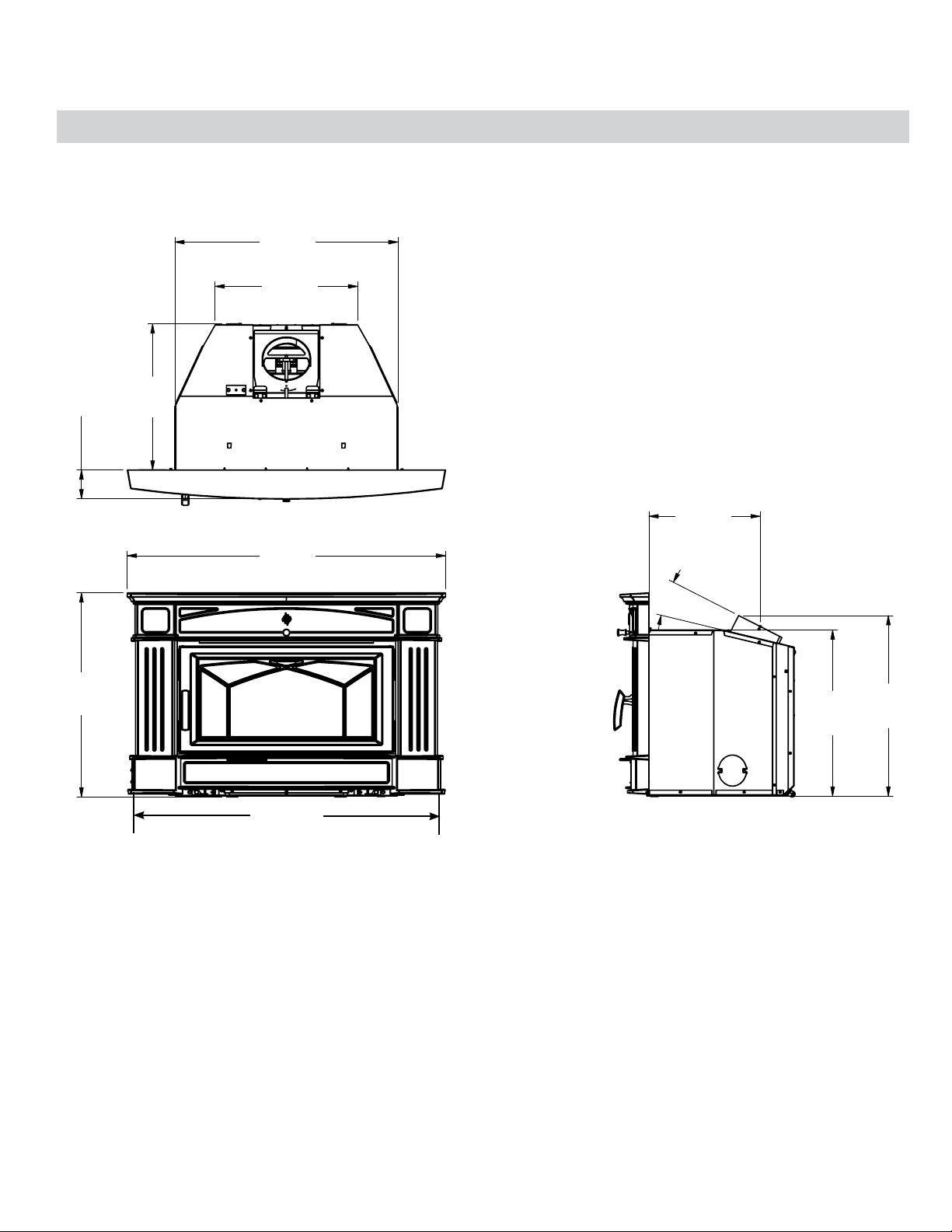

Dimensions - Cast Faceplate and Offset Flue Collar .....................6

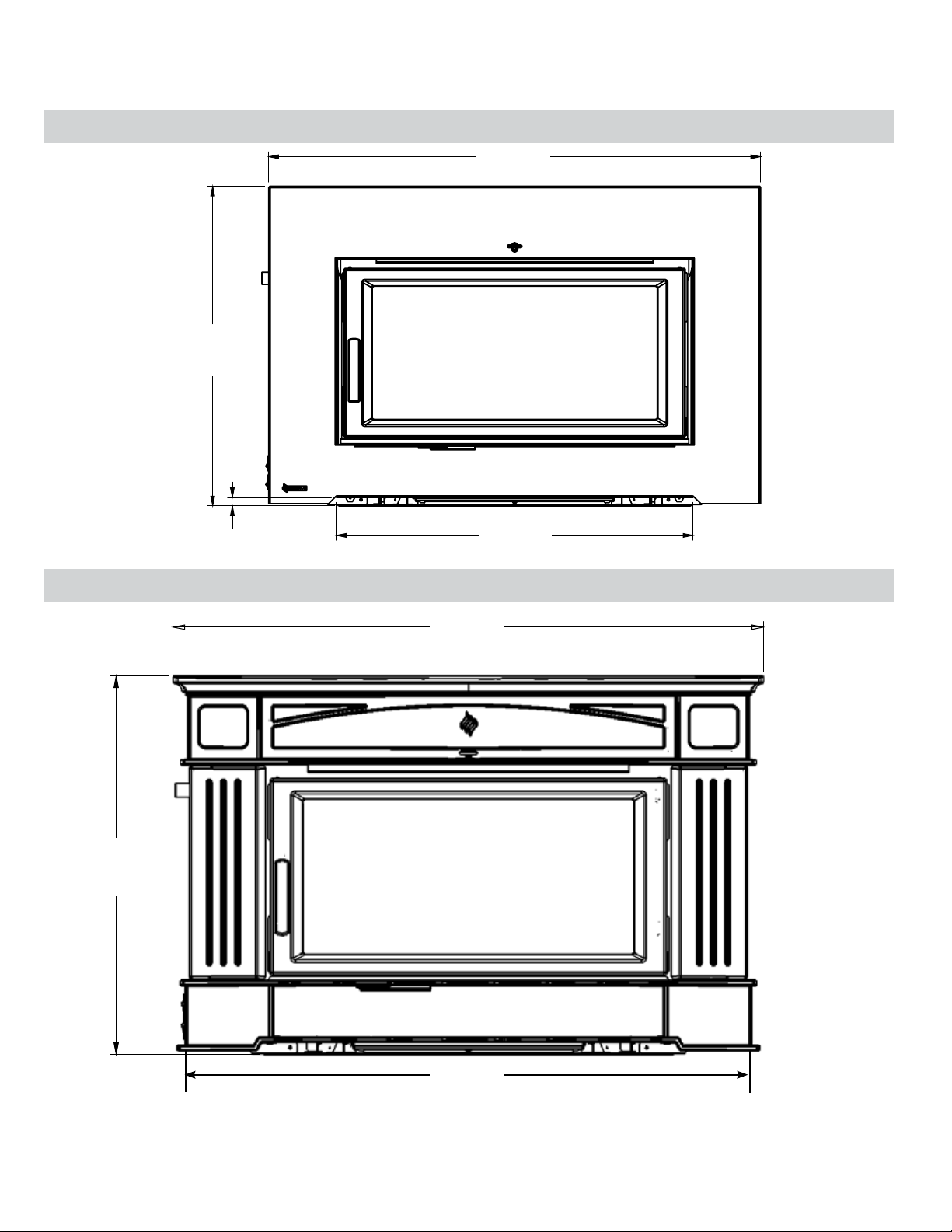

Dimensions - Low Proﬁle Faceplate ..............................................7

Dimensions - Cast Faceplate .........................................................7

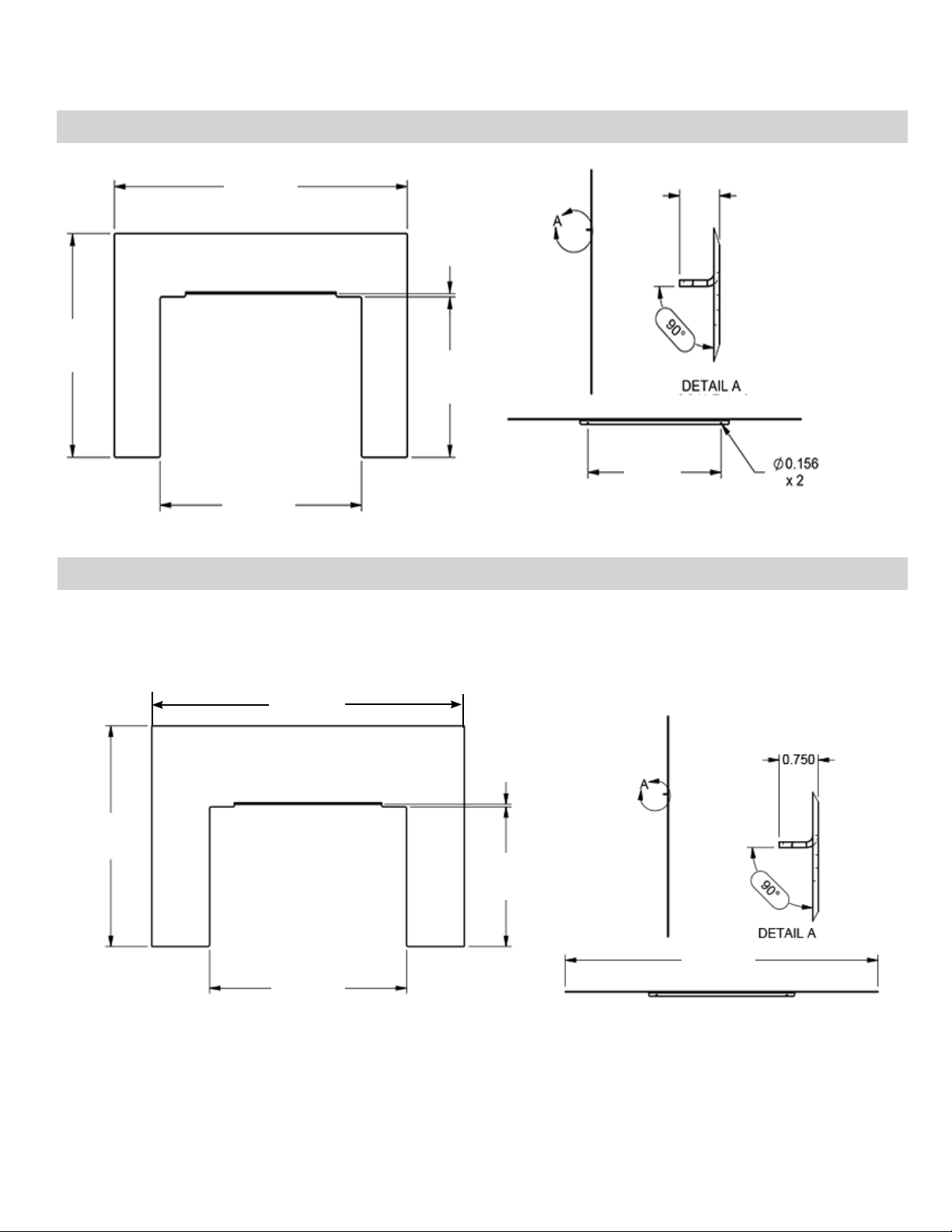

Dimensions - Standard Backing Plate ...........................................8

Dimensions - Oversized Backing Plate ..........................................8

Installation

Masonry And Factory Built Fireplace Clearances ........................9

How To Determine If Alternate Floor Protection Materials Are Ac-

ceptable .....................................................................................9

Wood Insert Speciﬁcations ............................................................9

Installation Into A Masonry Fireplace ...................................................10

Before Installing your Insert .........................................................10

Chimney Speciﬁcations ...............................................................10

Installation into a Factory Built Fireplace......................................11

Altering the Fireplace...................................................................11

Draft .............................................................................................11

Installing Your Insert ....................................................................12

Digital Catalytic Combustor Monitor ...........................................14

Levelling Bolts .............................................................................15

Optional Cast Grill Installation .....................................................16

Firebrick Assembly ......................................................................16

Optional Backing Plate Installation ..............................................17

Contemporary Faceplate Installation ...........................................18

Low Proﬁle Faceplate Installation ................................................20

Cast Faceplate Installation ..........................................................22

Oversize Cast Faceplate Installation ...........................................24

Optional Fan/Blower Installation ..................................................26

Removable Door Handle .............................................................28

Bypass Handle ............................................................................28

Operating Instructions

Seasoned Wood ............................................................................29

Operating Instructions ...................................................................30

Draft Control ..................................................................................30

First Fire ........................................................................................30

Ash Disposal ..................................................................................31

Fan Operation ................................................................................31

Creosote ........................................................................................31

Removal for Cleaning ....................................................................31

Ways to Prevent and Keep Unit Free of Creosote .........................31

Wood Storage ................................................................................31

Safety Guidelines & Warnings .......................................................32

Catalytic Combustor (Part # 106-534) ...........................................33

Combustor Assembly Removal/Replacement ..............................34

Bypass Door Gasket Replacement ..............................................35

Maintenance

Door Gasket ..................................................................................37

Glass Cleaning ..............................................................................37

Glass Replacement .......................................................................37

Glass Removal ..............................................................................37

Annual Maintenance ......................................................................37

Secondary Air Tube Removal/Installation ......................................38

Door Catch Adjustment .................................................................38

Cast Bypass Top Plate Removal/Installation .................................39

Fan Operation Into Auto Mode ..................................................... 39

Sweeping the Flue From the Top Down ........................................ 40

Parts List

Main Assembly ..............................................................................41

Brick Layout ...................................................................................43

Warranty

Warranty ........................................................................................44

Catalytic Combustor Coverage Warranty .......................................49

CAUTION: To avoid burns or wood splinters, when opening/closing the fuel

door or adding wood to the ﬁre, You should always wear appropriate protective

gloves to protect your hands from the heat being emitted from this ﬁreplace.

4| CI2700/HI500 Wood Insert

4safety decal

This is a copy of the label that accompanies

your Regency Insert. We have printed a copy

of the contents here for your review.

NOTE: Regency units are constantly being

improved. Check the label on the unit and if

there is a difference, the label on the unit is the

correct one.

SAFETY LABEL FOR CI2700

Part #: 920-048

Size:  5.4"Hx10.9"W(leat100%)

Colour:Blackongrey,exceptforwhatisindicatedasbeingprintedredongrey.

  Whiteoutsignaturebox.

Material:2mlsilvermattpolyester(DPMSMS)

Jan.24/19:createddraft

NSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE ONLY IN MASONRY FIREPLACE OR FACTORY BUILT FIREPLACE. CONTACT

LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA.

INSTALLER ET UTILISER SELON LES INSTRUCTIONS DU FABRICANT. INSTALLER ET UTILISER DANS UN FOYER DE MACONNERIE OU PRÉFABRIQUÉ. APPELEZ VOTRE INSPECTEUR DE BÂTIMENT OU LE DÉPARTMENT D'INCENDIE

LOCAL POUR LES CODES LOCAUX ET POUR INSPECTÉE VOTRE INSTALLATION ET FOYER.

LISTED FACTORY BUILT FIREPLACE INSERT

CONSTRUITS EN USINE CHEMINÉE INSERT

CERTIFIED FOR USE IN CANADA AND U.S.A

CERTIFIÉE POUR: CANADA AND U.S.A.

MODEL/ MODÉLE: CI2700/HI500

TESTED TO: UL-1482 (R2015), and ULC-S628 (R1997)

DO NOT REMOVE THIS LABEL

NE PAS ENLEVER CETTE ETQUETTE

516

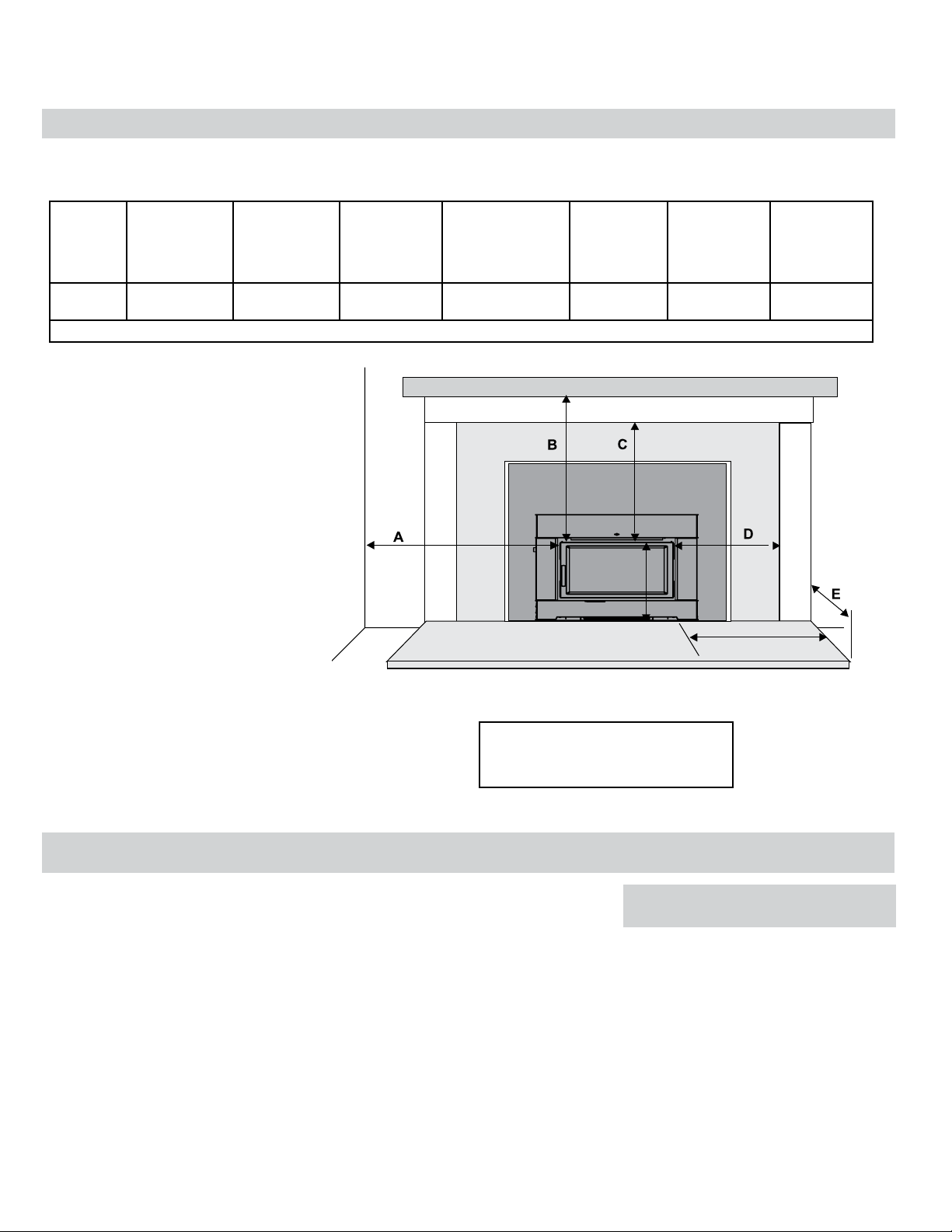

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM TOP/SIDE DOOR)

UN MINIMUM DE DÉGAGEMENT DE MATÉRIAUX COMBUSTIBLES (MESURÉE À PARTIR DU HAUT/PORTE LATÉRALE)

ADJACENT SIDEWALL / LATÉRAL ADJACENT

MANTLE / MANTEAU

TOP FACING/FACE SUPÉRIEUR

SIDE FACING / FACE CÔTÉ

A) 12-3/16 in / 310 mm

B) 21-5/8 in / 549 mm

C) 14 in / 356 mm

D) 7-3/8 in / 187 mm

COMPONENTS REQUIRED FOR INSTALLATION: 6" (152mm) STAINLESS STEEL LINER - LISTED TO: UL1777, ULCS635 OR ULCS640. OPTIONAL COMPONENT: FAN (PART# 106-917), ELECTRICAL RATING: VOLTS 115, 60 HZ, 0.6 AMPS,

CONTEMPORARY FACEPLATE, CONTOUR FACEPLATE, CAST FACEPLATE, OFFSET FLUE COLLAR, OR BACKER PLATE.

DANGER: RISK OF ELECTRIC SHOCK. DISCONNECT POWER BEFORE SERVICING UNIT. DO NOT ROUTE POWER CORD UNDER OR IN FRONT OF APPLIANCE. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVICING

ANOTHER APPLIANCE. DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. RISK OF

SMOKE AND FLAME SPILLAGE, OPERATE ONLY WITH DOORS FULLY CLOSED. OPEN FEED DOOR TO FEED FIRE ONLY. REPLACE GLASS ONLY WITH CERAMIC GLASS (5MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UN-

DER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS, YOU ARE OVER-FIRING. CAUTION: THE COMBUSTOR (PART #106-534) IS FRAGILE, HANDLE CAREFULLY.

CAUTION: BURNING OF METAL FOILS, COAL, PLASTIC, GARBAGE, SULPHUR AND DIESEL OIL WILL RENDER THE CATALYST IN THE COMBUSTOR INACTIVE. THE PERFORMANCE OF THE CATALYTIC DEVICE OR ITS DURABILITY

HAS NOT BEEN EVALUATED AS PART OF THE CERTIFICATION. CAUTION: HOT PARTS-DO NOT OPERATE WITH DOOR REMOVED.

PIÈCES NÉCESSAIRES POUR INSTALLATION : 6" (152MM) CONDUITS EN ACIER INOXYDABLE HOMOLOGUÉ SELON : UL1777, ULCS635 OU ULCS640. COMPOSANT FACULTATIF : VENTILATEUR (PIÈCE 106-917);

CARACTÉRISTIQUES ÉLECTRIQUES ASSIGNÉES : 115 V, 60 HZ, 0,6 A; FAÇADE CONTEMPORAINE, FAÇADE BISEAUTÉE, FAÇADE EN FONTE, BUSE DE CONDUIT DE CHEMINÉE COUDÉ OU PLAQUE DE FIXA-

TION. ATTENTION: RISQUE DU CHOC ÉLECTRIQUE. AVANT DE L'ENTRETIEN, DÉBRANCHER L'APPAREIL. NE PLACEZ PAS LE CORDON D'ALIMENTATION EN FACE OU EN DESSOUS DE L'APPAREIL.

NE PAS ENLEVER DE BRIQUES OU DE MORTIER D’UNE CHEMINÉE DE MAÇONNERIE. N'UTILISER QUE DU COMBUSTIBLE SOLIDE. REMPLACEZ LA VITRE SEULEMENT PAR DU VERRE EN NEOCERAM . NE

PAS SURÉLEVER LES BÛCHES NI LES PLACER SUR DES GRILLES. LES DÉPOSER DIRECTEMENT SUR L’ÂTRE. RISQUE DE DÉGAGEMENT DE FUMÉE OU DE FLAMMES : TOUJOURS GARDER LES PORTES

BIEN FERMÉES LORSQUE L’APPAREIL FONCTIONNE. OUVRIR LA PORTE UNIQUEMENT POUR ALIMENTER LE FEU. INSPECTER ET NETTOYER FRÉQUEMMENT LA CHEMINÉE. SELON LE TYPE D’USAGE, LE

CRÉOSOTE PEUT S’ACCUMULER RAPIDEMENT.

NE PAS SURCHAUFFER; SI L’ENCASTRABLE SE MET À ROUGIR, IL S’AGIT D’UNE SURCHAUFFE.

AVERTISSEMENT : LE CATALYSEUR (PIÈCE 106-534) EST FRAGILE ET DOIT ÊTRE MANIPULÉ SOIGNEUSEMENT. LA COMBUSTION DE PAPIER D'ALUMINIUM, DE CHARBON, DE PLASTIQUE, DE DÉCHETS, DE

SOUFFRE OU D’ESSENCE DIESEL RENDRA LE CATALYSEUR INACTIF. NI LE RENDEMENT NI LA DURABILITÉ DU CATALYSEUR N’ONT ÉTÉ ÉVALUÉS DANS LE CADRE DU PROCESSUS D’HOMOLOGATION. RE-

MARQUE: TEMPÉRATURES ÉLEVÉES. NE JAMAIS FAIRE FONCTIONNER L’APPAREIL SI LA PORTE VITRÉE N'EST PAS BIEN EN PLACE.

CAUTION

INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH

COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING (E) 18

IN / 457 MM TO FRONT AND (G) 8 IN / 205 MM TO SIDES FROM FUEL DOOR.

IN CANADA, SIDE HEARTH PROTECTION TO BE MEASURED FROM SIDE OF UNIT.

FLOOR PROTECTION NEEDS TO BE WITH R VALUE = 2.13

INSTALLER SUR UN ÂTRE DE MATÉRIAU NOM COMBUSTIBLE SURÉLEVÉ COMBUSTIBLE ADJACENT.

LE PLANCHER COMBUSTIBLE DOIT ÊTRE PROTÉGÉ PAR LE MATÉRIAU NOM

COMBUSTIBLE QUI ÉTENDRE (E) 18 po / 457 MM À L'AVANT ET (G) 8 po / 205 MM SUR LES CÔTÉS

DE LA PORTE DE CARBURANT.

AU CANADA, LA PROTECTION DE FOYER DE CÔTÉ ÊTRE MESURÉE À PARTIR CÔTÉ DE L'APPAREIL.

PROTECTION DE PLANCHER BESOIN D'ÊTRE AVEC LA VALEUR R = 2.13

MADE IN CANADA

920-048

ManufacturedBy:

FIREPLACE PRODUCTS

INTERNATIONAL LTD.

6988 VENTURE ST., DELTA,

BC V4G 1H4

HOT WHILE IN OPERATION DO NOT TOUCH. KEEP

CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY

CAUSE SKIN BURNS. READ NAMEPLATE AND INSTRUCTIONS.

JanFebMarAprMayJune JulyAugSeptOctNovDec

DATE OF

MANUFACTURE

(DuplicateSerial#)516

2021 2022 2023 2024 2025

Report #0219WN017S

AVERTISSEMENT

CHAUDPENDANT LEFONCTIONNEMENT.NEPASTOUCHER.

GARDER LES ENFANTS, LES VÊTEMENTS ET LES MEUBLES

ÀL’ÉCART.LECONTACTAVECLAPEAUPEUTOCCASIONNER

DES BRÛLURES. LIRE LA PLAQUE SIGNALÉTIQUE ET LES

INSTRUCTIONS.

Serial No./ No de série

U.S.ENVIRONMENTAL PROTECTIONAGENCY CERTIFIED TO COMPLY WITH 2020 PARTICULATE EMISSION STANDARDS USING CORD WOOD.” TESTED TO ASTM E3053. MODEL REGENCY

CI2700/HI500– 1.3G /HR.THIS WOOD HEATER NEEDS PERIODIC INSPECTION AND REPAIR FOR PROPER OPERATION. CONSULT THE OWNER'S MANUAL FOR FURTHER INFORMATION. IT IS

AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT WITH THE OPERATING INSTRUCTIONS IN THE OWNER'S MANUAL.

CERTIFIÉ CONFORME AUX NORMES 2020 DU U.S. ENVIRONMENTAL PROTECTION AGENCY EN MATIÈRE D'ÉMISSION DE PARTICULES DE BOIS AVEC DU BOIS DE CORDE''.APPROUVÉ

ASTM E3053. MODÈLE REGENCY CI2700/HI500 – 1,3 G /H. CET APPAREIL DE CHAUFFAGEAU BOIS DOIT ÊTRE INSPECTÉ PÉRIODIQUEMENT ET RÉPARÉ POUR FONCTIONNER CORRECTE-

MENT. CONSULTER LE MANUEL D’INSTALLATION POUR PLUS D’INFORMATION. LARÉGLEMENTATION FÉDÉRALE INTERDIT DE FAIRE FONCTIONNER UN TELAPPAREIL SI LES CONSIGNES

D'UTILISATION CONTENUES DANS LE PRÉSENT MANUEL NE SONT PAS RESPECTÉES.

CI2700/HI500 Wood Insert | 5

dimensions

23-3/16"

27-3/4"

13-3/4"

10-3/4"

40"

26"

4-3/4" 5-3/4"

28-7/8"

18-1/2"

18-15/16"

3-1/16"

21-1/2"

13.5°

13-3/8"

(733mm)

(469mm)

(481mm)

(78mm)

(1016mm)

(589mm)

(750mm)

(660mm)

(146mm)

(273mm)

(349mm)

(545mm)

(340mm)

2 -1/2"3

(5 mm)97

DIMENSIONS - CONTEMPORARY FACEPLATE

ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.

ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.

6| CI2700/HI500 Wood Insert

6dimensions

DIMENSIONS - STANDARD CAST FACEPLATE AND OFFSET FLUE COLLAR

41 1

1045

26 3

670

21 7

545

14°

23 5

592

14 3

366

28 13

733

18 7

469

18 13

3 11

39''

(991mm)

18-13/16''

(478mm)

28-13/16''

(733mm)

18-7/16''

(469mm)

3-11/16''

(94mm)

41-1/8''

(1045mm)

26-3/8''

(670mm)

14-3/8''

(366mm)

21-1/2''

(546mm)

23-5/16''

(592mm)

CI2700/HI500 Wood Insert | 7

dimensions

DIMENSIONS - LOW PROFILE FACEPLATE

40"

26"

29"

3/4"

[737mm]

[660mm]

[17mm]

[1016mm]

26-1/2"

41-3/8"

673mm

1051mm

Standard Cast Faceplate shown above

Oversized Cast Faceplate Dimensions: 44" W x 31" H

DIMENSIONS - STANDARD CAST FACEPLATE

41-1/8''

(1045mm)

26-3/8''

(670mm)

39''

(991mm)

40''

(1016mm)

26''

(660mm)

29''

(737mm)

3/4''

(17mm)

8| CI2700/HI500 Wood Insert

8dimensions

DIMENSIONS - STANDARD BACKING PLATE

DIMENSIONS - OVERSIZED BACKING PLATE

44''

(1118mm)

29-7/8''

(759mm)

30-1/4''

(768mm)

5/32''

(10mm)

21-7/16''

(544mm)

3/4''

(19mm)

20''

(508mm)

48''

(1219mm)

30-1/4''

(768mm)

33-7/8''

(860mm)

21-7/16''

(544mm)

5/32''

(10mm)

48''

(1219mm)

CI2700/HI500 Wood Insert | 9

installation

Clearance diagram for Installations

Side and Top facing is a maximum of 1.5" thick.

* Side hearth extension for Canada measured

from side of appliance.

* Hearth extension to have minimum:

R value of 2.13 or greater.

** A non-combustible mantel may be installed

at a lower height if the framing is made of

metal studs covered with a non-combustible

board.

** Max. mantle depth is 10" (254mm).

Thermal ﬂoor protection is not required if the unit is

raised 6.5" minimum (measured from the bottom of

the stove). However, standard ember ﬂoor protec-

tion is required. It will need to be a non-combustible

material that covers 16" (406 mm) in the US and

18" (450 mm) in Canada to the front of the unit and

8" (200 mm) to the sides.

All ﬂoor protection must be non-combustible (i.e.,

metals, brick, stone, mineral ﬁber boards, etc.) Any

organic materials (i.e. plastics, wood paper prod-

ucts, etc.) are combustible and must not be used.

The ﬂoor protection speciﬁed includes some form

of thermal designation similar to R-value (thermal

resistance) or k-factor (thermal conductivity).

Floor protector listed to UL1618.

The minimum required clearances to combustible materials when installed into a masonry or factory built ﬁreplace are listed below.

HOW TO DETERMINE IF ALTERNATE FLOOR PROTECTION MATERIALS ARE ACCEPTABLE

The speciﬁed ﬂoor protector should be 3/8" (18mm)

thick material with a K - factor of 0.84.

The proposed alternative is 4" (100mm) brick with

a C-factor of 1.25 over 1/8" (3mm) mineral board

with a K-factor of 0.29.

Step (a):

Use formula above to convert speciﬁcation to

R-value.

R = 1/k x T = 1/0.84 x .75 = 0.893.

Step (b):

Calculate R of proposed system.

4" brick of C = 1.25, therefore

Rbrick = 1/C = 1/1.25 = 0.80

1/8" mineral board of k = 0.29, therefore

Rmin.bd. = 1/0.29 x 0.125 = 0.431

Total R = Rbrick + Rmineral board =

0.8 + 0.431 = 1.231.

Step (c):

Compare proposed system R of 1.231 to speci-

ﬁed R of 0.893. Since proposed system R is

greater than required, the system is acceptable.

DEFINITIONS

Thermal Conductance:

C = Btu = W

(hr)(ft2 )(oF) (m2))(K)

Thermal Conductivity:

k = (Btu)(inch) = W = Btu

(hr)(ft3)(oF) (m)(K) (hr)(ft)(oF)

Thermal Resistance:

R = (ft2)(hr)(oF) = (m2)(K)

Btu W

Minimum Hearth Extension for the front

(E) and sides (F) are measured from the

fuel door opening.

Unit Adjacent

Side Wall

(to Side

of Door)

Mantle **

(to Top of Door)

Top

Facing

(to Top of Door

Side

Facing

(to Side of Door)

Minimum

Hearth

Extension*

Minimum

Hearth Side

Extension*

To Top of Door

CI2700/

HI500

12-3/16" 21-5/8" 14" 7-3/8" US 16"

Canada 18"

8" 19-1/4"

Measurements A,B,C,D are from top/side of door

MASONRY AND FACTORY BUILT FIREPLACE CLEARANCES

Your ﬁreplace opening requires the following mini-

mum sizes:

Height: 21-3/4" (552 mm)

Width: 29" (737 mm)

Depth: 19" (483 mm)

WOOD INSERT

SPECIFICATIONS

10 | CI2700/HI500 Wood Insert

10 installation

Before installing, check and clean your chimney

system thoroughly. If in doubt about its condition,

seek professional advice. Your Regency Insert is

designed for installation into a masonry ﬁreplace

that is constructed in accordance with the require-

ments of "The Standard for Chimneys, Fireplaces,

Vents, and Solid Fuel Burning Appliance", N.F.P.A.

211, the National Building Code of Canada, or the

applicable local code requirements.

The appliance, when installed, must be electrically

grounded in accordance with local codes or, in the

absence of local codes, with the National Electrical

Code, ANSI/NFPA 70, or the Canadian Electrical

code, CSA C22.1.

Regency Inserts are designed to use either a 5.5"

(140mm) or 6" (152mm) ﬂue.

Regency Inserts are constructed with the highest

quality materials and assembled under strict quality

control procedures that insure years of trouble free

and reliable performance.

It is important that you read this manual thoroughly

and fully understand the safe installation and operat-

ing procedures. The more you understand the way

your Regency Insert operates, the more enjoyment

you will experience from knowing that your unit is

operating at peak performance.

1. Please read this entire manual before you install

and use your new wood insert. Failure to follow

instructions may result in property damage,

bodily injury or even death. Install and use only

in accordance with manufacturer’s installation

and operating instructions.

2. Check your local building codes - Building In-

spection Department. You may require a permit

before installing your insert. Be aware that

local codes and regulations may override

some items in the manual.

WARNING: Careless installation is the major

cause of safety hazard.Check all local build-

ing and safety codes before installation of

unit.

3. Notify your home insurance company that you

plan to install a ﬁreplace insert or hearth heater.

4. Your ﬁreplace insert is heavy and requires two

or more people to move it safely. The insert

can be badly damaged by mishandling.

5. If your existing ﬁreplace damper control will

become inaccessible once you have installed

your Regency Insert, you should either remove

or secure it in the open position.

6. Inspect your ﬁreplace and chimney prior to

installing your insert to determine that it is

free from cracks, loose mortar or other signs

of damage. If repairs are required, they should

be completed before installing your insert. Do

not remove bricks or mortar from your masonry

ﬁreplace.

7. Do not connect the insert to a chimney

system servicing another appliance or an

air distribution duct.

In Canada this ﬁreplace insert must be

installed with a continuous chimney liner

of 5.5" (140 mm) or 6" (152 mm) diameter

extending from the ﬁreplace insert to the

top of the chimney. The chimney liner must

conform to the Class 3 requirements of CAN/

ULC-S635 or CAN/ULC-S640, Standard for

Lining Systems for New Masonry Chimneys.

INSTALLATION INTO A MASONRY

FIREPLACE

CHIMNEY SPECIFICATIONS

BEFORE INSTALLING

YOUR INSERT

When referencing installation or connec-

tion to masonry ﬁreplaces or chimneys,

the masonry construction must or shall be

code complying.

Draft is the force which moves air from the appliance

up through the chimney. The amount of draft in your

chimney depends on the length of the chimney, local

geography, nearby obstructions and other factors.

Too much draft may cause excessive temperatures

in the appliance and may cause damage. An uncon-

trollable burn or excessive temperature indicates

excessive draft. Inadequate draft may cause back

pufﬁng into the room and plugging of the chimney.

Inadequate draft will cause the appliance to leak

smoke into the room through appliance and chim-

ney connector joints. Ensure the heater is installed

in areas that are not too close to neighbors or in

valleys that would cause unhealthy air quality or

nuisance conditions.

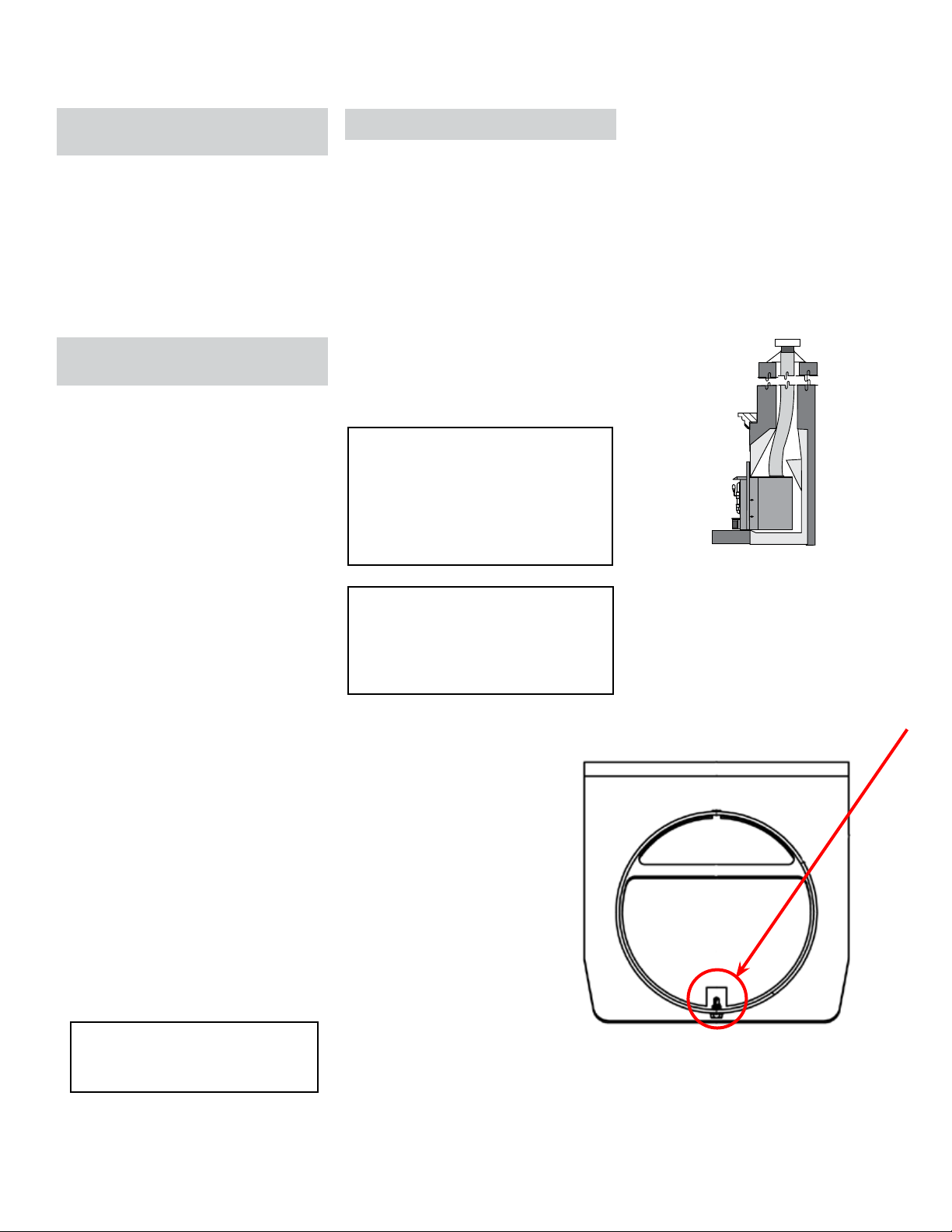

Note: On this appliance, there is a screw directly

above the bypass rod located on the ﬂue collar as

shown below. This screw is located in its position to

prevent the liner/adaptor from coming into contact

with the bypass rod. Please do not remove. This

must remain in place at all times.

In the U.S.A., a 5.5 inch (140 mm) or 6 inch

(152 mm) diameter, stainless steel,full height

chimney liner that meets type HT (21000F)

requirements per UL 1777 must be installed.

The full liner must be attached to the insert

ﬂue collar and to the top of the existing ma-

sonry chimney.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Regency Fireplace Products Cheminée intérieure

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTE Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTE Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products U32 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Energy U31 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Panorama P33CE Series Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products L390E Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products GEM54-NG Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products P121-NG10 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products City Series Manuel de service

Regency Fireplace Products

Regency Fireplace Products Classic H2100M Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XTE-NG11 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products CI2600 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XTCE Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Greenfire GFI300L Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTE-10 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products P33-NG4 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products H2100 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products U900E-11 Manuel utilisateur

Regency Fireplace Products

Regency Fireplace Products City Series Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products PG33-NG Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTCE-10 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products CI1200 Alterra Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products E21 Gas Insert Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Classic I2453M Guide de démarrage rapide

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
