USER'S MANUAL
www.reebokfitness.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial
Number
Decal
Model No. RBTL89010.0
Serial No.
Write the serial number in the space
above for reference.
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-866-362-4490
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.reebokservice.com
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
OW TO FOLD AND MOVE T E TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLES OOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call the
telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note:
The decals may not be shown at actual size.
WARNING DECAL PLACEMENT
REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is
manufactured and distributed under license from Reebok International.
3
1. Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over age 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by per-
sons weighing 350 lbs. (159 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
11. When connecting the power cord (see page
11), plug the power cord into a surge sup-
pressor (not included) and plug the surge
suppressor into a grounded circuit capable
of carrying 15 or more amps. No other appli-
ance should be on the same circuit. Do not
use an extension cord.
12. Use only a single-outlet surge suppressor
that meets all of the specifications described
on page 11. To purchase a surge suppressor,
see your local REEBOK dealer or call the tele-
phone number on the front cover of this man-
ual and order part number 146148, or see
your local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
TROUBLESHOOTING on page 21 if the tread-
mill is not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on page
13).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
4
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the lo-
cation of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. Do not change the incline of the treadmill by
placing objects under the treadmill.
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. Never insert or drop any object into any
opening on the treadmill.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
26. The treadmill is intended for in-home use
only. Do not use the treadmill in any commer-
cial, rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE INSTRUCTIONS
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. owever, there is no guarantee that interference will not occur in a particular in-
stallation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Per FCC rules, changes or modifications not expressly approved by ICON could void
the user's authority to operate the equipment.
5
Thank you for selecting the revolutionary REEBOK®
COMPETITOR RT 8.0 treadmill. The COMPETITOR
RT 8.0 treadmill offers an impressive selection of fea-
tures designed to make your workouts at home more
enjoyable and effective. And when you’re not exercis-
ing, the unique treadmill can be folded up, requiring
less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please look at the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
andrail
Console Book older
Key/Clip
Power Switch
Walking Belt
Foot Rail
Power Cord
Adjustable Cushion
Idler Roller
Adjustment Bolts
Accessory Tray
Pulse Sensor
6
ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly re-
quires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of
the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated
with high-performance lubricant. During shipping, some lubricant may be transferred to the top of the walking belt
or the shipping carton. This is normal and does not affect performance. If there is lubricant on top of the walking
belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver and adjustable
wrench .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is the
key number of the part, from the PART LIST near the end of this manual. The number after the parentheses is the
quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid damaging
parts, do not use power tools for assembly. Extra hardware may be included.
3/8" Star Washer
(6)–10
3/8" x 3 3/4" Patch Bolt (5)–4
3/8" Jam Nut (7)–2
#8 x 3/4"
Tek Screw (24)–4
3/8" x 2" Bolt (4)–1
3/8" x 1 3/4" Bolt (3)–1
3/8" x 1 1/4"
Patch Bolt (2)–6
103
Cardboard
Stand
1
1. Make sure that the power cord is unplugged.
With the help of a second person, raise the front
of the treadmill and insert the crossbar on the
Base (103) into the cutout in the cardboard
stand as shown. Have the second person hold
the treadmill to prevent it from moving for-
ward or backward until assembly step 3.
WARNING: Serious injury
may occur if the treadmill moves for-
ward or backward and falls off the card-
board stand. A second person must
hold the treadmill until assembly step 3
to prevent the treadmill from moving,
tipping, or falling.
7

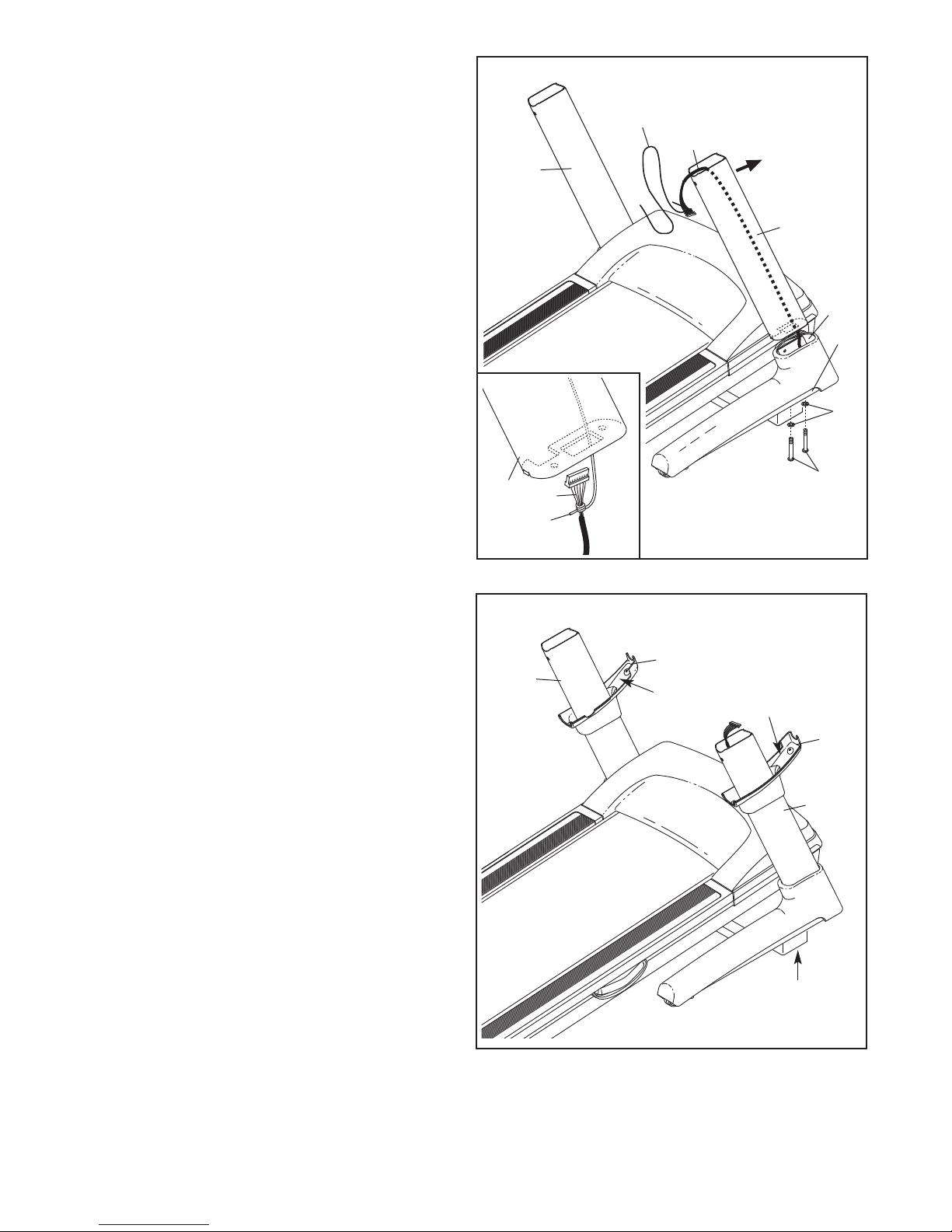

2. Identify the Right Upright (92), which is marked
with a “Right” sticker.
ave a second person hold the Right Upright
(92) near the Right Base Cover (102). See the
inset drawing. Tie the wire tie in the lower end
of the Right Upright securely around the Upright
Wire (93). Then, pull the other end of the wire tie
out of the upper end of the Right Upright until
the Upright Wire is routed completely through
the Right Upright.
Gently pull up on the Upright Wire (93) as you
set the Right Upright (92) on the Base (103) in-
side the Right Base Cover (102). Be careful not
to pinch the Upright Wire.
Attach the Right Upright (92) to the Base (103)
with two 3/8" x 3 3/4" Patch Bolts (5) and two
3/8" Star Washers (6). Note: It may be neces-
sary to tip the top of the Right Upright forward
slightly as you thread the Patch Bolts into it. Do
not tighten the Patch Bolts yet.
Attach the Left Upright (91) in the same way.
Note: There are no wires on the left side.
103
93
102
2
92
6
5
91
93
92
Wire
Tie
Wire
Tie
3. With the help of a second person, lower the
treadmill off the cardboard stand. The stand will
be used again in assembly step 9.
Identify the Left Upright Sleeve (89) and the
Right Upright Sleeve (90); the Upright Sleeves
are labeled “Left” and “Right.” Slide the Left
Upright Sleeve onto the Left Upright (91), and
slide the Right Upright Sleeve onto the Right
Upright (92).
89
“Right”
Cardboard
Stand
“Left”
90
3
92
91
8
4. ave a second person hold the console assem-
bly near the Uprights (91, 92).
Connect the Upright Wire (93) to the Console
Wire (114). See the inset drawing. The con-
nectors should slide together easily and
snap into place. If they do not, turn one con-
nector and try again. IF YOU DO NOT CON-
NECT THE CONNECTORS PROPERLY, THE
CONSOLE MAY BECOME DAMAGED WHEN
YOU TURN ON THE POWER.
Remove the wire tie from the Upright Wire (93).
Insert the connectors downward into the Right
Upright (92). 114
Console
Assembly
4
92
93
91
114 Wire
Tie
93
5. Insert the brackets on the andrail (110) into the
Uprights (91, 92). Make sure that no wires are
pinched.
5
92
91
110
Console
Assembly
110
9
6. Partially tighten three 3/8" x 1 1/4" Patch Bolts
(2) with three 3/8" Star Washers (6) into the
Right Upright (92); do not fully tighten the
Patch Bolts yet.
Repeat this step with the Left Upright (91).
Then, firmly tighten all six 3/8" x 1 1/4" Patch
Bolts (2).
91
92
2
2
6
6
6
7. Slide the Right Upright Sleeve (90) up against
the console assembly. Attach the Right Upright
Sleeve with two #8 x 3/4" Tek Screws (24).
Attach the Left Upright Sleeve (not shown) to
the console assembly in the same way.
24
90
24
7
Console
Assembly
10
8. Raise the Frame (67) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (87) so that the large
barrel and the latch knob are in the positions
shown.
Attach the upper end of the Storage Latch (87)
to the bracket on the Frame (67) with a 3/8" x 1
3/4" Bolt (3) and a 3/8" Jam Nut (7).
Attach the lower end of the Storage Latch (87) to
the bracket on the Base (103) with a 3/8" x 2"
Bolt (4) and a 3/8" Jam Nut (7). Note: It may be
necessary to move the Frame (67) back and
forth to align the Storage Latch with the bracket.
Lower the Frame (67) (see OW TO LOWER
T E TREADMILL FOR USE on page 20).
7
7
Large
Barrel
103
4
67
3
87
8
10. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys
in a secure place; one of the hex keys is used to adjust the walking belt (see pages 22 and 23). To protect
the floor or carpet from damage, place a mat under the treadmill. Extra hardware may be included.
9. With the help of a second person, raise the
front of the treadmill and insert the crossbar on
the Base (103) into the cutout in the cardboard
stand as shown. Have the second person
hold the treadmill to prevent it from moving
forward or backward.
Firmly tighten the four 3/8" x 3 3/4" Patch Bolts
(5).
With the help of the second person, lower the
treadmill off the cardboard stand.
Cardboard
Stand
5
103
5
9
Latch
Knob
Autres manuels pour Competitor Rt 8.0 Treadmill
1
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Reebok tapis roulant
Reebok
Reebok 9700 Vista Treadmill Manuel utilisateur
Reebok
Reebok 2000S RBTL12204.0 Manuel utilisateur
Reebok
Reebok RX 2000 RBTL14910 Manuel utilisateur
Reebok
Reebok FLOATRIDE+ FR30z Manuel utilisateur
Reebok
Reebok V 2000 RBTL13910 Manuel utilisateur
Reebok
Reebok Crosswalk RT 5.0 Manuel utilisateur
Reebok
Reebok Crosswalk V 7.9 Treadmill Manuel utilisateur
Reebok
Reebok ZR10 Manuel utilisateur
Reebok
Reebok R 5.80 Treadmill Manuel utilisateur
Reebok
Reebok Competitor Rt 6.0 Treadmill Manuel utilisateur
Reebok
Reebok 1910 Treadmill Manuel utilisateur
Reebok
Reebok RBTL14506.0 Manuel utilisateur
Reebok
Reebok VISTA RBTL13305.0 Manuel utilisateur
Reebok
Reebok 8000 ES RBTL69908.0 Manuel utilisateur
Reebok
Reebok TREADMILL RBTL13830 Manuel utilisateur
Reebok
Reebok 8600 Es Treadmill Manuel utilisateur
Reebok
Reebok 9500 Es Treadmill Manuel utilisateur
Reebok
Reebok RCTL12921 Manuel utilisateur
Reebok
Reebok JET 200 Manuel utilisateur
Reebok
Reebok T 12.80 Treadmill Manuel utilisateur
Manuels tapis roulant populaires d'autres marques
Smooth Fitness
Smooth Fitness EVO 3i Manuel utilisateur
NordicTrack
NordicTrack NETL81810.0 Manuel utilisateur
Schwinn
Schwinn 830/Journey 8.0 Manuel utilisateur
Keys Fitness
Keys Fitness HealthTrainer HT-740T Manuel utilisateur
Spirit
Spirit XT8 Manuel utilisateur
NordicTrack
NordicTrack T 14.0 Treadmill Manuel utilisateur
