Reebok RT 300 RBEX2976.1 Manuel utilisateur

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial Number

Decal (under frame)

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-877-994-4999

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:

www.reebokservice.com

Model No. RBEX2976.1

Serial No.

Visit our website at

www.reebokhomefitness.com

new products, prizes,

fitness tips, and much more!

USER'S MANUAL

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

EXERCISE CYCLE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

TABLE OF CONTENTS

REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is

manufactured and distributed under license from Reebok International.

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the exercise cycle.

1. Read all instructions in this manual and all

warnings on the exercise cycle before using

the exercise cycle.

2. Use the exercise cycle only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

4. The exercise cycle is intended for home use

only. Do not use the exercise cycle in

a commercial, rental, or institutional setting.

5. Keep the exercise cycle indoors, away from

moisture and dust. Place the exercise cycle

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is enough clearance around the exer-

cise cycle to mount, dismount, and use it.

6. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

7. Keep children under the age of 12 and pets

away from the exercise cycle at all times.

8. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise cycle. Always wear

athletic shoes for foot protection.

9. The exercise cycle should not be used by

persons weighing more than 250 pounds.

10. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

11. Always keep your back straight while using

the exercise cycle; do not arch your back.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

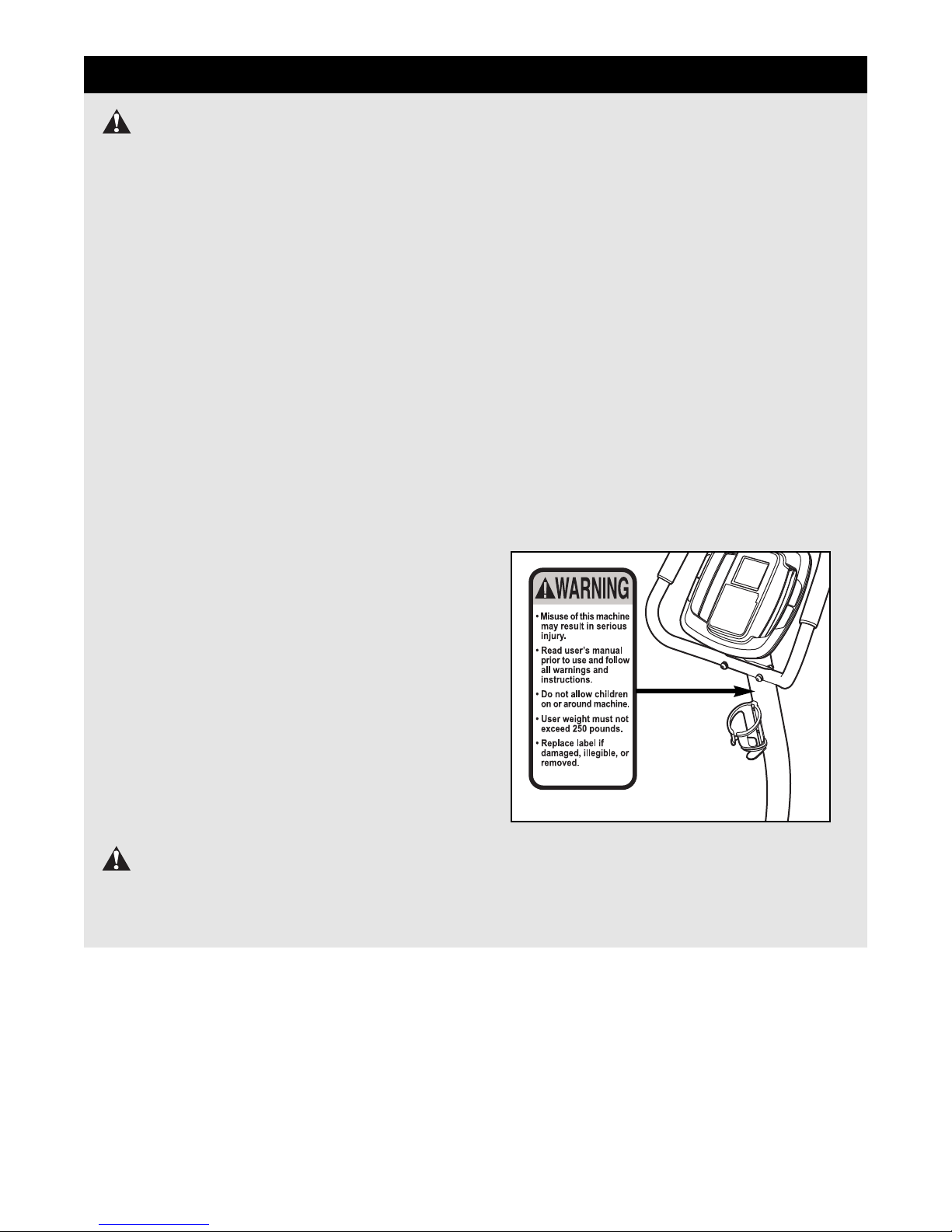

13. The decal shown below has been placed on

the exercise cycle. If the decal is missing, or

if it is illegible, call the toll-free telephone

number on the front cover of this manual and

order a free replacement decal. Apply the

decal in the location shown.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Congratulations for selecting the revolutionary

REEBOK®RT 300 exercise cycle. Cycling is one of

the most effective exercises for increasing cardiovas-

cular fitness, building endurance, and toning the entire

body. The RT 300 exercise cycle offers an impressive

array of features, including a console with two motiva-

tional interactive games, designed to let you enjoy this

healthful exercise in the comfort and convenience of

your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please see the front cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number is RBEX2976.1. The serial

number can be found on a decal attached to the exer-

cise cycle (see the front cover of this manual for the

location of the decal).

To avoid a registration fee for any service needed

under warranty, you must register the exercise

cycle at www.reebokservice.com/registration.

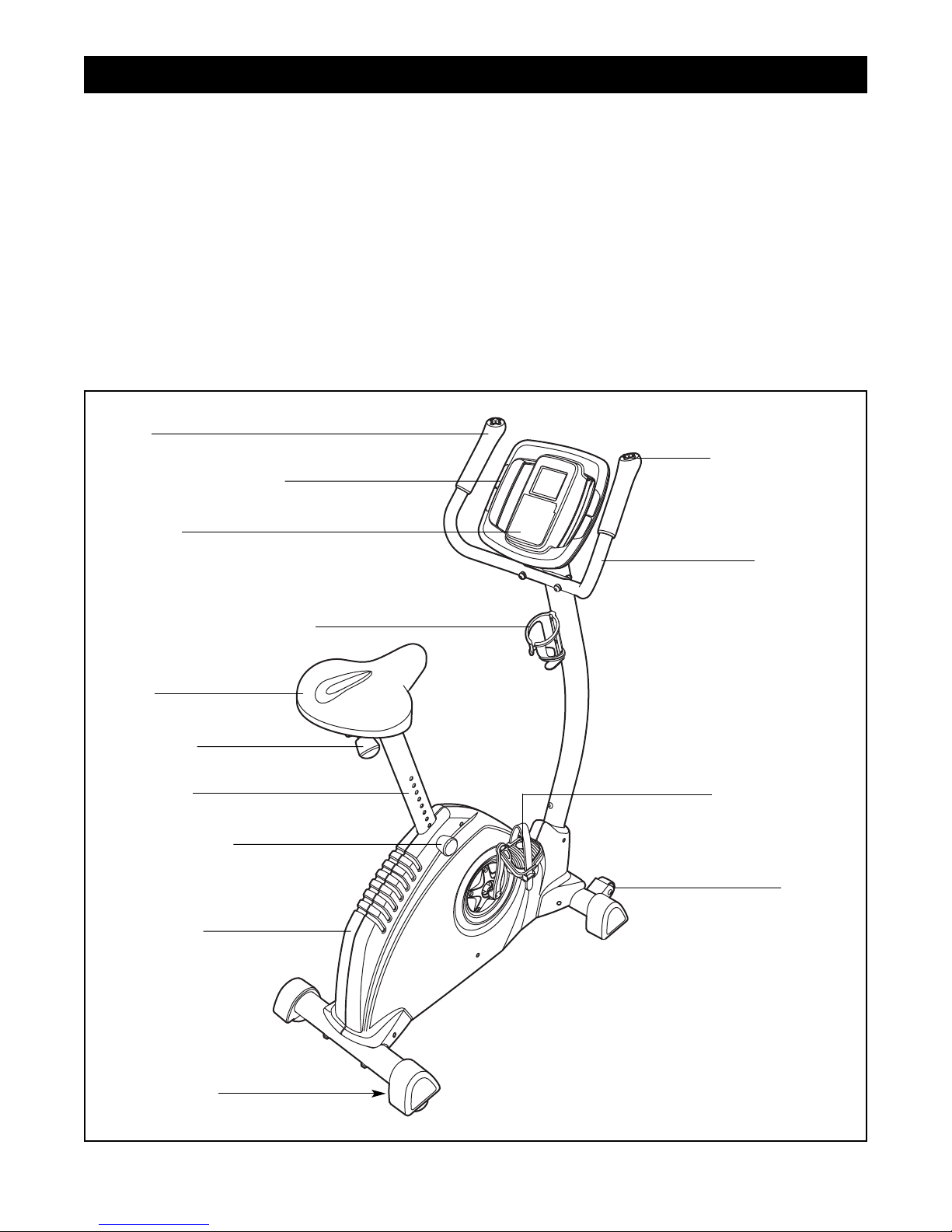

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Grip

Game Controller

Seat

Seat Post

Seat Knob

Side Shield

Leveling Foot

Wheel

RIGHT SIDE

FRONT

REAR

Pedal with Strap

Console

Handlebar

Seat Post Knob

Water Bottle Holder

(no water bottle is included)

To hire an authorized service technician to assemble the exercise cycle, call toll-free 1-800-445-2480.

Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the

packing materials until assembly is completed.

In addition to the included hex keys, assembly requires an adjustable wrench and a phillips

screwdriver .

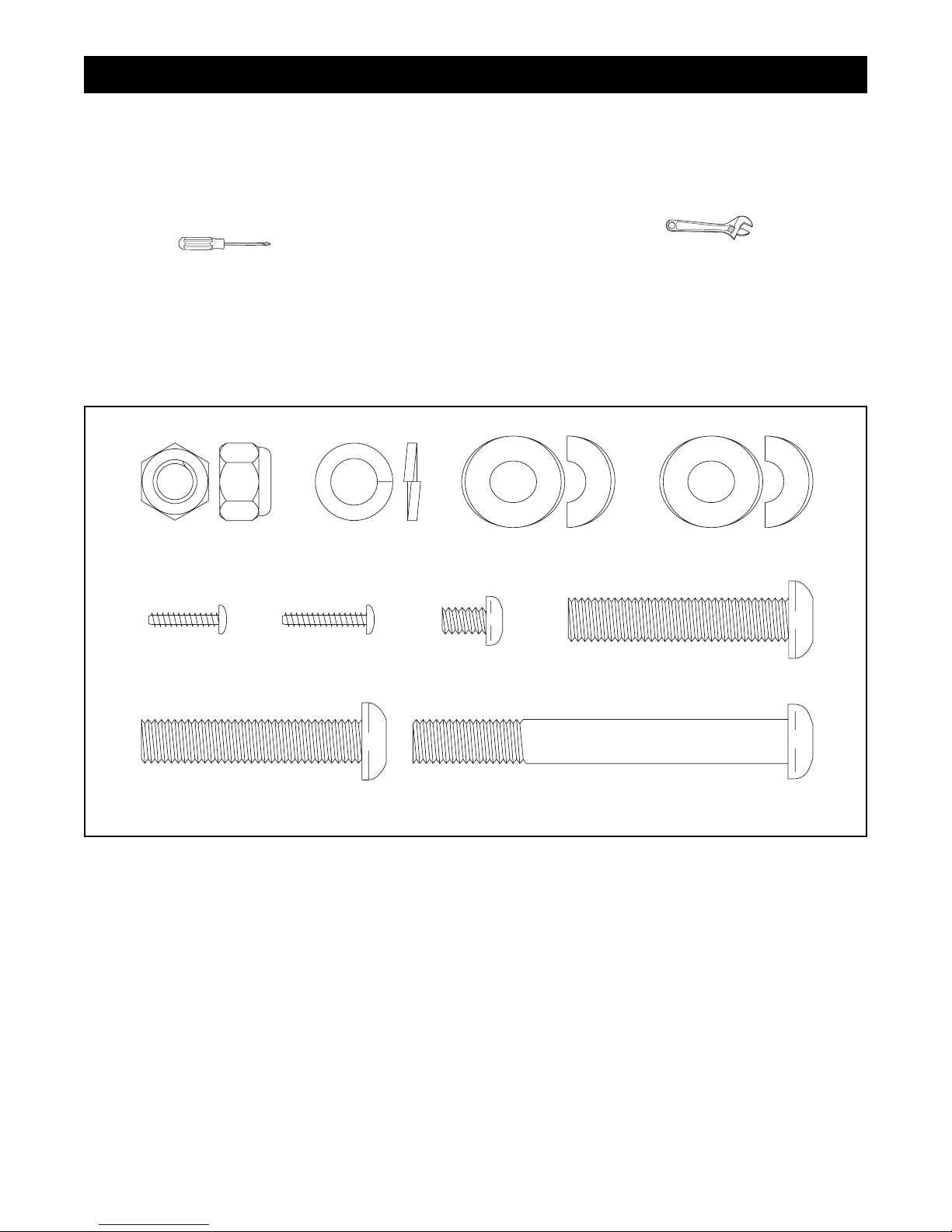

PART CHART

Use the drawings below to identify the small parts used in assembly. The number in parentheses below

each drawing is the key number of the part, from the PART LIST on page 18. The number following the paren-

theses is the quantity used in assembly. Note: Some small parts may have been preassembled for shipping.

If a part is not in the parts bag, check to see if it has been preassembled.

M4 x 19mm

Screw (33)–2

M10 x 85mm Button

Screw (56)–4

M10 Nylon

Locknut (48)–2

M10 Split

Washer (63)–3

Black M10 Curved

Washer (61)–2

M10 Curved

Washer (36)–2

Black M10 x 50mm Button

Screw (64)–2

M10 x 50mm Button

Screw (46)–3

M4 x 16mm

Screw (58)–4 M6 x 10mm

Screw (60)–2

ASSEMBLY

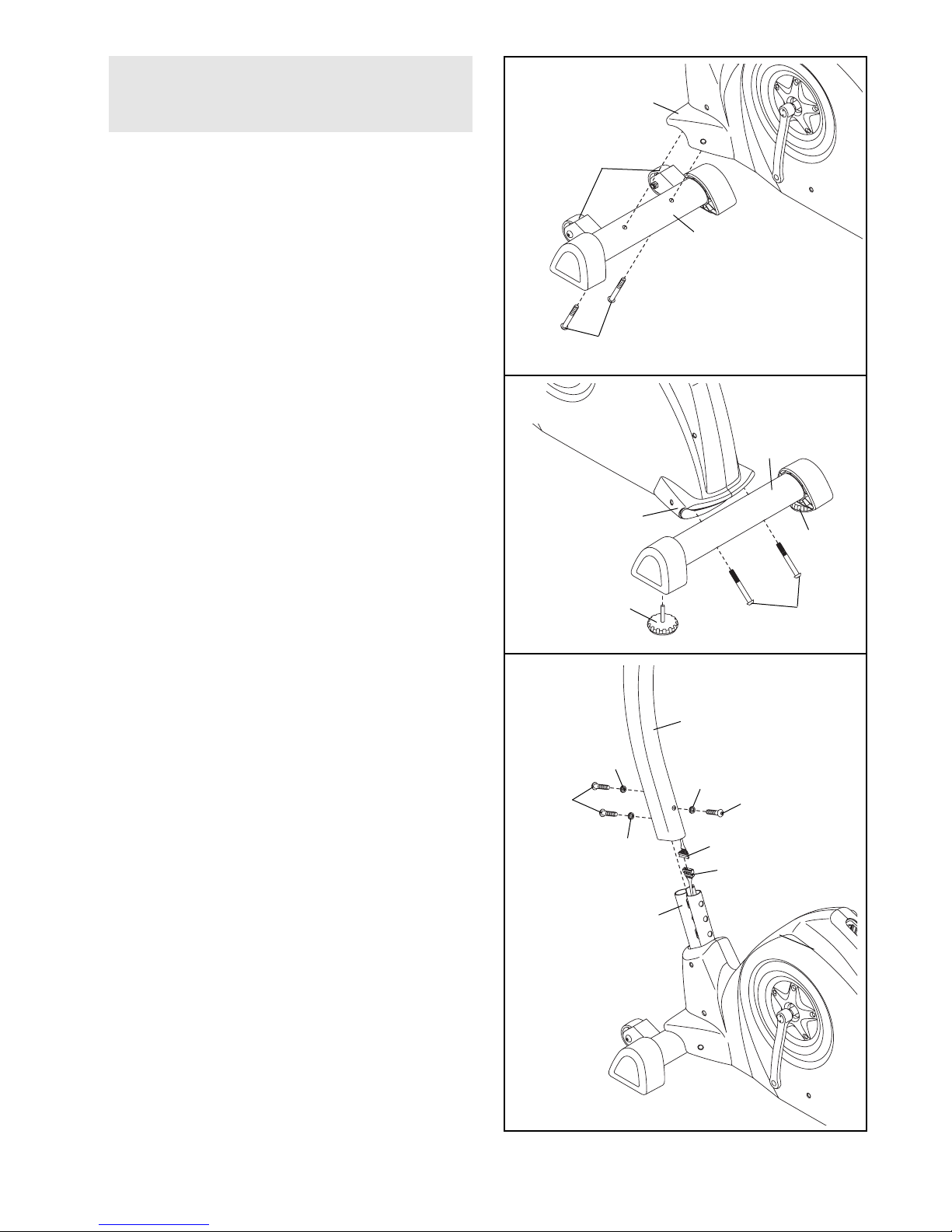

Identify the Front Stabilizer (2), which has

Wheels (17) attached. Attach the Front Stabilizer to

the Frame (1) with two M10 x 85mm Button

Screws (56).

2. Tighten the two Leveling Feet (29) into the bottom of

the Rear Stabilizer (3).

Attach the Rear Stabilizer (3) to the Frame (1) with

two M10 x 85mm Button Screws (56).

3. While another person holds the Handlebar Post (6)

near the Frame (1), connect the Upper Wire

Harness (55) to the Lower Wire Harness (51). Next,

pull the excess Upper Wire Harness out of the top of

the Handlebar Post, and slide the Handlebar Post

onto the Frame. Be careful not to pinch the Wire

Harnesses.

Attach the Handlebar Post (6) to the Frame (1) with

three M10 x 50mm Button Screws (46) and three

M10 Split Washers (63); tighten the two Button

Screws in the front of the Handlebar Post first,

and then tighten the third Button Screw.

46 46

To make assembly easier, read the information

on page 5 before you begin assembling the

exercise cycle.

4. Attach the Water Bottle Holder (18) to the

Handlebar Post (6) with two M4 x 19mm

Screws (33).

6. The Console (9) requires four 1.5V “D” batteries

(not included); alkaline batteries are recommended.

Press the tab on the battery cover and remove the

battery cover. Next, insert four batteries into the

Console. Make sure that the batteries are orient-

ed as shown by the diagram inside the battery

compartment. Then, reattach the battery cover to

the Console.

7. Note: A long cable may be attached to the

Console (9). The long cable is used during the man-

ufacturing process. Remove and discard the long

cable before continuing this step.

Have a second person hold the Console (9) near the

Handlebar Post (6). Connect the console wire har-

ness to the Upper Wire Harness (55). Next, connect

the game wire that has a tag to the Controller Wire

(54) that has a tag. Then, connect the other game

wire to the other Controller Wire.

Attach the Console (9) to the Handlebar Post (6)

with four M4 x 16mm Screws (58). Be careful not

to pinch the wires in the Console.

618

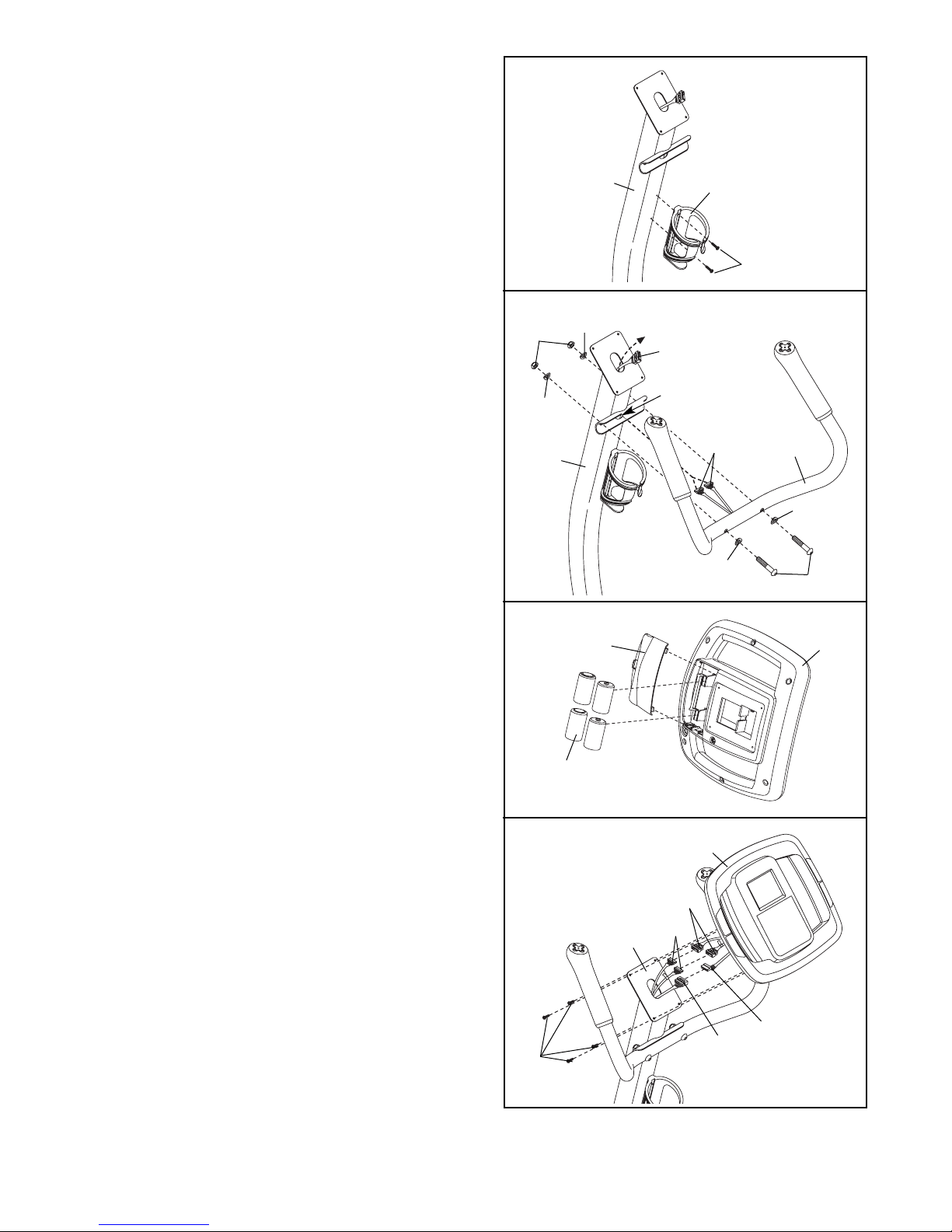

5. Have a second person hold the Handlebar (7) near

the Handlebar Post (6). Insert the Controller Wires

(54) into the hole in the Handlebar Post and pull

them upward out of the top of the Handlebar Post.

Attach the Handlebar (7) to the Handlebar Post (6)

with two Black M10 x 50mm Button Screws (64),

two Black M10 Curved Washers (61), two M10

Curved Washers (36), and two M10 Nylon

Locknuts (48). Be careful to avoid pinching the

wires.

48 36

Hole

54 7

Game

Wires

Console

Wire

Harness

Battery

Cover

Batteries

10. Identify the Left Pedal (40), which is marked with a

sticker. Using an adjustable wrench, firmly tighten

the Left Pedal

counterclockwise

into the Left Crank

Arm (15). Tighten the Right Pedal (not shown)

clockwise

into the Right Crank Arm. Important:

Tighten both Pedals as firmly as possible. After

using the exercise cycle for one week, retighten

the Pedals. For best performance, keep the

Pedals tightened.

Press the tab on the side of the Left Pedal (40) and

adjust a Pedal Strap (25) to the desired position.

Adjust the other Pedal Strap (not shown) in the

same way.

11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hard-

ware may be left over after assembly is completed. Place a mat under the exercise cycle to protect the

floor or carpet.

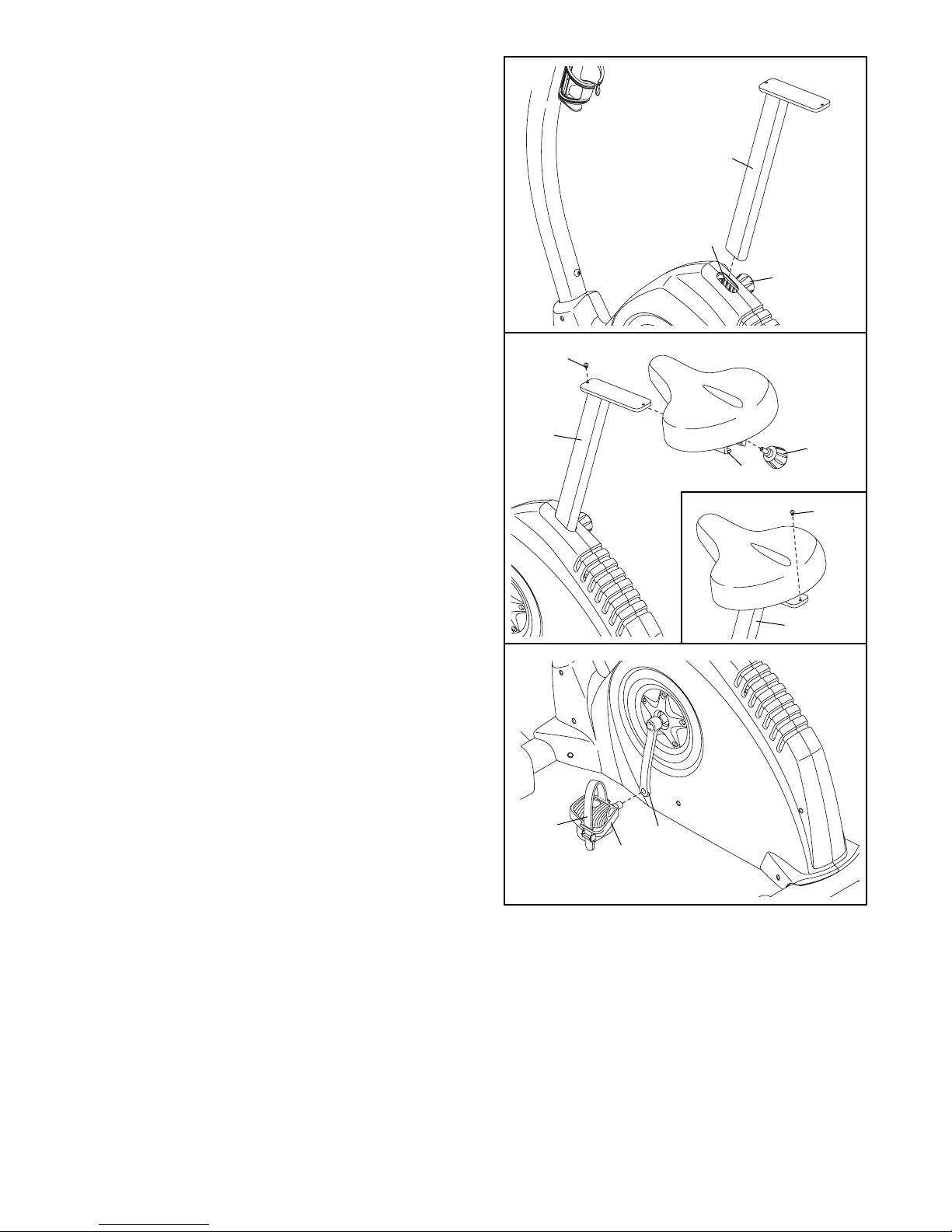

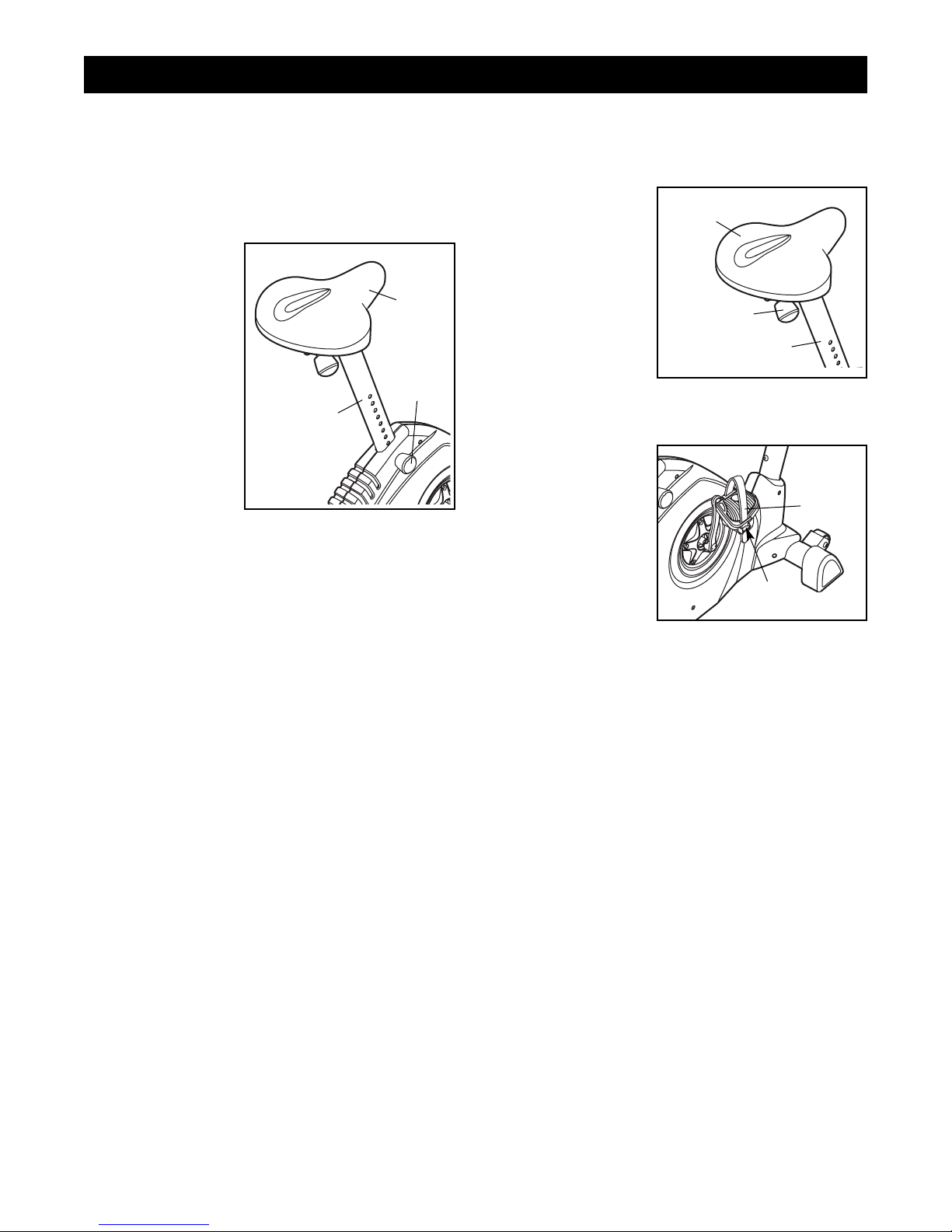

9. Attach an M6 x 10mm Screw (60) to the Seat

Post (11). Next, slide the Seat Carriage (19) onto the

Seat Post. Then, adjust the Seat Carriage to the

desired position and tighten the Seat Knob (31) into

the Seat Carriage.

See the inset drawing. Attach another M6 x 10mm

Screw (60) to the Seat Post (11).

8. Turn the Seat Post Knob (20) counterclockwise sev-

eral turns to loosen it. Next, pull the Seat Post Knob

outward, and insert the Seat Post (11) into the

Frame (1). Slide the Seat Post upward or downward

to the desired position, and release the Seat Post

Knob. Move the Seat Post up or down slightly to

make sure that the Seat Post Knob is engaged

in one of the adjustment holes in the Seat Post.

Then, turn the Seat Post Knob clockwise to tighten it.

HOW TO ADJUST THE HEIGHT OF THE SEAT

For effective exercise, the seat should be at the proper

height. As you pedal, there should be a slight bend in

your knees when the pedals are in the lowest position.

To adjust the seat,

first turn the seat

post knob counter-

clockwise several

turns to loosen it.

Next, pull the

knob, slide the

seat post upward

or downward to

the desired posi-

tion, and then

release the knob.

Move the seat

post up or down

slightly to make

sure that the

knob is engaged

in one of the adjustment holes in the seat post.

Then, turn the knob clockwise to tighten it.

HOW TO ADJUST THE LATERAL POSITION OF

THE SEAT

To adjust the lateral

position of the seat,

first loosen the seat

knob a few turns.

Then, move the seat

forward or backward

to the desired posi-

tion, and firmly tight-

en the seat knob.

HOW TO ADJUST THE PEDAL STRAPS

To loosen the pedal

straps, press the

tabs and pull the

straps upward. To

tighten the pedal

straps, pull down-

ward on the ends

of the straps.

Tab

Seat

Post

Knob

Seat Post

Seat

Seat Knob

Seat Post

EXERCISE CYCLE OPERATION

Strap

FEATURES OF THE CONSOLE

The revolutionary console offers an array of features

designed to make your workouts more effective and

enjoyable. When you use the manual mode of the con-

sole, you can change the resistance of the pedals with

the touch of a button. While you exercise, the console

will display continuous exercise feedback. You can

even measure your heart rate using the handgrip pulse

sensor.

Smart Programs

The console offers eight smart programs. Each pro-

gram automatically changes the resistance of the ped-

als and prompts you to vary your pedaling pace as it

guides you through an effective workout.

Interactive Games

The console also features two motivational interactive

games. Using the dual game controllers, play the chal-

lenging Fat Blocker™ game or the fast-paced Calorie

Destroyer™ game during your workouts—the harder

you exercise, the greater the advantage you will have!

The console keeps track of the four highest scores for

each game—compete with other users or try to top

your own high score.

To use the manual mode of the console, follow the

steps beginning on page 11. To use a smart program,

see page 12. To play the Fat Blocker game, see

page 14. To play the Calorie Destroyer game, see

page 15.

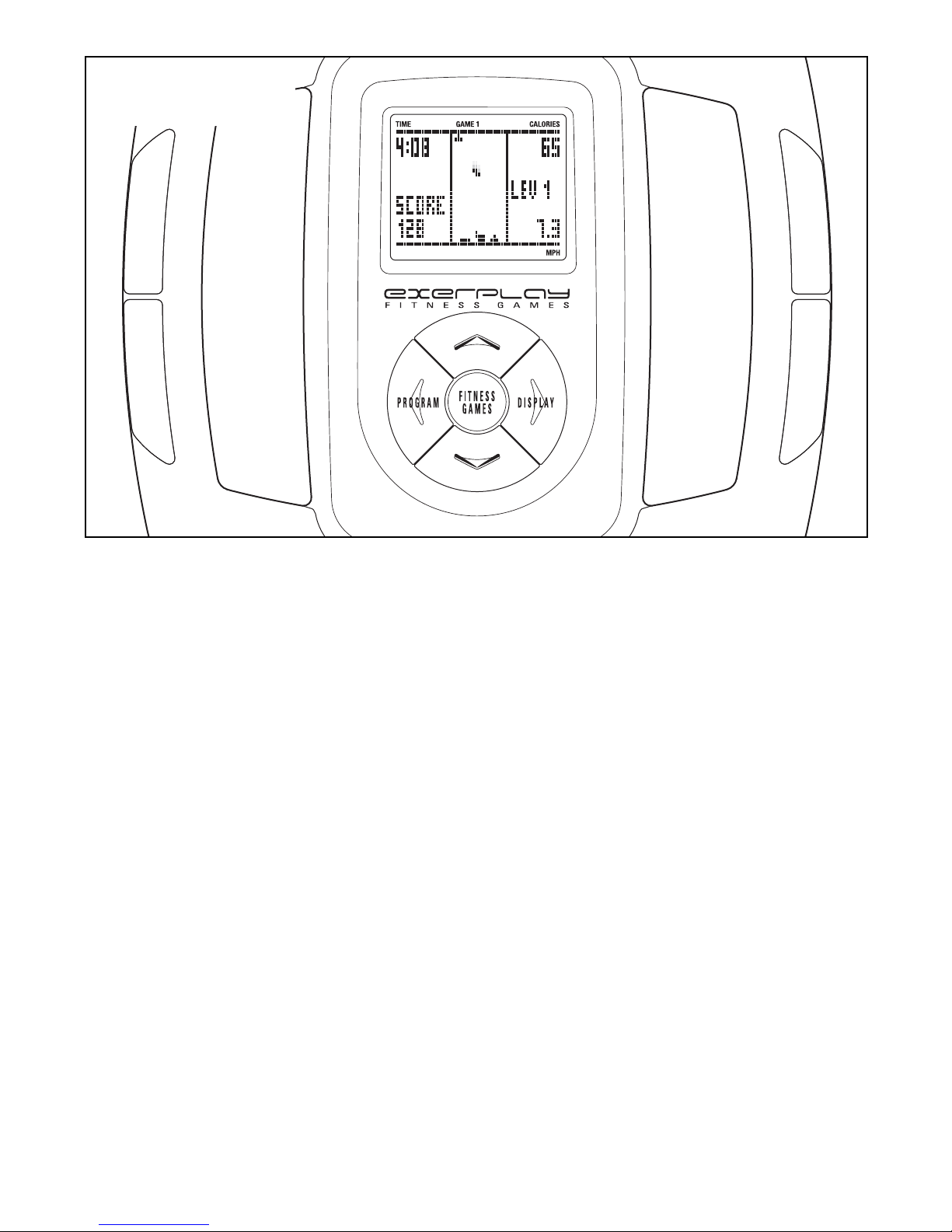

CONSOLE DIAGRAM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Reebok vélo d'appartement

Reebok

Reebok EDGE series Manuel utilisateur

Reebok

Reebok One Series Manuel utilisateur

Reebok

Reebok ASTRORIDE SPRINT BIKE Manuel utilisateur

Reebok

Reebok 365 TR exercise cycle RBEX71507.0 Manuel utilisateur

Reebok

Reebok RBEX3976.2 Manuel utilisateur

Reebok

Reebok EXERCISE CYCLE RBEX49840 Manuel utilisateur

Reebok

Reebok i-bike.se Manuel utilisateur

Reebok

Reebok RBEX33180 Manuel utilisateur

Reebok

Reebok TOMAHAWK CEX1006ST.0 Manuel utilisateur

Reebok

Reebok Cyc31 Manuel utilisateur

Reebok

Reebok Paceline RX 5.0 Manuel utilisateur

Reebok

Reebok FLOATRIDE+ FR30 Manuel utilisateur

Reebok

Reebok CYC4 Manuel utilisateur

Reebok

Reebok Cyc31 Guide de démarrage rapide

Reebok

Reebok Trainer Rx 1.5 Bike Manuel utilisateur

Reebok

Reebok Rb 310 Exercise Bike Manuel utilisateur

Reebok

Reebok GX40s ELLIPTICAL Manuel utilisateur

Reebok

Reebok RB 310 30711.0 Manuel utilisateur

Reebok

Reebok ZPOWER Manuel utilisateur

Reebok

Reebok One GSB Manuel utilisateur

Reebok

Reebok Bike B 5.8e Manuel utilisateur

Reebok

Reebok R9.5e Manuel utilisateur

Reebok

Reebok CYC12 RBEX39010 Manuel utilisateur

Reebok

Reebok RB 310 RBEX3976.1 Manuel utilisateur

Manuels vélo d'appartement populaires d'autres marques

Weslo

Weslo Vector 302 Guide de démarrage rapide

TOORX

TOORX BRX85 Manuel utilisateur

Matrix

Matrix KranKcycle Manuel utilisateur

Matrix

Matrix IC3 Manuel utilisateur

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manuel utilisateur

Monark

Monark 827E Manuel utilisateur

Stamina

Stamina 1310 Manuel utilisateur

American Fitness

American Fitness SPR-BK1072A Manuel utilisateur

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manuel utilisateur

BH FITNESS

BH FITNESS H9158H Manuel de l'opérateur

Body Sculpture

Body Sculpture BC-7220G Manuel utilisateur

Cateye

Cateye EC-2300 Manuel utilisateur

FYTTER

FYTTER RACER RC MSR Manuel utilisateur

Kikos

Kikos HM-9090M Manuel utilisateur

Pro-Form

Pro-Form 345 Zlx Bike Guide de l'utilisateur

Fuel Fitness

Fuel Fitness SU135-40 Manuel utilisateur

NordicTrack

NordicTrack Gxr 4.2 Bike Manuel utilisateur

Vision Fitness

Vision Fitness U70 Manuel utilisateur
