REDZ BSB Series Manuel utilisateur

BSB Series Industrial Unmanaged Ethernet SwitchBSB Series Industrial Unmanaged Ethernet Switch

with 10/100Base-T(x) Ports and/or BPL (with 10/100Base-T(x) Ports and/or BPL (

Broadband Power Line Link) and/or SFP UplinkBroadband Power Line Link) and/or SFP Uplink

Ports and/or PoE+ Ports User ManualPorts and/or PoE+ Ports User Manual

1. About BSB Series Industrial Unmanaged Ethernet Switch1. About BSB Series Industrial Unmanaged Ethernet Switch

BSB Series Industrial Unmanaged Ethernet Switches are designed for industrial-grade Ethernet, and particularly for

facilities of rugged industry and infrastructure. BSB Series Industrial Unmanaged Ethernet Switches are tailored to

perform various features, such as wide temperature, wide range power input range... etc. Thus, BSB Series Industrial

Unmanaged Ethernet Switches are the best choice for facility management, sewage treatment, power utility,

telecommunication, transportation and all other applications that require reliable Ethernet connectivity.

BSB Series has models also with REDZ Broadband Power Line (BPL) communication. BPL link allows device to

communicate with full transparent TCP/IP standard over Low Voltage power lines and allows easy connection

between TCP/IP based terminals without use of extra cables.

BSB Series has models also with SFP ports for Fiber connectivity. BSB Series with SFP ports offers fiber and ethernet

connectivity in same device with plug and play SFP ports. Wide range of SFP modules are available to be used with

BSB series.

BSB Series has models also with PoE+ ports for Power over Ethernet connectivity. BSB Series Industrial Unmanaged

Ethernet Switches with PoE+ ports can power up to 36W device on a single port and total combined power supply is

90W. Additional PoE splitter can be used to separate power and data for field devices.

2. Hardware Features2. Hardware Features

BSB Series Industrial Unmanaged Ethernet Switches has the versions with and without BPL (Broadband Power Line) Link

and with and without SFP Ports.

2.1 Features2.1 Features

Supports up to 8 x 10/100Base-T(X) ports

AC or DC wide range power options

Supports Full/Half-Duplex, auto MDI/MDI-X on each port

Wide operating temperature range from -25 to 70 °C AC and -40 to 85 °C DC power input versions

Rugged Metal IP-40 housing design

DIN-Rail mounting

2.2 Extra Features for Models with BPL2.2 Extra Features for Models with BPL

Supports up to 7 x 10/100Base-T(X) ports + 1 x BPL link

Wide range 3 phase AC input

Supports up to 30Mbps PHY rate on BPL with Up to 10 hops and 1000 nodes

Up to 432 sub-carriers from 2 to 28MHz analog bandwidth

Support LDPC-C FEC with 128-bit AES core

Plug and play with Master/Slave selection via switch

2.3 Features for Models with SFP Ports2.3 Features for Models with SFP Ports

Supports 8 x 10/100Base-T(X) ports

Supports 2 x 10/100/1000 SFP Ports

Plug-and-play without additional settings

AC or DC wide range power options

Wide operating temperature range from -25 to 70 °C AC and -40 to 85 °C DC power input versions

Rugged Metal IP-40 housing design

DIN-Rail mounting

2.4 Features for Models with PoE+ Ports2.4 Features for Models with PoE+ Ports

Supports 8 x 10/100Base-T(X) ports

Supports PoE+ on all ports

90 Watt Power Supply combined for all ports

Maximum 36 Watt per port

IEEE 802.3AF-2003 and 802.3AT-2009 compliant

Plug-and-play without additional settings

100 - 240V AC (120 – 370V DC), 50Hz to 60Hz AC wide range power input

90Watt Power Supply

Wide operating temperature range from -30 to 80 °C

Rugged Metal IP-40 housing design

DIN-Rail mounting

3. Installation3. Installation

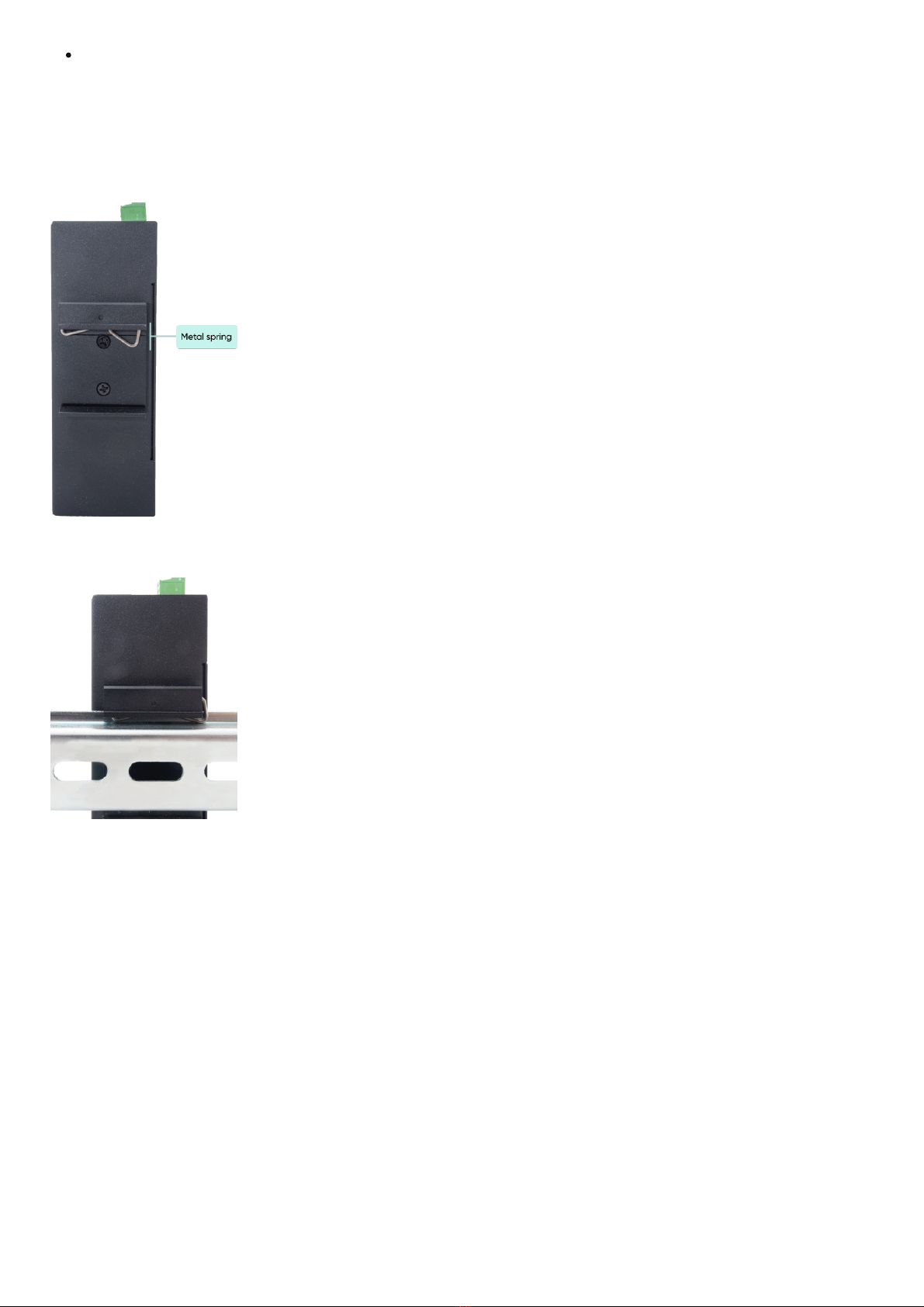

Each switch has a Din-Rail kit on rear panel. The Din-Rail kit helps switch to fix on the Din-Rail. Slant the switch and

mount the metal spring to Din-Rail.

Then Push the switch toward the Din-Rail until you heard a “click” sound.

4. Front Panel Description4. Front Panel Description

4.14.1 BSB115 & BSB215BSB115 & BSB215

1. 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4.

2. ETHERNET Activity LEDs for port 1, 2, 3 and 4. Blinks during ethernet activity.

3. 10/100Base-T(X) Ethernet port 5.

4. ETHERNET Activity LED for port 5. Blinks during ethernet activity.

4.24.2 BSB118 & BSB218BSB118 & BSB218

1. 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4.

2. ETHERNET Activity LEDs for port 1, 2, 3 and 4. Blinks during ethernet activity.

3. ETHERNET Activity LEDs for port 5, 6, 7 and 8. Blinks during ethernet activity.

4. 10/100Base-T(X) Ethernet ports 5, 6, 7 and 8.

4.3 BSB120&BSB2204.3 BSB120&BSB220

1. 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4.

2. ETHERNET Activity LEDs for port 1, 2, 3, 4, 5, 6, 7 and 8. Blinks during ethernet activity.

3. ETHERNET Activity LEDs for SFP Ports 1 and 2. There are 2 LEDs for each port. One Blinks during ethernet activity

and one is steady when speed is Gigabit .

4. 10/100Base-T(X) Ethernet ports 5, 6, 7 and 8.

5. 10/100/1000 SFP Ports 1 and 2.

4.44.4 BSB268BSB268

1. 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4.

Supports PoE+ on all ports

90 Watt Power Supply combined for all ports

Maximum 36 Watt per port

2. ETHERNET Activity LEDs for port 1, 2, 3, 4, 5, 6, 7 and 8. Blinks during ethernet activity.

3. 10/100Base-T(X) Ethernet ports 5, 6, 7 and 8.

Supports PoE+ on all ports

90 Watt Power Supply combined for all ports

Maximum 36 Watt per port

4.54.5 BSB612BSB612

1. 10/100Base-T(X) Ethernet port.

2. BPL Activity LED. Blinks during BPL & Ethernet activity.

3. BPL Link LED. LED Turns ON if the link can be established.

4. Master Indication LED. LED Turns ON if the device is started as “Master” device.

5. Switch position to select the device as “Master” or “Slave”. Device must be repowered after changing the

setting to take into effect.

4.64.6 BSB615BSB615

1. 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4.

2. ETHERNET Activity LEDs for port 1, 2, 3 and 4. Blinks during ethernet activity.

3. BPL Activity LED. Blinks during BPL & Ethernet activity.

4. BPL Link LED. LED Turns ON if the link can be established.

5. Master Indication LED. LED Turns ON if the device is started as “Master” device.

6. Switch position to select the device as “Master” or “Slave”. Device must be repowered after changing the

setting to take into effect.

4.74.7 BSB618 BSB618

1. 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4.

2. ETHERNET Activity LEDs for port 1, 2, 3 and 4. Blinks during ethernet activity.

3. ETHERNET Activity LEDs for port 5, 6, and 7. Blinks during ethernet activity.

4. 10/100Base-T(X) Ethernet ports 5, 6, and 7.

5. BPL Activity LED. Blinks during BPL & Ethernet activity.

6. BPL Link LED. LED Turns ON if the link can be established.

7. Master Indication LED. LED Turns ON if the device is started as “Master” device.

8. Switch position to select the device as “Master” or “Slave”. Device must be repowered after changing the

setting to take into effect.

5. Top Panel Description5. Top Panel Description

5.1 BSB115 & BSB118 & BSB1205.1 BSB115 & BSB118 & BSB120

1. Power Input DC: 5-60V DC. Polarity protected so that the power input can be connected in any direction.

2. Power LED: Turns ON when there is power in device.

3. Reset Button: Reset the device.

5.2 BSB215 & BSB218 & BSB2205.2 BSB215 & BSB218 & BSB220

1. Power Input AC: 90 - 265V AC (100 – 370V DC), 47Hz to 63Hz AC input.

2. Power LED: Turns ON when there is power in device.

3. Reset Button: Reset the device.

5.3 BSB2685.3 BSB268

1. Power Input AC: 100 - 240V AC (120 – 370V DC), 50Hz to 60Hz AC Wide Range Power Input

90Watt Power Supply

2. Reset Button: Reset the device.

5.4 BSB612 & BSB615 & BSB6185.4 BSB612 & BSB615 & BSB618

1. Power Input AC: 3 phase input, 110V–240V/50-60Hz. It is also ok to connect only single phase to the device

such as L1-N connection only.

AC Power supply use L1-N only. Phase 2-3 connections are used to BPL signal transmission.

2. Power LED: Turns ON when there is power in device.

6. Ethernet Cables, SFP Module Options6. Ethernet Cables, SFP Module Options

BSB Series Industrial Unmanaged Ethernet Switches have standard Ethernet ports. According to the link type, the

switches use CAT 3, 4, 5, 5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or

hubs).

6.1 Cable Type and Specifications6.1 Cable Type and Specifications

CableCable TypeType Max. LengthMax. Length ConnectorConnector

10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) RJ-45

100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft) RJ-45

6.2 ETH Cable Pin Assignments6.2 ETH Cable Pin Assignments

With 100BASE-TX/10BASE-T cable, pins 1 - 2 are used for transmitting data and pins 3 - 6 are used for receiving data.
