Redback A 5122 Manuel utilisateur

REDBACK®

www.altronics.com.au

Page 4

A 5122 A/V

Distribution Amplifier

OPERATING INSTRUCTIONS

OVERVIEW

The A 5122 is designed to feed a single AV source to several outputs (eg: multiple TV receivers). Accepts one stereo and

one video input and splits it into 8 outputs with no signal loss. Ideal for multi zone installations where more than one AV

output from one input source is required. Such as clubs, pubs, gyms or hotels. Refer to page 2 for connection details.

Operates from 240V AC.

SPECIFICATIONS

Power supply:.............................................240V AC

Operating current:.........................................240mA

Audio

Nominal input level:...................-10dBM (245mV)

Input impedance presented: ....47kΩUnbalanced

Output load required: ...............47kΩUnbalanced

Output impedance: ..........................................2k2Ω

Gain:...........................................................................2

Frequency response:....20Hz to 20Khz flat (±1dB)

Noise:..........................................................> -60dBM

Bandwidth: ....................................................35MHz

Video

Nominal input level: ............................................1V

Gain:...........................................................................1

Input/Output impedance: ............................75ohm

Weight: .............................................................≈2.1kg

Dimensions:...................≈483W x 170D x 44H mm

Colour:................................................................Black

*Specifications subject to change without notice

FEATURES

• 8 AV outputs from a single AV input

•1unit powdercoated case

•240V AC operation.

Distributed by Altronic Distributors Pty. Ltd. Perth. Western Australia.

Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au

REDBACK®

Page 3

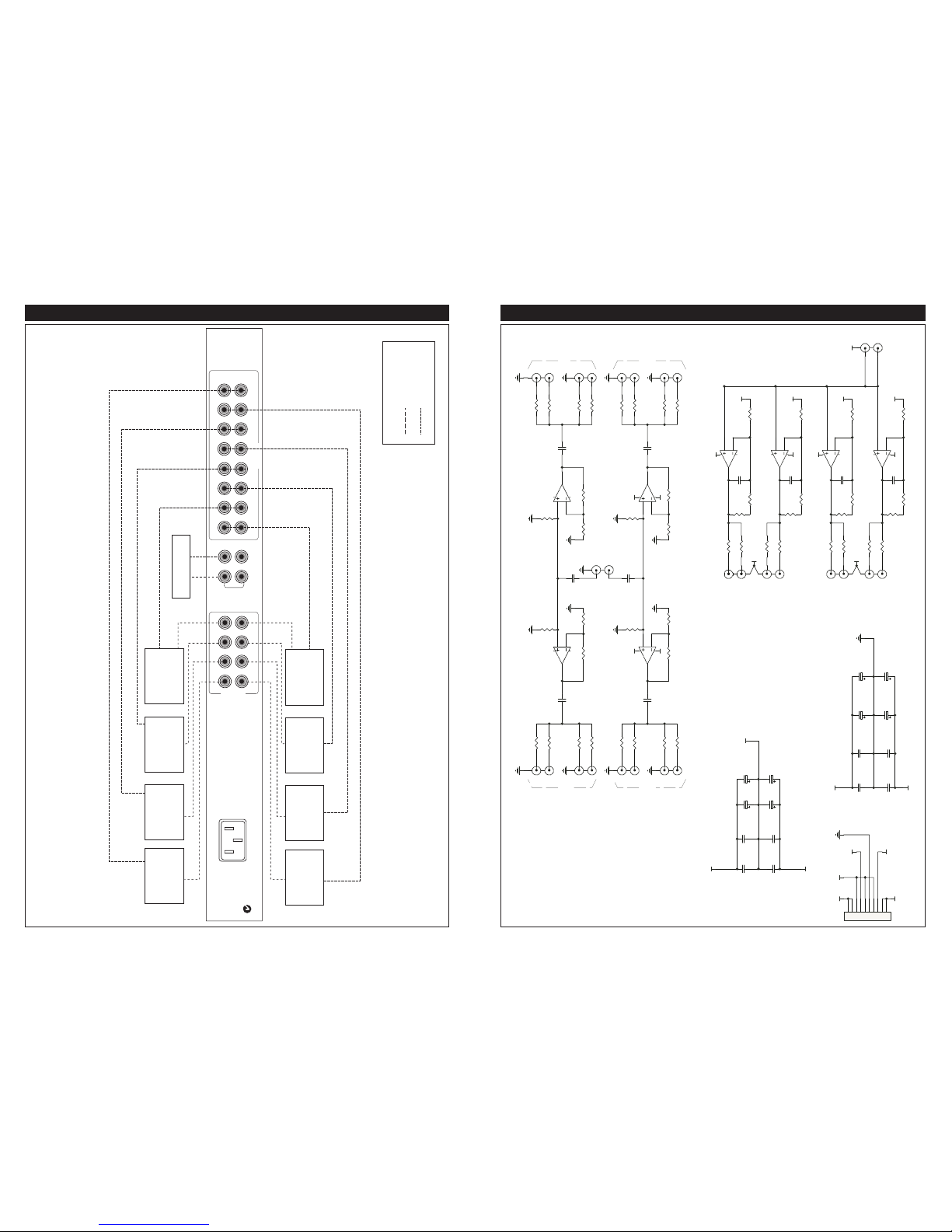

Page 2

N816 240V AC

123456

Video IN Audio IN

Video OUT

787531

2468

Audio OUT

VHS/DVD

Monitor 1

Monitor 8Monitor 6Monitor 4Monitor 2

Monitor 3 Monitor 5 Monitor 7

Video Signal

Audio Signal

Legend

-5

AGND

220n

C10

-8

U4A

LM833

U4B

LM833

R332k2

R352k2

R37 2k2

R39 2k2

R34 2k2

R36 2k2

R38 2k2

R40 2k2

R31

47k

R32

47k

R30

100k

R29

100k

R28

100k

R27

100k

S7/1

S7/2

43 75

R3 75

R7 75

R5 75

-5

R24

100k

R25

100k

R23

47k

R26

47k

R482k2

R462k2

R442k2

R422k2

R472k2

R452k2

R43 2k2

R41 2k2

R19

R18

R15

R16

R12

R13

R10

R8 75

R6 75

R2 75

R1 75

S6/2

S6/1

U2B

MAX457

U2A

MAX457

U3B

LM833

U3A

LM833

U1A

MAX457

U1B

MAX457

-8

C5 10

C6 10 C8

220n

S8 1

IDC10

-8

-5AGND

AGND

CA1

CA2

CA3

CA4

CA5

100n

CA6

100n

CA7

100n

CA8

100n

R11

R14

R17

R20

CA10

CA9

CA11

CA12

CA13

100n

CA14

100n

CA15

100n

CA16

100n

-8

RIGHT CHAN.

AUDIO OUTPUTS

LEFT GROUP

RIGHT GROUP

VIDEO OUT

RIGHT GROUP

LEFT GROUP

AUDIO OUTPUTS

RIGHT CHAN.

LEFT CHAN.

AUDIO INPUTS
