INFINIX210
Basic Flush Ceiling Mount
with Quick Release
Assembly Instructions
PARTS LIST
Qty Description
1 Arm Assembly with Ceiling Plate
1 Mounting Bracket Head
1 Pressure Plate w/ 4 Countersunk Boreholes
1 Pressure Plate
4 Swivel Arms
Qty Description
4 Countersunk Phillips Screws
4 Clamping Screws
1 Pkg. M3 Distance Bolts with Screws & Washers
1 Pkg. M4 Distance Bolts with Screws & Washers
1 Pkg. M5 Distance Bolts with Screws & Washers
1 Pkg. M6 Distance Bolts with Screws & Washers
4 Countersunk Phillips Bolts
(These bolts can be used to replace the
clamping screws for security)
2 Allen Wrenches
HARDWARE LIST
STEP 1
FIGURE 1
FIGURE 2
Turn Knob to Release
Mounting Head
WARNING: This arm mount is intended to support projectors with a maximum weight of 26 lbs. If your
projector does not have mounting nuts embedded in the bottom, it cannot be attached to this arm mount.
THIS ARM MOUNT IS INTENDED AS A CEILING MOUNT ONLY.A QUALIFIED PROFESSIONAL THIS ARM MOUNT IS INTENDED AS A CEILING MOUNT ONLY.A QUALIFIED PROFESSIONAL
SHOULD BE USED TO PROPERLY INSTALL THIS UNIT TO THE CEILING. RECORDEX DOES SHOULD BE USED TO PROPERLY INSTALL THIS UNIT TO THE CEILING. RECORDEX DOES
NOT RECOMMEND THE USE OF POWER TOOLS AND WILL NOT BE LIABLE FOR THE NOT RECOMMEND THE USE OF POWER TOOLS AND WILL NOT BE LIABLE FOR THE
IMPROPER USE OR INSTALLATION OF ITS PRODUCTS.IMPROPER USE OR INSTALLATION OF ITS PRODUCTS.
Remove the mounting bracket head from the arm assembly by unscrewing the knob as
shown in FIGURE 1. Position the pressure plate (the one with the countersunk boreholes)
onto the mounting bracket head. Using supplied Allen wrench secure together with the
countersunk screws as shown in FIGURE 2.
STEP 2
STEP 3
Clamping Screws
Pressure Plate
Assembly
Swivel Arms
Swivel Arms
Remaining
Pressure Plate
Clamping Screws
Distance Bolt (Mounts to
your Projector)
Tighten Clamping Screws after
Swivel Arms are Adjusted

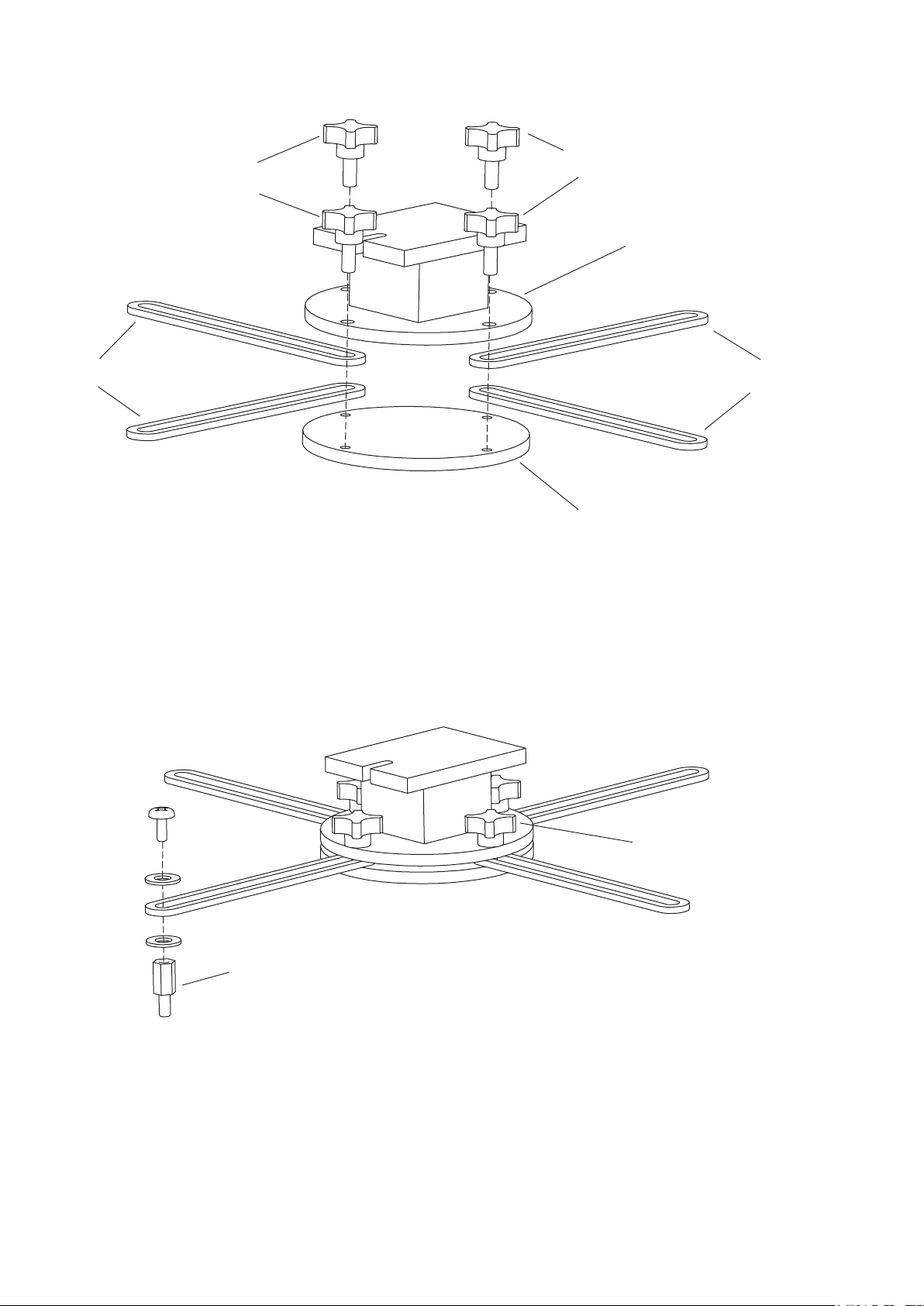

Align pressure plate assembly, swivel arms and remaining pressure plate as shown. Loosely
tighten together using the clamping screws. The number of arms you attach (either 3 or 4)
will be determined by the number of mounting nuts embedded in the bottom of your projector.
Lay your projector on its top (protected by a soft cloth or other suitable protection) to expose
the bottom and the embedded mounting nuts.
Select correct size distance bolts for your projector and align hardware as shown. Use the
same hardware on all swivel arms. Swivel arms may be adjusted based on the size of the
projector and the configuration of the embedded mounting nuts.Tightly secure clamping
screws once swivel arms are in place.NOTE:The distance bolt mounts into your projector.
ARM SWIVEL
NEVER MAKE ANY HANDLE ADJUSTMENTS WHEN CLAMPING IS TIGHTENED
This handle is for the Ball and
Socket Joint Adjustment
STEP 4
Tighten Knob to
Secure Assembly
in Place
