SMART-TORQ™ INSTRUCTIONS
WARRANTY
WARRANTY: LIMITED – 3 YEAR WARRANTY: Smart-Torq is guaranteed free of defects in materials and workmanship for three years
from date of original purchase. Real Avid®will replace or repair any product that proves defective upon our inspection. Use of the
Smart-Torq for anything other than its intended purpose is considered misuse and voids this warranty. For warranty service, send the
product, proof of purchase with shipping paid, along with an explanation of the defect, as well as your name, address and phone
number to the address below. This warranty excludes damage resulting from deliberate or accidental misuse. Warranty does not cover
rust, stains or corrosion, or normal wear and tear. Repair or replacement is the exclusive remedy under this warranty. Real Avid, its
partners and afliates are not liable for incidental or consequential damage resulting from use. Some states do not allow exclusion
or limitation of incidental or consequential damages; therefore, the above exclusions may not apply to you. This warranty gives you
specic legal rights, and you may have other rights, which vary from state to state.
USER GUIDE & WARRANTY
EASY TO ADJUST KNOB CLICKS ONCE PER IN-LB INCREMENT
SMART-TORQ is an adjustable torque wrench for rearms, rearm accessories, and general use. The wrench can be quickly adjusted in 1 in-lb
increments. Once set to the desired torque, the wrench can be used to precisely tighten fasteners. Once the fastener has reached the desired
torque, the wrench clutch plate will slip and deliver an audible and tactile “click”, preventing overtightening. The unidirectional clutch plate will
not slip during loosening function. The torque assist and rubberized body allows for an ergonomic grip during high-torque applications.
FREE-SPINNING CAP
FINE-ADJUSTMENT TORQUE SCALE
TORQUE SCALE INDICATOR WINDOW
ERGONOMIC RUBBERIZED GRIP
MAGNETIC BIT HOLDER
FORCE ASSIST™
BIT DRIVER HANDLE FOR FINE ADJUSTMENT TASKS
SMART-TORQ™
TO FRIENDS AND CUSTOMERS: As the owners of Real Avid, authenticity isn’t just a strategy here. It’s a guiding philosophy. It arises out of our
faith and personal relationships with Jesus Christ. We know that our creativity and success ultimately comes from Him. He cares about each of
us and about our customers. We’re not perfect, but we are committed to following Him in our personal and business lives.
We look forward to growing our relationship with you and continuing to earn our place.
©2020 Revo Brand Group
Revo Brand Group, LLC
5480 Nathan Lane North, Suite 120
Minneapolis, MN 55442 USA
RealAvid.com • 800-286-0567

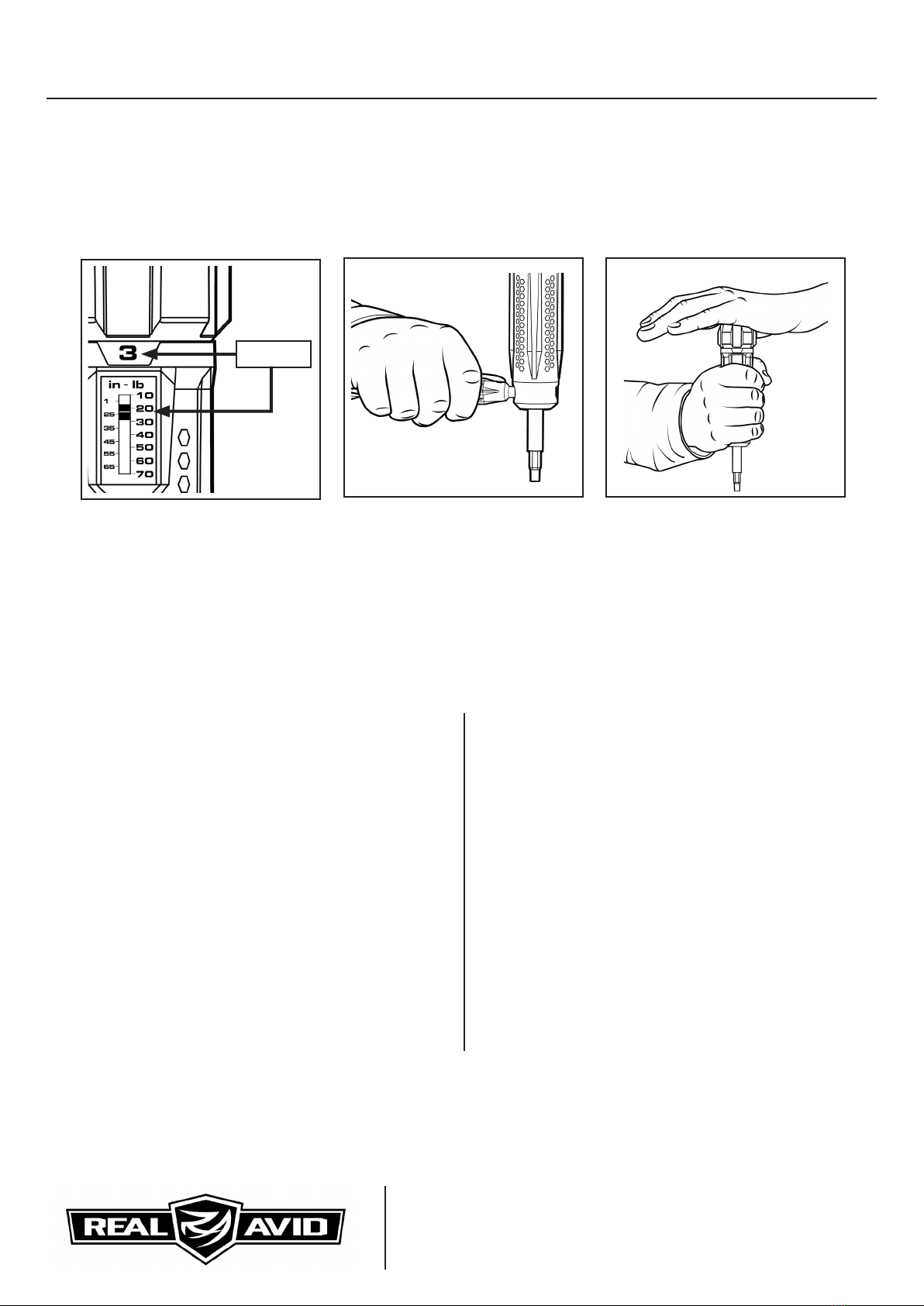

ADJUSTMENT
Use the adjustment knob to rotate until
desired torque is reached, as shown in
the two indicator windows. Use the ne-
adjustment indicator on the adjustment
knob for 1 in-lb increments. Refer to
manufacturer’s recommendation for
appropriate torque value.
USE
Attach Force Assist™ for improved control at high torque applications. Hand rotate
fastener into position to prevent cross threading. Attach driver bit for required
application. Place hand on free-spinning cap and apply downward pressure on
wrench. Apply torque. Fastener will tighten until torque wrench clutch plate slips
with an audible “click”. This indicates that the fastener has been tightened with the
appropriate level of torque.
SAFETY: Before using Smart Torq on a rearm, you must MAKE SURE THAT THE FIREARM IS UNLOADED AND SAFE to work on. It is your
responsibility to exercise caution during the use of this tool, especially when applying torque. DO NOT APPLY EXCESSIVE TORQUE. To avoid
injury or damage to your rearm, check for correct t of all implements carefully before use. To avoid damaging your rearm, make sure that you
are using the proper devices to securely hold it in place (gun vise, barrel blocks, upper vise blocks, lower vise blocks etc.).
WARNINGS
Do not apply impact or use as a ratcheting device.
Unidirectional torque wrench should not be used on non-standard
fasteners with left-hand threads.
Do not adjust wrench beyond 70 in-lbs.
Do not disassemble wrench. There are no user-serviceable parts.
TIPS
Start threading a fastener several twists by hand before using a
torque wrench to avoid stripping threads.
One “click” will deliver the correct amount of torque. Several
applications of torque are not required.
Smart-Torq operates in a unidirectional manner. It will “click” at
the indicated torque when tightening conventional fasteners. It will
not function as a torque wrench during loosening operation.
Use Force Assist for heavy torque applications. Remove Force Assist
Handle for quick adjustment or ne application of torque. The
Force Assist Handle can be used for non-torque wrench bit driving.
The small bit driver can be used with a small tap hammer to free
stuck fasteners.
MAINTENANCE
Smart-Torq is lubricated for life, do not apply lubricant.
Keep free from dirt and moisture. Do not submerge in water.
Adjust Smart-Torq to lowest torque setting once operation is
complete. Storage of wrench while spring is compressed can cause
loss of accuracy or damage. Store in a cool, dry area.
=23in-lbs
