RCA RCU310BB - Universal Remote Control Manuel utilisateur

universal

UNIVERSAL

Multi-Brand Use RCU310

See back

for most

popular brands.

Compatible with

today’s most

popular brands.

Consolidates

up to 3

remotes

Dedicated

MENU key

for DVD

navigation

remote

Remote

RCU310_US_IB_REVB 4/10/03 16:43 Page 1

Indicator light

Component keys.

(TV, VCR•DVD,

DBS•CABLE)

CHAN and VOL

keys have dual

functions. They act

as navigation keys

(up, down, left,

and right) in

menu systems.

Dedicated MENU

key for DVD

disc menus, some

TVs and satellite

receivers.

Table of Contents

Product Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Battery Installation and Information . . . . . . . . . . . . . . . . . . .3

Key Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Program for TV—Direct Entry Method . . . . . . . . . . . . . . . . .5

Program for DVD or VCR—Direct Entry Method . . . . . . . .6

Program for Satellite or Cable Box—Direct Entry Method . . .7

Code Search Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Manual Code Search . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Automatic Code Search . . . . . . . . . . . . . . . . . . . . . . . . . .8

Code Retrieval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Sleep Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

On-screen Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Accessing a Menu System . . . . . . . . . . . . . . . . . . . . . . .11

Highlighting and Selecting Menu Items . . . . . . . . . . . .11

Exiting a Menu System . . . . . . . . . . . . . . . . . . . . . . . . .11

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Limited 90-Day Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .14

BACKLIGHT key—

Turns backlighting

on/off. (select

models only)

Actual model may vary from picture shown

RCU310_US_IB_REVB 4/10/03 16:43 Page 2

Battery Installation

and Information

Your universal remote requires two AAA Alkaline batteries

(batteries may or may not be included, depending on model).

To install the batteries:

1. Remove the battery compartment cover.

2. Insert the batteries, matching the

batteries to the (+) and (–) marks

inside the battery compartment.

3. Press and push the battery cover

back into place.

Note: Reprogramming may be

required after batteries are replaced.

Congratulations on your purchase of the 3 component

universal remote. This universal remote controls up to three

electronic components and makes juggling remote controls a

thing of the past. You can program this RCA brand universal

remote to operate most models of most brands of infrared,

remote-controlled components manufactured after 1990.

(See the enclosed Code List for a complete list of brands.)

The 3 component universal remote is easy to use, easy to

program and gives you control at the touch of your fingertips.

Note: The 3 component universal remote is already

programmed to operate most RCA, GE and PROSCAN

branded TVs, VCRs, DVD players and satellite receivers (DBS).

Just press the corresponding component key—VCR•DVD for

a VCR or DVD player; TV for a television; DBS•CABLE for a

satellite receiver or a cable box.

3 Component

Universal Remote

Key Descriptions

Indicator Light–flashes when a valid key

is pressed to indicate the remote is working.

Status of this light is important when you

are programming the remote.

Component keys–(DBS•CABLE, VCR•DVD,

TV): selects the component you want the

remote to operate.

For example, after you’ve programmed the

remote to operate your TV, you must press

the TV key first to put the remote in TV

Mode. While in TV Mode, the CHAN keys

change the channel on the TV, the VOL keys

adjust the TV’s volume, etc.

Transport keys–REW (Rewind), PLAY, FF

(Fast Forward), PAUSE, STOP: operate

the same as your original VCR or DVD

remote control, although key labels may

vary (REVERSE, FORWARD).

Backlight Key (select models only)–Turns

backlighting on/off. Backlighting will turn

off for approximately 6 seconds after last

keypress to conserve battery life.

RCU310_US_IB_REVB 4/10/03 16:43 Page 3

Other Keys (listed alphabetically)

0-9 (Number Keys):operate the same as number keys on your

original remote and are used to enter component codes when

programming the remote control with Direct Entry method.

ANTENNA: in TV mode, switches between the signal coming

from a satellite receiver or cable box and an off-air antenna.

In VCR mode, switches between the signal coming from a

VCR and a TV.

CHAN (Channel) UP AND DOWN: goes to the next highest

or lowest channel number in the component channel list,

respectively, except for DVDs. In DVDs the CHAN UP/DOWN

goes to the NEXT/PREVIOUS chapter. Additionally, when

you’re using the remote with On-screen Menus, the CHAN

keys act as UP ARROW and DOWN ARROW keys (moving

the cursor or highlight up or down).

CODE SEARCH: use to program the remote.

ENTER: use with Manual or Automatic Code Search method

to accept code (See Code Search on page 8). Also, some

brands require you to press the ENTER key after you enter

a channel number. In some menu systems, you must press

ENTER to select a highlighted item.

MENU: accesses DVD disc menus when VCR•DVD key

is programmed to operate a DVD player. Accesses menu

systems of some TVs, a few RCA brand VCRs and satellite

receivers. (For more information, refer to Using On-screen

Menus section on page 10).

MUTE: lowers the TV’s volume to its minimum level.

ON•OFF: turns component on and off.

Note: Some RCA, GE and PROSCAN models require that

you press the component key to turn ON the component

and the ON•OFF key to turn OFF the component.

PREV CH (Previous Channel):switches back to previous

channel—operates the same as LAST CHANNEL, GO BACK

or RECALL key found on some brands of remote controls.

REC (Record):used with VCR to record programming.

You must press the REC key twice to start recording.

VOL (Volume) UP and DOWN: increases or decreases the

TV’s volume level. Additionally, when you’re using the remote

with On-screen Menus, the VOL keys act as RIGHT or LEFT

ARROW keys (moving the highlight or cursor right or left).

RCU310_US_IB_REVB 4/10/03 16:43 Page 4

(OFF)

123

456

789

ON•OFF

TV CODE

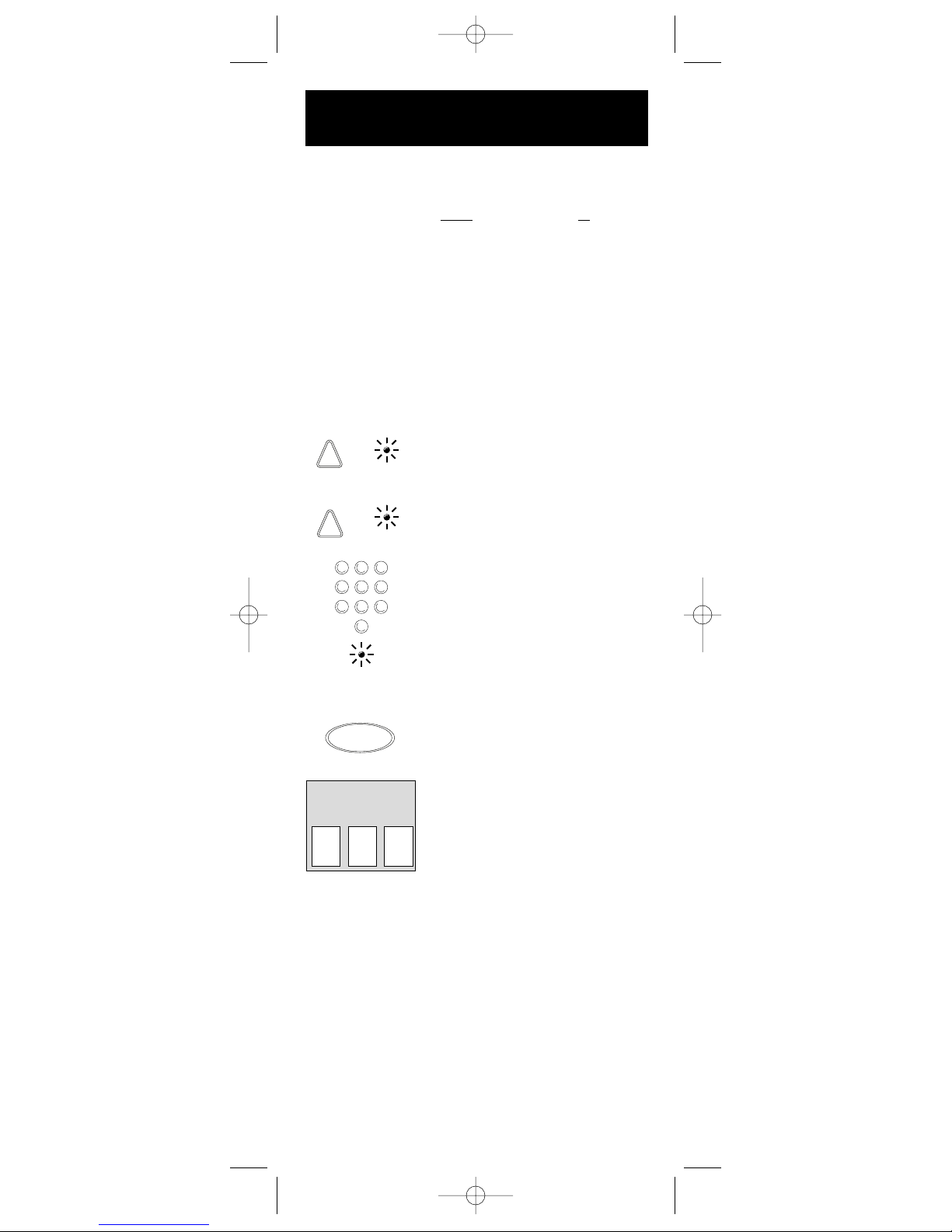

Program for TV—

Direct Entry Method

1. Manually turn on the TV.

2. Locate the enclosed TV Code List.

Find your brand of TV.

Note: If your brand isn’t listed, use

one of the Code Search methods to

program this remote control (See

Code Search on page 8).

3. Press and hold the CODE SEARCH

key until the indicator light

illuminates. Then release the

CODE SEARCH key.

4. Press and release the TV key. The

indicator light blinks and then remains lit.

5. Use the number keys to enter

the first code listed for your brand.

After you enter a valid three-digit

code, the indicator light turns off.

Note: If you enter an invalid code,

the LED will flash rapidly for 2

seconds. Start over at step 3.

6. Aim the remote at your TV and press

the ON•OFF key. If your TV turns

off, you have found the correct code.

7. Enter the code in the box provided

on this page for future reference.

8. If your TV doesn’t turn off, repeat

steps 3-6 above, entering the next

code for your brand.

If none of the codes work or your

brand is not listed, use one of the

Code Search methods to program this

remote (See Code Search on page 8).

For a description of each key on the

remote control, refer to the Key

Descriptions section on page 3-4.

In order for the 3 component universal remote to control

your TV, you must program it with the TV code that matches

your TV. These instructions explain the preferred method of

programming the remote—the Direct Entry method.

CODE

INDICATOR

LIGHT

(BLINK)

RCU310_US_IB_REVB 4/10/03 16:43 Page 5

Program for DVD or VCR—

Direct Entry Method

VCR•

DVD

1. Manually turn on the

VCR or DVD player.

2. Locate the enclosed VCR or

DVD Code List. Find your brand

in the VCR Codes or DVD Codes

section, respectively.

Note: If your brand isn’t listed, use one

of the Code Search methods to program

this remote control (See Code Search

on page 8).

3. Press and hold the CODE SEARCH

key until the indicator light illuminates.

Then release the CODE SEARCH key.

4. Press and release the VCR•DVD key.

The indicator light blinks and then

remains lit.

5. Use the number keys on the remote to

enter the first code listed for your brand.

After you enter a valid three-digit

code, the indicator light turns off.

Note: If you enter an invalid code,

the LED will flash rapidly for 2

seconds. Start over at step 3.

6. Aim the remote at the component

(VCR or DVD player). Press the

ON•OFF key. If your VCR or DVD

player turns off, you have found the

correct code.

7. Enter the code in the box provided

on this page for future reference.

8. If your VCR or DVD player doesn’t

turn off, repeat steps 3-6 above,

entering the next code for your brand.

If none of the codes work or your

brand is not listed, use one of the Code

Search methods to program this remote

(See Code Search on page 8).

For a description of each key on

the remote control, refer to the Key

Descriptions section on page 3-4.

In order for the 3 component universal remote to control your

DVD or VCR, you must program it with the code that matches

your component. The VCR•DVD key can be programmed

to operate either a DVD or a VCR player. These instructions

explain the preferred method of programming the remote—

the Direct Entry method.

ON•OFF

(BLINK)

(OFF)

123

456

789

CODE

INDICATOR

LIGHT

VCR OR DVD CODE

RCU310_US_IB_REVB 4/10/03 16:43 Page 6

Program for Satellite or Cable Box—

Direct Entry Method

DBS•

CABLE

1. Manually turn on the satellite

receiver or cable box.

2. Locate the enclosed Satellite or Cable

Box Code List. Find your brand in the

Satellite Codes or Cable Box Codes

section, respectively.

Note: If your brand isn’t listed,

use one of the Code Search methods

to program this remote control

(See Code Search on page 8).

3. Press and hold the CODE SEARCH

key until the indicator light illuminates.

Then release the CODE SEARCH key.

4. Press and release the DBS•CABLE

key. The indicator light blinks and

then remains lit.

5. Use the number keys on the remote to

enter the first code listed for your brand.

After you enter a valid three-digit

code, the indicator light turns off.

Note: If you enter an invalid code, the

LED will flash rapidly for 2 seconds.

Start over at step 3.

6. Aim the remote at your satellite

receiver or cable box and press

the ON•OFF key. If your Satellite

receiver or cable box turns off, you

have found the correct code.

7. Enter the code in the box provided

on this page for future reference.

8. If your satellite receiver or cable box

doesn’t turn off, repeat steps 3-6 above,

entering the next code for your brand.

If none of the codes work or your

brand is not listed, use one of the

Code Search methods to program

this remote (See Code Search on page 8).

For a description of each key on the

remote control, refer to the Key

Descriptions section page 3-4.

In order for the 3 component universal remote to control

your satellite or cable box, you must program it with the code

that matches your component. The DBS•CABLE key can be

programmed to operate either a satellite receiver or a cable

box. These instructions explain the preferred method of

programming the remote—the Direct Entry method.

DBS (SATELLITE)

CABLE BOX CODE

ON•OFF

(BLINK)

(OFF)

123

456

789

CODE

INDICATOR

LIGHT

RCU310_US_IB_REVB 4/10/03 16:43 Page 7

Code Search Methods

Manual Code Search

1. Turn on the component

you want the remote to operate.

2. Press and hold the CODE SEARCH

key until the indicator light

illuminates. Then release the

CODE SEARCH key.

3. Press and release the component key

that corresponds to the component

you want the remote to operate

(TV,VCR•DVD or DBS•CABLE).

The indicator light blinks once

and then remains lit.

4. Aim the remote at the component and

press the ON•OFF key continuously

until the component turns off.

Important: Because there are so many

codes, you may have to press the

ON•OFF key many times—possibly

up to 200 times.

5. When the component turns off, press

the ENTER key to store the code.

6. Use Code Retrieval on the next

page to identify the code for your

component for future reference.

If your component’s brand isn’t listed in the Code List or

you have tried all of the codes for your brand and the remote

does not operate your component, use one of the Code Search

methods below—Manual Code Search or Auto Code Search.

Both Code Search methods search all of the codes because

your component’s code may be listed under another brand

in the code list.

Note: The Code Search method may take a long time because

the remote searches all of the codes in its memory for the

code which operates your component. Therefore, if your

brand is listed in the Code List, use the Direct Entry method

described on pages 5-7.

DBS•

CABLE

VCR•

DVD

Auto Code Search

1. Turn on the component you

want the remote to operate.

2. Press and hold the CODE SEARCH

key until the indicator light

illuminates. Then release the

CODE SEARCH key.

3. Press and release the component key

that corresponds to the component

you want the remote to operate

(TV,VCR•DVD or DBS•CABLE).

The indicator light blinks once

and then remains lit.

INDICATOR

LIGHT

CODE

ON•OFF

(BLINK)

INDICATOR

LIGHT

CODE

ENTER

DBS•

CABLE

VCR•

DVD

RCU310_US_IB_REVB 4/10/03 16:43 Page 8

1. Press and hold the CODE SEARCH

key until the indicator light illuminates.

Then release the CODE SEARCH key.

2. Press and release the component

key that matches the component’s

code you are retrieving (TV, VCR•DVD,

or DBS•CABLE). The indicator light

blinks once and then remains lit.

3. Press and release the CODE SEARCH

key. The indicator light turns off.

4. Starting with 0 on the keypad, press

the number keys in order (0-9) until

the indicator light blinks.

5. The number that causes the indicator

light to blink is the first digit of

your code.

6. Repeat step 4 until you have retrieved

all three numbers of the code.

7. Refer to the code box to write down

the code for your component within

the Direct Entry Section (pages 5-7)

for the component just programmed.

If you used one of the Code Search methods to program

your remote, follow the steps below to find out which code

is compatible with your component. Finding the actual code

and writing it down will save you time if you ever need to

program the remote again (e.g., if programming is lost when

you change the batteries).

INDICATOR

LIGHT

(OFF)

CODE

Code Retrieval

(BLINK)

4. Aim the remote at the component

and press the ON•OFF key once.

The remote automatically sends every

code for the specified component

one at a time, with a 3 second delay

between each code. Keep the remote

aimed at the component throughout

the process.

5. As soon as the component turns

off, you must press the ENTER key

immediately so the remote stores the

correct code. If you don’t press ENTER

within 3 seconds, the remote will send

the next code in the list, and you will

have to start over from step 2.

6. Use Code Retrieval to identify the code

for your component for future reference.

ENTER

ON•OFF

(BLINK)

DBS•

CABLE

VCR•

DVD

RCU310_US_IB_REVB 4/10/03 16:44 Page 9

PROGRAMMING SLEEP FEATURE

1. Press and hold the SLEEP key

until the indicator light illuminates.

Release the SLEEP key.

2. Enter time in minutes using the

numerical key pad. The indicator

light should turn off. (Minute 1 thru

9: press 0 before the actual number.

Maximum: 99 minutes).

3. Leave remote aimed at television.

(Sleep Feature will not work unless

remote is left aimed at television.)

CANCELING THE SLEEP TIMER

The Sleep Timer program will be

canceled and reset to zero by either

of the following.

1. Press and hold the SLEEP key

until the indicator light blinks.

2. Press the ON•OFF key,

turning TV off.

This feature will automatically turn off your TV

at a duration you choose from 1 to 99 minutes.

Sleep Feature (Select Models Only)

INDICATOR

LIGHT

ON•OFF

(BLINK)

123

456

789

SLEEP

This remote cannot access every menu system of all models

and brands of consumer electronics components. However,

if you’ve successfully programmed the VCR•DVD key to

operate a DVD player, you can access DVD disc menus

with the MENU key.

The MENU key will also access TV menu systems for

most RCA, GE and PROSCAN TV's, as well as some other

popular brands. Also, some RCA VCR menus are supported

by this remote’s menu key. This remote also supports select

satellite receiver menus.

If this remote’s MENU key doesn’t access the menu system

for your component, you’ll need to use the original remote

to change menu settings.

Note: This remote’s MENU key doesn’t support cable box

menu systems and some VCR menu systems.

Using On-screen Menus

RCU310_US_IB_REVB 4/10/03 16:44 Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels RCA Télécommande universelle

RCA

RCA RCU1010RF Manuel utilisateur

RCA

RCA RCU403 - Universal Remote Control Manuel utilisateur

RCA

RCA ClonePro MASTER R130K2 Manuel utilisateur

RCA

RCA RCU410MS - RCU Universal Remote Control Manuel utilisateur

RCA

RCA RC1310 Manuel utilisateur

RCA

RCA RCR4258N Manuel utilisateur

RCA

RCA RCRH02BR Guide de démarrage rapide

RCA

RCA RCU600 Manuel utilisateur

RCA

RCA RCU600WMS - Universal Remote Control Manuel utilisateur

RCA

RCA RCR812 - Universal Remote Control Manuel utilisateur

RCA

RCA D770 Manuel utilisateur

RCA

RCA ADR560 Manuel utilisateur

RCA

RCA RCU300WB Manuel utilisateur

RCA

RCA CRK76 Manuel d'installation

RCA

RCA RCR6373N Manuel utilisateur

RCA

RCA RCU704 Series Manuel utilisateur

RCA

RCA Universal Remote Manuel utilisateur

RCA

RCA RCR815 - Universal Remote Control Manuel utilisateur

RCA

RCA RCU404 - RCU 404 Universal Remote Control Manuel utilisateur

RCA

RCA RCR860 - NaviLight Universal Remote Control Guide de l'administrateur

RCA

RCA RCU800 - Universal Remote Control Manuel utilisateur

RCA

RCA RCR311W Manuel utilisateur

RCA

RCA RCR3273N Manuel utilisateur

RCA

RCA RCR815 - Universal Remote Control Manuel utilisateur

Manuels Télécommande universelle populaires d'autres marques

Pronto

Pronto Peel Manuel utilisateur

GE 24929 Manuel utilisateur

Radio Shack

Radio Shack Wireless Remote Control System Manuel utilisateur

AUVIO

AUVIO Universal Home Theater Remote Manuel utilisateur

Philips

Philips Icon SRU4106 Manuel utilisateur

THOMSON

THOMSON ROC4309 Manuel utilisateur

Philips

Philips pm625S Manuel utilisateur

GE RM94931 Manuel utilisateur

Blackweb

Blackweb BWB17AV002 Manuel utilisateur

Marmitek

Marmitek DoorGuard 300 Manuel utilisateur

Chunghop

Chunghop RM-L618 Manuel utilisateur

GE RM24965 Manuel utilisateur

Anderic

Anderic KTN828 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manuel utilisateur

Medion

Medion E74023 Manuel utilisateur

intensity

intensity RM02A Manuel utilisateur

GE RM24950 Manuel utilisateur

Sky

Sky MY Manuel utilisateur
