Warning

REGULATORY INFORMATION

This equipment generates uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communication. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

-Relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-Consult the dealer or experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

CAUTION

DO not attempt to modify this product in any way without written authorization from

supplier. Unauthorized modification could void the user's authority to operate this

product.

It is not recommended to keep a certain still image displayed on the screen for a long

time as well as displaying extremely bright images on screen.

Figures and illustrations in this User Manual are provided for reference only and

may differ from actual product appearance. Product design and specifications

may be changed without notice.

The lightning flash with arrowhead symbol, within an equilateral triangle,

is intended to alert the user to the presence of uninsulated "dangerous

voltage" within the products enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER

(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO

QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION/PRUDENCE

RISQUE DE CHOC ELECTRIQUE

NE PAS OVURIR

RISQUE DE CHOC ELECTRIQUE

NE PAS OVURIR

Warning

WARNING

To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To

Rain Or Moisture.

The ventilation should not be impeded by covering the ventilation openings with

items, such as newspapers, table-cloths, curtains, etc.

The Apparatus shall not be exposed to dripping or splashing and that no objects

filled with liquids, such as vases, shall be placed on the apparatus.

Attention should be drawn to the environmental aspects of battery disposal. Don’t

throw used batteries in dustbin. Please contact your retailer in order to protect the

environment.

Keep minimum distances (5cm) around the apparatus for sufficient ventilation;

(Minimum distance around the apparatus for sufficient ventilation.)

No naked flame sources, such as lighted candles, should be placed on the

apparatus;

To prevent the spread of fire, keep candles or other open flames away from this

product at all times.

The device may be malfunction when under electrostatic discharge. It can be

manually resumed by power off and power on again.

CAUTION connecting the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a

single outlet circuit which powers only that appliance and has no additional outlets or

branch circuits.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets,

extension cords, frayed power cords, or damaged or cracked wire insulation are

dangerous. Any of these conditions could result in electric shock or fire. Periodically

examine the cord of your appliance, and its if appearance indicates damage or

deterioration, unplug it, discontinue use of the appliance, and have the cord replaced

with an exact replacement part by an authorized servicer. Protect the power cord

from physical or mechanical abuse, such as being twisted, kinked, pinched, closed

in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the

point where the cord exits the appliance.

The MAINS plug is used as the disconnect device, and the disconnect device shall

remain readily operable.

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

7. Do not block any of the ventilation

openings. Install in accordance with the

manufacturer's instructions.

5. Do not use this apparatus near water.

8. Do not install near any heat source such

as radiators, heat registers, stoves, or

other apparatus (including amplifiers)

that produce heat.

6. Clean only with a dry cloth.

9. Do not defeat the safety purpose of the

polarized or grounding type plug. A

polarized plug has two blades with one

wider than other. A grounding type plug

has two blades and a third grounding

prong. The wide blade or the third

prong is provided for your safety. When

the provided plug does not fit into your

outlet, consult an electrician for

replacement of the obsolete outlet.

Safety instructions

10. Protect the power cord from being

walked on or pinched particularly at

plugs, convenience receptacles, and

the point where they exit from the

apparatus.

13. Unplug this apparatus during

lightning storms or when unused for

long periods of time.

11. Only use the attachments/

accessories specified by the

manufacturer.

12. Use only with a cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the

apparatus. When a cart is used, use

caution when moving the cart/

apparatus combination to avoid

injury from tip-over.

14. Refer all servicing to qualified service

personnel. Servicing is required when

the apparatus has been damaged in

any way, such as power supply cord

or plug is damaged, liquid has been

spilled or objects have fallen into the

apparatus, the apparatus has been

exposed to rain or moisture, does not

operate normally, or has been

dropped.

ON DISPOSAL

-The fluorescent lamp used in this product contain a small amount of mercury.

-Do not dispose of this product with general household waste.

-Disposal of this product must be carried out in accordance to the regulations of your

local authority.

NOTE

-If the TV feel cold to the touch, there may be a small "flicker" when it is turned on.

This is normal, there is nothing wrong with TV.

-Some minute dot defects may be visible on the screen, appearing as tiny red,

green, or blue spots. However there have no adverse effect on the monitor's

performance.

-Avoid touching the screen or holding your finger(s) against it for long periods of time.

Doin

so may produce some temporary distortion effect on the screen.

Main Unit Control

FrontPanel

No. Name Description

1 CH+/CH-

Changes the channels. In the on-screen menu, use the

CH+/CH- buttons as you would use the ▲/▼buttons on

the remote control.

2 VOL+/VOL-

Adjusts the volume. In the on-screen menu, use the

VOL+/VOL- buttons as you would use the ►/◄buttons on

the remote control.

3 MENU Open the menu.

To switch the signal source. In the on-screen menu, use this

button as you would use the ENTER button on the remote

control.

5 Turns the unit on and off.

6 Power&Sensor Power Indicator and Infrared sensor.

Main Unit Control

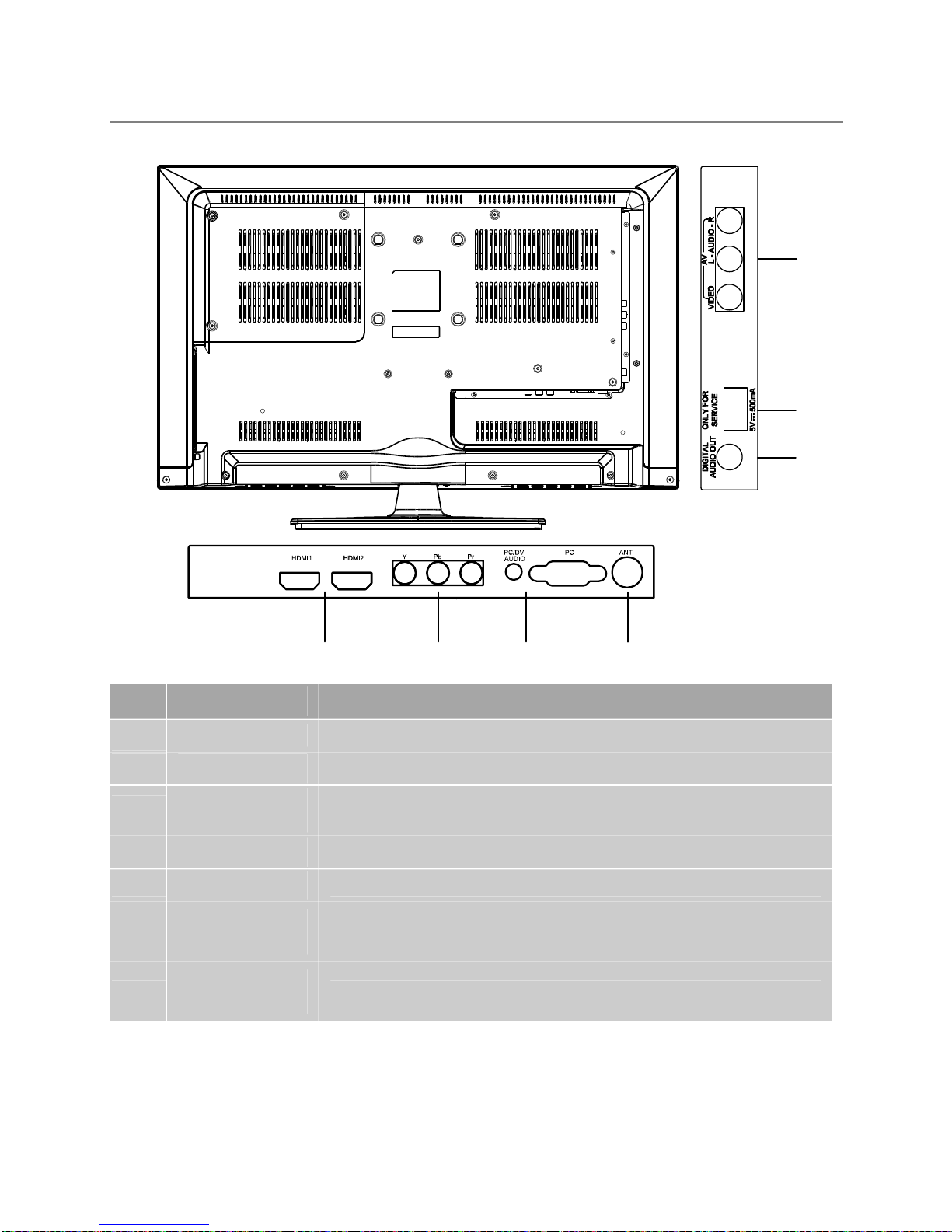

Rear&SidesPanel

No. Name Description

7 HDMI HDMI input

8 YPbPr YPbPr input

9 PC / PC/DVI

AUDIO PC input

10 ANT Antenna input

11 AV AV audio/video signal input

12 ONLY FOR

SERVICE Only for service

13 DIGITAL AUDIO

OUT Digital audio output (COAXIAL output)

Remote Control

The buttons of the original remote control are as following:

Definition of the buttons on remote control:

1. POWER: Enter or quit the standby mode.

2. INFO: Press to display the current program

information on the screen.

3. :Mute or restore sound.

4. NUMBER BUTTONS: Choose channels or

password importation.

5. SOURCE: Select signal source.

6. -: In DTV mode, press number buttons and -

key to select channel.

7. :Press to select different images sizes.

:Return to last viewed program.

9. MENU: Press to display/disappear the on

screen menus or to quit some operations.

10. EXIT: Quit the current interface.

11. ENTER: Select or confirm menu item.

12. ▲/▼/◄/►: Select direction.

13. VOL+/VOL-: Increase/Decrease audio

volume.

14. CH+/CH-: Scroll to next/previous

channel.

15. SLEEP: Set the sleep timer.

16. LIST: Press to call up the channel list.

Press again to exit it.

17. GUIDE: Electronic Program Guide, use in the

DTV mode.

18. :Press to display the Favourites

program in TV mode.(You should setup

your favourite channels in Favorite menu)

19. COLOR BUTTONS:

Red/green/yellow/blue key navigation link.

20. STILL: Freeze or activate the current

picture.

21. CC: Press to select the closed caption.

22. MTS: The button can be used to switch

between Mono/STEREO/SAP in ATV mode.

AUDIO: Switch Audio language in DTV

mode.

NOTE:

•All pictures in this manual are

examples, only for reference,

actual product may differ from the

pictures.

•The buttons not mentioned here

are not used.

GUIDE

CC MTS

STILL

AUDIO

SLEEP

CH+

VOL+

CH-

VOL-

EXIT

ENTER

LIST

Getting Started

UsingtheRemoteControl

When using the remote control, aim it at remote sensor on the television. If there is an

object between the remote control and the remote sensor on the unit, the unit may no

operate.

•Point the remote control at the REMOTE SENSOR located on the television.

•When using this television in a very brightly lit area, the infrared REMOTE CONTROL

SENSOR may not work properly.

•The recommended effective distance for using the remote control is about 7 metres.

Installing Batteries in the Remote Control

1. Open the cover at the back of the remote control.

2. Install two AAA size batteries. Make sure to match

the “+” and “-” ends of the batteries with the

diagram inside the compartment.

3. Replace the cover.

Battery Replacement

You will need to install the batteries into the remote control to make it operate following

the instruction below.

When the batteries become weak, the operating distance of the remote control will be

greatly reduced and you will need to replace the batteries.

Notes on Using Batteries:

The use of the wrong type of batteries may cause chemical leakage and/or explosion.

Please note the following:

•Always ensure that the batteries are inserted with the + and - terminals in the correct

direction as shown in the battery compartment.

•Different types of batteries have different characteristics. Do not mix different types.

•Do not mix old and new batteries. Mixing old and new batteries will shorten battery life

and/or cause chemical leakage.

• Replace batteries as soon as they do not work.

•Chemicals which leak from batteries may cause skin irritation. If any chemical matter

seeps out of the batteries, wipe it up immediately with a dry cloth.

• The batteries may have a shorter life expectancy due to storage conditions. Remove the

batteries whenever you anticipate that the remote control will not be used for an

extended period.

•The batteries (battery pack or batteries installed) shall not be exposed to excessive heat

such as sunshine, fire or the like.

CAUTION:

•It may result in an explosion if batteries are replaced incorrectly.

•Only replace batteries with the same or equivalent type.

Table des matières

Langues :

Autres manuels RCA TV

RCA

RCA E13342 Manuel utilisateur

RCA

RCA F20645YX1B1 Manuel utilisateur

RCA

RCA F27550 Manuel utilisateur

RCA

RCA F27242GY Manuel utilisateur

RCA

RCA F36683 Manuel utilisateur

RCA

RCA RLDED4215A Manuel utilisateur

RCA

RCA 32V430TYX1GYN Manuel utilisateur

RCA

RCA MMC101 Manuel utilisateur

RCA

RCA F27242 Manuel utilisateur

RCA

RCA F20251 Manuel utilisateur

RCA

RCA RLDED4079A-SM Manuel utilisateur

RCA

RCA F25441 Manuel utilisateur

RCA

RCA F27442 Manuel utilisateur

RCA

RCA F20640 Manuel utilisateur

RCA

RCA F27240 Manuel utilisateur

RCA

RCA D52W136D - 52" HDTV Monitor Manuel utilisateur

RCA

RCA MR29310TX51 Manuel utilisateur

RCA

RCA F25209 Manuel utilisateur

RCA

RCA F20635 Manuel utilisateur

RCA

RCA L WD250 Series Instructions d'installation

RCA

RCA TruFlat F20TF10 Manuel utilisateur

RCA

RCA M61WH74 Manuel utilisateur

RCA

RCA MR20035 Manuel utilisateur

RCA

RCA M50WH72S Manuel d'installation et d'exploitation

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
