RCA M20303BL Manuel utilisateur

USER’S

GUIDE

COLOR TV

It is important to read this manual before

operating this unit for thefirst time.

TOCOM 15078070

M20303BL

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates

“dangerous voltage” inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the

product.

Important Information

WARNING

To reduce the risk of fire or

shock hazard, do not expose this

TV to rain or moisture.

Cautions Do not defeat the safety feature of the plug. The wide blade fits into the

wall socket only one way. If you need an extension cord, make sure it

matches the plug of the TV.

For Mexico: Operate TV only on 127 volts, 60 Hz AC power (normal

house power) .

For U. S. A.: Operate TV only on 120 volts, 60 Hz AC power (normal

house power) .

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user’s authority to operate it.

Note To Cable TV Installer This reminder is provided to call your attention to Article 820-40 of the

National Electrical Code which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

Table of Contents

Important Information Warning_______________________________________________________________________ i

Quick Guide to Your TV Startup ____________________________________________________________________ 2-3

Hook up your TV, Plug in the TV, Put Batteries in the Remote,

Turn on the TV, Place Channels in Memory, Set the Time

Menu Basics ______________________________________________________________ 4

Colors, Menu Buttons, Moving through the Menus

Using Your TV and Remote Remote Buttons _________________________________________________________ 5

Front Panel Buttons ___________________________________________________ 6

Adjusting Your TV Overall Picture __________________________________________________________ 7

Picture Settings __________________________________________________________ 8

Color, Tint, Brightness, Sharpness, Autocolor, Picture Reset

Using Advanced Features Placing Channels in Memory/Autoprogram ______________ 9

Naming the Channels_________________________________________________ 10

Setting the Sleep Timer _____________________________________________ 11

Setting the Alarm Clock ___________________________________________ 12

Selecting the Language ____________________________________________ 13

Watching Closed Captioning ____________________________________ 13

Setting Your TV for Antenna or Cable _______________________ 14

References Displays on the Screen _____________________________________________ 15

Trouble Checks ____________________________________________________ 16-17

Caring for Your TV_____________________________________________________ 17

Quick Guide to Your TV

Startup

2. Plug in the TV

Hook up your antenna or cable to

the TV before you follow the steps

below.

The steps below will get your TV connected and ready for watching.

For more details, see the page numbers listed.

3. Put Batteries in the Remote A. Pull off the cover of the battery

compartment.

B. Place the two AAA batteries as

shown, matching the +and –

end of each battery in the

compartment.

C. Replace the cover.

OROR

CABLE /

ANTENNA

Back of TV

Adapters

VHF & UHF VHF & UHF VHF UHF VHF UHF

Match Your Type of Antenna or Cable

Plug the cord into the outlet,

matching the wide and the small

end of the plug with the outlet.

1. Hook up your TV

It is important to use only

the adapters specified as

they incorporate special

isolation circuitry to meet

safety regulations.

CAUTION: If you choose to use a stand with your TV, take precautions that the stand or furniture the TV is

placed on is properly located and of adequate size and strength to prevent the TV from accidentally being

tipped over or pulled off. This could cause damage to the TV and or personal injury.

Quick Guide to Your TV

Startup

A. Press MENU until the Alarm

menu is selected. This menu is

green.

B. The Clock is automatically

highlighted the first time you

set it. If it is not, press

CHANNEL down to highlight it.

C. Press –to set the hour.

D. Press +to set the minutes.

E. Press CLEAR to remove the

menu from the screen.

A. Press MENU until the Setup

menu is selected. This menu is

white.

B. Press CHANNEL down to

highlight Autoprogram.

C. Press +to place channels in the

TV’s memory (Autoprogram).

D. Wait until TV has cycled

through all the channels and

returns to the original channel.

6. Set the Time

5. Place all available

channels in memory

(Autoprogram)

Details for adding and deleting

channels are on page 9.

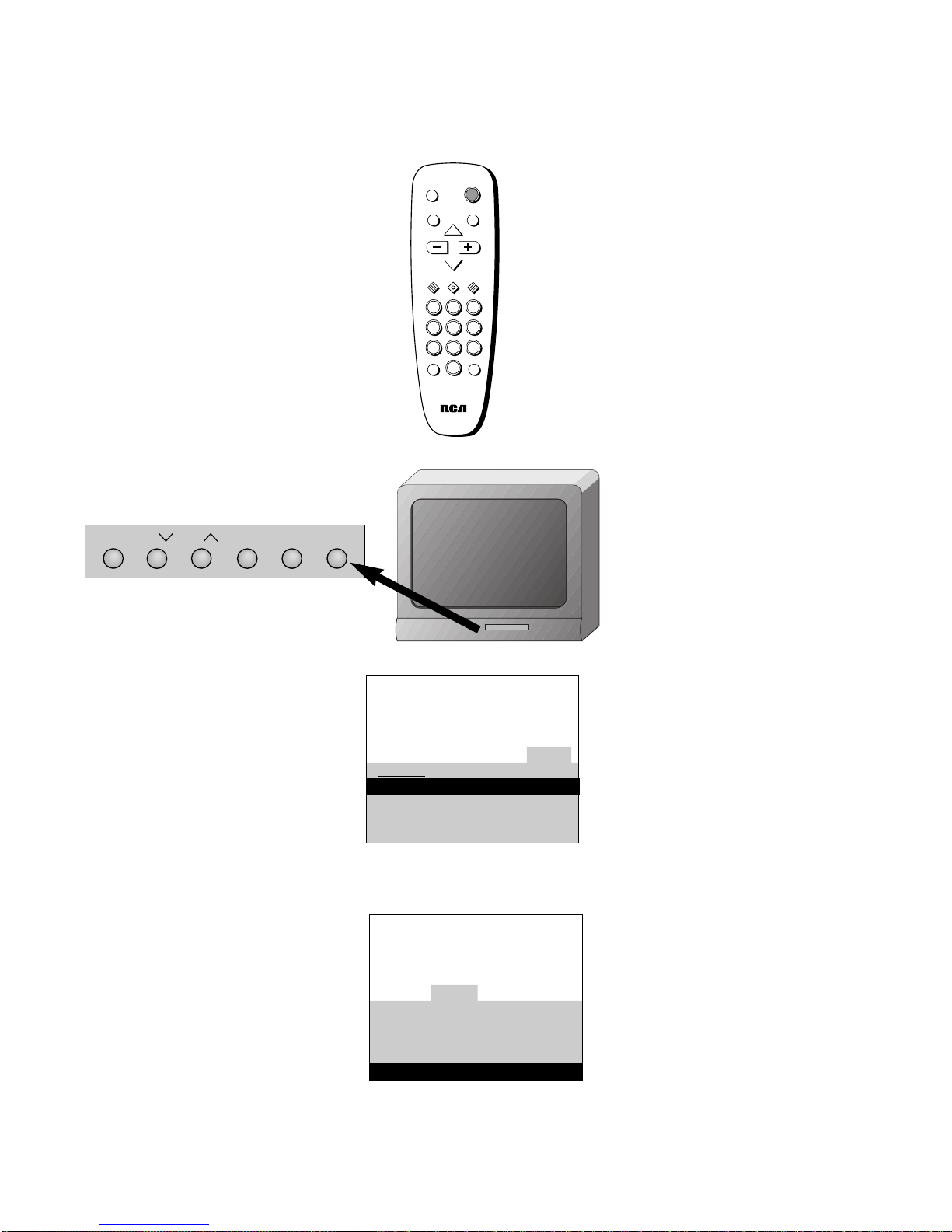

Press POWER on the remote.

Press POWER on the TV.

4. Turn on the TV

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

1 32

4 65

7 98

12:21 AM 13

Controls Alarm Adjust Setup

Alarm: Off

Alarm Channel: 07

On Time: Disabled

Off Time: Disabled

Clock: Use –/+ to set time.

MENU CH VOL–VOL+POWERCH

Controls Alarm Adjust Setup

English Français Español

Autoprogram

Label: 00 Clear

Channel Memory: 13 Stored

Cable/Air: Cable

Yellow

Quick Guide to Your TV

Menu Basics

Colors

Menu Buttons

These buttons are used with the

TV’s menus to adjust the features.

Press MENU repeatedly to see

each of the four menu colors.

Each menu has a different color

background as shown at the left.

Green Light

Blue White

General information about using the on-screen menu system is shown

below. Details on using the remote buttons are on page 5. Many menu items are

explained in detail in Adjusting Your TV starting on page 7 and Using the

Advanced Features starting on page 9.

Moving through the Menus

Controls Alarm Adjust Setup

English Français Español

Autoprogram

Label: 00 Clear

Channel Memory: 13 Stored

Cable/Air: Cable

Controls Alarm Adjust Setup

English Français Español

Autoprogram

Label: 00 Clear

Channel Memory: 13 Stored

Cable/Air: Cable

1. Press MENU to move from

menu to menu.

2. Press CHANNEL up and down

to move up and down through

the features in the menu.

3. Press VOLUME +and –to

move left and right on the

menu lines.

MENU CH VOL–VOL+

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

1 32

4 65

7 98

Using Your TV and Remote

Remote Buttons

DISPLAY

Shows displays on the screen.

Clears menus from the screen.

POWER

Turns the TV on and off.

MUTE

Switches the TV sound on or off.

PREV CH (Previous Channel)

Changes back and forth between

two channels.

Select a channel and then select

another. Press PREV CH to switch

between the two channels.

CHAN

and

(Channel up and down)

Scans up and down through

channels in the TV’s memory.

Moves up and down menus. See

Menu Basics on page 4.

VOL +and –

(Volume up and down)

Raises and lowers sound.

Moves left and right on a menu

line. See Menu Basics on page 4.

Changes a feature setting.

CLEAR

Clears menus and displays from

the screen.

Shows menus on the screen and

moves from menu to menu.

RESET

Returns the picture adjustments to

the original settings.

Number Buttons

Selects any channel number.

Two numbers must be pressed for

each channel. Press 0 and 6 for

channel 6.

For three digit channels, press and

hold 1 until 1-- appears on the

screen. Then press the other two

numbers.

INPUT

Switches the TV to channel 03.

This is useful if you have a VCR

connected to your TV.

SKIP (Commercial Skip)

Allows you to look at other

channels during commercials.

Each press adds 30 seconds. Use

the CHANNEL or number buttons

to scan the other channels. TV

switches back to original channel

when time runs out. Press CLEAR

to cancel SKIP.

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

1 32

4 65

7 98

and

VOL +and –

POWER

Shows menus on screen.

Moves from menu to menu.

Channel up and down.

Scans up and down through channels in the TV’s memory.

Moves up and down menus.

Volume up and down

Raises and lowers sound.

Moves left and right on a menu line.

Changes a feature setting.

Turns the TV on or off.

For details on using buttons with menus, see Menu Basics on page 4.

MENU CH VOL–VOL+POWERCH

Using Your TV and Remote

Front Panel Buttons

Adjusting Your TV

Overall Picture

Follow the steps below to lighten or darken the overall picture without

changing the color levels.

1. Select the Controls Menu Press MENU to select the Controls

menu. This menu is yellow.

Press CHANNEL down to

highlight Picture.

Press +to lighten the picture.

Press –to darken the picture.

Press CLEAR to remove the menu

from the screen when you are fin-

ished.

2. Highlight Picture

3. Use VOLUME +and –to

adjust the Picture

Controls Alarm Adjust Setup

Sleep Timer: -:--

Closed Captioning: Off

Picture -.....I.....+

Controls Alarm Adjust Setup

Sleep Timer: -:--

Closed Captioning: Off

Picture -.....I.....+

Picture -.......I...+

Picture Reset

Adjusting Your TV

Picture Settings

1. Select the Adjust Menu Press MENU repeatedly to select the

Adjust menu. This menu is light

blue.

Press CHANNEL down to

highlight the picture item you

want to adjust.

Press + or –to adjust each item.

Press CLEAR to remove the menu

from the screen when you are fin-

ished.

2. Highlight item to change

3. Use VOLUME +or –to

adjust each item

Follow the steps below to change the picture on the screen to your

personal setting. The chart below explains your options.

Color

Tint

Bright (Brightness)

Sharp (Sharpness)

Autocolor

Picture Reset

Press VOLUME +to:

Increase color richness

Give red tint to skin color

Add more light to dark parts of

the picture

Show cleaner, clearer images

Turn on to keep Color and Tint in

proper balance each time you

change channels

Reset the picture back to the

original settings

Press VOLUME –to:

Lower color to black and white

Give green tint to skin color

Add more dark to light parts of

the picture

Make picture more smooth

Turn off for manual adjustment

of Color and Tint

Reset the picture back to the

original settings

Controls Alarm Adjust Setup

Color -.....I.....+

Tint G.....I.....R

Bright -.....I.....+

Sharp -.....I.....+

Autocolor: On

Controls Alarm Adjust Setup

Color -.....I.....+

Tint G.....I.....R

Bright -.....I.....+

Sharp -.....I.....+

Autocolor: On

Table des matières

Autres manuels RCA TV

RCA

RCA G27648 Manuel utilisateur

RCA

RCA P52921YX3-G Manuel utilisateur

RCA

RCA E13318 Manuel utilisateur

RCA

RCA RLED2969A Manuel utilisateur

RCA

RCA M21500 Manuel utilisateur

RCA

RCA LED1526A2 Manuel utilisateur

RCA

RCA E13335 Manuel utilisateur

RCA

RCA F27700 Manuel utilisateur

RCA

RCA F27700 Manuel utilisateur

RCA

RCA 32V550T Manuel utilisateur

RCA

RCA MR27300 Manuel utilisateur

RCA

RCA E13321 Manuel utilisateur

RCA

RCA 27F520T - 27" TruFlat Picture Tube TV Guide de démarrage rapide

RCA

RCA MR32575YX0CY1 Manuel utilisateur

RCA

RCA F38310 - 38" 16:9 HDTV Manuel utilisateur

RCA

RCA RTRQ6522-US Manuel utilisateur

RCA

RCA MR27310 Manuel utilisateur

RCA

RCA F27703 Manuel utilisateur

RCA

RCA 27F520T - 27" TruFlat Picture Tube TV Guide de démarrage rapide

RCA

RCA F32705YX1CL2 Manuel utilisateur

RCA

RCA E13342 Manuel utilisateur

RCA

RCA RLED2431A-B Manuel utilisateur

RCA

RCA E13710 colorView Manuel utilisateur

RCA

RCA F35674 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
