RCA F25215 Manuel utilisateur

US.ER'S

GUIDE

C, 0

Important InformatiOn

DO NOT OPEN

To reduce the risk. of fire or.

shock hazard, do not expose _.

this TV to rainor moisture.

WA RNING TOREDUCET.ER,SKOFELECTR,CS.OCK.DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

°symbol indicates

"dangerou_ voltage" inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the

product.

Cautions CAUTION:

To prevent electric shock, match wide blade of plug to wide

slot, fully insert.

Pour 4viter les chocs 41ectriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et

pousser jusqd au fond.

Note-To Cable TV Installer

Operate TV orayon 120 volts, 60 Hz AC power (normal house power).

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

This reminder is provided to call your attention to Article 820-40 of the

National ElectriCal Code (Section 54 of the Canadian Electrical Code,

Part 1) which provides guidelines forproper grounding and, in particular,

specifies that the cable ground Shall be connected to-the grounding system

of the building as dose to the point of cable entry as practical.

-Z:

" ' "/

Product

Registration

.. -'.

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact youifneeded.

Keep your sales receipt to obtain warranty parts and service and for proof

of purchase. Attach it here and record the serial and model numbers in

case you ever need them. The numbers are located on the back of the TV.

Model No.

. .. :.... .. -:

... -, .

Serial No.

• :i:- " " ':, " P_rchaseDate:

- "-_ ."- ! _Dealer/Address/Phone:

,, , , .

Table of Contents

Important Information Wang, Product Re_stration

Quick Guide to Your TV Startup 2-3

Hook up your TV,Plug in the TV, Put Batteriesin thhRemote,

Turn on the TV,Place Channels in Memory, Set the Time

Basic Tour of the Remote

Power, Volume, Channel, and Special Buttons

Menu Basics

Colors, Menu Buttons, Moving through the Menus

Using Your Remote With Remote Buttons

Adjusting Your TV Overall Picture 7

Picture Settings 8

Color, Tint, Brightness, Sharpness, Autocolor, Picture Reset

Sound Settings 9

Stereo, Tone

Using Advanced Features -Placing Channels in Memory/Autoprogram

Setting the Sleep Timer

Setting the Alarm Clock

Watching Closed Captioning

Selecting a Language

-Setting Your TV for Antenna or Cable

References

;:o.

°,

Front Panel Buttons

Displays on the Screen

Trouble Checks

Limited Warranty

Order Form for Parts

Glossary

Index

Caring for Your TV :"

•17-18

20-22.

Quick,Guide to Your TV

.Startup

The steps below wiU get your TV connected and ready for watching. For

more details, see the page numbers listed.. ,

1. Hook up your TV

It is important to use only

the adapters specified as

they incorporate special •

•isolation circuitry to meet

safety regulations. Parts

can be ordered on page 20.

Hook up your antenna or

cable to the TV before you

follow the steps below.

2. Plug in the TV Plug the cord into the outlet,

matching the wide and the small

end of the plug with the outlet.

3. Put Batteries in the Remote A. Pull off the cover 0f the battery

compartment.

B. Place the two AAA batteries as

shown, matching the + and -

end of each battery in the

compartment.

C. Replace the cover. ,/

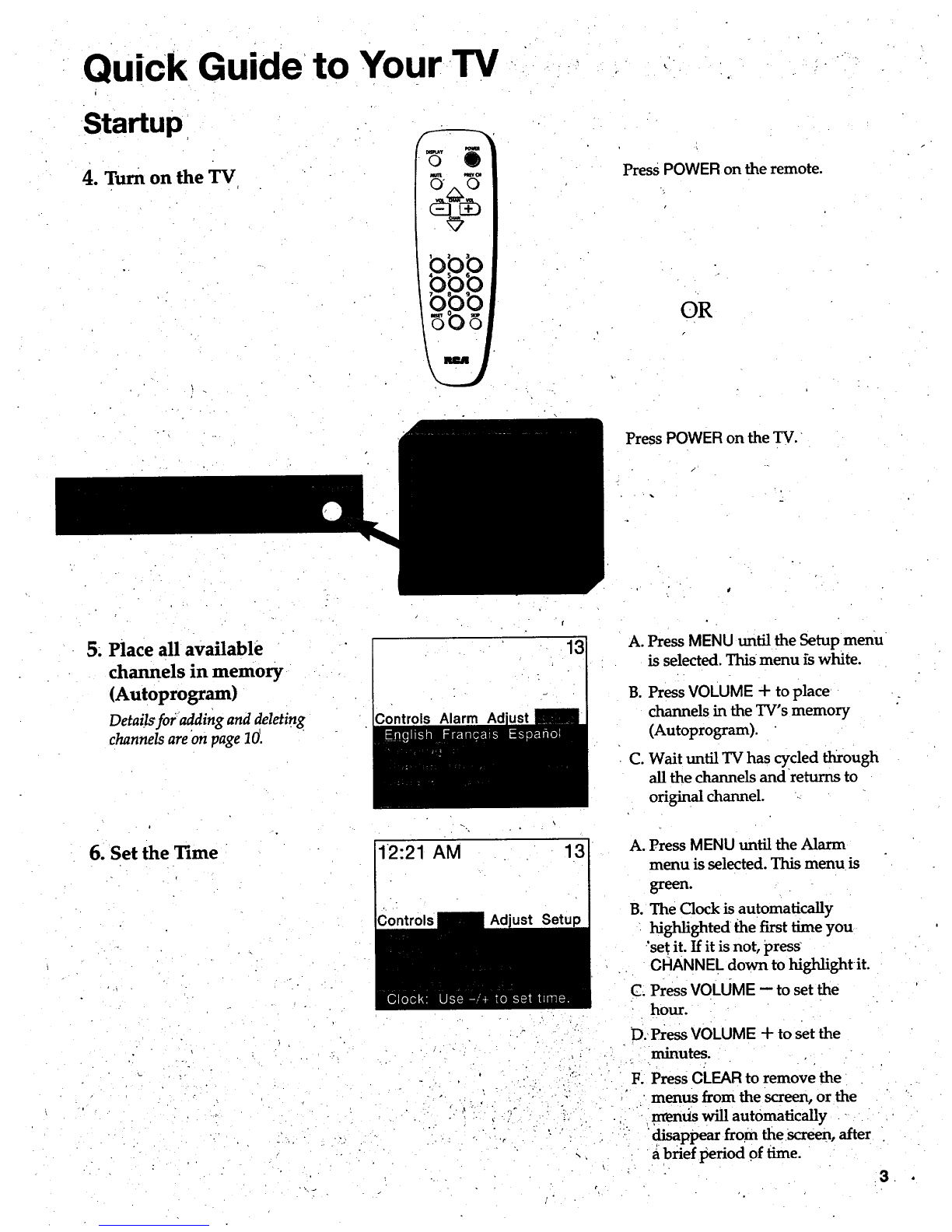

Quick Guide to Your TV

Startup

4. Turn on the TV O

i--i i ,,i- i

VVV

v v _.J

Press POWER on the remote.

Press POWER on the TV.

5. Place all available

channels in memory

(Autoprogram)

Detailsfor addingand deleting

channelsareon page10'.

6. Set the Time AM

13 A, Press MENU until the Setup menu

is selected. This menu is white.

B. Press VOLUME + to place

channels in the TV's memory

(Autoprogram).

C. Wait until TV has cycled through

all the channels and returns to

original channel.

13 A. Press MENU until the Alarm

menu is selected. This menu is

green.

B. The Clock is automatically

highlighted the first time you

"setit. If it is not, press

CHANNEL down to highlight it.

C,,Press vOLUME -- to set the

hour.

D.,I_essVOLUME +to set the

,, ..... minutes.

F. Press CLEAR to remove the

menus from the screen, or the

mends will automatically -

•disappear from the screen, after

abrief period of time. 3

Quick Guide to Your TV

Basic Tour of the Remote

Basic information aboutyour remote is shown below_ This will give you a

general idea of how your remote works. For more details, seepage 6.

Power Button

Volume and Channel Buttons

De_ailsareonpage 6.

Turns the TV on and off.

Operate the TV.

Scan up and down through

channels in the TV's memory.

Raise and lower the sound. ....

Special Buttons

Details areonpage 6.

.-..

.. . .:

.." .., ', . .-.. ,-.

POWER

MUTIE PREVCH

Operate special features

of the TV.

Quick Guide to Your TV

Menu Basics

General information about using the on-screen menu systeril is shown

below. Details on using the remote buttons are on page 6. Many menu items

are explained in detail in Adjusting Your TV starting on page 7 and Using the

Advanced Features starting on page 10.

Colors

Yellow Green Light White

! IBiel 13

Controis Alarm Ad

PressMENU on the TV front panel

repeatedly to see.eachof the four

menu colors.

Each menu has a different color

background as shown at the left.

Menu Buttons.

The buttOns shown on the front

TV panel are used with the TV's

menus to adjust the features.

Moving through the Menus

Controls Alarm Ad

1. Press MENU on the TV front

panel to move from menu to

menu.

2. Press CHANNEL up and down

to move through the features in

the menu.

3. PressVOLUME + and--to

th '

•move leftand right on e '._ , .

menu lines.

Using Your.Remote

WithRemote Buttons .

DISPLAY' POWER

o ©

MUTE PREVCH

VOL CHAN VOL

CHAN

DISPLAY

Shows displays on the screen.

Clears menus from the screen.

POWER

Turns the TVon and off.

MUTE

Switches the TV sou-ndon or off.

PREV CH (Previous Channel)

Changes back and forth between

two channels.

Select achannel and then select

another. PressPREV CH to-switch

between the two channels.

CHAN ^and v

(Channel up anddown)

Scansup and down through

channels in the TV's memory.

Moves up and down menus. See

Menu Basics on page 5.,

VOL + and --

(Volume up and down)

Raisesand lowers sound.

Moves le_ft-andright On a menu

line. See Menu Basics on page 5.

Number Buttons (0-9)

Selectsanychannel number.

Two numbers must be pressed for

each channel. Press 0and 6 for

channel 6.

For three digit channels, press and

ho!d I until 1- appearson the

screen. Then press the other two

numbers.

RESET

Returns the picture adjustments to

the original settings.

SKIP (Commercial Skip)

Allows you to look at other

channels during commercials.

Each pressadds 30 seconds. Use

the CHANNEL or number buttons

to scanthe other channels. TV

switches back to original channel

when time runs out:

• " L.

Adjusting Your TV

Overall Picture

Follow the steps below to lighten or darken the overall picture without

changing the color levels.

1. Select the Controls Menu

.I Press MENU on the TV front panel

to select the Controls menu. This

menu is yellow.

2. Highlight Picture

Alarm

Press CHANNEL down to

highlight Picture.

3. Use VOLUME + and - to

adjust the Picture

Press VOLUME +to lighten the

picture_

Press VOLUME- to darken the

picture.

•:"S,_'.. "_." . -•.'" *-i • .

Adjusting Your TV

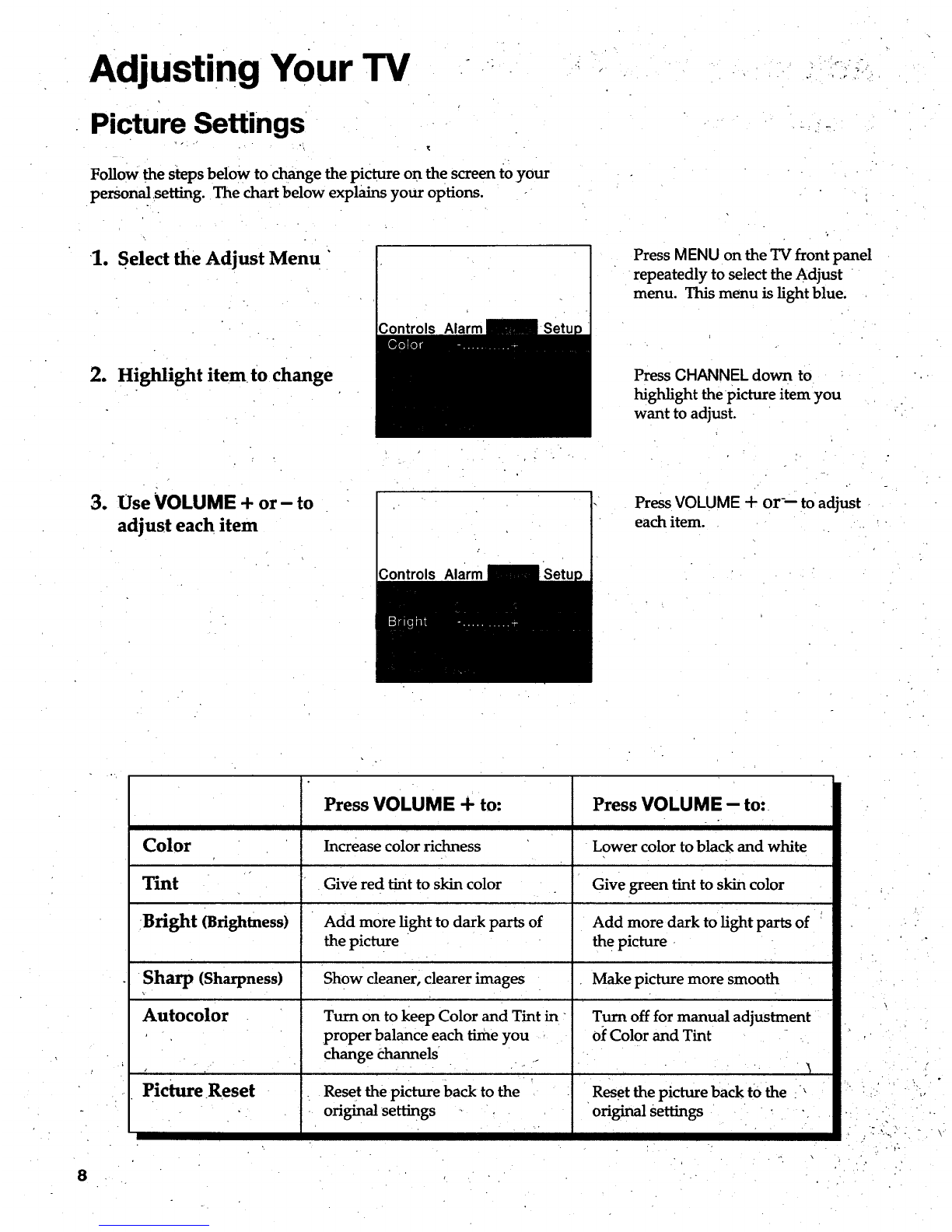

Picture Settings

Follow the steps below to change the picture on the screen to your

personal setting. The chart below explains your options.

1. Select the Adjust Menu "

2. Highlight item to change

Alarm

Press MENU on the TV front panel

repeatedly to select the Adjust

menu. This menu is light blue.

Press CHANNEL down to

highlight the picture item you

want to adjust.

3. Use VOLUME + or- to

adjust each item

Controls Alarm

Press VOLUME + or--- to adjust

each item.

Press VOLUME + to: Press VOLUME - to:.

Color Increase color richness Lower color to black and white

Tint Give red tint to skin color Give green tint to skin color

:Bright (Brightness)

Sharp (Sharpness)

Autocolor

i I

Picture Reset

Add more light to dark parts of

the picture

Show cleaner, clearer images

Turn on to keep Color and Tint in

proper balance each time you

change _annels'

et the pictur b

Res e ack to the . .I

.original settings .,

Add more dark to light parts of

the picture

• Make picture more smooth

Turn off for manual adjustment

of Color and Tint

•Reset the picture back tO the :_

original Settings - ,
