Using Your Remote

With Remote Buttons

OFF

REW PLAY FF

REC STOP PAUSE

DISPLAY SLEEP

MUTE PREV

123

456

789

TRACK F.ADV

CLEAR MENU RESET

TV VCR

CLEAR Button

Clears menus and displays from

the screen.

MENU Button

Shows menus on the screen and

moves from menu to menu.

RESET Button

Returns the picture adjustments to

the original settings.

Number Buttons (0-9)

Selects any channel number.

Two numbers must be pressed for

each channel. Press 0 and 6 for

channel 6.

For three digit channels, press and

hold 1 until 1-- appears on the

screen. Then press the other two

numbers.

SKIP (Commercial Skip) Button

Allows you to look at other

channels during commercials.

Each press adds 30 seconds. Use

the CHANNEL or number buttons

to scan the other channels. TV

switches back to original channel

when time runs out. Press CLEAR

to cancel SKIP.

SPEED Button

Selects a recording speed either

SLP, SP, or LP.

TRACK (— or +) Buttons

(Tracking down or up)

Lets you manually reduce the

streaks that may appears in the

picture during playback.

F. ADV (Frame Advance) Button

Advances the tape one frame at a

time when the tape is in the

PAUSE mode.

Using Your Remote

With Remote Buttons

OFF Button

Press to turn TV off.

TV Button

Turns on the TV.

Shows the displays on the screen.

Sets the remote to control the TV.

VCR Button

Sets the remote to control the VCR.

(NightGlo)

Press to light up the remote control

buttons. The light will go off after

five seconds.

REW (Rewind) Button

Rewinds a tape.

Searches backward while tape

is playing.

PLAY Button

Plays a tape.

FF (Fast Forward) Button

Fast forwards a tape.

Searches forward while a tape

is playing.

REC (Record) Button

Starts recording onto a tape.

STOP Button

Stops a tape.

PAUSE Button

Pauses a tape.

DISPLAY Button

Press to display the time and

channel number on the screen.

Press to see if the Sleep Timer

and/or Alarm Timer is set.

Press to remove menus from

the screen.

SLEEP Button

Sets TV to automatically turn off in

30, 60, or 90 minutes.

MUTE Button

Switches the TV sound on or off.

PREV CH (Previous Channel)

Changes back and forth between

two channels.

Select a channel and then select

another. Press PREV CH to switch

between the two channels.

CHAN

and

(Channel up and down)

Scans up and down through

channels in the TV’s memory.

Moves up and down menus.

VOL <and >

(Volume down and up)

Raises and lowers sound.

Moves left and right on a menu

line. See Menu Basics on page 5.

Changes a feature setting.

OFF

REW PLAY FF

REC STOP PAUSE

DISPLAY SLEEP

MUTE PREV

1 2 3

4 5 6

7 8 9

TRACK F.ADV

CLEAR MENU RESET

TV VCR

When operating the remote, point it directly at the front of the TV. Objects

between the remote and the remote sensor can block the signal to the TV.

This remote has a NightGlo feature which illuminates the keypad. To save

battery power, do not activate the NiteGlo feature when the remote is used

in well lit rooms.

Quick Guide to Your TV

Menu Basics

Colors

Menu Buttons

These buttons are used with the

TV’s menus to adjust the features.

You can use the menu buttons on

the remote or the front of the TV.

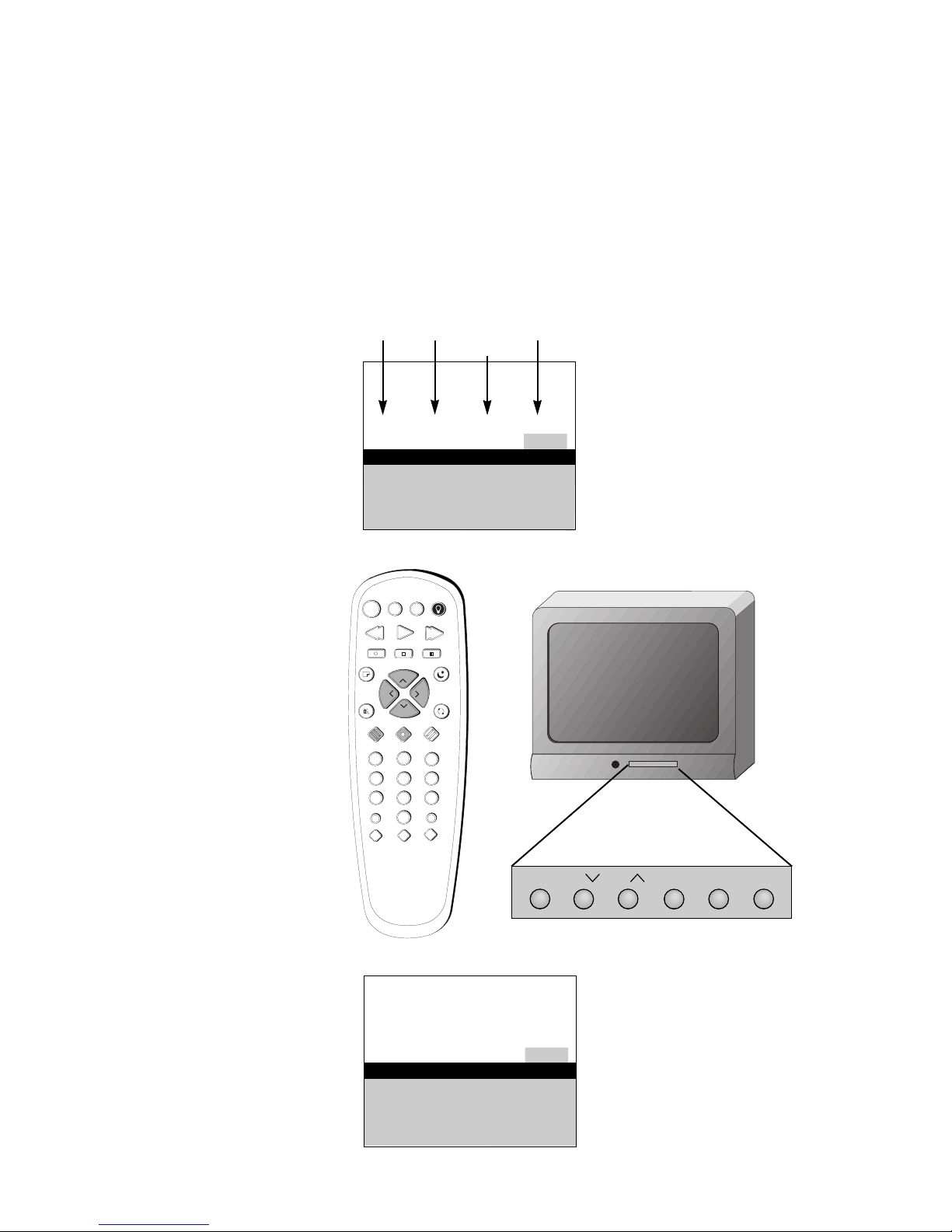

Press MENU repeatedly to see

each of the four menu colors.

Each menu has a different color

background as shown at the left.

OFF

REW PLAY FF

REC STOP PAUSE

DISPLAY SLEEP

MUTE PREV

1 2 3

4 5 6

7 8 9

TRACK F.ADV

CLEAR MENU RESET

TV VCR

General information about using the on-screen menu system is shown

below. Details on using the remote buttons are on page 6. Many menu items are

explained in detail in Adjusting Your TV starting on page 8 and Using the

Advanced Features starting on page 11.

Moving through the Menus 1. Press MENU to move from

menu to menu.

2. Press CHANNEL up and down

to move through the features in

the menu.

3. Press VOLUME +and –to

move left and right on the

menu lines.

Yellow Green Light

Blue White

Controls Alarm Adjust Setup

Autoprogram

Label: 13 Clear

Channel Memory: 13 Stored

Cable/Air: Cable

Controls Alarm Adjust Setup

Autoprogram

Label: 13 Clear

Channel Memory: 13 Stored

Cable/Air: Cable

MENU CH VOL–VOL+POWERCH

OFF

REW PLAY FF

REC STOP PAUSE

DISPLAY SLEEP

MUTE PREV

1 2 3

4 5 6

7 8 9

TRACK F.ADV

CLEAR MENU RESET

TV VCR

OFF

REW PLAY FF

REC STOP PAUSE

DISPLAY SLEEP

MUTE PREV

1 2 3

4 5 6

7 8 9

TRACK F.ADV

CLEAR MENU RESET

TV VCR

Quick Guide to Your TV

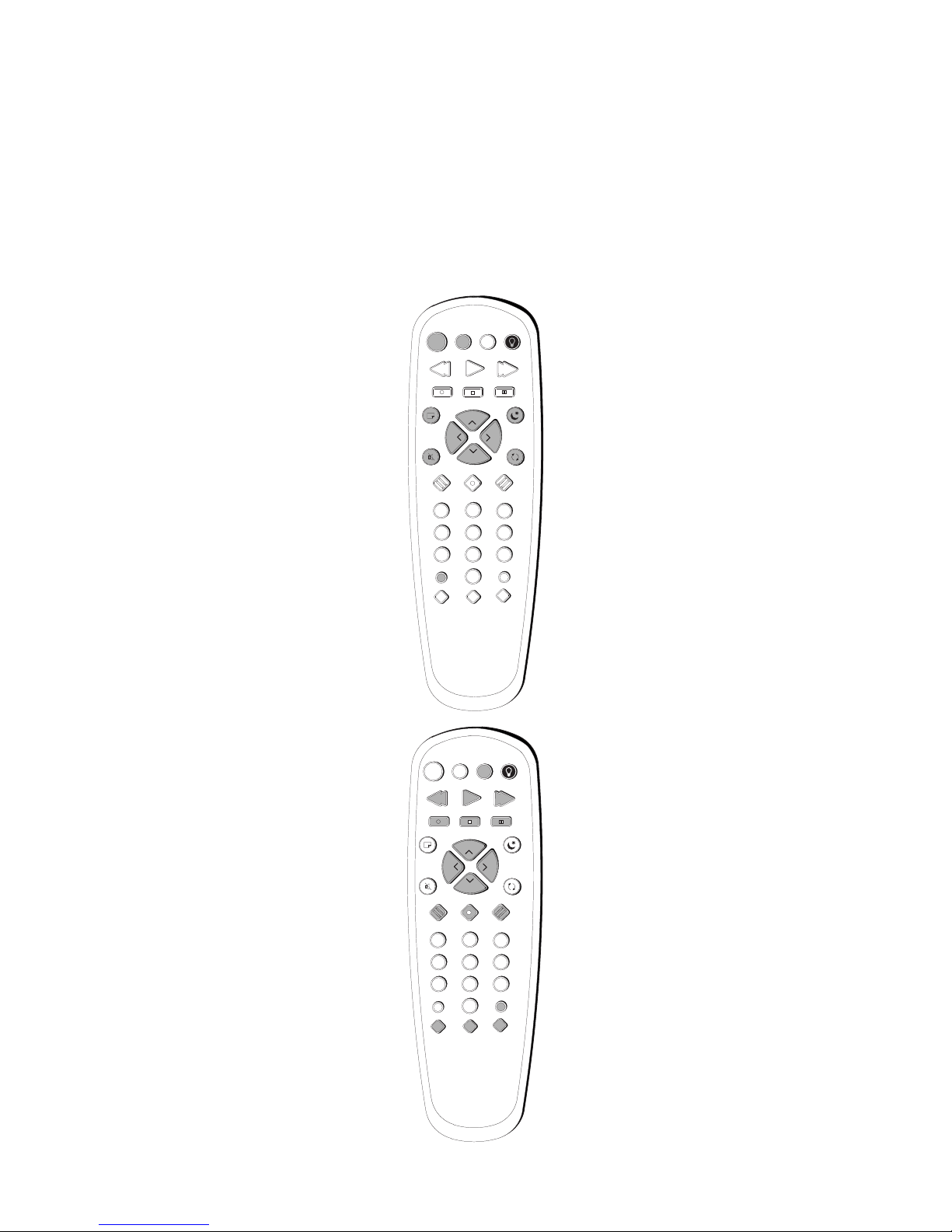

Basic Tour of the Remote

Turns the TV on.

Turns the TV off.

Operate the TV.

Operate special features of the TV.

TV Button

Off Button

Volume, Channel and Special

Buttons

Your remote control is unified so no programming is required. It works

RCA, GE, and ProScan products only. Basic information about your

remote is shown below. This will give you a general idea of how your

remote works.

Operate an optional RCA, GE, or

ProScan VCR.

Change the menus and features on

the screen.

VCR Buttons

(VCR optional.)

Details are on page 6.

Menu Buttons

See next page for details.

Quick Guide to Your TV

Startup

Plug the cord into the outlet, matching the wide and the small end of the

plug with the outlet.

2. Plug in the TV

3. Put Batteries in the Remote

A. Pull off the cover of the battery compartment.

B. Place the two AAA batteries as shown, matching the +and –end of

each battery in the compartment.

C. Replace the cover.

Press TV on the remote, or press

POWER on the TV.

4. Turn on the TV

OFF

REW PLAY FF

REC STOP PAUSE

DISPLAY SLEEP

MUTE PREV

1 2 3

4 5 6

7 8 9

TRACK F.ADV

CLEAR MENU RESET

TV VCR

MENU CH VOL–VOL+POWERCH

A. Press MENU until the Alarm menu is selected. This menu is green.

B. The Clock is automatically highlighted the first time you set it. If it is

not, press CHANNEL down to highlight it.

C. Press VOLUME –to set the hour.

D. Press VOLUME +to set the minutes.

F. Press CLEAR to remove the menus from the screen, or the menus will

automatically disappear from the screen, after a brief period of time.

A. Press MENU until the Setup menu is selected. This menu is white.

B. Press VOLUME +to place channels in the TV’s memory

(Autoprogram).

C. Wait until TV has cycled through all the channels and returns to

original channel.

6. Set the Time

5. Place all available channels in memory (Autoprogram)

Details for adding and deleting channels are on page 11.

12:21 AM 13

Controls Alarm Adjust Setup

Alarm: Off

Alarm Channel: 07

On Time: Disabled

Off Time: Disabled

Clock: Use –/+ to set time.

Controls Alarm Adjust Setup

Autoprogram

Label: 13 Clear

Channel Memory: 13 Stored

Cable/Air: Cable

Quick Guide to Your TV

Startup

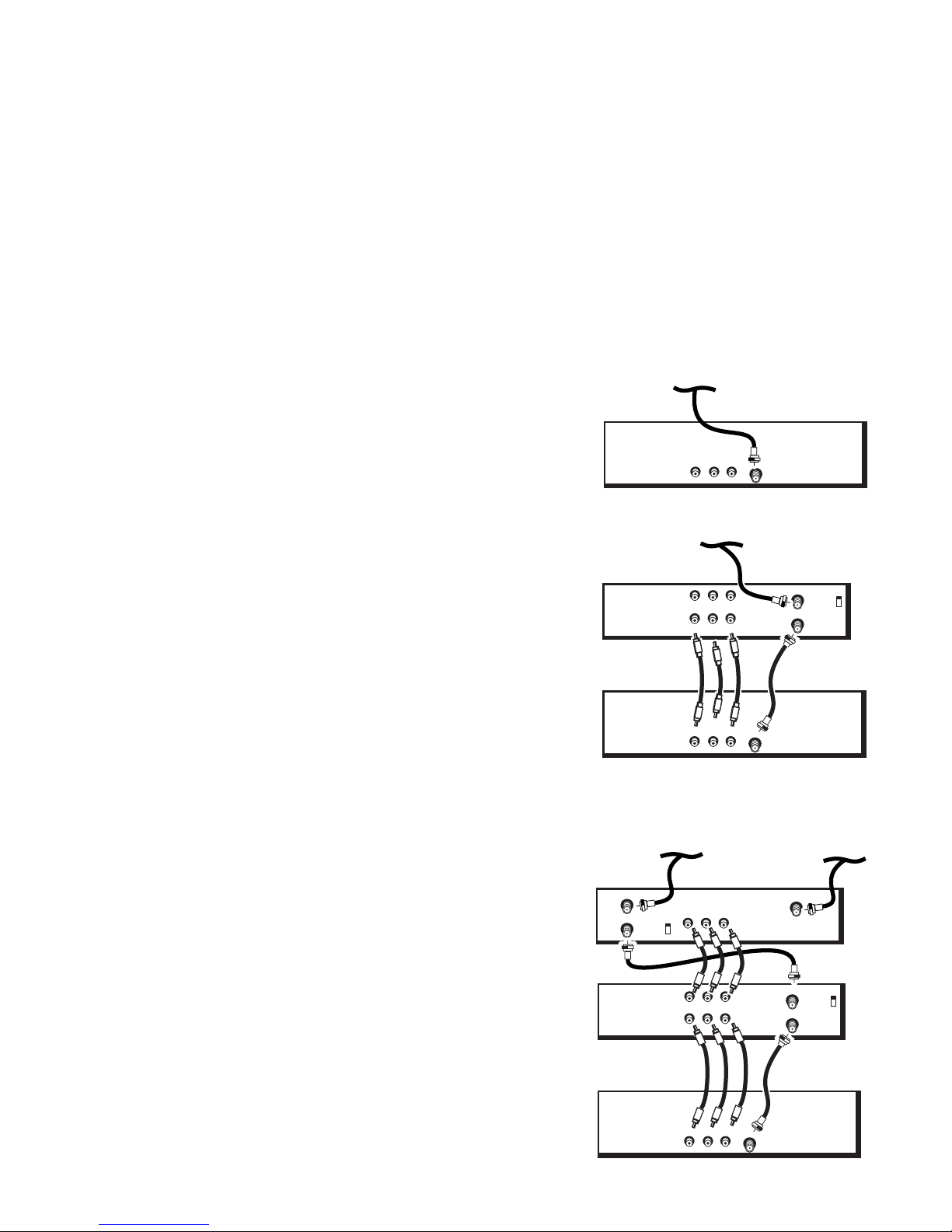

1. Hook up your TV

Choose one of the following connections and hookup your TV and any components. These are basic

connections for typical equipment. Your system components may vary. See the individual components’ user

manuals for specific connection information.

The following steps will get your TV connected and ready for watching.

Hook up any antennas, cables or other equipment to your TV before you follow the steps below.

For more details, see the page numbers listed.

VIDEORL/MONO CABLE/

ANTENNA

ANTENNA, CABLE, CABLE BOX OR VCR

OUT TO TV

VCR CH3

CH4

LVIDEOR

VIDEORL/MONO

OUT

IN FROM ANT

CABLE/

ANTENNA

ANTENNA, CABLE OR CABLE BOX

LVIDEOR

OUT TO TV

VCR CH3

CH4

LVIDEOR

VIDEORL/MONO

OUT

IN FROM ANT

CABLE/

ANTENNA

OUT TO TV

Satellite

Receiver

CH3

CH4 LVIDEOR

OUT

IN FROM ANT

ANTENNA, CABLE OR CABLE BOX

SATELLITE IN

SATELLITE DISH

LVIDEOR

TV Only

Connect the TV as shown.

To use this connection you must have:

(1) coaxial cable.

This connection provides:

• stereo sound from programming broadcast in stereo.

TV and Stereo VCR

Connect the TV and VCR as shown.

To use this connection you must have:

(2) coaxial cables.

(3) audio/video cables

This connection provides:

• stereo sound from programming broadcast in stereo

• stereo sound from VCR

• viewing one channel on TV while recording another channel.

Note: When using a cable box to receive programming, only

the selected channel is distributed through the system. For

example, when using only a cable box to receive

programming, you can not record one program and view

another.

TV, Stereo VCR and Satellite Receiver

Connect the TV, VCR and Satellite Receiver as shown.

To use this connection you must have:

(4) coaxial cables.

(6) audio/video cables

This connection provides:

• stereo sound from programming broadcast in stereo

• stereo sound from VCR

• stereo sound from Satellite Receiver

• viewing one channel on TV while recording another channel.

Note: When using a cable box to receive programming, only

the selected channel is distributed through the system. For

example, when using only a cable box to receive

programming, you can not record one program and view

another.

Table of Contents

Important Information Warning, Product Registration ____________________________________ i

Quick Guide to Your TV Startup ____________________________________________________________________ 2-3

Hook up your TV, Plug in the TV, Put Batteries in the Remote,

Turn on the TV, Place Channels into Memory, Set the Time

Basic Tour of the Remote ____________________________________________ 4

Power, Volume, Channel, Special and Menu Buttons

Menu Basics ______________________________________________________________ 5

Colors, Menu Buttons, Moving through the Menus

Using Your TV Remote With Remote Buttons ______________________________________________ 6-7

Adjusting Your TV Overall Picture __________________________________________________________ 8

Picture Settings __________________________________________________________ 9

Color, Tint, Brightness, Sharpness, Autocolor, Picture Reset

Sound Settings _________________________________________________________ 10

Stereo, Tone

Using Advanced Features Placing Channels in Memory/Autoprogram _____________ 11

Naming the Channels ______________________________________________ 12

Setting the Sleep Timer _____________________________________________ 13

Setting the Alarm Clock ___________________________________________ 14

Watching Closed Captioning ____________________________________ 15

Setting Your TV for Antenna or Cable _______________________ 16

References Front Panel Buttons __________________________________________________ 17

Displays on the Screen _____________________________________________ 18

Trouble Checks ____________________________________________________ 19-20

Order Form for Parts ___________________________________________ 21-22

Limited Warranty ____________________________________________________ 23

Glossary __________________________________________________________________ 24

Index _______________________________________________________________________ 25

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof

of purchase. Attach it here and record the serial and model numbers in

case you ever need them. The numbers are located on the back of the TV.

Model No.________________________________________________________

Serial No._________________________________________________________

Purchase Date: ___________________________________________________

Dealer/Address/Phone:____________________________________________

__________________________________________________________________

Important Information

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

CAUTION:

To prevent electric shock, match wide blade of plug to wide

slot, fully insert.

ATTENTION:

Pour éviter les chocs électriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et

pousser jusqú au fond.

Cautions

Operate TV only on 120 volts, 60 Hz AC power (normal house power).

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user’s authority to operate it.

Note To Cable TV Installer This reminder is provided to call your attention to Article 820-40 of the

National Electrical Code (Section 54 of the Canadian Electrical Code,

Part 1) which provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding system

of the building as close to the point of cable entry as practical.

Product

Registration

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates

“dangerous voltage” inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the

product.

Adjusting Your TV

Overall Picture

Follow the steps below to lighten or darken the overall picture without

changing the color levels.

1. Select the Controls Menu Press MENU to select the Controls

menu. This menu is yellow.

Press CHANNEL down to

highlight Picture.

Press VOLUME +to lighten

the picture.

Press VOLUME –to darken

the picture.

2. Highlight Picture

3. Use VOLUME +and –to

adjust the Picture

Controls Alarm Adjust Setup

Sleep Timer: -:--

Closed Captioning: Off

Picture -.....I.....+

Stereo: On

Tone: High

Controls Alarm Adjust Setup

Sleep Timer: -:--

Closed Captioning: Off

Picture -.....I.....+

Stereo: On

Tone: High

Picture -.......I...+

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels RCA TV

RCA

RCA Roku TV RTRU7028-CA Manuel utilisateur

RCA

RCA MR13401, M14300, M19401, M2030 Manuel utilisateur

RCA

RCA RLDED3955A Manuel utilisateur

RCA

RCA G32665 Manuel utilisateur

RCA

RCA TruFlat F20TF10 Manuel utilisateur

RCA

RCA RLED2969A Manuel utilisateur

RCA

RCA MR27555 Manuel utilisateur

RCA

RCA L WD250 Series Instructions d'installation

RCA

RCA J13801CL Manuel utilisateur

RCA

RCA F32444 Manuel utilisateur

RCA

RCA RTDVD2409 Manuel utilisateur

RCA

RCA 20F410T - 20" TruFlat TV Manuel utilisateur

RCA

RCA CR20805 Manuel utilisateur

RCA

RCA R32C9A-EU Manuel utilisateur

RCA

RCA J32BE220 Manuel utilisateur

RCA

RCA COLOR TV NCJ11 Manuel utilisateur

RCA

RCA G27693 Manuel utilisateur

RCA

RCA F32669YX51 Manuel utilisateur

RCA

RCA F19424 Manuel utilisateur

RCA

RCA F20635 Manuel utilisateur

RCA

RCA LED1526A2 Manuel utilisateur

RCA

RCA 20F410T - 20" TruFlat TV Guide de l'utilisateur

RCA

RCA RBA27500, RCA27000 Manuel utilisateur

RCA

RCA G27648YX1 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
