RCA RCU300 - RCU 300 Universal Remote Control Manuel utilisateur

VOL CHAN

213

546

INPUT

ENTER

REW FF

STOP

PLAY

REC

MUTE

PREV CH

PAUSE

•

OFF CODE

SAT

•

CBL• DTC VCR•DVD TV

( )

Indicator light

Component eys.

(TV, VCR•DVD,

SAT•CBL•DTC)

CHAN and VOL

eys have dual

functions. They act

as navigation eys

(up, down, left,

and right) in

menu systems.

Dedicated MENU

ey for DVD

disc menus, some

TVs and satellite

receivers.

Table of Co te ts

ProductDiagram ....................................2

Introduction.........................................3

Battery Installation and Information . . . . . . . . . . . . . . . . . . . .3

eyDescriptions.....................................3

Program for TV—Direct Entry Method . . . . . . . . . . . . . . . . .5

Program for DVD or VCR—Direct Entry Method . . . . . . . .6

Program for Satellite, Cable Box or Digital TV Converter—

DirectEntryMethod ..................................7

CodeSearchMethods ................................8

ManualCodeSearch ..............................8

AutomaticCodeSearch ...........................8

CodeRetrieval.......................................9

On-screenMenus ...................................10

Accessing a Menu System . . . . . . . . . . . . . . . . . . . . . . . .10

Highlighting and Selecting Menu Items . . . . . . . . . . . .10

ExitingaMenuSystem ...........................11

Troubleshooting ....................................12

Limited90-DayWarranty ............................14

BACKLIGHT ey—

Turns bac lighting

on/off. (select

models only)

Actual model may vary from picture shown

INPUT(-) ey has

several functions,

including accessing

digital channels

directly (li e 59.1)

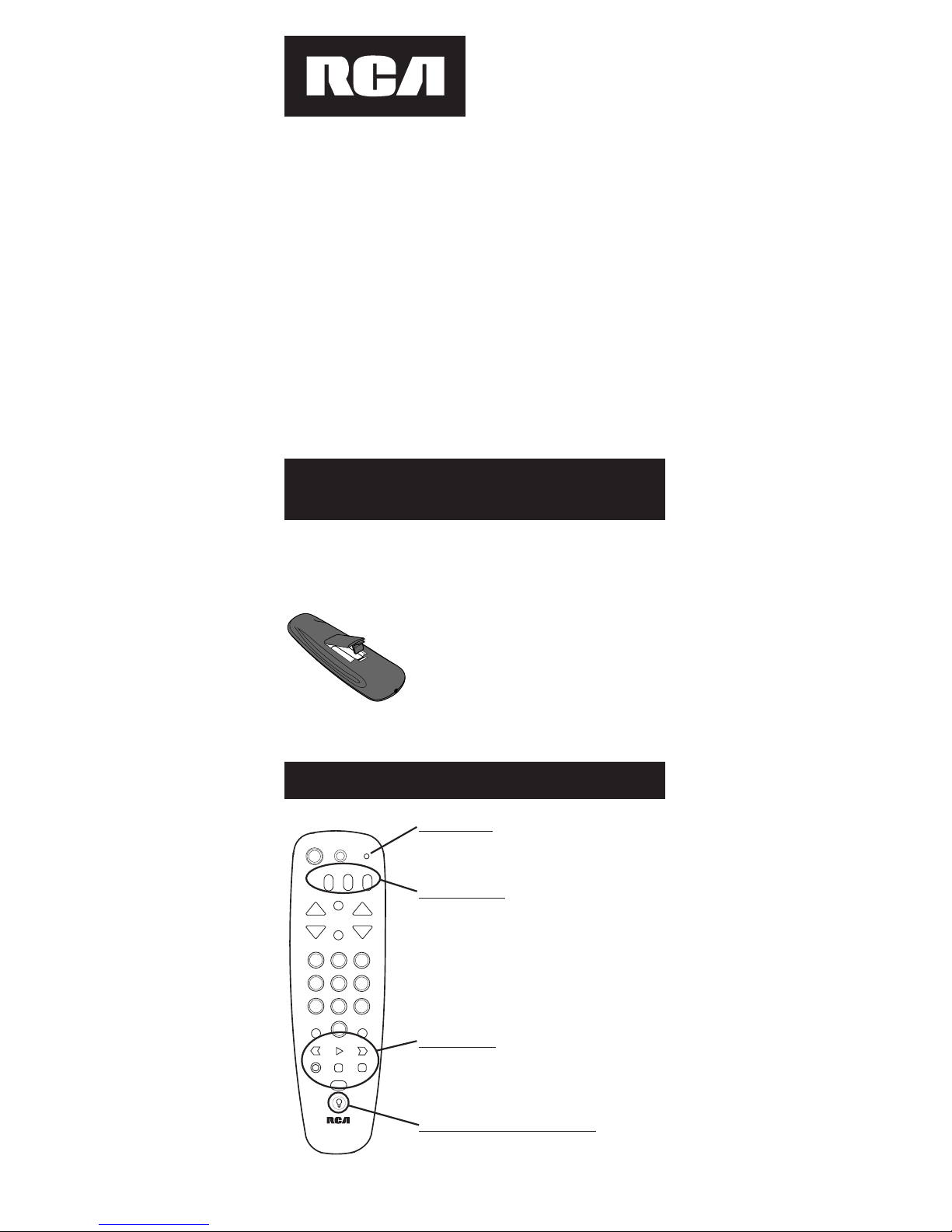

Battery I stallatio

a d I formatio

Your universal remote requires two AAA Alkaline batteries

(batteries may or may not be included, depending on model).

To install the batteries:

1. Remove the battery compartment cover.

2. Insert the batteries, matching the

batteries to the (+) and (–) marks

inside the battery compartment.

3. Press and push the battery cover

back into place.

Congratulations on your purchase of the 3-component

universal remote. This universal remote controls up to three

electronic components and makes juggling remote controls a

thing of the past. You can program this RCA brand universal

remote to operate most models of most brands of infrared,

remote-controlled components manufactured after 1990.

(See the enclosed Code List for a complete list of brands.)

The 3-component universal remote is easy to use, easy to

program and gives you control at the touch of your fingertips.

Note: The 3-component universal remote is already

programmed to operate most RCA, GE and PROSCAN

branded TVs, VCRs, DVD players and satellite receivers. Just

press the corresponding component key—VCR•DVD for

a VCR or DVD player; TV for a television; SAT•CBL•DTC for

a satellite receiver, cable box or a digital TV converter.

3-Component Univer al Remote

VOL CHAN

213

546

INPUT

ENTER

REW FF

STOP

PLAY

REC

MUTE

PREV CH

PAUSE

•

OFF CODE

SAT

•

CBL• DTC VCR•DVD TV

( )

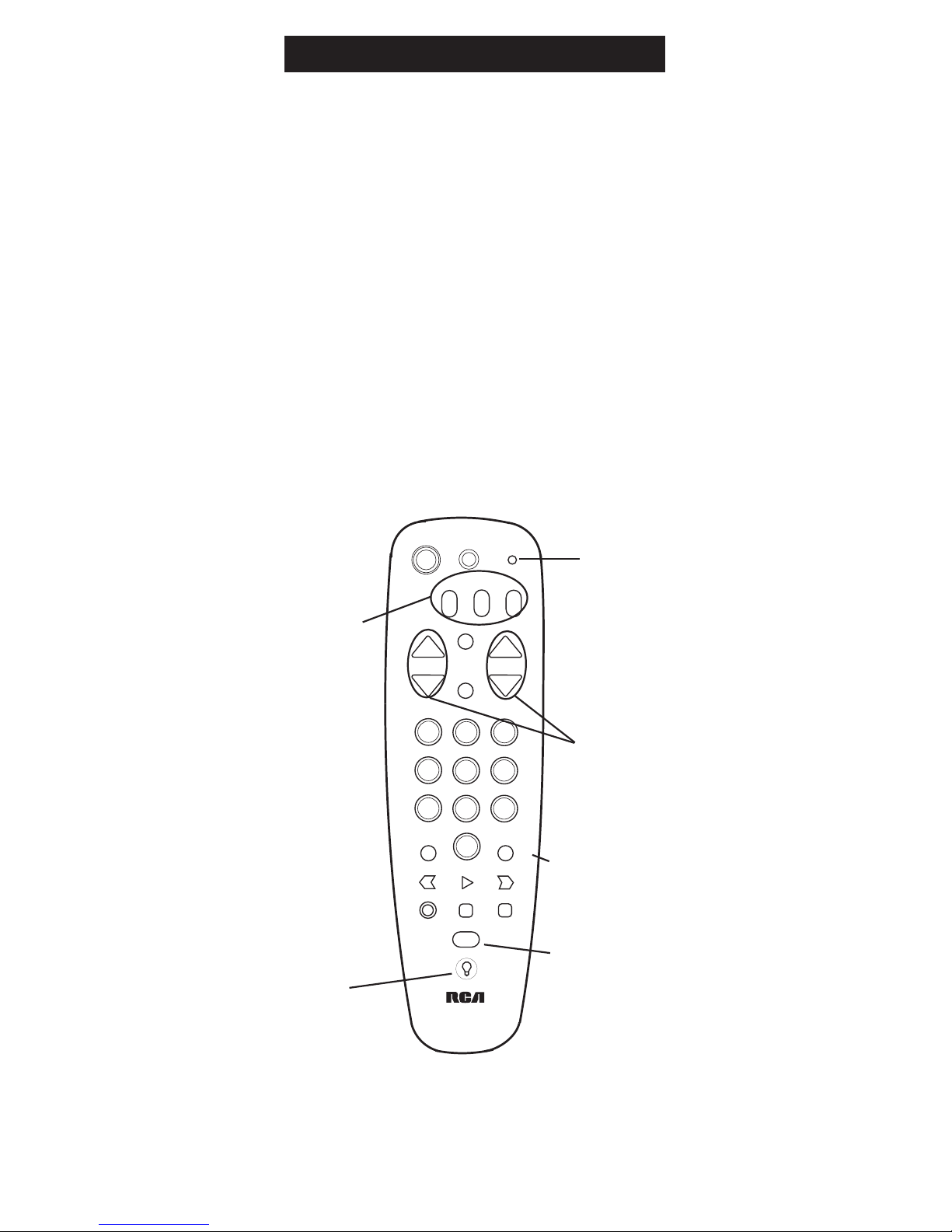

Key Descriptio s

Indicator Light–flashes when a valid key

is pressed to indicate the remote is working.

Status of this light is important when you

are programming the remote.

Component keys (SAT•CBL•DTC,

VCR•DVD,TV): selects the component

you want the remote to operate.

For example, after you’ve programmed the

remote to operate your TV, you must press

the TV key first to put the remote in TV

Mode. While in TV Mode, the CHAN keys

change the channel on the TV, the VOL keys

adjust the TV’s volume, etc.

Transport keys–REW (Rewind), PLAY,FF

(Fast Forward), PAUSE,STOP: operate

the same as your original VCR or DVD

remote control, although key labels may

vary (REVERSE,FORWARD).

Backlight Key (select models only)–Turns

backlighting on/off. Backlighting will remain

on for approximately 6 seconds after last

keypress to conserve battery life.

Other Keys (listed alphabetically)

0-9 (Number eys):operate the same as number keys on your

original remote and are used to enter component codes when

programming the remote control with Direct Entry method.

INPUT(-): in TV mode, switches between the signal coming

from a satellite receiver or cable box and an off-air antenna

or digital TV converter. In VCR mode, switches between the

signal coming from a VCR and a TV. When accessing digital

TV channels direcly, this key lets you separate the main

channel number from the sub-channel number (such as

“59.1”)

CHAN (Channel) UP AND DOWN: goes to the next highest

or lowest channel number in the component channel list,

respectively, except for DVDs. In DVDs the CHAN UP/DOWN

goes to the NEXT/PREVIOUS chapter. Additionally, when

you’re using the remote with On-screen Menus, the CHAN

keys act as UP ARROW and DOWN ARROW keys (moving

the cursor or highlight up or down).

CODE SEARCH: use to program the remote.

ENTER: use with Manual or Automatic Code Search method

to accept code (See Code Search on page 8). Also, some

brands require you to press the ENTER key after you enter

a channel number. In some menu systems, you must press

ENTER to select a highlighted item.

MENU: accesses DVD disc menus when VCR•DVD key

is programmed to operate a DVD player. Accesses menu

systems of some TVs, a few RCA brand VCRs and satellite

receivers. (For more information, refer to Using On-screen

Menus section on page 10).

MUTE: lowers the TV’s volume to its minimum level.

ON•OFF: turns component on and off.

Note: Some RCA, GE and PROSCAN models require that

you press the component key to turn ON the component

and the ON•OFF key to turn OFF the component.

PREV CH (Previous Channel):switches back to previous

channel—operates the same as LAST CHANNEL,GO BACK

or RECALL key found on some brands of remote controls.

REC (Record):used with VCR to record programming.

You must press the REC key twice to start recording.

VOL (Volume) UP and DOWN:increases or decreases the

TV’s volume level. Additionally, when you’re using the

remote with On-screen Menus, the VOL keys act as RIGHT

or LEFT ARROW keys (moving the highlight or cursor

(OFF)

123

456

789

ON•OFF

Program for TV—

Direct E try Method

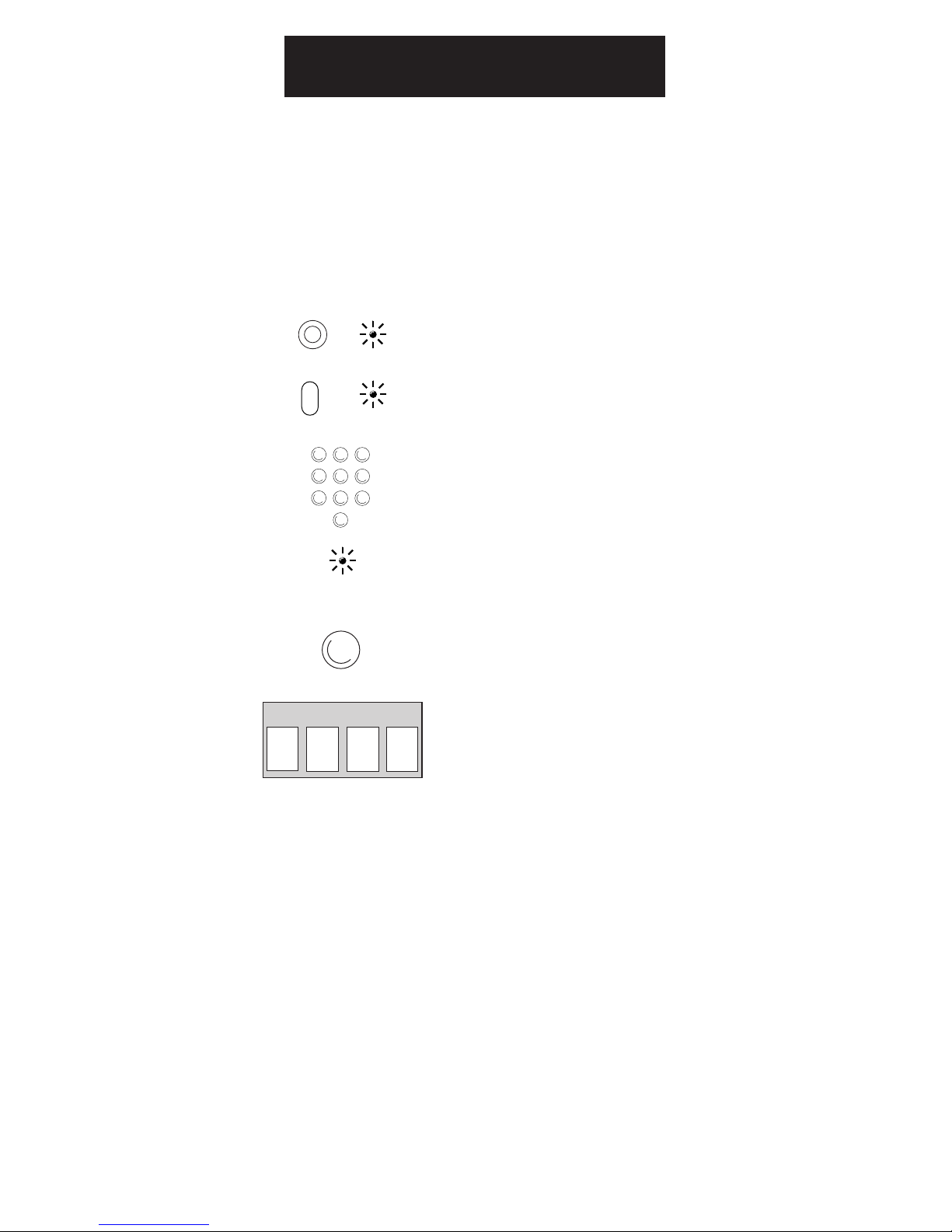

1. Manually turn on the TV.

2. Locate the enclosed TV Code List.

Find your brand of TV.

Note: If your brand isn’t listed,

use one of the Code Search methods

to program this remote control

(See Code Search on page 8).

3. Press and hold the CODE SEARCH

key until the indicator light

illuminates. Then release the

CODE SEARCH key.

4. Press and release the TV key. The

indicator light blinks and then remains lit.

5. Use the number keys to enter

the first code listed for your brand.

After you enter a valid four-digit

code, the indicator light turns off.

Note: If you enter an invalid code,

the LED will flash rapidly for 2

seconds. Start over at step 3.

6. Aim the remote at your TV and press

the ON•OFF key. If your TV turns

off, you have found the correct code.

7. Enter the code in the box provided

on this page for future reference.

8. If your TV doesn’t turn off, repeat

steps 3-6 above, entering the next

code for your brand.

If none of the codes work or your

brand is not listed, use one of the

Code Search methods to program this

remote (See Code Search on page 8).

For a description of each key on the

remote control, refer to the ey

Descriptions section on page 3-4.

In order for the 3-component universal remote to control

your TV, you must program it with the TV code that matches

your TV. These instructions explain the preferred method of

programming the remote—the Direct Entry method.

CODE

INDICATOR

LIGHT

(BLINK)

TV CODE

Program for DVD or VCR—

Direct E try Method

VCR•

DVD

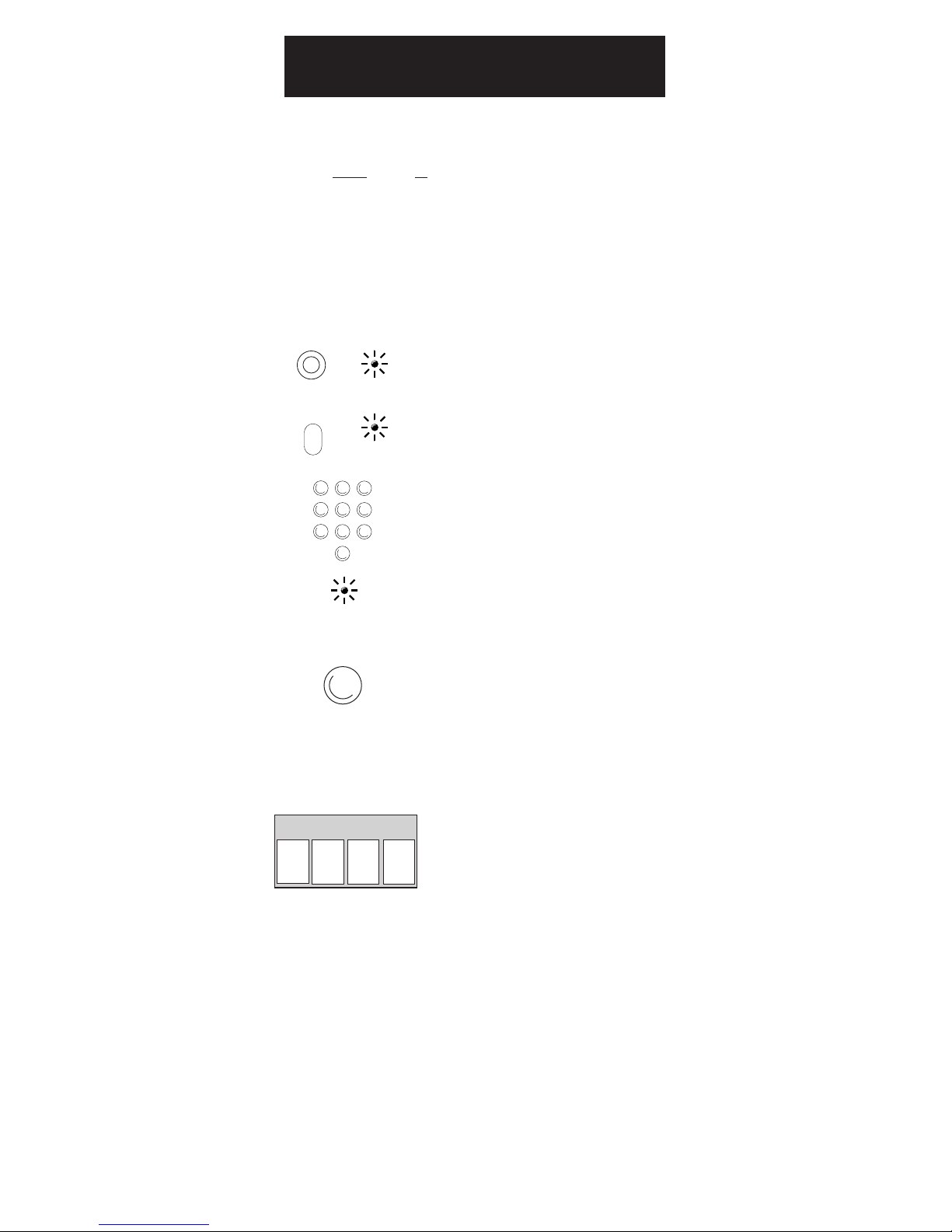

1. Manually turn on the VCR

or DVD player.

2. Locate the enclosed VCR or

DVD Code List. Find your brand

in the VCR Codes or DVD Codes

section, respectively.

Note: If your brand isn’t listed, use one

of the Code Search methods to program

this remote control (See Code Search

on page 8).

3. Press and hold the CODE SEARCH

key until the indicator light illuminates.

Then release the CODE SEARCH key.

4. Press and release the VCR•DVD key.

The indicator light blinks and then

remains lit.

5. Use the number keys on the remote to

enter the first code listed for your brand.

After you enter a valid four-digit

code, the indicator light turns off.

Note: If you enter an invalid code,

the LED will flash rapidly for 2

seconds. Start over at step 3.

6. Aim the remote at the component

(VCR or DVD player). Press the

ON•OFF key. If your VCR or DVD

player turns off, you have found the

correct code.

7. Enter the code in the box provided

on this page for future reference.

8. If your VCR or DVD player doesn’t

turn off, repeat steps 3-6 above,

entering the next code for your brand.

If none of the codes work or your

brand is not listed, use one of the Code

Search methods to program this remote

(See Code Search on page 8).

For a description of each key on

the remote control, refer to the ey

Descriptions section on page 3-4.

In order for the 3-component universal remote to control your

DVD or VCR, you must program it with the code that matches

your component. The VCR•DVD key can be programmed to

operate either a DVD or a VCR player. These instructions

explain the preferred method of programming the remote—

the Direct Entry method.

ON•OFF

(BLINK)

(OFF)

123

456

789

CODE

INDICATOR

LIGHT

VCR OR DVD CODE

Program for Satellite, Cable Box or

Digital TV Co verter—Direct E try Method

AUX

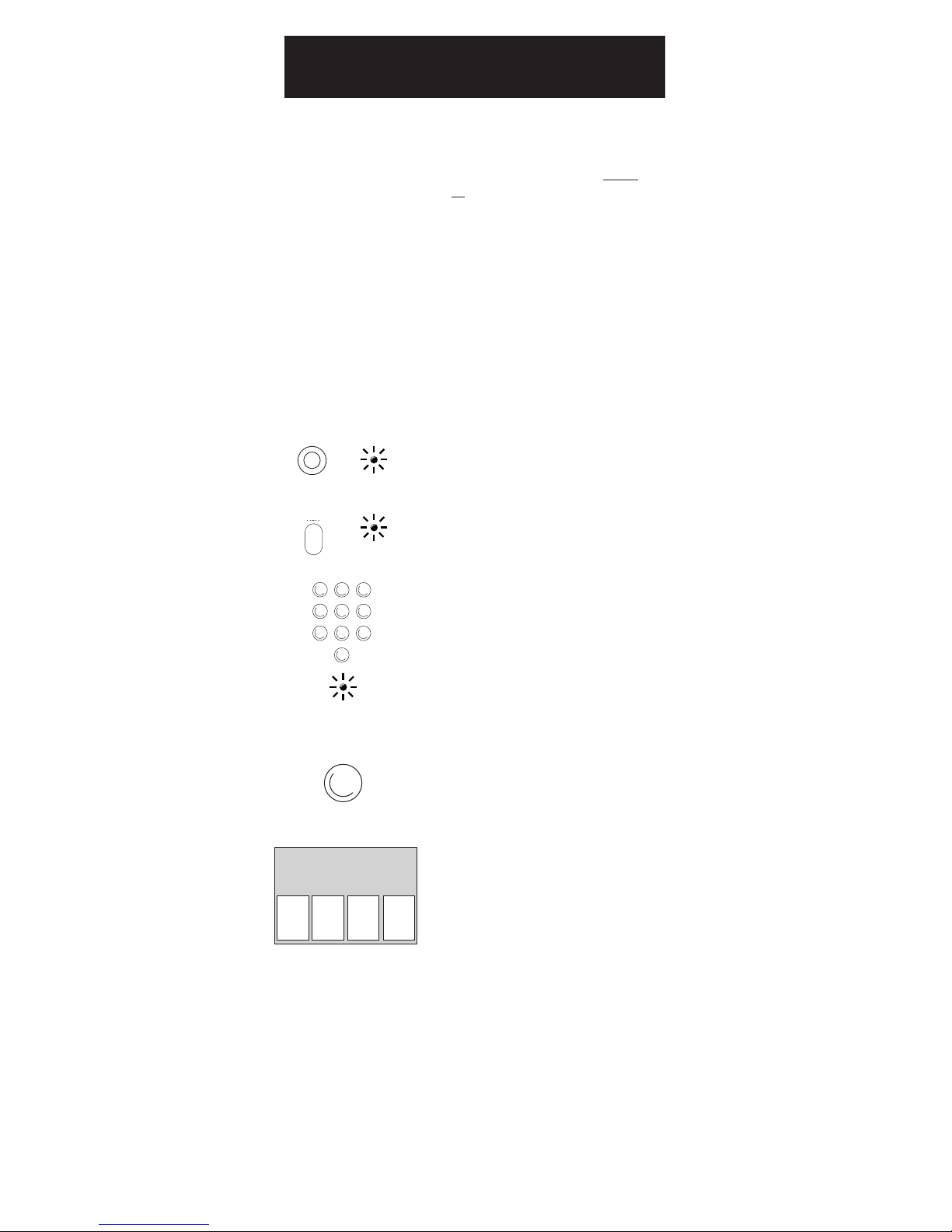

1. Manually turn on the satellite

receiver, cable box or digital TV

converter.

2. Locate the enclosed Code Lists. Find your

brand in the Satellite, Cable Box or Digital

TV Converter Codes.

Note: If your brand isn’t listed, use

one of the Code Search methods to

program this remote control (See Code

Search on page 8).

3. Press and hold the CODE SEARCH

key until the indicator light illuminates.

Then release the CODE SEARCH key.

4. Press and release the SAT•CBL•DTC

key. The indicator light blinks and

then remains lit.

5. Use the number keys on the remote to

enter the first code listed for your brand.

After you enter a valid four-digit

code, the indicator light turns off.

Note: If you enter an invalid code, the

LED will flash rapidly for 2 seconds.

Start over at step 3.

6. Aim the remote at your satellite, cable

box or digital TV converter and press

the ON•OFF key. If your Satellite

receiver, cable box or digital TV

converter turns off, you have found the

correct code.

7. Enter the code in the box provided

on this page for future reference.

8. If your device doesn’t turn off, repeat

steps 3-6 above, entering the next code

for your brand.

If none of the codes work or your

brand is not listed, use one of the

Code Search methods to program

this remote (See Code Search on page 8).

For a description of each key on the

remote control, refer to the ey

Descriptions section page 3-4.

In order for the 3-component universal remote to control your

satellite, cable box or digital TV converter, you must program it

with the code that matches your component. The

SAT•CBL•DTC key can be programmed to operate either a

satellite receiver, cable box or digital TV converter.

These instructions explain the preferred method of

programming the remote—the Direct Entry method.

ON•OFF

(BLINK)

(OFF)

123

456

789

CODE

INDICATOR

LIGHT

SATELLITE, CABLE

BOX OR DIGITAL TV

CONVERTER CODE

SAT•

CBL•DTC

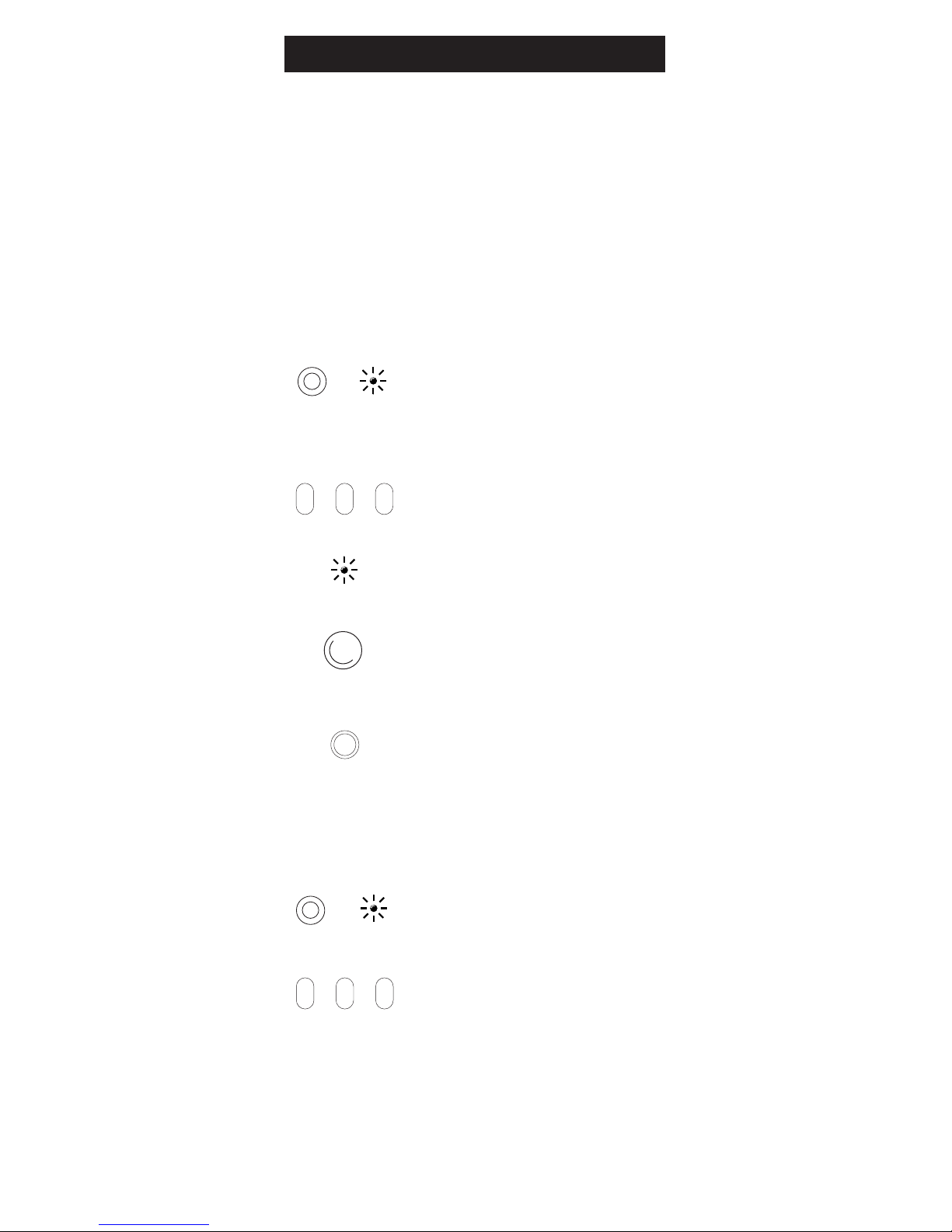

Code Search Methods

Manual Code Search

1. Turn on the component you

want the remote to operate.

2. Press and hold the CODE SEARCH

key until the indicator light

illuminates. Then release the

CODE SEARCH key.

3. Press and release the component key

that corresponds to the component

you want the remote to operate

(TV,VCR•DVD or SAT•CBL•DTC).

The indicator light blinks once

and then remains lit.

4. Aim the remote at the component and

press the ON•OFF key continuously

until the component turns off.

Important: Because there are so many

codes, you may have to press the

ON•OFF key many times—possibly

up to 200 times.

5. When the component turns off, press

the ENTER key to store the code.

6. Use Code Retrieval on the next

page to identify the code for your

component for future reference.

If your component’s brand isn’t listed in the Code List or

you have tried all of the codes for your brand and the remote

does not operate your component, use one of the Code Search

methods below—Manual Code Search or Auto Code Search.

Both Code Search methods search all of the codes because

your component’s code may be listed under another brand

in the code list.

Note: The Code Search method may take a long time because

the remote searches all of the codes in its memory for the

code which operates your component. Therefore, if your

brand is listed in the Code List, use the Direct Entry method

described on pages 5-7.

VCR•

DVD

Auto Code Search

1. Turn on the component you

want the remote to operate.

2. Press and hold the CODE SEARCH

key until the indicator light

illuminates. Then release the CODE

SEARCH key.

3. Press and release the component key

that corresponds to the component

you want the remote to operate

(TV,VCR•DVD or SAT•CBL•DTC).

The indicator light blinks once

and then remains lit.

INDICATOR

LIGHT

CODE

ON•OFF

(BLINK)

VCR•

DVD

INDICATOR

LIGHT

CODE

ENTER

SAT•

CBL•DTC

SAT•

CBL•DTC

1. Press and hold the CODE SEARCH

key until the indicator light illuminates.

Then release the CODE SEARCH key.

2. Press and release the component

key that matches the component’s

code you are retrieving (TV,VCR•DVD,

or SAT•CBL•DTC). The indicator

light blinks once and then remains lit.

3. Press and release the CODE SEARCH

key. The indicator light turns off.

4. Starting with 0 on the keypad, press

the number keys in order (0-9) until

the indicator light blinks.

5. The number that causes the indicator

light to blink is the first digit of

your code.

6. Repeat step 4 until you have retrieved

all three numbers of the code.

7. Refer to the code box to write down

the code for your component within

the Direct Entry Section (pages 5-7)

for the component just programmed.

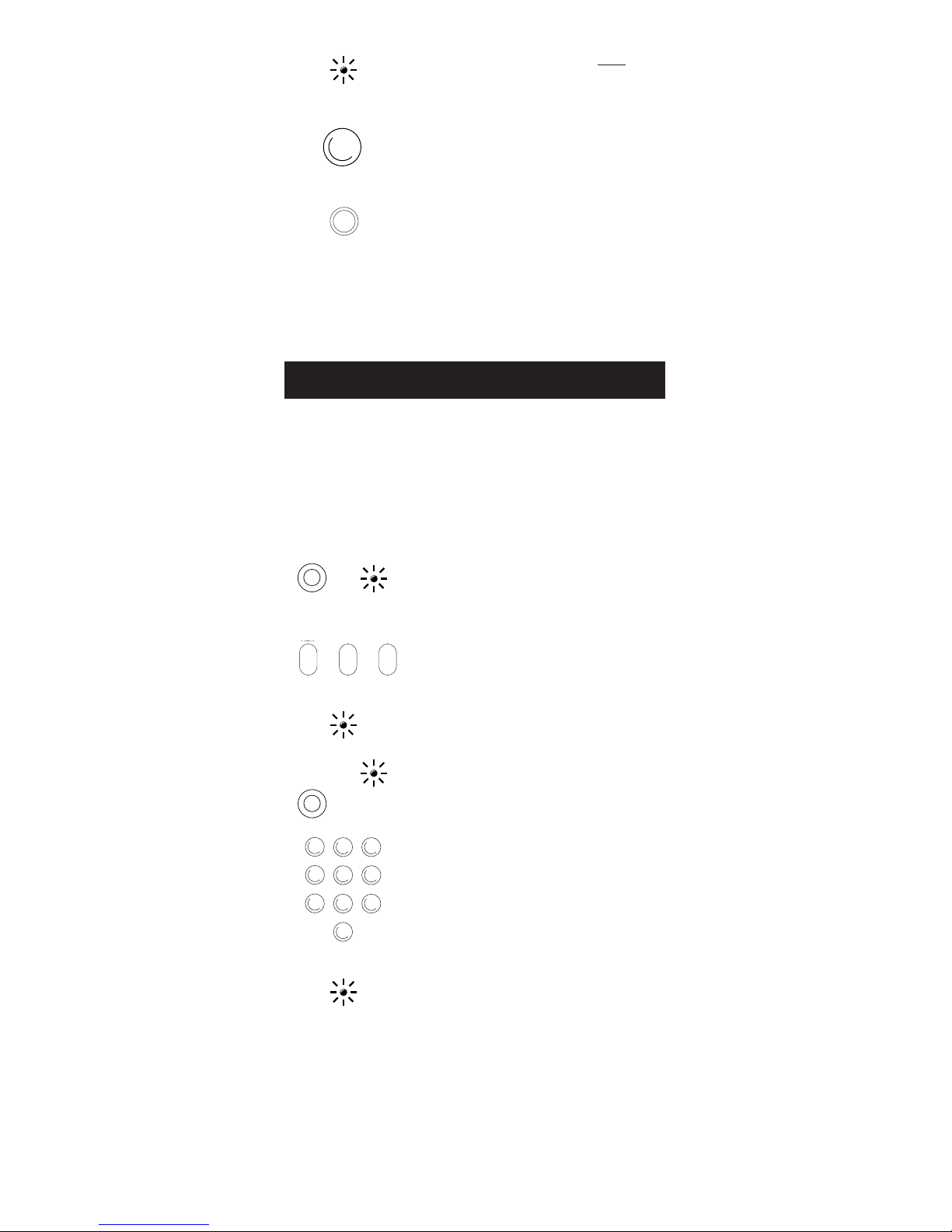

If you used one of the Code Search methods to program

your remote, follow the steps below to find out which code

is compatible with your component. Finding the actual code

and writing it down will save you time if you ever need to

program the remote again.

INDICATOR

LIGHT

(OFF)

123

456

789

AUX

VCR•

DVD

CODE

Code Retrieval

(BLINK)

4. Aim the remote at the component

and press the ON•OFF key once.

The remote automatically sends every

code for the specified component

one at a time, with a 3-second delay

between each code. eep the remote

aimed at the component throughout

the process.

5. As soon as the component turns off,

you must press the ENTER key

immediately so the remote stores the

correct code. If you don’t press ENTER

within 3 seconds, the remote will send

the next code in the list, and you will

have to start over from step 2.

6. Use Code Retrieval to identify the code

for your component for future reference.

ENTER

ON•OFF

(BLINK)

SAT•

CBL•DTC

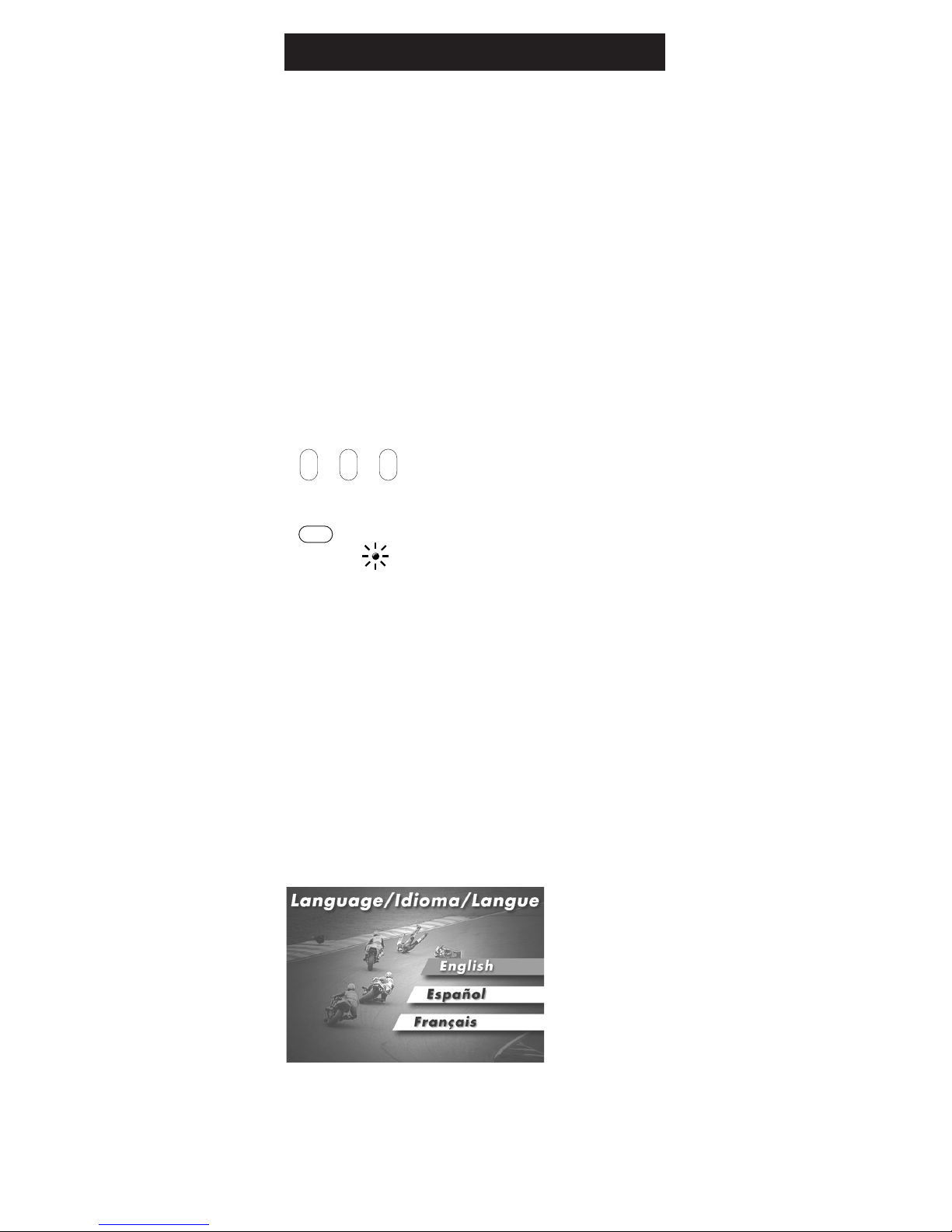

Hi hli htin and Selectin Menu Items

To navigate On-screen Menus, use the VOL UP/DOWN

and/or CHAN UP/DOWN keys.

VOL UP/DOWN keys move the cursor (or the highlight)

right/left. CHAN UP/DOWN keys move the cursor (or the

highlight) up/down.

For RCA, GE or PROSCAN products, press the MENU or

ENTER key to select the highlighted item. If menu items have

numbers next to them, you can use the number keys to select

an item. Additionally, the ENTER key can be used to select

menu choices.

For Sony products, pressing the ENTER key while

in Menu Mode returns you to the previous menu.

1. Make sure your components

are turned on and your TV is set

to the component's input.

2. Press the component key on

the remote (TV,VCR•DVD or

SAT•CBL•DTC).

3. Press the MENU key. The indicator

light blinks continuously to indicate

the remote is in Menu Mode and the

component’s menu should appear

on the TV screen.

VCR•

DVD

(BLINK)

This is an example of a DVD disc On-screen Menu.

English is the menu choice highlighted. Using this

remote control, you would press the ENTER ey

to select English.

To highlight another language, you would press the

CHAN DOWN ey (In the example above, the highlight

would move to Español).

Accessin a Menu System

This remote cannot access every menu system of all models

and brands of consumer electronics components. However,

if you’ve successfully programmed the VCR•DVD key to

operate a DVD player, you can access DVD disc menus with

the MENU key.

The MENU key will also access TV menu systems for

most RCA, GE and PROSCAN TV's, as well as some other

popular brands. Also, some RCA VCR menus are supported

by this remote’s menu key. This remote also supports select

satellite receiver menus.

If this remote’s MENU key doesn’t access the menu system

for your component, you’ll need to use the original remote

to change menu settings.

Note: This remote’s MENU key doesn’t support cable box

menu systems and some VCR menu systems.

Usi g O -scree Me us

SAT•

CBL•DTC

Notes:

All functions in competitive models and

brands of products may not be fully supported.

The remote will automatically time out in Menu

Mode and the indicator light will stop blinking after

approximately 10 seconds of inactivity (no keys being

pressed). For DVD menus, the Menu Mode will time

out after approximately 15 seconds.

Because of the wide variety of menu formats,

some experimenting may be required.

Exitin a Menu System

To exit Menu Mode, press the corresponding component

key on the remote (TV,VCR•DVD or SAT•CBL•DTC). The

indicator light goes out and the remote reverts to its normal

mode of operation.

Autres manuels pour RCU300 - RCU 300 Universal Remote Control

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels RCA Télécommande

RCA

RCA RCRP05BR Guide de l'administrateur

RCA

RCA D770 - D 770 Universal Remote Control Manuel utilisateur

RCA

RCA RCR311SR Manuel utilisateur

RCA

RCA CRCU6601WM Manuel utilisateur

RCA

RCA RCR504BR Series Manuel utilisateur

RCA

RCA RCU403R Manuel utilisateur

RCA

RCA RCU704 Series Manuel utilisateur

RCA

RCA RCR460 Manuel utilisateur

RCA

RCA RCRBB04GR Manuel utilisateur

RCA

RCA RCU 404 Manuel utilisateur

RCA

RCA RCR615 Manuel utilisateur

RCA

RCA RCU500 Manuel utilisateur

RCA

RCA RCRF03B Guide de l'administrateur

RCA

RCA SystemLink 6 AV RCU600RS Manuel utilisateur

RCA

RCA D940 Manuel utilisateur

RCA

RCA RCU500 Manuel utilisateur

RCA

RCA RCU300 - RCU 300 Universal Remote Control Manuel utilisateur

RCA

RCA RCR451 Manuel utilisateur

RCA

RCA RCR002RWDZ Manuel utilisateur

RCA

RCA RCR002RWDZ Manuel utilisateur

RCA

RCA RCR6473 - Universal Remote Control Guide de l'administrateur

RCA

RCA RCR6473R Manuel utilisateur

RCA

RCA RCR815 - Universal Remote Control Guide de l'administrateur

RCA

RCA RCR311W Guide de l'administrateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation

Invacare

Invacare G91S Manuel utilisateur
