RCA RLC1909 Manuel utilisateur
LCD TV
RLC1909
INSTRUCTION MANUAL
Table of Contents
1
Caution
Important Safety Precautions
Top/Side panel diagram
Remote Controller
Battery Installation
Using the Remote Control
Install TV
Set your TV
Connect Antenna and power
Turn On TV
PICTURE MENU
SOUND MENU
TUNE MENU
FUNCTION MENU
PARENT CONTROL
CHANGE PASSWORD
TV RATOMG
OSD MENU
PC MENU
COLOR TEMP
GEOMETRY
RESOLUTION
HELP
SPECIFICATIONS
2
3
7-8
9
10
11-12
12
12
4-6
13
13
14
14
15
15
15
16
16
17
18
19
INSTALLATION
2
Caution
The lightening flash with arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of un-insulated "dangerous voltage"
within the products enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Correct disposal of this Product
Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life,
should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste
collection/recycling centre.
In the European Union there are separate collection systems for used electrical
and electronic products. Please help us to conserve the environment we live in!
3
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.2
Caution:
These servicing instructions are for use by qualified service personnel only. To reduce the risk of
electric shock do not perform any servicing other than that contained in the operating instructions.
unless you are qualified to do so.
19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as
recommended by the manufacturer.
STANDARD INSTALLATION
The TV can be installed in various ways such as on a wall, or on a desktop etc.
The TV is designed to be mounted horizontally.
Ensure that you connect the earth ground wire to prevent possible electric shock.
if grounding methods are not possible, have a qualified electrician install a
separate circuit breaker.
Do not try to ground the unit by connceting it to telephone wires, lightening rods
or gas pipes.
a. Desktop Pedestal Installation
This is the default installation way of the TV.
10inches
10inches
10inches
10inches
10inches
Power
Supply
Short-Circuit
Breaker
INSTALLATION
4
STANDARD INSTALLATION
(1) Secure the wall brackets with the bolts(not provided as parts of the product, must
purchase separately) on the wall.Match the height of the bracket that is mounted on
the wall. The wall bracket is of nomal dimension. Please see the position of the wall
brackets bolts as follow picture. The actual dimension of the wall brackts bolt should
according to the products.
(2) Remove the table stand of the TV when install the TV on a wall as follow:
(3) For proper ventilation, allow a clearance of 10” on each side from the wall.
The wall brackets bolt position
b. Wall Mount: Horizontal installation
100mm
100mm
Four Mounting
Holes
Size:M4 Screws
10inches
10inches
10inches
10inches
10inches
5
NOTES OF WALL INSTALLATION
(1) Keep the TV stand for may be future use.
(2) Don’t set the TV set on shelves, carpets, beds, or closets.
(3) Don’t cover the TV with curtain or paper.
(4) Leave ventilation space to avoid the following:
No good for ventilation No good for ventilation
6
7
Top panel diagram
Side panel diagram
8
14/15. VIDEO/R/L :1/2 external AV
signal input and relevant right/left
sound channel.
S-VIDEO: Color and brightness
difference components input.
VGA/AUDIO: VGA audio input.
ANT 75 ohm: Connect the antenna to
the antenna input.
HDMI Input: Digital signal input from
HDMI video connector
YPbPr:Color difference
components input and relevant
video input
AV Output
16. Connect to Mains
Adapter
POWER(DC IN)
(3.5mm)
1415
9
VIDEORL
VIDEORL
OUTPUT
INPUT
Y
P
b
P
r
VIDEORL
S-VIDEO
HDMI
11 1
22 2
4A
16

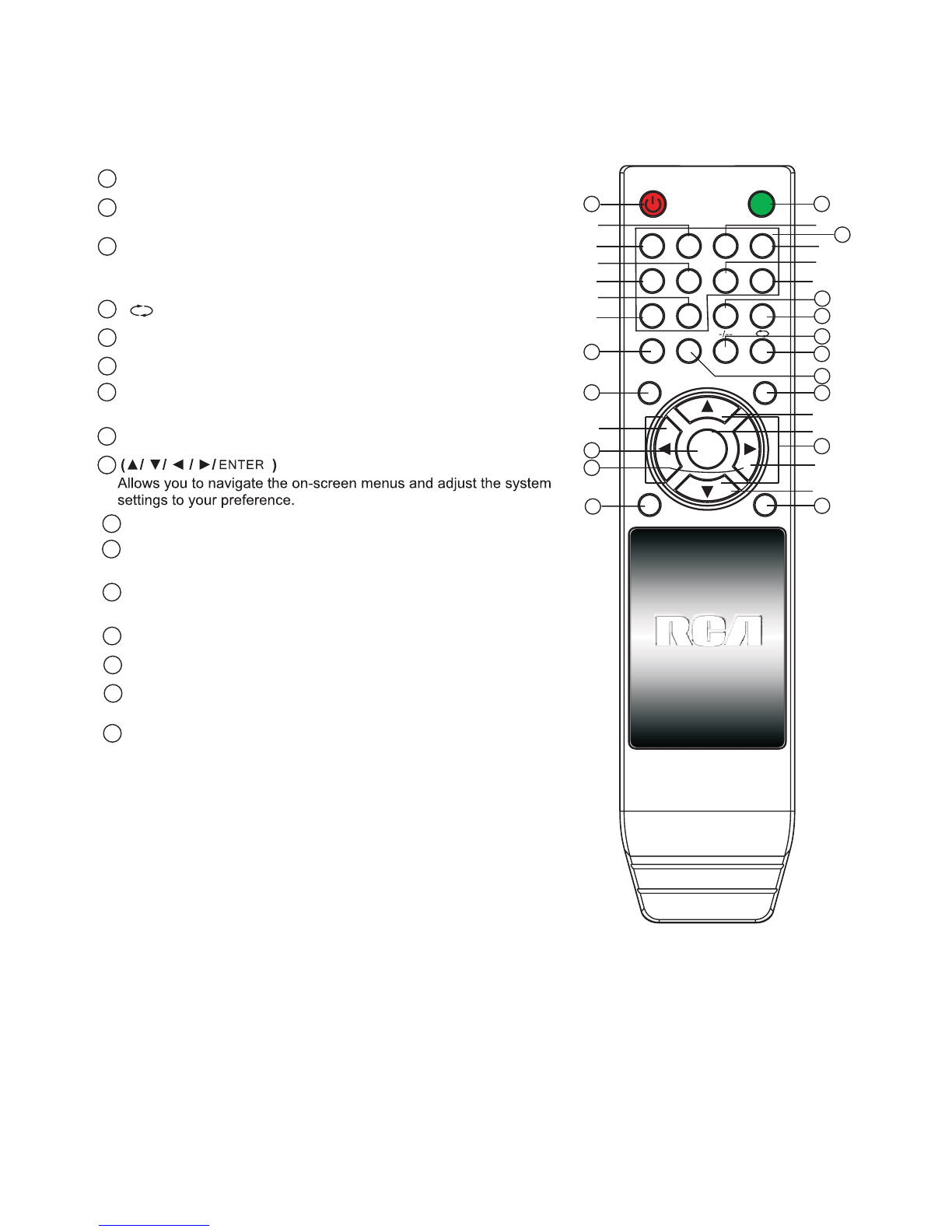

Remote Controller
9
POWER MUTE
1
5
9
2
6
0
3
7
4
8
P.MODE S.MODE SLEEP
MENU
DISPLAYEXIT
SOURCE
MTS
ENTER
7
15
14
13
12
1010
11
3
4
5
6
8
9
12
16
30--9 Press 0~9 to select a TV channel directly while watching
TV. The channel will change after 2 seconds.Applicable for
entering page number in teletext mode and so on.
2 Press to mute the sound. Press again or pressMUTE :
VOL+ to unmute.
1 Sets your TV to power on or standby mode.POWER :
4:Return to the previously viewed program.
5 Press to scan through or to select a channel.CH +/- :
6 Press to increase / decrease the sound level.V +/-:
7-/-- Press this button to enter a program number for
different digit. eg. -/--/---
8 Press to display the source and channel's info.DISPLAY :
9
10 SOURCE: Press to list the source items.
11 SLEEP: Select amount of time before TV turn itself
off automatically.
12 E Exits from the menu or sub-menu and menus and adjustXIT:
the system settings to your preference.
13 MENU : Allows you to navigate the on-screen menus.
14 Press to cycle through the different picture settingsP.MODE:：
16 S.MODE: Press to cycle through the different sound settings.
15 Press to select the MTS mode.(for example,Nicam ,MTS:：
BTSC,MONO,STEREO .eg )
VOL-VOL+
CH-
CH+
Universal Remote Control code:007F
4
1
53
43
2
1B
5
57
47
6
9
5B
4B
A
8
D
5F
4F
C
E
1F
13
B
7
17
3F
Battery Installation:
Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then
off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as
indicated. Do not mix old and new batteries or different types of batteries Replace the battery
compartment lid. Slide the lid until you hear it click into place.
Using the Remote Control:
Unless stated otherwise, the remote control can operate all the features of the TV.
Always point the remote control directly at the remote sensor in the front of the TV.
