RCA ANT3901 Manuel utilisateur

Limited One-Year Warranty ANT3901

Amplified

Outdoor Antenna

VHF•UHF•FM

User’s Guide

universal

Designed for

elliptical DBS

satellite dish

antennas with

multi-satellite LNB

for sharp local

channel reception

ANT3901new 4/29/03 8:37 Page 1

Table of Contents

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . .3

Lightning Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

About Your New ANT3901 Outdoor TV Antenna . . . . . . . . .4

For Best Reception Results . . . . . . . . . . . . . . . . . . . . . . . . .4

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Installing Your New ANT3901 Antenna . . . . . . . . . . . . . . . . .5

Step A: Installing the ANT3901 on Your Satellite Dish . . .5

Step B: Installing the Inside Diplexers . . . . . . . . . . . . . . .8

Step C: Setting Up Your TV to Use the ANT3901 . . . . . .9

Limited One-Year Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .10

WARNING! Use extreme caution when installing or

removing an outdoor antenna that is located close to

overhead wires such as power lines, telephone lines or

cable TV lines. If any part of the antenna makes contact

with overhead power lines, touching the antenna or the

antenna cable can cause electrocution and death. If the

antenna is in contact with any type of overhead wires, call

your power company and ask them to send a qualified

technician to remove the antenna. Do not attempt to

remove it yourself!

ANT3901new 4/29/03 8:37 Page 2

Important Safety Precautions

Lightning Protection

WARNING! Many do-it-yourself and professional antenna

installers are injured or killed each year by electric shock.

While anyone can see the obvious danger of falling, the most

resourceful sometimes fail to recognize overhead wires as

being potentially lethal. To touch any part of the antenna to

these overhead wires is the same as touching the wires with

your bare hand. A very serious shock is almost sure to result

when contacting an electrical wire, and, in the case of

primary wires on the tip of poles, the shock is similar to

being struck by a bolt of lightning. Many power wires are

within 20 to 25 feet of the ground and can easily be touched

by an assembled antenna.

Please read and follow these important

safety precautions.

• Get help from a qualified professional if removing an old

antenna and there is any doubt of clearing overhead wires.

• Never install the antenna outdoors at night or in inclement

weather conditions.

• Make sure the antenna downlead cable is connected

to suitable lightning arrestors.

• Make sure the antenna installation is secure.

Always plug your TV and other electronic devices into

a quality surge protector for maximum protection against

lightning and power surges.

• Do not try to guess which overhead wires carry

high voltage. Check with the power company.

• If you notice anything making contact with the overhead

wires, call the power company to have it removed safely.

• Do not run the downlead cable over power lines.

All outdoor antenna installations should be properly

grounded. To effectively protect the installations, the coaxial

cable(s) should be grounded before they enter the house.

The grounding of the coaxial cable is made using a “ground

block” and copper wire (not supplied). For information, and

the materials needed to ground your antenna installation,

visit your local electronics store.

ANT3901new 4/29/03 8:37 Page 3

About Your New ANT3901

Outdoor TV Antenna

Before You Begin

The ANT3901 is the perfect complement for a multi-beam

satellite dish system. It picks up VHF and UHF signals

so that you can enjoy local programming at no extra cost,

along with your satellite programming.

The ANT3901 features an internal amplifier that minimizes

signal loss. The DBS receiver powers the amplifier, so no

additional power supply is required. Because ANT3901’s

antenna elements are manufactured to be weather-resistant,

they’ll perform at their best for many years to come.

For Best Reception Results

For the best reception results, the satellite dish and antenna

combination should be high off the ground with minimal

signal obstructions. On the side of your house (close to

the roof), or on the roof itself generally offers the best

environment for reception.

Remember, you can always rotate the antenna

on the dish to adjust your reception.

Please take a moment to familiarize yourself with the various

elements in the ANT3901 package. Please make sure that

your package includes all of the necessary pieces (see Fig 1).

ANT3901new 4/29/03 8:37 Page 4

Installing Your New

ANT3901 Antenna

The ANT3901 installation consists of three basic steps:

Step A: Installing the ANT3901 on your satellite dish.

Step B: Installing the inside diplexers.

Step C: Setting up your TV to use the ANT3901.

Please be sure to complete all of these steps before

attempting to watch local channels with your ANT3901.

Step A: Installing the ANT3901

on your satellite dish

Note: Some satellite dishes have integrated multi-switches.

The “TO RECEIVER” terminals are connected to the cables

coming from the bottom of the dish. Treat these cables as

the “TO RECEIVER” terminals of the multi-switch.

Note: For Dish Network owners; some Dish Network

installations use smaller SW21 multi-switches. Treat

these as one multi-switch with two “OUTPUT” or

“TO RECEIVER” terminals.

1. Make sure all satellite receivers are turned

off and unplugged from the electrical outlet.

2. Unsnap the antenna from the back notch

of the mounting clamp (see Fig 2 on page 6).

3. Hold the antenna to the back of the dish so that the

circular housing is centered with the RCA logo facing

out (see Fig 4 on page 6).

4. Maneuver clamps over or around the edge

of the dish one at a time (see Fig 3 on page 6).

5. Snap the antenna back into the back notch

of the mounting clamp.

6. Tighten the clamps by turning

the thumb-wheel screw clockwise.

Note: We recommend the use of the enclosed security clips

for any dish. Snap the security clips onto the ANT3901 and

slide down towards the mounting clips (see Fig 4 on page 6).

Fig 1

ANT3901new 4/29/03 8:37 Page 5

Fig 2

Fig 4

Fig 3

ANT3901new 4/29/03 8:37 Page 6

7. Disconnect the satellite cables from the “OUTPUT”

or “TO RECEIVER” terminals on your multi-switch.

8. Connect the satellite cables to the “OUT” 1-4 terminals

on the ANT3901 antenna (see Fig 5 on page 7).

9. Using the black 32”antenna cables, connect the “IN”

1-4 terminals of the ANT3901 to the “OUTPUT” or

“TO RECEIVER” terminals on your multi-switch

(see Fig 6 on page 7).

10. Continue to “Step B: Installing the Inside Diplexers”

(on page 8) and follow the remainder of the standard

installation procedure.

Fig 5

Fig 6

ANT3901new 4/29/03 8:37 Page 7

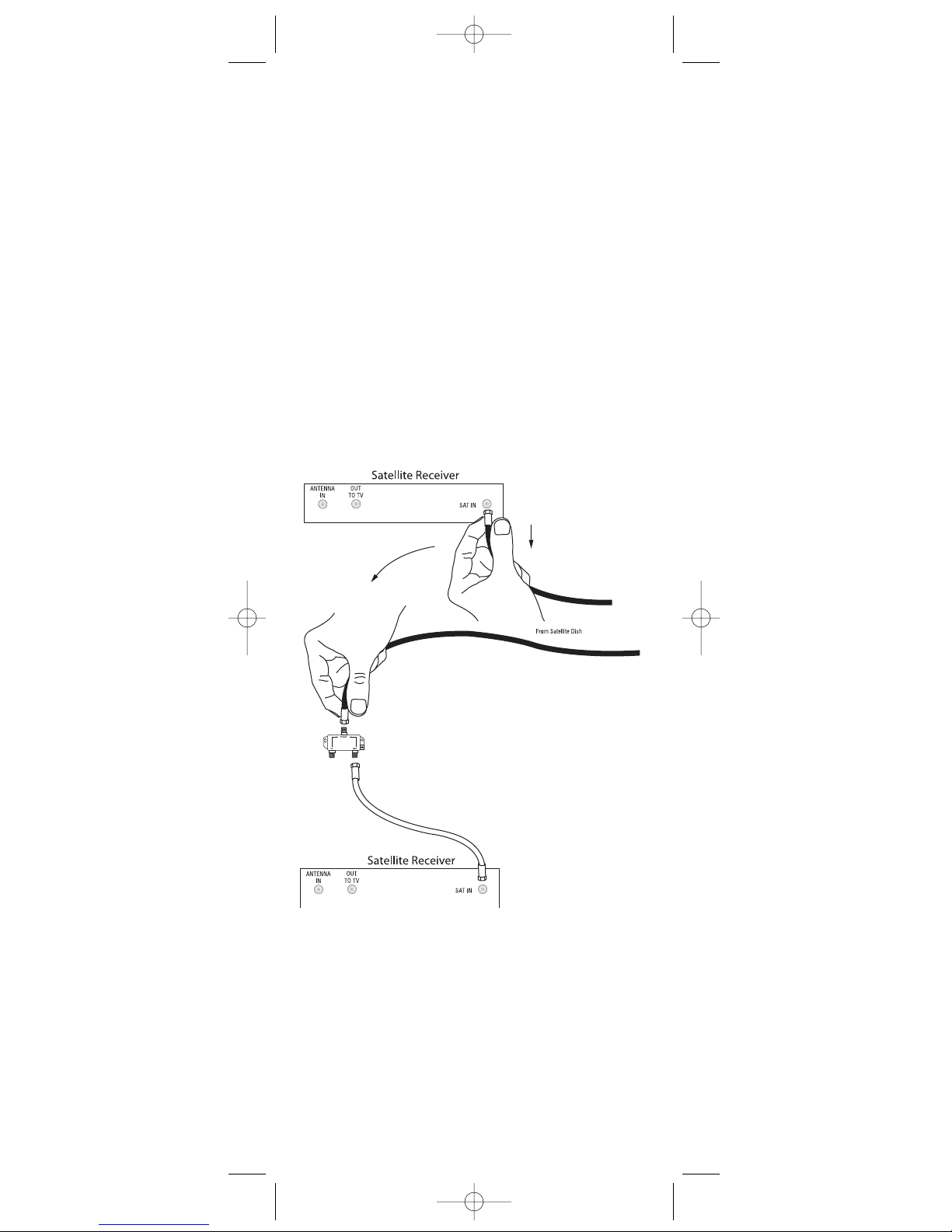

Step B: Installing the inside diplexers

1. Disconnect the satellite cable from the

“SAT IN” terminal on your satellite receiver.

2. Connect the satellite cable to the terminal marked

“TV/SAT” on the inside diplexer (see Fig 7 on page 8).

3. Connect one of the supplied white 12” connector cables

from the terminal labeled “SAT” on the inside diplexer

to your satellite receiver’s “SAT IN” terminal (see Fig 8

on page 8).

4. Connect the other white 12” connector cable from the

terminal labeled “TV” on the inside diplexer to your

satellite receiver’s “ANT IN” terminal (see Fig 9 on

page 9).

5. Connect a coaxial cable (not supplied) from the satellite

receiver’s “TV OUT” terminal to your television or

VCR (see Fig 10 on page 9).

6. Repeat step for each satellite receiver.

7. Continue to “Step C: Setting Up Your TV to Use the

ANT3901” (page 9).

Fig 7

Fig 8

ANT3901new 4/29/03 8:37 Page 8

Fig 9

Fig 10

Step C: Setting up your TV to use

the ANT3901

1. Access the menu of your TV and make sure the TV is in

ANT/AIR mode and not CABLE/CATV mode. Please refer

to your TV manual for the exact steps to change this option.

2. Access the menu of your TV and run the “Auto Channel

Search” option. Please refer to your TV manual for the

exact steps to change this option.

3. Turn on your DBS receiver and set to ANT, then tune your

TV to your favorite channel.

4. To fine tune local channel reception, rotate the ANT3901

antenna around the perimeter of the dish until you receive

the best possible picture. Tighten the clips so that the antenna

is firmly secured to the satellite dish in that position.

5. The ANT3901 is now ready to receive local programming.

Note: Satellite receiver should be off to view local channels.

ANT3901new 4/29/03 8:37 Page 9

10330 North Meridian Street

Indianapolis IN 46290

Made in China.

ANT3901 US IB REVA

Trademark(s) ®Registered.

Marca(s) Registrada(s).

www.rca.com

THOMSON INC. warrants that, for one year from date of

purchase, it will replace this product if found to be defective

in materials or workmanship. Return it postage prepaid to

the Product Exchange Center, 11721 Alameda Ave., Socorro,

TX 79927, for prompt, no-charge replacement with a current

equivalent. This replacement is THOMSON INC.’s sole

obligation under this warranty. THOMSON INC. will not be

responsible for any incidental or consequential damages or

for any loss arising in connection with the use or inability to

use this product. Some states do not allow the exclusion or

limitation of incidental or consequential damages, so the above

limitation or exclusion may not apply to you. This warranty

excludes defects or damage due to misuse, abuse or neglect.

This warranty gives you specific legal rights, and you may

also have other rights, which vary from state to state.

Limited One-Year Warranty

ANT3901new 4/29/03 8:37 Page 10
