RC Lighting PLF13 Manuel utilisateur

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

RC’s PL floods must be wired in accordance with

the National Electrical Code and applicable local

codes. Proper grounding is required for safety.

The PL floods are for outdoor use and should not be

used in areas of limited ventilation or high ambient

temperatures. All work should be done by a qualified

electrician.

Fixture should be located at least 18" below any

overhang or other structural detail. Fixture should

not be recessed.

WARNING: Make sure power is OFF before installing or maintaining fixture.

CAUTION: To avoid a possible shock hazard, do not connect wires until fixture is twisted into mounting hole.

LOCATION

The PL floods can be mounted to any 1/2’’ NPS

mounting hole.

1. Route fixture leads through the mounting hole.

2. Twist PL flood foot into mounting hole.

3. Tighten locknut.

MOUNTING

(over)

Thank you for buying RC Lighting fixtures. Our aim is to design the best quality products so you can get the job

done right. We’d like to hear your comments. Call us at 888-722-1000, attention Marketing Department.

PLF13 AND PLF26 FLUORESCENT FLOODS

Installation Instructions Listed

For Wet

Locations

WIRING

Use supply wire rated for 90°C.

1. Connect the fixture lead to the black supply lead.

Connect the common fixture lead to white supply lead.

Connect supply ground wire to fixture ground screw

PLF

LIGHT

FIXTURE

BLACK BLACK

WHITE

(–) COMMON

GROUND

SUPPLY

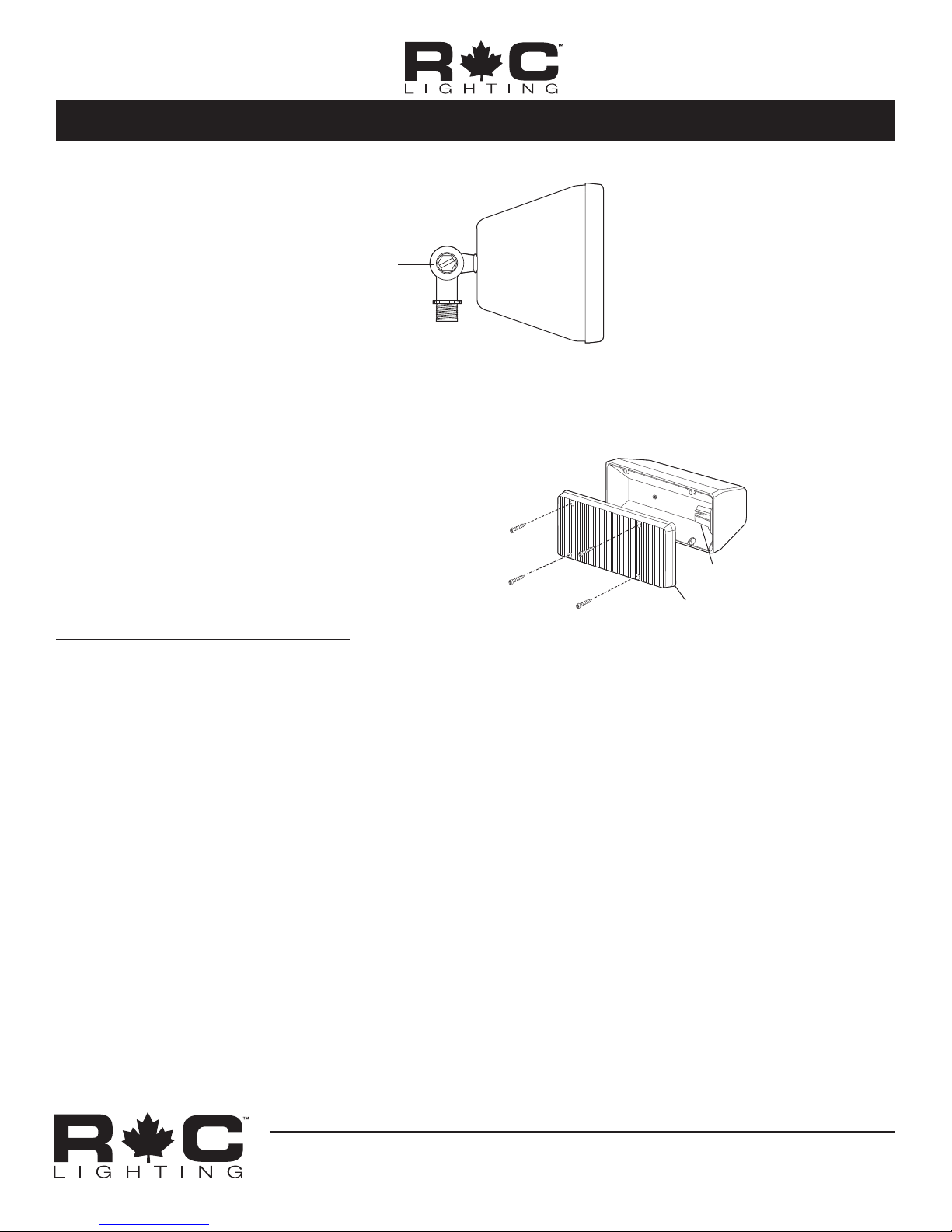

1. Loosen swivel bolt.

Aim as desired.

3. Retighten swivel bolt.

1. Disconnect power.

Make sure fixture and lamp are cool enough to

touch.

3. Remove screws from front of lens and remove

lens.

4. Insert lamp base into socket so that pins in the

lamp are inserted securely into the socket(s).

5. Re-fasten lens to fixture.

AIMING

RE-LAMPING

CAUTION: Prior to installing, check that the lamp(s) is of proper type and wattage. Observe lamp manufacturer’s

recommendations on the lamp operation, ballast type and burning positions.

CAUTION: Be sure fixture temperature is cool

enough to touch. Be sure power is off.

Clean reflector and polycarbonate refractor with a cloth

moistened with non abrasive glass cleaning solution.

Check that:

1. Proper lamp is installed. Lamp is not faulty.

2. Line voltage at the fixture is proper.

3. Fixture is wired properly.

4. Fixture is grounded properly.

CLEANING

TROUBLE SHOOTING CHECKLIST

Swivel Screw

Lens

Socket

PLF13 AND PLF26

INSTALLATION INSTRUCTIONS

(continued)

Catalog #

Lamp and socket type

PLF13 13 watt Quad, GX23 base

PLF26 (2) 13 watt Quad, GX23 base

Toll free fax: e-mail:

Send a fax to

888 722-1232

Tech Help Line:

Call our experts

888 722-1000

Visit our website for

product info

Easy Answers

rclighting.ca:

Get answers promptly

[email protected]
