IN-WALLSPEAKERS

I n s t a l l a t i o n a n d I n s t r u c t i o n M a n u a l

Introduction

BreakInPeriod

Congratulations on your purchase of RBH Sound in-wall speakers! Your speakers are the

result of many years of research and development dedicated to producing high quality

products for home audio and audio/video systems.

This manual is designed to give you, the installer or owner, basic information as to the

speaker’s installation and operation. We recommend you thoroughly read through the

material contained in this manual before installing your speakers. This will ensure that

you have an understanding of how to setup your speakers for optimum performance

and allow for years of listening enjoyment.

Allow several hours of listening time to adequately break in the speakers. As the

speakers break-in, the driver suspension will loosen. The result of break-in will be an

increase in low frequency response, improved deﬁnition, clarity and detail.

Features

All RBH Sound in-wall speakers feature a swing out dog leg mounting system with

pre-started screws for fast and easy installation. Most RBH Sound in-wall speakers

feature directional swivel tweeters to direct the sound to the main listening area.

All RBH Sound in-wall speakers feature polyswitch protection circuitry designed

to protect the tweeter from being over driven. This circuit will automatically

reset itself once the volume is turned down or the problem causing the circuit to

activate is removed.

Steep acoustic slope crossovers are used to integrate the drivers. The use of

steep crossover slopes allows high power handling, minimized driver interaction

anomalies, and maximizes the clarity with which each driver is able to produce its

respective frequency band.

PaintingtheSpeakers

A paint shield is included with your speakers. This shield can be used to protect the

speaker when painting the speaker’s rim (frame). If you plan to paint your speakers,

we recommend it be done prior to installation. If you decide to paint your speakers

sometime in the future, it is best to remove them from the ceiling or wall. When

painting speakers, the paint shield provided in the packaging must be installed in

place of the grille. The grille can also be painted. Painting the speaker’s grille should

be done with a paint sprayer set to ﬁne. Remove the grille from the speaker, peel off

the grille fabric on the back of the grilles and set aside. Place the grilles on a ﬂat

surface. Do not use a brush or roller on the grilles as this will clog the holes, greatly

reducing the sound quality of the speakers. Do not paint the grilles while attached to

the speakers. Be sure to remove the paint shields from the speakers and replace the

fabric to the back of the grilles before reinstalling them and using the speakers.

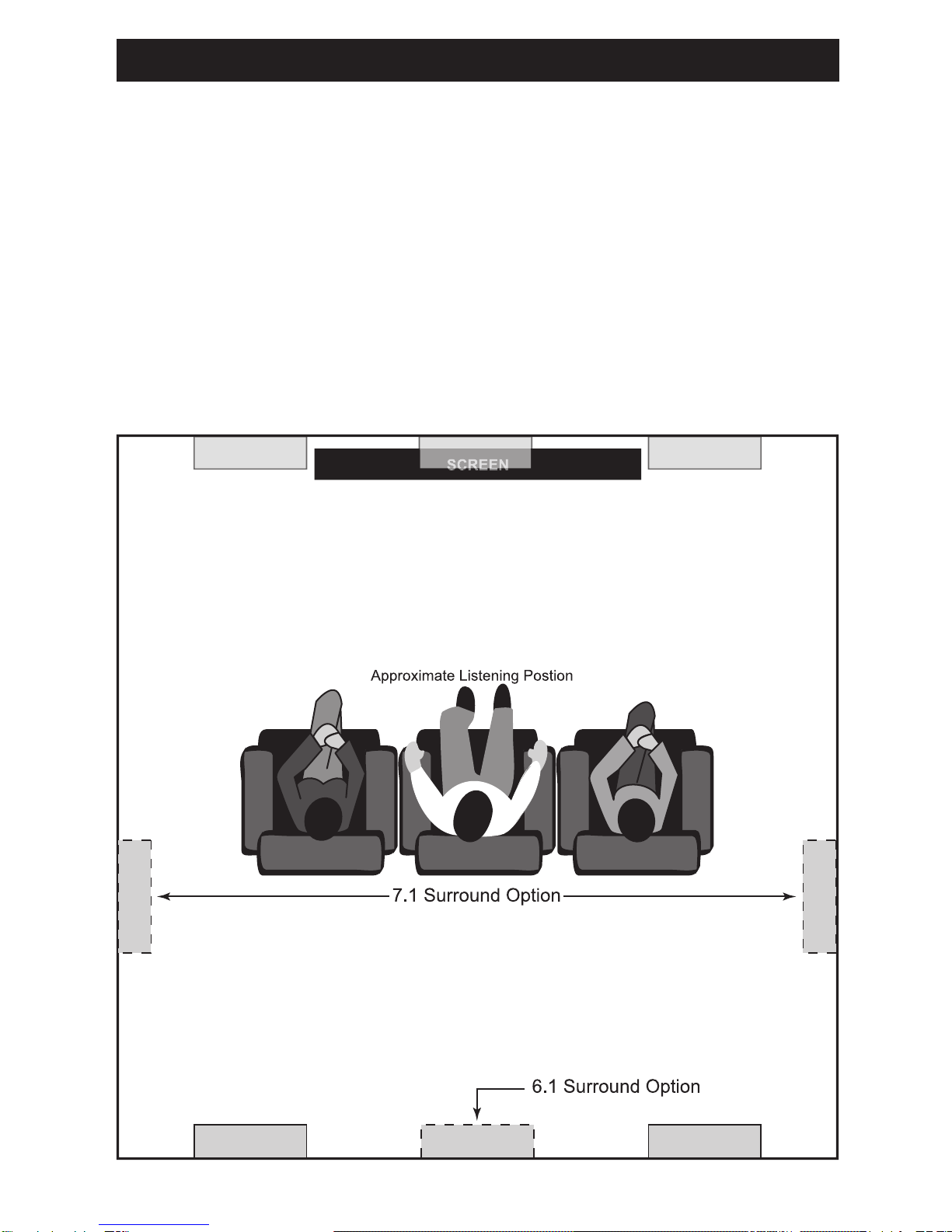

RoomSetupSuggestions

With nearly endless placement options, careful consideration for placement of the

in-wall speakers needs to be considered, as installation requires cutting a hole in

your wall or ceiling! When using speakers in home theater applications follow the

guidelines illustrated below.

Swivel Tweeter Placement

The swivel tweeter allows sound to be directed toward or away from the listening

area depending on the application. A tweeter aimed toward your listening position

improves imaging and detail. When using a speaker with a swivel tweeter as front/

main home theater speakers or as stereo speakers in a distributed audio system, aim

the tweeter toward the main listening position. For rear/surround speakers, aim the

tweeter toward the nearest reﬂecting surface (an adjacent wall or ceiling) for a more

diffuse sound ﬁeld (for more direct sound, aim the tweeter at your listening position).

RBH Sound in-wall speakers are designed on an inﬁnite bafﬂe conﬁguration. This

means a back can is not required for the speaker to perform properly. However, using

an RBH Sound back can will most likely improve the tightness and control the bass

response. RBH Sound in-wall speakers have also been designed to make installation as

easy as possible. Upon opening the speaker boxes you will notice that the screws are

pre-started into the dog legs or a pinch ring. The basic idea behind in-wall speakers

is the speaker is held in place by sandwiching the speaker and the drywall. A frame

around the speaker conceals the cutout in the drywall and presses against the front of

the wall. Behind the wall, the speaker has a set of dog legs or a pinch ring which cinch

the speaker to the drywall.

CAUTION: Be certain there are no electrical wires, water pipes, heating ducts or any

other obstructions in the planned area of installation before starting to drill or cut

into the ceiling or wall. If there is an electrical outlet nearby, turn off the circuit

breaker to avoid possible injury.

Installing WITH a New Construction Bracket:

If using a new construction bracket cutting the drywall should not be necessary

continue with “Connecting the Speaker” instructions on the next page.

Installing WITHOUT a New Construction Bracket:

Use the cutout template supplied with the speaker for

guidance in cutting the drywall, following “Using the

Template” instructions below.

Using the Template:

1. These speakers are designed to be mounted between

the framing members. Use a stud ﬁnder to locate

the position of studs. Make sure you have a 2-inch

clearance from the outside of the cutout hole from

studs.

2. Drill a 1/4-inch hole in the center of the area you

plan to mount the speaker. Cut or bend a piece of

wire (a coat hanger works well) to a 90-degree angle.

Insert the wire into the pilot hole and ﬁsh around to

make sure there aren’t any obstructions which will

interfere with the installation.

NOTE: If you must choose another location, the pilot

hole can be easily patched.

3. Once a suitable location is found, use masking tape to

temporarily place the supplied cutout template on the

wall, centered over the pilot hole. Draw a circle around

the inside edge of the template.

4. Carefully cut the hole with the appropriate cutting tool to remove the material

SpeakerInstallation

inside the circle inscribed by the template.

SpeakerInstallation(continued)

NOTE: The frame will overlap the cutting edge by about a 1/4-inch which will

mask any minor cutting inaccuracies.

5. Conﬁrm the speaker easily ﬁts into the hole, without any gaps.

Connecting the Speaker:

6. Pull the speaker wire out of the hole and connect

the speaker. Split the two conductors of the

speaker wire apart about 3-inches so they form a

“Y”. Using wire strippers, remove about 1/2-inch of

insulation from each of the two conductors of the

wire to expose the bare metal and twist each of the

conductors into a single unfrayed strand.

The speaker terminals will accommodate any

speaker wire up to 14-gauge. Select an appropriate

wire gauge from the following chart:

18 gauge for up to 50-feet

16 gauge for up to 100-feet

14 gauge for up to 200-feet

NOTE: When connecting a speaker it is very

important to retain the correct polarity (improper

polarity will cause reduced bass performance and unnatural imaging effects).

To do this, be sure the wire attached to the positive terminal on the speaker

(marked [+] or colored red) connects to the positive terminal on the ampliﬁer.

Similarly, the negative terminal (marked [-] or colored black) must connect to

the negative terminal on the ampliﬁer.

Finishing the Installation

7. Slide the speaker into the pre-cut hole in drywall or new construction bracket

keeping the speaker cable above and out of the way to prevent pinching it.

8. Tighten the screws. The dog legs will automatically swing out and tighten

(pinch) themselves against the new construction bracket or the drywall with

the turning of the screws and will hold the speaker solidly in place. Don’t over

tighten screws, if you over-tighten the screws the speaker frame may bend which

will make it difﬁcult to properly install the grille.

NOTE: If using a drill/driver, set the clutch to a low setting to prevent over

tightening and possible damage to the frame or dog legs. If using hand tools,

tighten just until ﬁrm.

9. If the speaker has any tone controls or has a pivoting tweeter, leave the grille off

until you can listen to the speaker. Once the speaker is adjusted, install the grille.

NOTE: Handle the grille carefully, as they pressure-ﬁt into the installed speaker.

If the grille does not install easily try loosening the mounting screws before

resorting to forcing the grille into the speaker.

Rear Enclosure

The rear enclosure is a rectangular pre-

construction box for in-wall speakers. The

BB-S can be mounted in-between standard

2x4 stud-frame construction and enhances

the sound quality of in-wall speakers. It also

prevents the sound from being transferred

into rooms on the other side of the wall.

Blank Plates

Blank plates are a very clean and efﬁcient

way to cover the holes left in drywall when

a new construction bracket is used or a

speaker is removed. Install blank plates when

in-wall speakers will not be immediately

installed after drywall is ﬁnished.

New Construction Brackets

An excellent way to guarantee placement of

in-wall and in-ceiling speakers prior to drywall

installation, New Construction Brackets (NCB’s)

also make installation of in-wall speakers faster

and easier by reducing time and mess. Once

drywall is installed, just connect the speaker to

the speaker wire and install. New Construction

Brackets eliminate the time and need to locate

and cut drywall before speaker installation.

For more information on RBH Sound in-wall

speaker accessories go to www.rbhsound.com.

SpeakerAccessories

Rear Enclosure

Blank Plates

New Construction Bracket

Specications

MC-414

In-wall 2-way Speaker

55Hz-20kHz (±3dB)

91dB (2.83V @ 1 Meter)

15-150 Watts

(2) 4” (102mm) Aluminum

(1) 1” (25mm) Aluminum

Yes

3,500 Hz

12dB/Octave

6 Ohms

White Frame (Paintable)

White Aluminum (Paintable)

6” W x 14-1/4” H

(152mm W x 362mm H)

7-3/16” W x 15-3/8” H x 2-7/8” D

(183mm W x 391mm H x 73mm D)

5.85 lbs. (2.65 kg)

25 Years

BB-S

BP-414

NCB-414

Model:

Series:

System Type:

Frequency Response:

Sensitivity:

Recommended/Rated Power:

Woofer(s):

Tweeter(s)

Swivel Tweeter(s):

Tweeter Protection:

Crossover Frequency:

Crossover Slope:

Impedance:

Cabinet/Color:

Grille:

Cutout Dimensions:

Finished Dimensions:

Weight:

Warranty:

Rear Enclosure:

Blank Plate:

New Construction Bracket:

A-610

Architectural

In-wall 2-way Speaker

55Hz-20kHz (±3dB)

90dB (2.83V @ 1 Meter)

10-80 Watts

(1) 6½” (165mm) Poly Graphite

(1) 1” (25mm) Silk Dome

Yes

2,800 Hz

12dB/Octave

8 Ohms

White Frame (Paintable)

White Aluminum (Paintable)

7-1/4” W x 11” H

(184mm W x 279mm H)

8-1/2” 12” H x 3” D

(216mm W x 305mm H x 76mm D)

3.30 lbs. (1.50 kg)

25 Years

BB-S

BP-6

NCB-6

A-414

Architectural

In-wall 2-way Speaker

60Hz-20kHz (±3dB)

90dB (2.83V @ 1 Meter)

10-100 Watts

(2) 4” (102mm) Poly Graphite

(1) 1” (25mm) Silk Dome

Yes

4,000 Hz

12dB/Octave

6 Ohms

White Frame (Paintable)

White Aluminum (Paintable)

6” W x 14-1/4” H

(152mm W x 362mm H)

7-3/16” W x 15-3/8” H x 2-7/8” D

(183mm W x 391mm H x 73mm D)

5.85 lbs. (2.65 kg)

25 Years

BB-S

BP-414

NCB-414

Specications (continued)

Model:

Series:

System Type:

Frequency Response:

Sensitivity:*

Recommended/Rated Power:

Woofer(s):

Tweeter(s)

Swivel Tweeter(s):

Tweeter Protection:

Crossover Frequency:

Crossover Slope:

Impedance:

Cabinet/Color:

Grille:

Cutout Dimensions:

Finished Dimensions:

Weight:

Warranty:

Rear Enclosure:

Blank Plate:

New Construction Bracket:

MC-6

In-wall 2-way Speaker

50Hz-20kHz (±3dB)

86dB (2.83V @ 1 Meter)

15-120 Watts

(1) 6½” (165mm) Aluminum

(1) 1” (25mm) Aluminum

Yes

3,000 Hz

12dB/Octave

8 Ohms

White Frame (Paintable)

White Aluminum (Paintable)

7-1/4” W x 11” H

(216mm W x 279mm H)

8-1/2” W x 12” H x 3-1/2” D

(216mm W x 305mm H x 89mm D)

4.9 lbs. (2.22 kg)

25 Years

BB-S

BP-6

NCB-6

MC-6DB

In-wall 2-way Surround Speaker

50Hz-20kHz (±3dB)

88dB (2.83V @ 1 Meter)

15-120 Watts

(1) 6½” (165mm) Aluminum

(2) ¾” (19mm) Aluminum

Yes

3,000 Hz

12dB/Octave

8 Ohms

White Frame (Paintable)

White Aluminum (Paintable)

7-1/4” W x 11” H

(216mm W x 279mm H)

8-1/2” W x 12” H x 3-1/2” D

(216mm W x 305mm H x 89mm D)

5.05 lbs. (2.43 kg)

25 Years

BB-S

BP-6

NCB-6

MC-616

In-wall 2-way Speaker

50Hz-20kHz (±3dB)

91dB (2.83V @ 1 Meter)

15-180 Watts

(2) 6½” (165mm) Aluminum

(1) 1” (25mm) Aluminum

Yes

3,000 Hz

12dB/Octave

6 Ohms

White Frame (Paintable)

White Aluminum (Paintable)

7-3/4” W x 19” H

(197mm W x 483mm H)

8-7/8” W x 20-1/4” H x 3-1/2” D

(225mm W x 514mm H x 89mm D)

7.1 lbs. (3.22 kg)

25 Years

BB-S

BP-616

NCB-616

Specications (continued)

Model:

Series:

System Type:

Frequency Response:

Sensitivity:

Recommended/Rated Power:

Woofer(s):

Tweeter(s):

Swivel Tweeter(s)

Tweeter Protection:

Crossover Frequency:

Crossover Slope:

Impedance:

Cabinet/Color:

Grille:

Cutout Dimensions:

Finished Dimensions:

Weight:

Warranty:

Rear Enclosure:

Blank Plate:

New Construction Bracket:

MCS-88

In-wall Subwoofer

35Hz-100Hz (±3dB)

90dB (2.83V @ 1 Meter)

100-200 Watts

(2) 8” (203mm) Aluminum

N/A

100 Hz (Low Pass Defeatable)

12dB/Octave

8 Ohms x2

White Frame (Paintable)

White Aluminum (Paintable)

9” W x 17-1/2” H

(229mm W x 445mm H)

10-1/8” W x 18-3/4” H x 4” D

(257mm W x 476mm H x 102mm D)

10.9 lbs. (4.94 kg)

25 Years

N/A

BP-88

NCB-88

MC-553

In-wall/LCR Dual 2-way Speaker

55Hz-20kHz (±3dB)

88dB Main, 87dB Center, and

90dB Combined (2.83V @ 1 Meter)

15-150 Watts Main, 15-100

Watts Center and 15-200 Watts

Combined

(3) 5-1/4” (133mm) Aluminum

(2) 1” (25mm) Aluminum Dome

Yes

3,000 Hz

12dB/Octave

8 Ohms Main, 6 Ohms Center

and 4 Ohms Combined

White Frame (Paintable)

White Steel (Paintable)

6-5/8” W x 26-3/4 “ H

(168mm W x 680mm H)

7-7/8” W x 28-1/8” H x 3-3/8” D

(181mm W x 714mm H x 80mm D)

9 lbs. (4.08 kg)

25 Years

N/A

TK-6

In-wall 2-way Speaker

50Hz-20kHz (±3dB)

88dB (2.83V @ 1 Meter)

15-100 Watts

(1) 6-1/2” (165mm) Fiberglass

(1) 1” (25mm) Aluminum Dome

Yes

3,000

12dB/Octave

8 Ohms

White Frame (Paintable)

White Aluminum (Paintable)

7-1/4” W x 11” H

(184mm W x 279mm H)

8-1/2” W x 12” H x 3-9/16” D

(216mm W x 305mm H x 90mm D)

4.55 lbs. (2.06 kg)

25 Years

BB-S

BP-6

NCB-6

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels RBH Sound Intervenants

RBH Sound

RBH Sound Impression Series Manuel utilisateur

RBH Sound

RBH Sound QM-615 Manuel utilisateur

RBH Sound

RBH Sound AO-520 Manuel utilisateur

RBH Sound

RBH Sound SIGNATURE SERIES Manuel utilisateur

RBH Sound

RBH Sound WM-24 Manuel utilisateur

RBH Sound

RBH Sound Signature SX-10 Manuel utilisateur

RBH Sound

RBH Sound Ultra-3 Manuel utilisateur

RBH Sound

RBH Sound HS-615 Manuel utilisateur

RBH Sound

RBH Sound T-30LSE Manuel utilisateur

RBH Sound

RBH Sound A-605/70 Manuel utilisateur

RBH Sound

RBH Sound Ultra Series Manuel utilisateur

RBH Sound

RBH Sound AO520 Manuel utilisateur

RBH Sound

RBH Sound MC-616 Manuel utilisateur

RBH Sound

RBH Sound SI-744 Manuel utilisateur

RBH Sound

RBH Sound TK Manuel utilisateur

RBH Sound

RBH Sound MC series Manuel utilisateur

RBH Sound

RBH Sound SIGNATURE SERIES Manuel utilisateur

RBH Sound

RBH Sound R-5E Manuel utilisateur

RBH Sound

RBH Sound Impression Series Manuel utilisateur

RBH Sound

RBH Sound MC series Manuel utilisateur

RBH Sound

RBH Sound A-610 Guide rapide

RBH Sound

RBH Sound SIGNATURE SV SERIES Manuel utilisateur

RBH Sound

RBH Sound A-504D Guide rapide

RBH Sound

RBH Sound MC-615-70 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
