RBH Sound TK Manuel utilisateur

TK SERIES

FREESTANDING SPEAKERS

I n s t a l l a t i o n & O p e r a t i o n M a n u a l

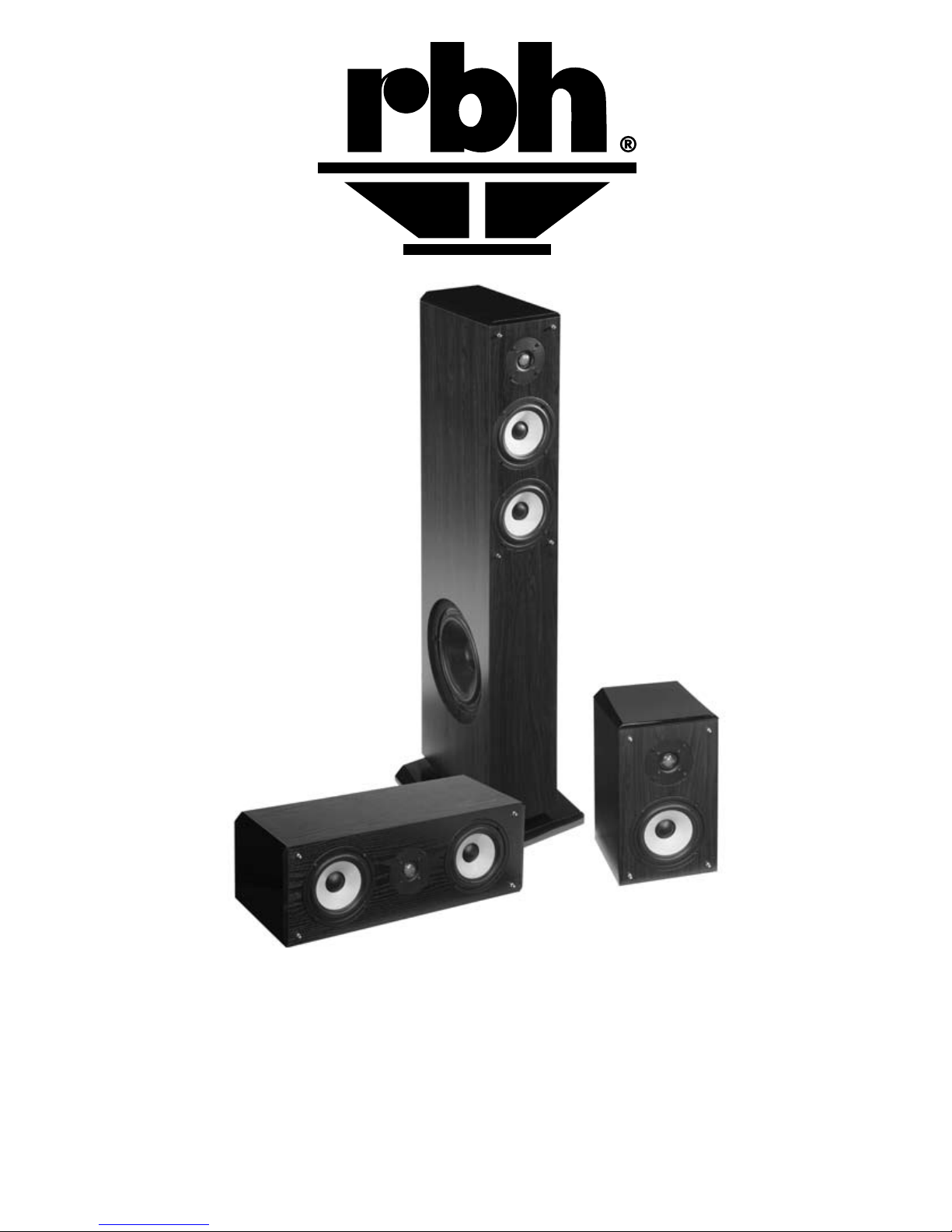

K-515C 2-way LCR/Center Channel Speaker

TK-5C 2-way

Bookshelf Speaker

TK-5CT

3-way

Tower Speaker

Introduction

TK Series Speakers

Congratulations on your purchase of RBH Sound freestanding speakers! Your

speakers are the result of many years of research and development dedicated to

producing high quality products for home audio and audio/video systems.

This manual contains features, setup recommendations and specications for

the TK-5CT, TK-515C and TK-5C freestanding speakers. We recommend

you thoroughly read through the material contained in this manual before

connecting your speakers. This will ensure you have a good understanding

of how to setup your speakers for optimum performance and allow for years

of listening enjoyment.

Break-in Period

Allow 10-15 hours of listening time to adequately break-in the TK Series speak-

ers. As the speakers break-in, the driver suspension will loosen. The result of

break-in will be an increase in low frequency response, improved denition,

and increased clarity and detail.

Care and Cleaning

To maintain speaker appearance, we recommend wiping them down with a

clean damp soft cloth. To clean dust from the grille cloth, use a vacuum with

a brush attachment.

Features

At the heart of the TK Series speaker system is a proprietary berglass cone

bass/midrange driver (speaker). The berglass cone resists exing better than

typical speaker cone materials, thereby providing highly articulate and accurate

reproduction of the audio signal. The stiffness and lightweight characteristics

of berglass, combined with the driver’s large motor structure, give the drivers

high excursion capability. This high excursion capability prevents compression

or distortion of the audio signal, which leads to higher overall sound quality. The

smaller drivers and tweeters in the TK speaker system are video shielded to cancel

any stray magnetic elds which may cause interference with video equipment such

as CRT televisions.

A high quality soft dome tweeter is used for high frequencies in the TK Series.

Higher power handling is achieved through the use of Ferro Fluid® liquid cooling

in the tweeter. To protect the tweeter against being over driven, a Polyswitch

(a DC current limiting device) is incorporated in the crossover network.

Each TK Series model features an extensive crossover network. The use of these

high quality crossover networks allows each speaker to operate at its optimal

performance. Steep acoustic crossover slopes are used to integrate the drivers;

the use of steep crossover slopes allow higher power handling, minimizes driver

interaction irregularities, and maximizes the ability of each driver in their respective

band of frequencies. Large 5-way binding posts ensure a good, solid electrical

connection to these crossover networks.

The TK Series cabinets are constructed of ¾-inch medium density berboard

because of its inert properties, thereby preventing sound coloration due to

cabinet diffraction. The thickness of the front bafes also prevents excess

acoustic radiation.

Attaching Speaker Wires

When using a banana jack to attach speaker wires to the binding post terminals,

remove the black and red plastic protective inserts from the terminals. To

do this, loosen the binding nut from the terminal by turning the nut counter-

clockwise until the nut is completely removed from the terminal. Remove the

plastic inserts by pulling them straight out, then replace the nut to the terminal

and turn clockwise. Insert the banana jack into the hole provided in the top of

the terminal, and then continue to tighten the nut until secure. Repeat for the

other speaker wire(s) as necessary.

Room Setup Suggestions

In order to extract the best possible sound from your speaker system, it is

important to determine where the speakers will sound best in your listening

room. Room reections from the oor, ceiling and side walls inuence the bal-

ance, imaging and overall sonic quality at the listening position. Experiment

with speaker placement to determine which location offers the best overall

sound. As a general guide, use the room layout diagram and the following the

descriptions when setting up a home theater system. Some speakers shown

in the diagram may not always be applicable to your individual system.

Front Main Speakers

As a starting point, place your left and right TK-5CT Tower Speakers at least 15 inches

from the wall and 7 feet apart from each other. The distance from the listening position

to each speaker should be close to the distance that separates the two main speakers.

Angling the speakers inward towards the listening position may give a more spacious

and realistic sound stage.

Center Channel Speaker

The TK-515C Center Channel Speaker should be placed in the center between both

left and right main speakers. Often this positioning dictates placing the speaker either

directly above or below a television monitor. Since the TK-515C is video shielded, the

center speaker may be placed in close proximity to a television without cause for concern.

The TK-515C Center Channel Speaker may be placed in a horizontal (lying down) or

vertical (standing) position.

Attaching Speaker Wires (continued)

If not using a banana jack, simply loosen the binding nut to allow the hole in

the side of the terminal to become exposed. Strip ¼-inch of the insulation

from the end of the speaker wire and insert the exposed wire end into the now

exposed hole in the side of the terminal. Tighten the binding nut by turning the

nut clockwise until the speaker wire is secured. Repeat for the other speaker

wire(s) as necessary.

Rear Surround Speakers

The TK-5C 2-way Bookshelf Speakers may be placed either above, behind or to the sides

of the listening position. The listening position should be centered between the surround

speakers. For best performance you may want to experiment with angling the surround

speakers either towards or away from the listening position.

Subwoofer

Placement of the subwoofer will largely determine quality, quantity, and extension of the

bass frequencies within your listening room. Bass frequencies are reinforced by close

room boundaries. Placing the subwoofer in a corner will make the subwoofer sound

louder and boost the very lowest frequencies. Placing the subwoofer away from walls

will provide the least reinforcement, making the bass sound subjectively thinner than

if the woofer were close to a wall. Good results can usually be obtained by placing a

subwoofer along a wall 1-3 feet from a corner. Experiment with subwoofer placement

and the sub-amplier controls to achieve the proper bass balance.

NOTE: There are several different surround formats available. Dolby Pro-Logic, Pro-Logic II, Dolby

Digital and DTS generally have a 5 speaker plus subwoofer requirement. Dolby Digital EX and DTS

ES add a center rear speaker. Please consult your audio/video professional to determine which

system is best for you and how many speakers you will require.

Room Setup Suggestions

No sound from

speakers

No sound from

one speaker

Very little bass

and/or imaging

Speaker wire not connected

Speaker selector on amplier

is not on

Balance control on receiver

or pre-amp is not centered

Speaker wire not securely

connected

Speakers are wired out of

phase

Make sure wire is connected

at both the speaker and the

amplier observing proper

polarity

Activate proper selector on

amplier

Place balance control in the

center

Check all connections at

amplier and speakers

Check entire system for

proper polarity and make

adjustments as necessary

Troubleshooting

Probable Cause: Solution:

Situation:

Model TK-5CT TK-515C TK-5C

Frequency

Response:

45Hz – 20Hz 60Hz – 20Hz 60Hz – 20Hz

Sensitivity:

87dB 89dB 86dB

Power

Handling:

150 Watts 120 Watts 100 Watts

Woofer:

8” Kraft Pulp Woofer

Dual 5¼” Fiberglass

Mid-Range Woofers

Dual 5¼” Fiberglass

Mid-Range Woofers

5¼” Fiberglass

Mid-Range Woofer

Tweeter:

1” Fabric Dome Tweeter 1” Fabric Dome

Tweeter

1” Fabric Dome

Tweeter

Impedance:

8 Ohms 8 Ohms 8 Ohms

Crossover

Frequencies:

120Hz / 3000 Hz 3000 Hz 3000 Hz

Dimensions:

Height: 42.5”

Width: 11”

Depth: 13¼”

Height: 7¼”

Width: 20¾”

Depth: 8½”

Height: 12¾”

Width: 7¼”

Depth: 8½”

Finish:

Black or Rosewood with

gloss black top/side

accents

Black or Rosewood

with gloss black

top/side accents

Black or Rosewood

with gloss black

top/side accents

Weight:

40 17 11

Specications

1 8

Warranty

Your RBH Sound TK Freestanding Speakers are covered by a limited war-

ranty against defects in materials and workmanship for a period of 5 years

from the original date of purchase. This warranty is provided by the autho-

rized RBH Sound dealer where the speaker was purchased. Warranty repair

will be performed only when your purchase receipt is presented as proof of

ownership and date of purchase. Defective parts will be repaired or replaced

without charge by your dealer’s store or the location designated by your dealer

authorized to service RBH Sound products. Charges for unauthorized service

and transportation cost are not reimbursable under this warranty. This war-

ranty becomes void if the product has been damaged by alteration, misuse or

neglect. The warrantor assumes no liability for property damage or any other

incidental or consequential damage whatsoever which may result from the

failure of this product. Any and all warranties of merchantability and tness

implied by law are limited to the duration of this express warranty. Some states

do not allow limitations on how long an implied warranty lasts, so the above

limitations may not apply to you. Some states do not allow the exclusion or

limitation of incidental or consequential damages, so the above limitation or

exclusion may not apply to you.

382 Marshall Way, Layton, Utah • USA • 84041

Toll Free: (800) 543-2205 • Fax: (801) 543-3300

www.rbhsound.com

It is RBH Sound policy to continuously incorporate improvements into our products; all specications are subject to change without notice.

Redening the Way You Experience Sound.TM
