Razor E250A Manuel utilisateur

E250A User Manual

Thank you for purchasing our product. For your safety and for the reliable

operation of this product, please carefully read this User Manual and

Limited Manufacturer Warranty before using this product.

!WARNING!: Whenever you ride the motorized scooter, you risk

death or serious injury from loss of control, collisions, and falls. To

ride safely, you must read and follow all instructions and warnings in

this User Manual.

Safety

1. This device does not conform to Federal Motor Vehicle Safety standards

and is not intended for operation on public streets, roads or highways.

Please familiarize yourself with applicable laws and regulations. Your

police department or local department of motor vehicles may be able to

answer your questions or direct you to a reliable authority.

2. Safety helmet, goggles, gloves, elbow and knee pads, appropriate shoes,

and bright clothing must be worn while operating this scooter.

3. Do not operate this scooter in traffic, or on wet, frozen, oily or unpaved

surfaces. Avoid uneven surfaces, chuckholes, surface cracks,

obstacles and night conditions or conditions of poor visibility.

4. Never carry passengers and objects that can hinder your abilities to

safely operate the scooter.

5. Pregnant persons should not operate this scooter.

6. Never use alcohol or drugs before or while operating this scooter. They

slow reaction time and impair judgment.

7. High speeds, jumps, trick maneuvers are dangerous and could result in

loss of control and other accidents.

8. When accelerating or climbing hills, you will need to lean forwards; under

braking conditions you will need to lean back, to keep wheels in contact

with the ground. When descending a hill, be ready to apply the rear

brake for additional stopping force. When first riding the scooter,

familiarize yourself with braking distance using the front electronic

magnetic brake and the rear friction brake in a controlled environment,

away from vehicles, obstacles and other hazards. Always allow

enough distance and time for braking. Drive the scooter defensively.

9. Never permit a guest to use this device unless the guest has read the

user manual and all warnings.

10.Always provide your guest with helmet, safety goggles, elbow pads and

knee pads before permitting the guest to operate the scooter.

11.This product should not be used by persons unwilling or unable to take

responsibility for their own actions.

12.Read this manual and all warnings before operating this product. (See

first sentence of first page.)

13.Homeowners or other insurance may not cover either direct or third

party liability claims arising from use of this scooter. To determine if

coverage is provided, you should contact your insurance company or

agent.

14.Do not allow anyone under the age of 16 (sixteen) to operate this

scooter. The scooter is designed for operation by and the transport of

only one person age 16 or older.

15.Please ride your scooter in a controlled environment, away from

vehicles, obstacles and other hazards.

16.For your safety, do not jump, perform wheelies or other stunts while

riding the scooter. Keep both hands on the handle bar and both feet on

the standing board when riding the scooter.

17.The scooter’s maximum speed is 23 km/h (15 mph). For your safety,

please limit the speed to not more than 20 km/h (13 mph).

18.Do not ride your scooter at night or in conditions of poor visibility. If

night riding or riding in conditions of poor visibility is unavoidable, please

limit your speed to 15km/h (10 mph) or less, turn on the headlight and

wear reflective clothing. !WARNING!: Riding at dawn, dusk, or at

times of poor visibility without a lighting system which meets state

and local laws and without approved reflectors is illegal, dangerous

and can result in serious injury or death.

19.Do not use the scooter when the temperature is below -5 ℃(23

degrees F).

20.Please stop the scooter and walk it across rough or slippery road

conditions.

21.Avoid riding in wet or icy conditions. !WARNING!: Wet or icy

weather impairs traction, braking and visibility for riders and others.

The risk of accidents increase in wet or icy conditions.

22.Although some water resistance measures have been made, your

electric scooter is not water resistant. Riding the scooter through

standing water, wet or muddy conditions runs the risk of severely

damaging it. Do not immerse the scooter in the water or directly spray

the scooter with water when cleaning.

Fold/Unfold Instructions

a. Fold

1. Open the quick release lever according to the arrow direction shown on figure

<1>.

2. Press the button (in the red circle) shown in figure <2> and at the same time

push down the handlebar to the location shown in figure <3>. Lock the quick

release lever to the original position shown in figure <1>.

3. Hold the handlebar grips with both hands and press the left and right buttons (in

the red circle) down firmly as shown in figure <4>. The button is located

underneath the rubber handle bar grips. While continuing to press the handle grip

release buttons, pull out the handlebar grips according to the arrow direction shown

in figure <4> and then fold them downward. The handle grips will be folded as

shown in picture (B).

4. Push the handlebar forward slightly to release tension on the folding mechanism

and at the same time press the silver folding lever according to the direction shown

in Figure <6>, then fold the handlebar down to the position shown in picture C.

b.Unfold

1. Push the silver folding lever according to the direction shown in figure <7> and

then lift the handlebar forward until the hook plate of the folding mechanism securely

locks into place.

2. Lift the handlebar grips according to the arrow direction shown in figure <8>.

The handle grips will lock into place automatically.

3. Push the quick release lever according to the arrow directionshown in figure <9>.

Raise the handlebar height to either of the two handlebar height limiting holes shown

in figure <10>. Once the handlebar height limiting hole locks into place, lock the

quick release lever securely to the position shown in figure <9>.

Control Panel

1. Introduction to Control Panel.

1 Thumb Accelerator

2 Thumb Electronic Magnetic Brake

3 On/Off switch

4 Setting Button

5 Mode Button

6 Horn Button

7 Led Headlight Button

8 Handlebar Fold Buttons (Hidden underneath the grip cover)

9 Display

2. Operating Instructions

a. ON/OFF <Figure D>

Press the on/off switch, and the display lights will indicate power on. The scooter

will automatically turn off after it is unused for 3 minutes.

b. Speed control <Figure D>

Press down the right thumb accelerator to accelerate the scooter (1-23km/h). The

greater you press down the right thumb accelerator, the faster the scooter will travel.

c. Brake Control <Figure D>

Press down the left thumb control to apply the electronic magnetic brake located

within the front wheel. The greater you press down the left thumb control, the

greater the braking force applied. The electronic brake slowly stops the scooter.

Apply the emergency brake for faster stops.

d. Horn <Figure D>

Turn on the power, press the horn button and it will sound.

e. LED Headlight <Figure D>

Press the red LED headlight button to turn the light on. The display will indicate the

light is turned on. Press the LED headlight button again to turn the light off. Do

not operate the scooter at night or in conditions of poor visibility.

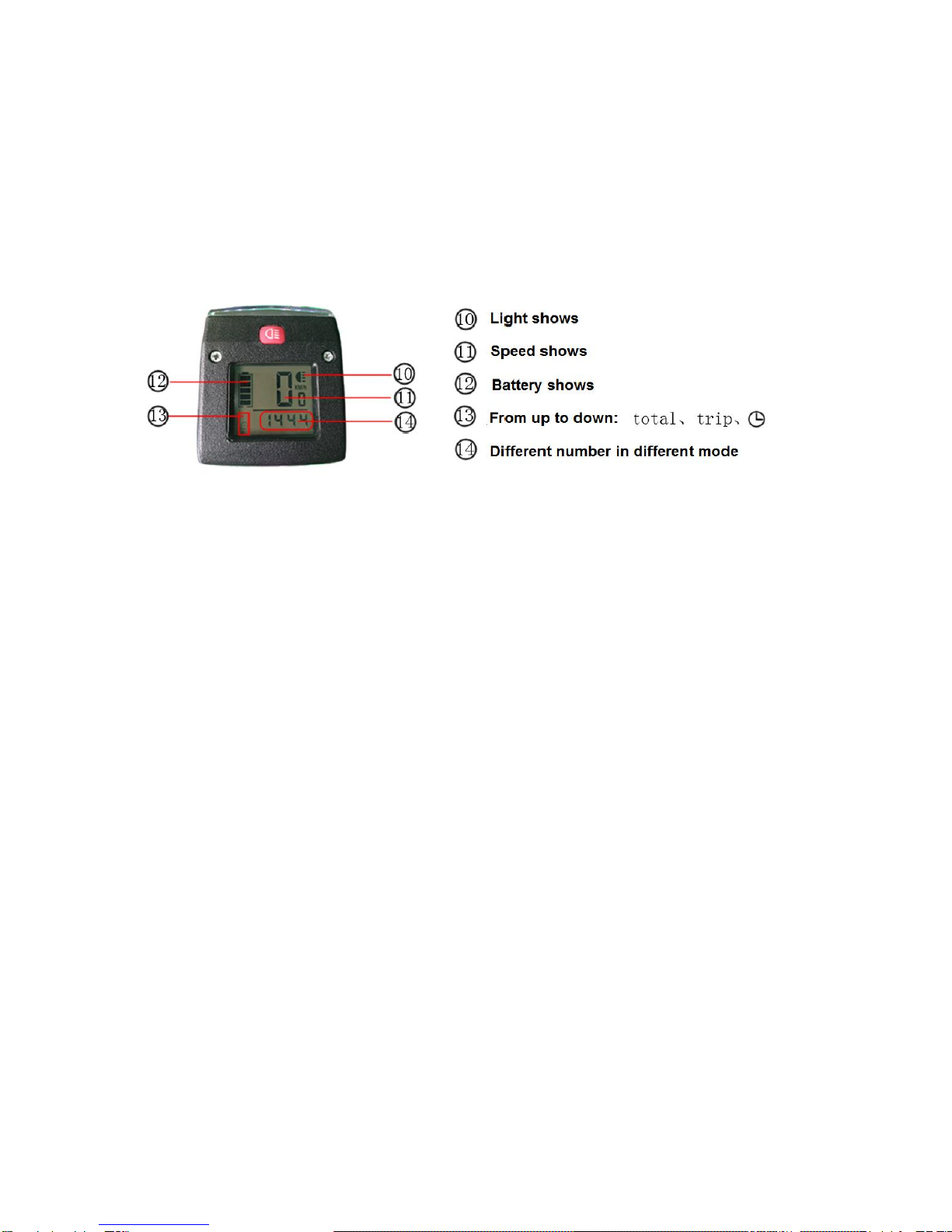

f. Display

-When power is off, the display shows the time.

-When power is on, the display has three modes: total, trip and time. You can press

the mode button to change it. When it displays the ‘trip’mode, press the setting

button for 3 seconds and it will reset the trip.

-To set the time, press the power button on, then press the setting button for 3

seconds-12 hr or 24 hr will begin to flash, use the mode button to select either 12 or

24 hour time, press the setting button to toggle next to set the hour, use the mode

button to select the correct hour, use the setting button to toggle next to set the

minutes, use the mode button to select the correct minutes. When the time is set,

press the setting button a final time.

g. Emergency Brake

For quick stops or additional braking force, push the rear foot friction brake.

Applying the rear friction brake also engages the front wheel electronic magnetic

brake. Please note, applying the rear friction brake under high speeds may damage

the rear wheel. The manufacturer will not be responsible for this damage.

3. Display Factory Setting for Kilometers or Miles.

Press setting button and mode button at the same time for 3 seconds. Four

numbers will flash at the bottom right of display. Press the setting button to change

the number location and press the mode button to change the number from 0-9.

Set the number to 0624 according to this method (front wheel perimeter is 0624mm).

After this, press the setting button again and ‘km/h’will flash, press the mode button

to change ‘km/h’to ‘m/h’. Press the setting button a final time and the settings will

be finished.

Riding Operation

Getting Ready

1. Fully charge the battery.

2. Choose a controlled environment, away from vehicles, obstacles and other

hazards for riding. Even if you have previous experience with motorized scooters,

vehicles, bicycles, etc., you must familiarize yourself with the function, handling,

performance and safety of this scooter in a safe and controlled environment.

3. Unfold the scooter.

4. Adjust the handlebar to the correct height according to your height.

Start

1. Press the power button to turn on the scooter.

2. Stand one foot on the scooter and leave your second foot on the ground.

3. Slowly press down on the right thumb accelerator, the scooter will begin to move

forward. Place the foot which was on the ground on the riding board. Press the

right thumb control to accelerate, the further you press it down, the faster the scooter

will travel.

Stop

1. Under normal circumstances, press the left thumb electronic magnetic brake, the

electric motor will de-energize and then brake slowly. The further you press down

the brake thumb control, the greater the braking force applied. !WARNING!: Take

time to familiarize yourself with the electronic brake and the distance it takes

to come to a complete stop using the electronic brake. The electronic brake

slowly stops the scooter.

2 For quicker emergency stops, press the rear foot brake. The foot brake applies

the electronic magnetic front brake and the rear wheel friction brake. Please note,

applying the rear friction brake under high speeds may damage the rear wheel.

The manufacturer will not be responsible for this damage.

Battery and Charger

Each electric scooter is equipped with a lithium battery and smart charger designed

specifically for each other. Only use the charger supplied by the manufacturer to

charge the scooter. Do not charge the battery with any charging system other than

what is provided. If the battery or charger is damaged due to improper use, the

manufacturer warranty shall be void.

Battery

-The electric scooter batteries should be fully charged before the first use. Always

charge the battery in a clean, dry location, free of debris.

-The battery can be recharged at any time. You do not need to fully deplete the

battery before recharging it.

-When not in use, please fully charge the battery once every two months.

Battery damage due to water, collision, and other non-normal factors that lead to

battery damage is not covered under warranty.

Charger

-The company provided charger has a charging protection function. When the

battery is 100% charged, the charger will automatically stop charging.

-Charging time is no more than 3 hours.

-Charger damages due to water, collision, or other non-normal factors is not covered

under warranty.

Charge Description

-The charge port is located on the frame of the scooter above the folding mechanism.

Open the charge port rubber protective cover and securely plug the charger into the

charge port.

-Plug the charger into the power socket.

-A solid red light on the charger indicates the battery is charging. Asolid green light

indicates the battery is fully charged.

Table des matières

Autres manuels Razor Scooter

Razor

Razor E100 series Manuel utilisateur

Razor

Razor El Dorado Manuel utilisateur

Razor

Razor PowerRider 360 Manuel utilisateur

Razor

Razor E90 Series Manuel utilisateur

Razor

Razor Cruiser Manuel utilisateur

Razor

Razor E300 Series Manuel utilisateur

Razor

Razor Turbo A Manuel utilisateur

Razor

Razor R Tec Manuel utilisateur

Razor

Razor HOVERTRAX 2.0 Manuel utilisateur

Razor

Razor E100 GLOW Manuel utilisateur

Razor

Razor Pocket Mod Manuel utilisateur

Razor

Razor POWER A 2 Manuel utilisateur

Razor

Razor jetts Manuel utilisateur

Razor

Razor Spark Manuel utilisateur

Razor

Razor Pocket Mod Petite Manuel utilisateur

Razor

Razor California Longboard Manuel utilisateur

Razor

Razor Pro Series Manuel utilisateur

Razor

Razor C45 Manuel utilisateur

Razor

Razor UB1 Manuel d'utilisation et d'entretien

Razor

Razor Ground Force Drifter Fury Manuel utilisateur

Razor

Razor Electric Party POP Manuel utilisateur

Razor

Razor E300 Series Manuel utilisateur

Razor

Razor HOVERTRAX PRIZMA Manuel utilisateur

Razor

Razor Kick scooter Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
