RAYSTECH RT-5100S Manuel utilisateur

RT-5100S

Residential ESS Manual

About RT-5100S ESS

RT-5100S can be installed in Parallel, more attention should be paid for the DIP and

address selection following with part 5.3.2.

About this Manual

The Manual is intended for theRT-5100S Residential ESS, the hybrid inverter and any

other equipment is not included.

RAYSTECH (PTY) LTD.

Contents

1 Safety Instructions............................................................................................................................ - 1 -

1.1 Important Safety Instructions................................................................................................ - 1 -

1.2 Warnings in this Document................................................................................................... - 1 -

1.3 Battery handing guide.............................................................................................................- 1 -

1.4 Response to emergency situations......................................................................................- 1 -

1.4.1 Leaking batteries...............................................................................................................- 2 -

1.4.2 Fire ........................................................................................................................................ - 2 -

1.4.3 Wet battery.........................................................................................................................- 2 -

1.4.4 Damaged battery..............................................................................................................- 2 -

1.5 Installers.......................................................................................................................................- 3 -

1.6 Scrap battery..............................................................................................................................- 3 -

1.7 Customer careline.................................................................................................................... - 3 -

2 Product Introduction....................................................................................................................... - 3 -

2.1 Technical data............................................................................................................................- 3 -

2.2 Exploded views of battery......................................................................................................- 4 -

2.3 Indicator and ports...................................................................................................................- 4 -

2.4 Communication interface plat（DVC-A2 voltage）......................................................- 5 -

2.5 How it works.............................................................................................................................. - 5 -

2.6 Features.......................................................................................................................................- 6 -

3 Guidance for disconnection of batteries during shipment................................................... - 7 -

4 Installation Prerequisites................................................................................................................. - 7 -

4.1 Installation location.................................................................................................................. - 7 -

4.2 Installation process...................................................................................................................- 8 -

4.3 Installation materials................................................................................................................ - 8 -

4.4 Tools.............................................................................................................................................- 9 -

4.5 Safety instruments....................................................................................................................- 9 -

4.6 Network cable......................................................................................................................... - 10 -

4.7 Storage......................................................................................................................................- 10 -

5 Battery Installation..........................................................................................................................- 10 -

5.1 Package items......................................................................................................................... - 10 -

5.2 Checks before installation....................................................................................................- 11 -

5.3 Installation the battery.......................................................................................................... - 11 -

5.3.1 Connect with 51.2Vdc Inverter...................................................................................- 11 -

5.3.1.1 Wall mounting............................................................................................ - 11 -

5.3.1.2 Ground installation.................................................................................... - 12 -

5.3.2 Address selection of Master and Slave battery(ies) connection........................- 13 -

5.4 Cable connections..................................................................................................................- 15 -

5.4.1 Cable connection for Parallel connection............................................................... - 16 -

5.4.1.1 Ground installation.................................................................................... - 16 -

5.4.1.2 Wall mounting............................................................................................ - 16 -

6 Configuration.................................................................................................................................. - 17 -

6.1 Configure device WIFI...........................................................................................................- 17 -

6.2 Register your account...........................................................................................................- 17 -

6.3 Settings for CAN /485 bus pins..........................................................................................- 24 -

7 Commissioning............................................................................................................................... - 24 -

7.1 Commissioning battery.........................................................................................................- 24 -

7.2 Shutting down battery.......................................................................................................... - 25 -

8 Troubleshooting............................................................................................................................. - 25 -

9 Firmware Update............................................................................................................................- 26 -

10 RED Declaration of Conformity (DoC)................................................................................... - 31 -

- 1 -

1 Safety Instructions

1.1 Important Safety Instructions

This manual contains important instructions for:

RT-5100S Residential ESS product

This manual must be followed when installing and using this product.

The product is designed and tested in accordance with international safety

requirements IEC 60364, but as with all electrical and electronic equipment, certain

precautions must be observed when installing and/or operating the product. To

reduce the risk of personal injury and ensure the safe installation and operation of

the product, you must carefully read and follow all instructions, cautions and

warnings in this manual.

1.2 Warnings in this Document

A warning describes a hazard to equipment or personnel. It calls attention to a

procedure or practice, which, if not correctly performed or adhered to, could result

in damage to or destruction of part or all of the RAYSTECH equipment and/or

other equipment connected to the RAYSTECH equipment or personal injury.

Symbol

Description

Caution, risk of electric shock

Heavy enough may cause severe injure

Keep the battery away from open flame or ignition sources

Keep the battery away from children

Do not dispose of the product with household waste

Recycling

Read this manual before installation and operation

For safety reasons, installers are responsible for familiarizing themselves with the

contents of this manual and all warnings before performing installation.

1.3 Battery handing guide

Use the battery pack only as directed.

1.4 Response to emergency situations

The RAYSTECH Residential ESS is designed with multiple safety strategies to

prevent hazards resulting from failures. However, RAYSTECH cannot guarantee

- 2 -

their absolute safety for uncertain situations.

1.4.1 Leaking batteries

If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas.

Electrolyte is corrosive and contact may cause skin irritation and chemical burns. If

one is exposed to the leaked substance, do these actions:

Inhalation: Evacuate the contaminated area, and seek medical attention

immediately.

Eyes contact: Rinse eyes with flowing water for 15 minutes, and seek medical

attention immediately.

Skin contact: Wash the affected area thoroughly with soap and water, and seek

medical attention immediately.

Ingestion: Induce vomiting as soon as possible, and seek medical attention

immediately.

1.4.2 Fire

In case of a fire, make sure that an ABC or carbon dioxide extinguisher is nearby

and does not use water to extinguish the fire.

WARNING

The battery pack may catch fire when heated above 130°C.

If a fire breaks out where the battery is installed, do these actions:

1) Extinguish the fire before the battery catches fire.

2) If the battery has caught fire, do not try to extinguish the fire.

Evacuate people immediately

If the battery catches fire, it will produce poisonous gases. Do not

approach.

1.4.3 Wet battery

If the battery is wet or submerged in water, do not try to access it. Contact

RAYSTECH customer careline or your distributor for technical assistance.

1.4.4 Damaged battery

If the battery damaged, please contract RAYSTECH customer careline or your

distributor for help as soon as possible, because damaged battery is dangerous

and must be handled with extreme caution. Damaged battery is not suit for use

and may pose a danger to people or property. If the battery seems to be damaged,

return it to RAYSTECH or your distributor.

CAUTION

Damaged battery might export electrolyte or flammable gas, so

contact RAYSTECH for advice and information immediately. we will

- 3 -

deal with it within 48h

1.5 Installers

RAYSTECH Energy Storage battery is suggested to be installed by skilled worker or

electrician. A skilled worker is defined as a people who had been trained and

qualified electrician or had all of the following skills and experience:

Knowledge of the functional principles and operation of on-grid energy

Storage systems.

Knowledge of the dangers and risks associated with installing and using

electrical devices and acceptable mitigation methods.

Knowledge of the installation of electrical devices

Knowledge of and adherence to this manual and all safety precautions and

best practices.

1.6 Scrap battery

For scrap battery, please treat with local laws or regulations to recycle or scrap.

1.7 Customer careline

Use the contacts below for technical assistance. This phone numbers is available

only during business hours on weekdays.

Customer careline

+27 72 100 5685

2 Product Introduction

2.1 Technical data

Model

RT-5100S

Total Energy*

5.1kWh

Usable Energy(d.c)*

4.8kWh

Nominal Charge/Discharge Power

5Kw

Voltage

48V-56Vd.c

Nominal Voltage

51.2Vd.c

Nominal Current

100A

Max. Charge Voltage

56V

Recommended DOD

90%

Operating Condition

Indoor

Operating Temperature（Charge）

0~50℃

Operating Temperature（Discharge）

-10~55℃

Dimensions(mm)

442*500*133

- 4 -

Weight

44±0.5 Kg

Relative Humidity(R H)

20~60%(No condensed water)

Cooling Type

Ambient cooling

Case Material

Metal

Color

White

Installation

Cabinet or Wall Mounting

IP Rating

IP20

Protective Class

Max. Number of Parallel

Warranty

10Years

Communication

CAN/RS485

Protection Mode

Triple Hardware Protection

Battery Protection

Over-Current/Over-Voltage/Short Circuit/

Under-Voltage/Over-Temperature

Safety Certificate

CE & TUV(IEC 62619, IEC 62040)

Hanrzd Class of Dangerous Goods

Transportation

UN38.3

Testing Conditions Based on Temperature 25℃ at The Beginning of Life.

Total Energy/Usable Energy Measured Under Specific Conditions From RAYSTECH 0.2C

CC/CV

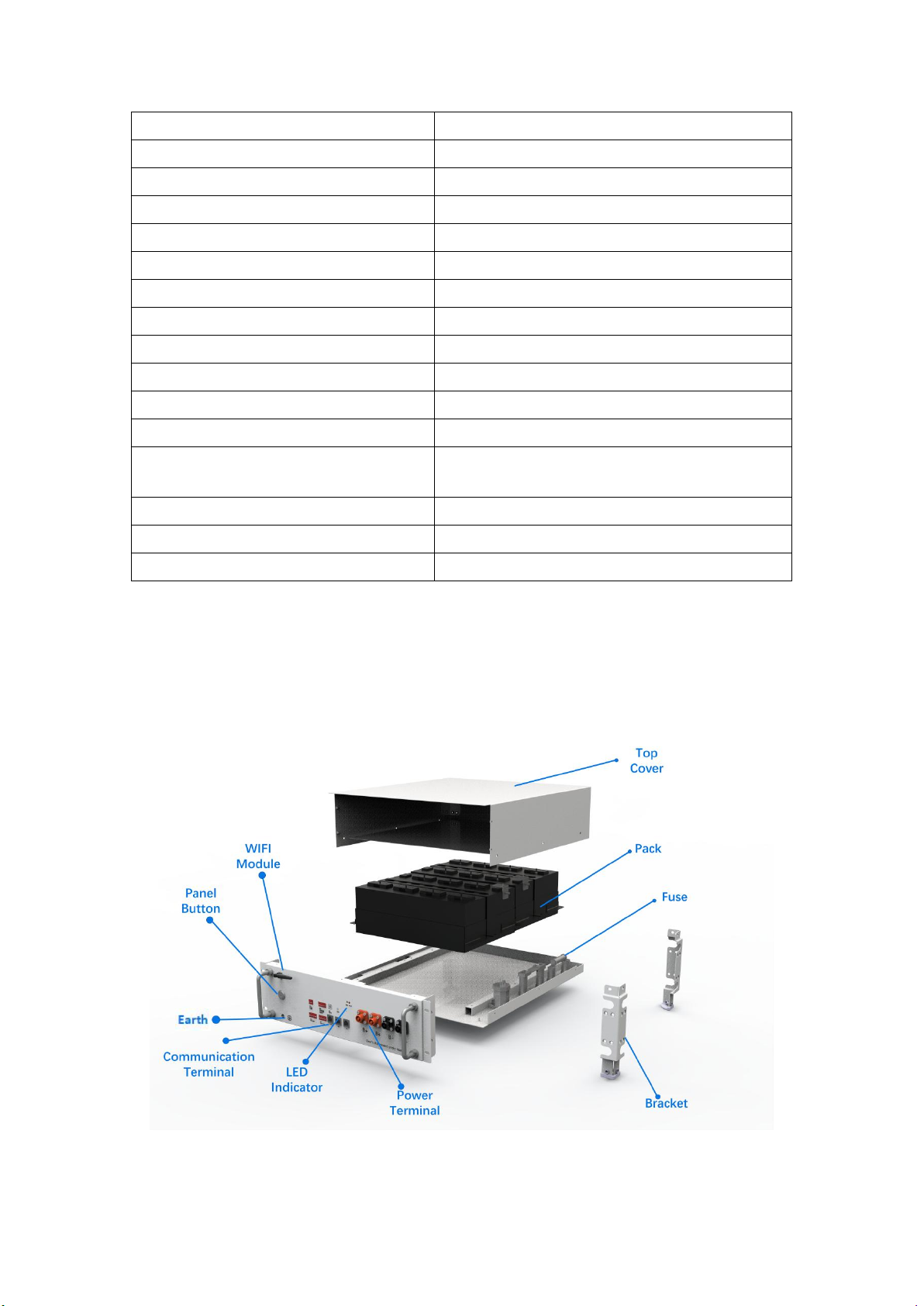

2.2 Exploded views of battery

2.3 Indicator and ports

- 5 -

There are two LED indicators on the front of the battery to show its operating

status.

Table 2-1 Designations on the battery

Item

Designation

Definition

Running

Battery normally working without fault

Fault

Battery is in a warning state, see troubleshooting in Chapter 8

2.4 Communication interface plat（DVC-A2 voltage）

SW1

DIP switch select for CAN or RS485

SW2

Resistance for communication and DIP switch for parallel connection

SW3

Switch for battery’s Address select

SW4 & SW5

Communication interface for battery or master battery with Inverter

Reset

Reset the WIFI or GPPS/GPS module configuration

2.5 How it works

- 6 -

Morning

Afternoon

Optimized self consumption will be

achieved. ESS are used to store the

excess energy produced by PV system.

Extra energy will be fed into the grid

when ESS are fully charged and system

has already meet its load requirement.

Evening

Night

ESS will power the AC load when the

sun sets.

If the ESS capacity is insufficient to meet

self consumption requirement, electricity

will be obtained from the grid.

2.6 Features

The RAYSTECH Residential ESS has following features:

Energy storage unit: This battery is suit for PV solar system compatibility.

Battery management system (BMS): The battery built-in BMS monitor. It

prevents the battery from running outside of the design, limitations. See

Troubleshooting on Chapter 8.

Monitor: The battery BMS built-in with WIFI module, the battery running

information could be seen in mobile phone and computer.

- 7 -

Easy firmware update: The BMS firmware can be updated to the latest version.

See Chapter 9 Firmware Update.

Expandability: The battery capacity can be increased by adding other batteries.

See part 5.4 cable connections.

3 Guidance for disconnection of batteries during shipment

1) Cartons that have been crushed, punctured, or torn in such a way that contents

are revealed shall be set aside in an isolated area and inspected by a skilled

person. If the package is deemed to be not shippable, the contents shall be

promptly collected, segregated, and either the consignor or consignee

contacted.

2) The DC circuit of RAYSTECH Residential ESS has been disconnected before

outgoing.

3) A precautionary label had been affixed to the shipping carton to alert

individuals as to the battery within the package have been disconnected;

otherwise, the battery should not be transported.

4) We have conducted comprehensive tests to ensure the equipment they

distribute around the world is safe for shipping transport. These products shall

be handled with care and immediately inspected if visibly damaged. lf the

cartoon visibly damaged,please contract with RAYSTECH customer careline to

confirm whether the battery could be used safely or not.

4 Installation Prerequisites

4.1 Installation location

Make sure that the installation location meets the following conditions:

The building is designed to withstand earthquakes.

Far away from the sea to avoid salt water and humidity.

The floor is flat and level.

No flammable or explosive materials nearby.

Optimal ambient temperature is between 15℃ and 30°C.

Table des matières

Autres manuels RAYSTECH Accessoires pour appareils photo

RAYSTECH

RAYSTECH LFP Battery S Series Manuel utilisateur

Manuels Accessoires pour appareils photo populaires d'autres marques

Viltrox

Viltrox EF-NEX Instructions d'installation

Calumet

Calumet 7100 Series CK7114 Manuel utilisateur

Ropox

Ropox 4Single Series Manuel utilisateur

Cambo

Cambo Wide DS Digital Series Mode d'emploi

Samsung

Samsung SHG-120 Manuel utilisateur

Ryobi

Ryobi BPL-1820 Manuel d'utilisation

Aegis

Aegis ABL-36020P Manuel utilisateur

Pentax

Pentax Data Back Fc Manuel utilisateur

Fantasea

Fantasea EyeGrabber F Series Manuel utilisateur

Honeywell

Honeywell HDZ20HD Manuel utilisateur

EGO

EGO BA1400T Manuel utilisateur

Sima

Sima SRW-62 Manuel utilisateur

Shape

Shape A7SSMKIT Manuel utilisateur

Slide Kamera

Slide Kamera HST-2 Manuel utilisateur

Power works

Power works 2902613 Manuel utilisateur

SES

SES SE-2047-2 Manuel utilisateur

Olympus

Olympus PT-EP05L Manuel utilisateur

Starlite

Starlite OctoDome nxt Manuel utilisateur
