Raypak 185 Manuel utilisateur

OPERATING AND

INSTALLATION

INSTRUCTIONS

Models

185, 265, 335, 405

Swimming Pool and Spa Heaters

181/182, 260/261, 330/331, 400/401

Water Heaters and Boilers

D-2 POWER VENT

(FOR ELECTRONIC IGNITION MODELS ONLY)

CATALOG NO. 6000.57D

Effective: 10-26-06

Replaces: 03-15-03

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids or other combustible

materials in the vicinity of this or any other appliance. To do so may result in an explosion

or fire.

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause

property damage, personal injury or loss of life. Refer to the user’s information manual

provided with this heater. Installation and service must be performed by a qualified in-

staller, service agency or the gas supplier.

FOR YOUR SAFETY

WHAT TO DO IF YOU SMELL GAS:

· Do not try to light any appliance.

· Do not touch any electrical switch; do not use any phone in your building.

· Immediately call your gas supplier from a neighbor’s phone. Follow the gas

supplier’s instructions.

· If you cannot reach your gas supplier, call the fire department.

This manual should be maintained in legible condition and

kept adjacent to the appliance or kept in a safe place for

future reference.

P/N241086Rev.1

POWER VENT ASSEMBLY

INSTALLATION, START-UP AND OPERATION

1. RECEIVING EQUIPMENT

On receipt of your equipment it is suggested that you visually check for external damage to the carton. If

the carton is damaged, it is suggested that a note be made on the Bill of Lading when signing for equipment.

Remove the complete assembly from the carton if it is damaged report the damage to the carrier immediately.

Be sure that you receive the number of packages indicated on the Bill of Lading. Claims for shortages and

damages must be filed with the carrier by consignee.

Purchased parts are subject to replacement only under the manufacturer's warranty. Debits for defective

replacement parts will not be accepted and defective parts will be replaced in kind only per our standard

warranties.

Whenorderingparts,youmustspecifyModelandSerialNumberoftheunit. Whenorderingunderwarranty

conditions, you must also specify date of Installation.

RaypakrecommendsthatthismanualbereviewedthoroughlybeforeinstallingtheD-2PowerVent. Ifthere

are any questions which this manual does not answer, please contact your local Raypak Representative.

THIS MANUAL SHOULD BE MAINTAINED IN LEGIBLE CONDITION AND KEPT ADJACENT TO THE UNIT.

2. GENERAL SPECIFICATIONS

TheD-2PowerVentAssembly is tested and certified to thelatesteditionofthe American National Standard

ANSI Z21.56. standard for pool heaters, Z21.10.3 for water heaters and Z21.13 for boilers.

The Power Vent Assembly is a fan assisted combustion system designed for application to Raypak Pool

Heater Models 185-405. The unit, when installed as directed, is capable of operating in applications such as

through the wall venting and reduced horizontal and vertical vent pipe sizes in new and existing installations.

The D-2 Power Vent assembly includes a blower with a 120/240 volt 60 Hz 1.0/1.95A 3200 RPM motor, a

plenum completewith a draft proving switch and a motor relay. When provided for field mounting the assembly

is equipped with a wire harness.

MODEL MINIMUM KIT FACTORY

SIZE CONNECTION NUMBER WIRED

DIAMETER

185 4” 008086 240V

265 4” 008086 240V

335 4” 008087 240V

405 4” 008087 240V

182/181 4” 008757 120V

260/261 4” 008757 120V

330/331 4” 008758 120V

400/401 4” 008758 120V

3. INSTALLATION REQUIREMENTS

The equipment must be installed in accordance with local codes, or in the absence of local codes with the

latest edition of the National Fuel Gas Code, ANSI Z223.1, the National Electrical Code, ANSI/NFPA 70.

Theequipmentshallbeinstalledinaccordancewiththoseinstallationregulationsinforceinthelocalareawhere

the installation is to be made. These shall be carefully followed in all cases. Authorities having jurisdiction shall

be consulted before installations are made.

MOUNTING POWER VENT ASSEMBLY

Follow these instructions if the PowerVent venting system was purchased as an option

assembly kit.

1. Remove existing pagoda top (outdoor units) or drafthood (indoor units). To remove the

pagoda top, push the four brackets inward and pull up the pagoda top. The pagoda may

then be discarded.

2. Unscrew the four screws holding the outer top using a phillips screw driver. Remove the

jacket top.

3. Replace the inner stack adapter. If the heater had a drafthood installed previously, re-

move the inner stack adapter and replace it with the PowerVent stack adapter. Otherwise,

install the PowerVent stack adapter.

4. Unscrew the access panel on the right side of the appliance. Set aside the screws with

the access panel.

5. Remove the knurled screw holding the front door and set it aside with the door.

6. Mount the jacket top above the unit. Note: Do not install at this point.

7. Mount the Power Vent on the outer top.

8. Route the conduit harness of the PowerVent thru the outer top hole, around the adapter

towards the back of the unit. Continue routing the harness thru the corner slot, which

leads to open area behind the access panel. Finally, route only the wire harness thru the

7/8” grommet hole located on the sway brace. Follow instructions on page 7 to wire the

PowerVent. Note: Newer units have a 7/8” grommet located on the rain shield, which

would eliminate routing the harness around the back corner.

9. Re-mount the jacket top to its original position and screw in the four screws holding it

down to the appliance.

10.If the appliance is a 181, 182, 330 or 331, remove the tabs underneath the power vent

using a 5/16” nut driver and relocate the closer to the center of the Power Vent.

Fig #9372

WIRING A POWERVENT ASSEMBLY TO AN APPLIANCE WITH IID IGNITION.

WARNING:Disconnect allelectrical power tothe unit beforeservicing toavoidpotential shock

injury or damage to the unit. To change voltages, follow wiring diagram for correct voltage

connections. Improper wiring connections can burnout the relay and blower motor.

** NOTE: The 90° elbow may be used as a termination cap.

MOUNTING POWER VENT ASSEMBLY-(continued

11.Mount the PowerVent assembly bottom on the 6” vent. Twist the assembly downward.

Snap the mounting brackets into their appropriate slot to hold the Power Vent in position.

Note: While twisting you may notice some roughness, this is due to a tight seal between

the 6” vent and the Power Vent flue box.

12.Re-mount the access panel.

13.Re-mount the front door along with the knurled screw on the heater.

Fig #9356

VENTING

The vent pipe must be the same size or larger than what is indicated. The D-2 Power Vent are

capable of 360-degree discharge rotation and operate with a positive vent static pressure and

with a vent gas temperature less than 400°F. The total length of horizontal run shall not

exceed an equivalent of 40 feet including termination cap. For all cases, each 90-degree

elbow reduces the maximum horizontal vent run by 10 feet and each 45-degree elbow in the

vent run reduces the maximum vent run by 5 feet. See the table for maximum vent lengths

using 90-degree and 45-degree elbows. The D-2 Power Vent uses positive pressure to push

flue gases through the vent pipe to the outside. The vent must be installed to prevent the flue

gas leakage. Care must be taken during assembly to insure that all joints are sealed properly

and are airtight.

The vent must be installed to prevent the potential accumulation of condensate in the vent

pipes. It is recommened that:

a) The vent be installed with a slight downward slope of not more than 1/4” per foot of

horizontal run to the vent terminal.

b) The vent be insulated through the length of horizontal run.

For appliances installed in extreme cold climate, it is recommended that:

a) The vent be installed with a slight upward slope of not more than 1/4” per foot of

horizontal run to the vent terminal. In this case, an approved condensate trap must

be installed per applicable codes.

b) The vent be insulated through the length of the horizontal run.

Reduced Maximum Equivalent Vent Run (feet)

90 degree elbows 45 degree elbows

Quantity Maximum Length Quantity Maximum Length

130 135

220 230

310 325

Fig #9357

The Raypak Power Vent operates with a positive vent static pressure and with a vent gas

temperature that avoids excessive condensate production in the vent and as such it is listed

as a CATEGORY III appliance.

Exception:WhenaPowerVentisconnectedtoaverticalventofsufficientheighttogenerate

a negative draft in the system. Consult sizing guide or factory.

The D-2 Power Vent assembly is suitable for through the wall venting, and for connection

to smaller size vent pipes and breeching other than the standard atmospheric heater.

TheD-2 Power Vent assemblyincludes a wireharness which provides quickconnections with

the respective controls in the heater control box. The harness is of sufficient length to fit the

appliance for which it is sized.

Reference the wiring diagram supplied with each appliance for actual connections.

THROUGH THE WALL VENT

Fig #9358

Fig #9371.2

185-405 POOL HEATER (ATMOSPHERIC)

185-405 POOL HEATER (Low NOx)

182-260 WH1 (ATMOSPHERIC)

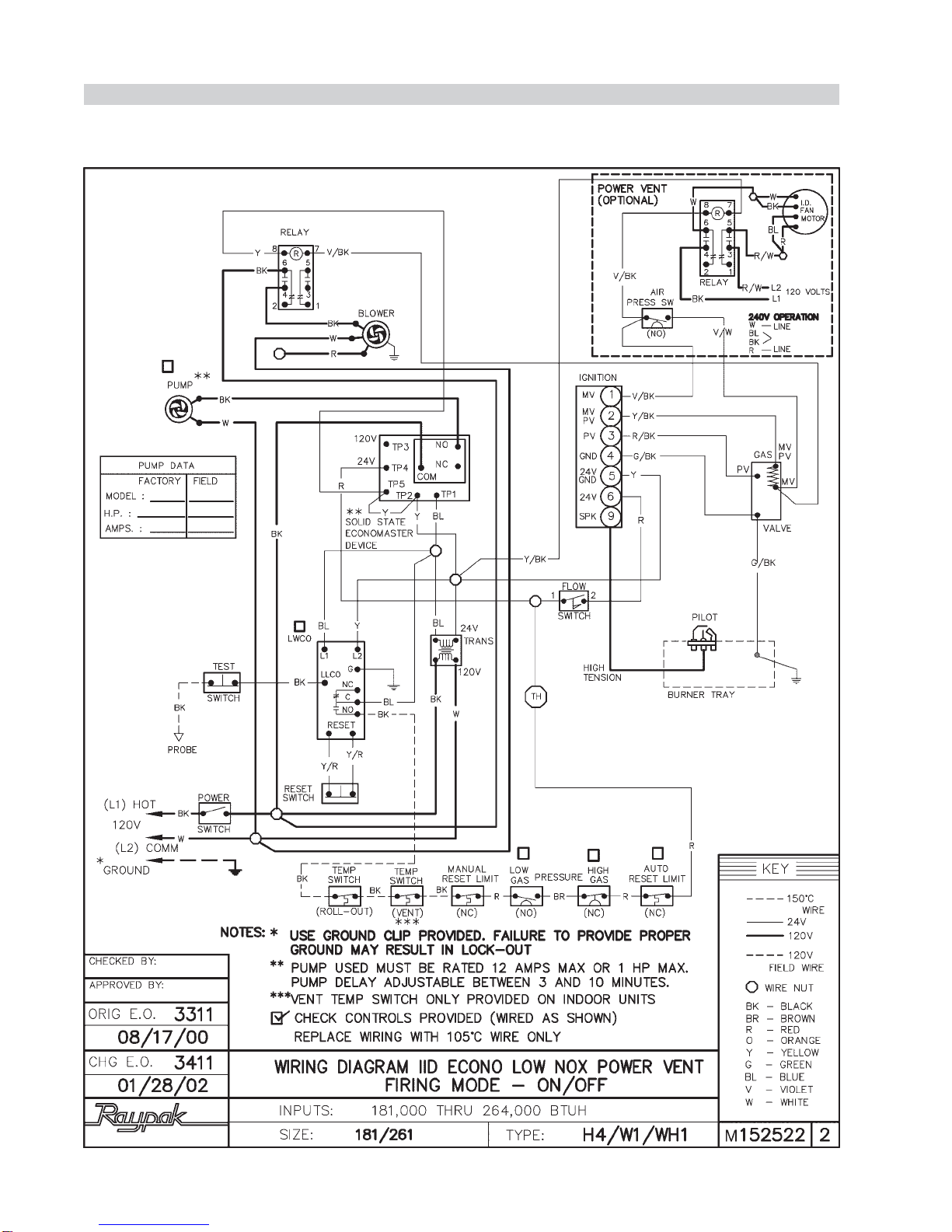

181-261 WH1 (Low NOx)
