Raypak Versa 155 Manuel utilisateur

PPOOOOLL

AANNDD

SSPPAAHHEEAATTEERR

VVEERRSSAA

Photo courtesy of Ester Williams, Delair Group

model 155

•151,000 BTUH

•Natural or propane gas

•Indoor/outdoor

•User-friendly control panel

•High efficiency for economical

operation

•Electronic ignition or millivolt pilot

•Lightweight combustion chamber

•Copper fin tube heat exchanger design

•Completely field serviceable

•Small footprint

•Patented Unitherm governor eliminates

condensation

•Optional bronze castings -

1-1/2” and 2”NPT water connections

The Pool and Spa Heating ExpertsSM

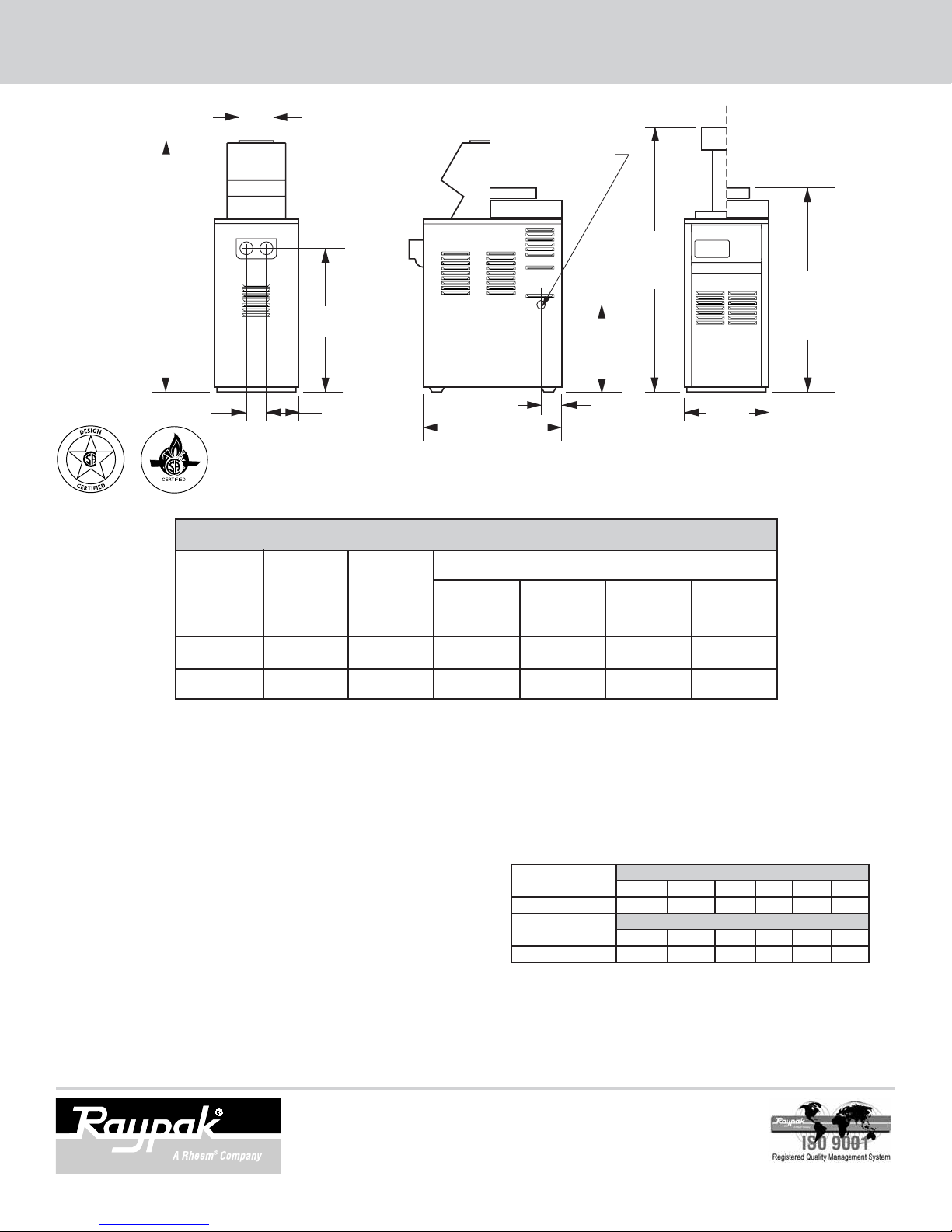

VERSA-155 Pool and Spa Heater

45"

INDOOR

DRAFT

HOOD

3-3/8" 5-1/2"

26-3/4"

24"

3-3/8"

15-1/8"

GAS

14-5/8"

35-5/8"

STACKLESS

TOP

49-7/8"

OUTDOOR

STACK

3/4" GAS

CONNECTION

Raypak, Inc.

2151 Eastman Avenue, Oxnard. CA 93030, (805) 278-5300. Fax (800) 872-9725

Raypak Canada Limited

2805 Slough Street, Mississauga, Ontario, Canada L4T IG2. (905) 677-7999. Fax (905) 677-8036

www.raypak.com

Patented Econotherm Heat Exchanger

Your VERSA is equipped with a unique all-copper-fin-tube heat

exchanger, designed for efficient heat transfer and built to provide

years of trouble-free performance. Both header castings are made

of porcelainized cast iron for durability and resistance to corrosion

and rust. Your VERSA is also available with optional premium

bronze headers for completely rust-free operation.

Advanced Unitherm Plus Full-Flow System

Condensation-free operation is ensured even with low temperature

inlet water. Both water temperature and flow rate inside the heater

are controlled to eliminate condensation, sooting and scale build-up

that can shorten heater life. More hot water moves through faster,

and more efficiently.

Heating Capacity

The table below shows the heating capacity of the VERSA 155 in

temperature rise per hour for a given amount of water. For example,

the heater will raise the temperature of a 400-gallon spa 36 °F in

one hour. (Spa size in gallons = surface area x average depth x 7.5.)

The same heater will raise the temperature of a 400-square-foot

pool 1-1/8 °F in one hour.

Two-Year Limited Warranty

The VERSA features a two-year limited warranty against defects in

materials and workmanship (see warranty for details). In addition,

every VERSA is thoroughly tested in simulated field conditions

before shipment.

Note: Outdoor stack and indoor drafthood can be supplied but must be ordered separately.

Heater

Base

Stackless

Top Drafthood

Outdoor

Stack

C-155 151 Cast Iron 135 11 8 7

B-155 151 Bronze 135 11 8 7

300 400 500 600 700 800

Temp. rise per hour 48 °F 36 °F 29 °F 24 °F 21 °F 15 °F

300 400 500 600 700 -

Temp. rise per hour 1-1/3 °F 1-1/8 °F 1 °F 3/4 °F 1/2 °F -

Model

BTUH

Input

(000) Castings

Shipping Weight (lbs.)

Specifications

Spa Size (Gallons)

Pool Size (Square Feet)
