Raymarine ST60 Tridata Guide de l'utilisateur
Distributed by
Any reference to Raytheon or
RTN in this manual should be
interpreted as Raymarine.
The names Raytheon and RTN
are owned by the
Raytheon Company.
ST60 Depth
Instrument
Owner’s
Handbook
Document number: 81038-3
Date: 1st April 2001
038_3cov.p65 06/04/01, 08:341
© Copyright Raymarine Limited 2001
038_3cov.p65 06/04/01, 08:342
Introduction i
Contents
Introduction ............................................................................ v
EMC conformance ............................................................ v
Data inputs ....................................................................... vi
SeaTalk ....................................................................... vi
Stand alone operation ................................................. vi
Remote control ................................................................. vi
Options ............................................................................ vii
Mounting options ...................................................... vii
Depth transducers ...................................................... vii
Parts supplied ..................................................................... viii
Chapter 1: Operation ............................................................. 1
1.1 Getting started ............................................................. 1
Calibration requirement .............................................. 1
1.2 Normal operation ........................................................ 1
Depth measurement units ............................................ 1
Displayed information ................................................. 1
Alarms ......................................................................... 2
Offsets ......................................................................... 4
1.3 Display settings ........................................................... 4
Illumination ................................................................. 4
Contrast ....................................................................... 5
1.4 Pop-up Pilot ................................................................ 5
1.5 Remote control............................................................ 5
Chapter 2: Maintenance and Fault Finding ........................ 7
2.1 Maintenance ................................................................ 7
Servicing and safety .................................................... 7
Instrument ................................................................... 7
038_3int.p65 06/04/01, 08:341
ii ST60 Depth Instrument Owner’s Handbook
Transducer ................................................................... 7
Cabling ........................................................................ 7
2.2 Fault finding ................................................................ 8
Preliminary procedures ............................................... 8
Fixing faults ................................................................ 8
Chapter 3: Installation......................................................... 11
3.1 Planning your installation ......................................... 11
Site requirements ....................................................... 11
Transducer ........................................................... 11
Instrument ............................................................ 13
EMC guidelines ......................................................... 14
Suppression ferrites ............................................. 15
Connections to other equipment .................... 15
3.2 Procedures................................................................. 16
Unpacking ................................................................. 16
Fitting the instrument ................................................ 16
Surface mounting ................................................ 16
Flush mounting .................................................... 17
Fitting the low-profile bezel........................... 17
Flush mounting procedure ............................. 19
Bracket mounting ................................................ 20
Fitting transducer ...................................................... 20
Running transducer cable .................................... 21
Connecting instruments ............................................. 22
Types of connection ............................................. 22
Signal connections ............................................... 22
Power supply connections ................................... 23
SeaTalk systems ............................................. 23
Stand alone instruments ................................. 23
038_3int.p65 06/04/01, 08:342
Introduction iii
Chapter 4: Calibration ......................................................... 25
4.1 Introduction .............................................................. 25
EMC conformance .................................................... 25
4.2 User calibration ......................................................... 25
Procedure .................................................................. 25
Depth units ................................................................ 27
Depth offset ............................................................... 27
Setting offset values ............................................. 28
Shallow lock .............................................................. 28
Pop-up pilot ............................................................... 28
Leaving User calibration ........................................... 28
4.3 Intermediate calibration ............................................ 28
Leaving Intermediate calibration .............................. 29
4.4 Dealer Calibration ..................................................... 30
User calibration on/off .............................................. 30
Response settings ...................................................... 30
Boat show mode ........................................................ 30
Factory defaults ......................................................... 32
Leaving Dealer calibration ........................................ 32
038_3int.p65 06/04/01, 08:343
iv ST60 Depth Instrument Owner’s Handbook
038_3int.p65 06/04/01, 08:344
Introduction v
Introduction
Thank you for purchasing a Raymarine product. We are sure your
ST60 instrument will give you many years of trouble-free operation.

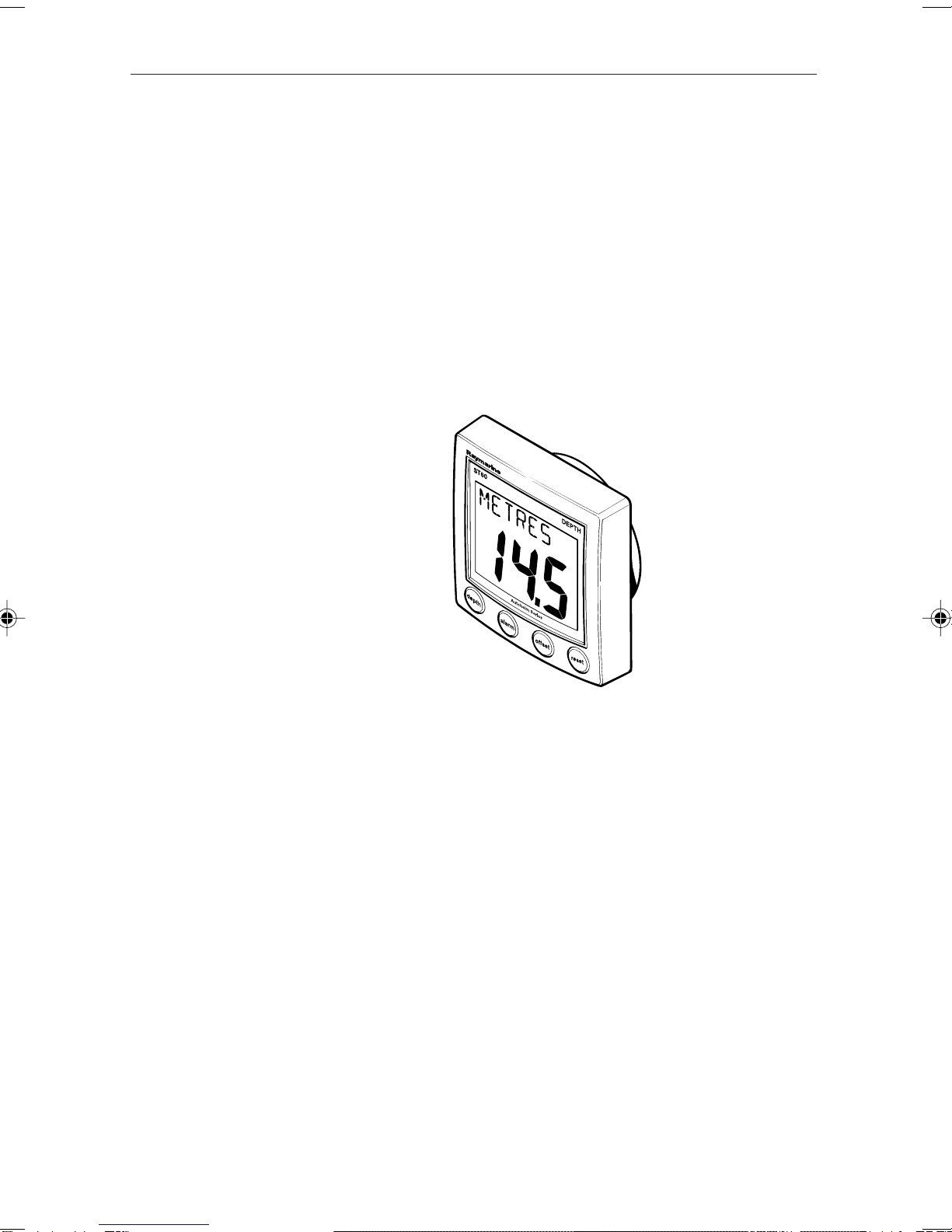

This handbook describes how to install and use the Raymarine ST60
Depth instrument. This instrument provides accurate depth
information in either feet, metres or fathoms, on a high quality Liquid
Crystal Display (LCD). The instrument is constructed in a rugged
weather-proofed case to provide reliable performance, even under the
most demanding conditions.
D4321_2
WARNING
Although the ST60 Depth instrument is designed to give accurate
and reliable performance, it should serve only as an aid to
navigation and should never lead to the erosion of good
seamanship. If a fault occurs that results in inaccurate depth
readings or a loss of depth information, the vessel could run
aground if undue reliance has been placed on the instrument.
Always maintain a permanent watch and be aware of depth-
change trends.
EMC conformance
All Raymarine equipment and accessories are designed to the best
industry standards for use in the leisure marine environment.
Their design and manufacture conforms to the appropriate
Electromagnetic Compatibility (EMC) standards, but correct
installation is required to ensure that performance is not compromised.
038_3int.p65 06/04/01, 08:345
vi ST60 Depth Instrument Owner’s Handbook
Data inputs
The ST60 Depth instrument receives data from an appropriate depth
transducer and/or a SeaTalk instrumentation system.
SeaTalk
SeaTalk enables a number of compatible instruments to operate as a
single, integrated navigational system. Instruments in a SeaTalk
system are linked by means of a single cable, which carries both power
and data. Instruments can therefore be added to the system by plugging
them into the network. SeaTalk is flexible enough to adapt to any
number of compatible instruments without requiring a central
processor. SeaTalk can also communicate via an appropriate interface,
with non-SeaTalk equipment using the internationally-accepted
National Marine Electronics Association (NMEA) protocol.
In a SeaTalk system, each instrument can be either a master or
dedicated repeater unit. A master instrument is directly connected to a
transducer (the device that provides the raw data), and provides data
and control for the service it is providing to all other equipment on the
SeaTalk network. A slave instrument is not directly connected to a
transducer but repeats information provided by other masters in the
SeaTalk network.
The ST60 Depth instrument can fulfil both master and repeater roles.
Stand alone operation
In Stand alone operation, the ST60 Depth instrument is connected only
to the relevant transducer and does not display information from, or
provide information to, any other instruments.
Remote control
When connected to SeaTalk, the ST60 Depth instrument can be
controlled remotely by a SeaTalk Remote Keypad Unit, to provide
instant remote access to the various display readouts.
038_3int.p65 06/04/01, 08:346
Introduction vii
Options
Mounting options
If you do not want to surface mount your ST60 instrument, options are
available for:
• Flush mounting. If you have ordered the flush mounting option a
low-profile bezel and four fixing screws are also provided.
• Bracket mounting.
Depth transducers
Various optional transducer types are available to suit different hull
types and situations. Refer to Chapter 3, Installation for details.
038_3int.p65 06/04/01, 08:347
