For technical support, contact us at 1-800-565-5321 84-U0048 Installation Guide |REV. B1 | Page 1
INSTALLATION GUIDE
84-U0048 Fold-Away post with foot
For technical support, contact us at 1-800-565-5321 84-U0048 Installation Guide |REV. B1 |
QUICK START GUIDE
REQUIRED ITEMS
2
PERSONS
q1.1 Setup...............................................................................................................................................
q1.2 Post Assembly.......................................................................................................................
3 - 4
5 - 7
Phase 1 - Assembly
Phase 2 - Installation
q2.1 Attach Wall Bracket To The Posts..................................................................................................
q2.2 Mark Hole For Plusnut....................................................................................................................
q2.3 Attach Plusnut................................................................................................................................
q2.4 Fold-Away Installation....................................................................................................................
10-11
12
13-14
15-17
qCordless Impact
qCordless Drill
qTape Measure
qMarker
q1/2" Socket
q1/2" Drill Bit w/ Drill Collar ( Set at 1/2" )
q3/8" Driver Bit
qKnife
qPlusnut Tool / Plusnut Gun ( 5/16" )
For technical support, contact us at 1-800-565-5321 84-U0048 Installation Guide |REV. B1 | Page 3
PHASE 1 – ASSEMBLY
1.1 SETUP
1.1.1 Unpack components; compare with the bill of materials.
84-U0048
2×
84-010
84-012
84-011
84-009
1.1.2 Verify all parts are present.
Item No. Description Qty.
84-010 Feet 2
84-011 Top Bracket 4
84-012 Middle Bracket 2
84-009 Post ( 48" ) 2
94-3057 Assembly Fastener Kit 2
96-3039 Install Fastener Kit 2
For technical support, contact us at 1-800-565-5321 84-U0048 Installation Guide |REV. B1 |
94-3057 Fastener Assembly
96-3039 Fastener Assembly
2×
2×
6×6×
Hex Bolt
5/16"-18 × 3/4"
GR-5 ZINC
# 90-204
2×2×
Hex Bolt
5/16"-18 × 2"
GR-5 ZINC
# 90-224
# 94-116
Serrated Nut
5/16"-18
ZINC
8×8×
8×8× # 98-116
Flat Washer
5/16"
ZINC
# 98-170 Spacer
NYLON
8×8×
6×6×
2×2×
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
#90-224 Hex Bolt 5/16" × 2"
#98-116 Flat Washer
#98-170 Spacer
#94-116 Serrated Nut
6×6×
Hex Bolt
5/16"-18 × 1 - 1/4"
GR-5 ZINC
# 90-212
# 98-116
Flat Washer
5/16"
ZINC
8×8×
# 98-122
Lock Washer
5/16"
ZINC
8×8×
Plusnut
5/16"
# 94-132
8×8×
2×2×
Hex Bolt
5/16"-18 × 1 - 3/4"
GR-5 ZINC
# 90-011
6×6×
Spacer
0.375" ID, × 1.0" OD × 0.25" L
NYLON
# 98-157
#90-212 Hex Bolt 5/16" × 1-1/4"
#98-122 Lock Washer
#98-116 Flat Washer
#94-132 Plusnut
6×6×
2×2×
#94-132 5/16" Plusnut
#90-011 Hex Bolt 5/16" × 1-3/4"
#98-122 Lock Washer
#98-116 Flat Washer
#98-157 Spacers
( QTY = Gap beTween floor and end panel )
For technical support, contact us at 1-800-565-5321 84-U0048 Installation Guide |REV. B1 | Page 5
HARDWARE USED
8×
TOOLS
qCordless Impact
q1/2" Socket
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
1.2.3 Attach the foot to the post.
84-014
84-010
EXTENDTED
REGULAR
PHASE 1 – ASSEMBLY
1.2 POST ASSEMBLY
For technical support, contact us at 1-800-565-5321 84-U0048 Installation Guide |REV. B1 |
HARDWARE USED
4×
TOOLS
qCordless Impact
q1/2" Socket
#90-204 Hex Bolt 5/16" × 3/4"
#98-122 Lock Washer
#98-116 Flat Washer
6-1/2"
or
4 Hole Space
6-1/2"
or
4 Hole Space
3rd hole of threaded plate from the top
inside
84-015
For technical support, contact us at 1-800-565-5321 84-U0048 Installation Guide |REV. B1 | Page 7
1.2.4 Attach 2 threaded plates to each post.
HARDWARE USED
4×
TOOLS
qCordless Impact
q1/2" Socket
#90-204 Hex Bolt 5/16" × 3/4"
#98-122 Lock Washer
#98-116 Flat Washer
9-1/2"
or
6 Hole Space
3-1/2"
or
2 Hole Space
inside
84-015
FOR EXTENDED ASSEMBLY OF THE FEET ONLY
For technical support, contact us at 1-800-565-5321 84-U0048 Installation Guide |REV. B1 |
• Please see Install guide 84-U1830 for shelf assembly.
From
To
1.2.5 Attach the shelf trays to the posts.
HARDWARE USED
16×
TOOLS
qCordless Impact
q1/2" Socket
#90-204 Hex Bolt 5/16" × 3/4"
#98-122 Lock Washer
#98-116 Flat Washer
6hole space
5hole space
4hole space
6hole space
FOR REGULAR ASSEMBLY OF THE FEET ONLY
• Please note that 96-3038 hardware is
included inside the box of 84-U1830.
For technical support, contact us at 1-800-565-5321 84-U0048 Installation Guide |REV. B1 | Page 9
From
To
1.2.5 Attach the shelf trays to the posts.
HARDWARE USED
16×
TOOLS
qCordless Impact
q1/2" Socket
#90-204 Hex Bolt 5/16" × 3/4"
#98-122 Lock Washer
#98-116 Flat Washer
6hole space
7hole space
6hole space
6hole space
FOR EXTENDED ASSEMBLY OF THE FEET ONLY
For technical support, contact us at 1-800-565-5321 84-U0048 Installation Guide |REV. B1 |

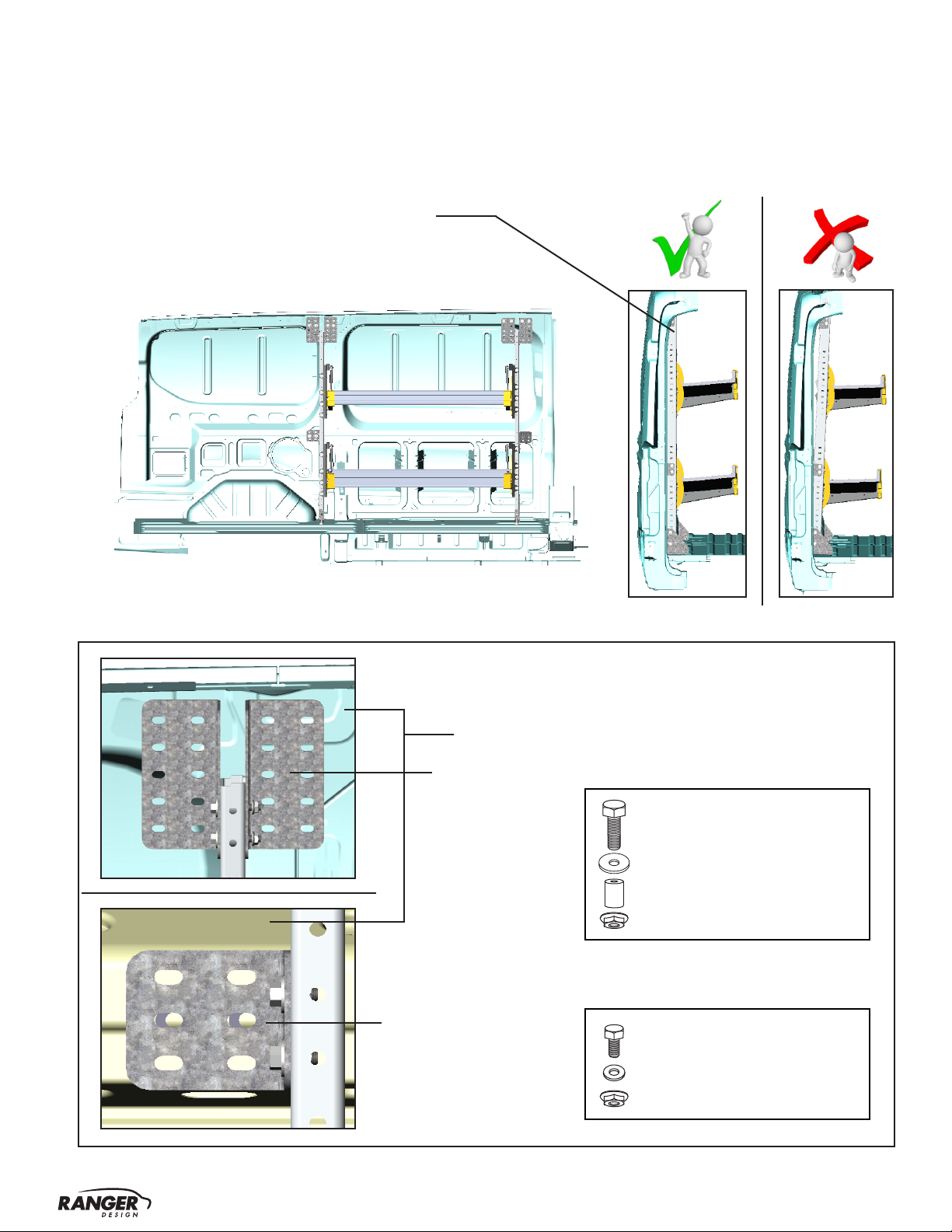

PHASE 2 – INSTALLATION
2.1 ATTACH WALL BRACKETS TO THE POSTS
2.1.1 • Lift the assembled fold-away to the vehicle, then put it in place.
• For low roof vehicles (NV, Savana, Transit, Metris), attach the 84-011 at the top and 84-012 at the middle of
the posts.
NOTE: Make sure that the posts stand vertical.
horizontal rail
84-012
84-011
HARDWARE USED
4× for middle bracket
HARDWARE USED
4× for top bracket
TOOLS
qCordless Impact
q1/2" Socket
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
#90-224 Hex Bolt 5/16" × 2"
#98-116 Flat Washer
#98-170 Spacer
#94-116 Serrated Nut
For NV, Savana, Transit, Metris
