Range Master INFHDS90SS Manuel utilisateur

www.rangemaster.co.uk

INFHDS90SS/

INFHDS90BL/

INFHDS90SL/

INFHDS100SS/

INFHDS100BL/

INFHDS100SL/

INFHDS110SS/

INFHDS110BL/

INFHDS110SL/

COOKER HOOD

INDEX

SAFETYINFORMATION......................................................................................................................................................... 3

CHARACTERISTICS.............................................................................................................................................................6

INSTALLATION......................................................................................................................................................................7

USE......................................................................................................................................................................................10

CAREANDCLEANING.........................................................................................................................................................11

EN 3

SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual

carefully before installation and use. Always keep these instructions

with the appliance even if you move or sell it. Users must fully know the

operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

 The manufacturer will not be held liable for any damages resulting from

incorrect or improper installation.

 The minimum safety distance between the cooker top and the extractor

hood is 650 mm (some models can be installed at a lower height,

please refer to the paragraphs on working dimensions and installation).

 If the instructions for installation of the gas hob specify a greater

distance, this must be respected.

 Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

 Means for disconnection must be incorporated in the fixed wiring in

accordance with the wiring rules.

 For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

 Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

 Regulations concerning the discharge of air have to be fulfilled.

 Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

EN 4

 If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must be

guaranteed in the room in order to prevent the backflow of exhaust gas.

When the cooker hood is used in conjunction with appliances supplied

with energy other than electric, the negative pressure in the room must

not exceed 0,04 mbar to prevent fumes being drawn back into the room

by the cooker hood.

 The air must not be discharged into a flue that is used for exhausting

fumes from appliances burning gas or other fuels.

 If the supply cord is damaged, it must be replaced from the manufac-

turer or its service agent.

 Connect the plug to a socket complying with current regulations, lo-

cated in an accessible place.

 With regards to the technical and safety measures to be adopted for

fume discharging it is important to closely follow the regulations pro-

vided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

 Use only screws and small parts supplied with the hood.

WARNING: Failure to install the screws or fixing device in accordance

with these instructions may result in electrical hazards.

 Do not look directly at the light through optical devices (binoculars,

magnifying glasses…).

 Do not flambè under the range hood; risk of fire.

 This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and under-

stand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without

supervision.

 Children should be supervised to ensure that they do not play with the

appliance.

EN 5

 The appliance is not to be used by persons (including children) with re-

duced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

 Clean and/or replace the Filters after the specified time period (Fire

hazard). See paragraph Care and Cleaning.

 There shall be adequate ventilation of the room when the range hood is

used at the same time as appliances burning gas or other fuels (not

applicable to appliances that only discharge the air back into the room).

 The symbol on the product or on its packaging indicates that this

product may not be treated as household waste. Instead it shall be

handed over to the applicable collection point for the recycling of elec-

trical and electronic equipment. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed informa-

tion about recycling of this product, please contact your local city office,

your household waste disposal service or the shop where you pur-

chased the product.

EN 6

CHARACTERISTICS

Dimensions

60470

260

300

898 - 998 - 1098

Min.

500mm

Min.

650mm

253

MIN 730 - MAX 1000

540

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light, Blower,

Filters

21 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

91 Reducer Flange ø 150-120 mm

15 1 Air Outlet Connection

Ref. Q.ty Installation Components

7.1 1 Hood Body Fixing Brackets

7.2.1 2 Upper Chimney Section Fixing Brackets

11 8 Wall Plugs

12a 8 Screws 4,2 x 44,4

12c 6 Screws 2,9 x 6,5

12e 2 Screws 2,9 x 9,5

12t 2 Screws 3,5 x 9,5

Q.ty Documentation

1 Instruction Manual

12t

EN 7

INSTALLATION Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the

centre of the area in which the hood will be installed.

• Draw a horizontal line at 650 mm above the hob.

• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit align-

ing the centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the

upper chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.

• Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm

above the horizontal reference line.

• Repeat this operation on the other side.

• Mark the wall at the centres of the holes (B).

• Drill ø 8 mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.

• Fix the brackets 7.2.1 using the 12a screws (4,2 x 44,4) supplied.

• Fix the Hood Body Fixing Brackets 7.1 using the 2 screws 12a (4,2 x 44,4) supplied, check-

ing levelling.

EN 8

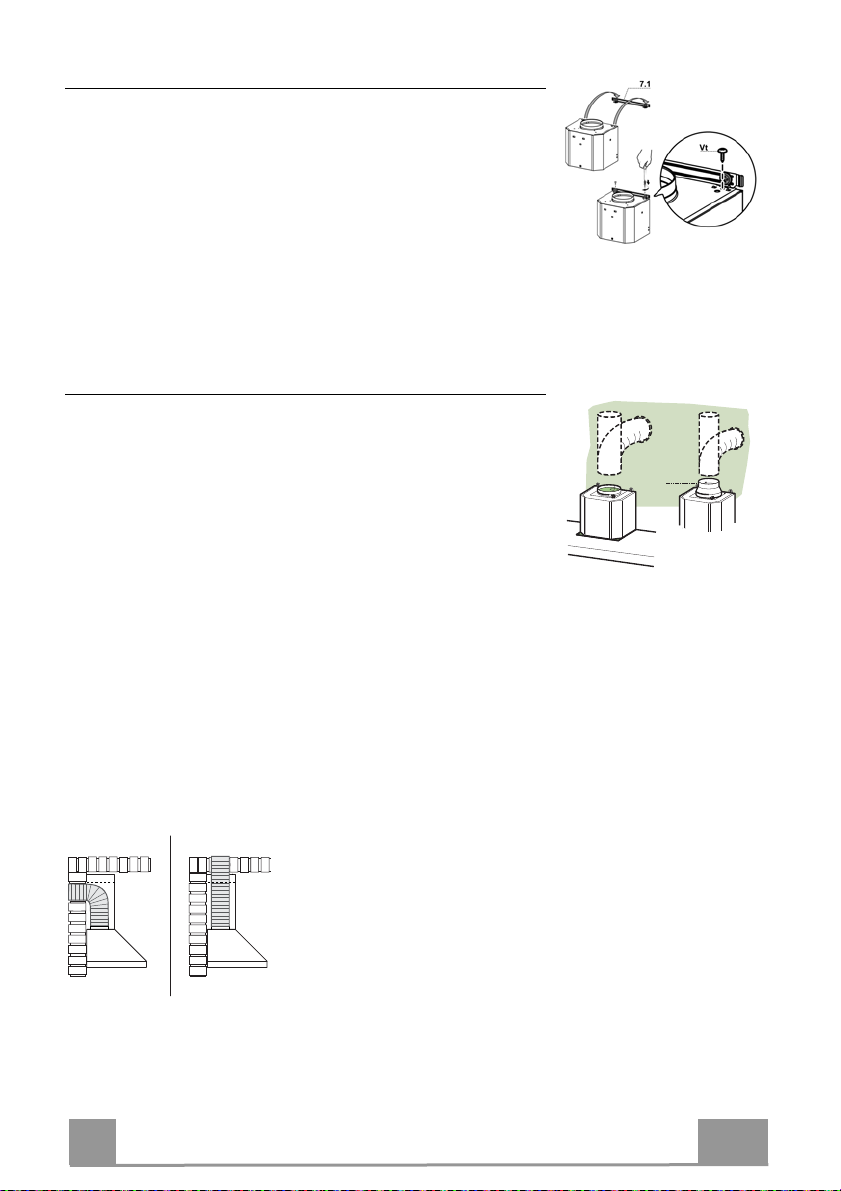

Mounting the hood body

Installation with Bracket

• Hook the hood body onto the bracket 7.1 installed.

• Fix definitively the Hood body onto the bracket by 2 Screws

12t.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re-

ducer flange 9on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

• Remove possible charcoal filters.

ø 120ø 150

Exhausted mode Recommendations and suggestions

Connect the extractor to the exhaust flue through a pipe of minimum diameter 125 mm.

The route of the flue must be as short as possible.

Ideal ducting distance to discharge outlet is maximum of 3 meters straight run, or 2 meters and one 90 de-

gree bend preferably rigid duct.

Maximum ducting distance should be 3 meters, with one 90 degree bend.

For each additional 90 degree bend, the maximum distance is reduced by 1 meter.

If the ducting is not correct it will increase noise and reduce performance.

EN 9

AIR OUTLET – RECIRCULATION VERSION

• Unfasten the 2 screws fixing the upper bracket 7.2.1.

• Fasten the air outlet connector 15 in its place, using the 2

screws removed as above.

• Join the Connector 15 to the Hood canopy outlet using a

rigid or flexible pipe ø150 mm, selection of which is at

the discretion of the installation technician.

• Make sure that the Activated charcoal odour filter has

been fitted.

ELECTRICAL CONNECTION

•Connect the hood to the mains through a two-pole switch

having a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance)

being sure that the connector of the feeding cable is cor-

rectly inserted in the socket placed on the side of the fan.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook

them behind the brackets 7.2.1, making sure that they are

well seated.

• Secure the sides to the brackets by using the 4 screws 12c

(2,9 x 9,5) supplied.

• Make sure that the outlet of the extensions pieces is

aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them

between the upper flue and the wall, making sure that

they are well seated.

• Fix the lower part laterally to the hood body by using the

2 screws 12c (2,9 x 9,5) supplied.

12b

EN 1

USE

ABCDE

Button Function

A = Speed Turn the motor on/off at speed one. Turn off each speed.

Turn the motor on at speed two / Activate charcoal filter alarm.

B = Speed

Pres and hold the button for approximately 2 seconds, with all the loads turned off

(Motor+Lights), to turn the Activated Charcoal Filter alarm on. LED (A) flashes

twice to confirm.

To Deactivated Charcoal Filter alarm off, press the button again and hold for at least

2 seconds.The relevant LED flashes once (A). Only for recirculation mode.

Turn the Motor on at speed three / Reset alarm grease and charcoal filter saturation.

C = Speed Pres and hold the button for approximately 2 seconds, with all the loads turned off

(Motor+Lights), to reset the grease and charcoal filter saturation alarm. LED (A)

flashes three times.

D = Speed

Turn the motor on at Booster speed.

This speed is timed to run for 6 minutes. At the end of this time, the system returns

automatically to the speed that was set before. If it is activated with the motor

turned off, it will switch to OFF at the end of the time. To deactivate it, press button

Dor press button A.

E = Light Pres briefly: Turn the lighting system on and off at maximum intensity.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Range Master hotte de ventilation

Range Master

Range Master 63000 Series Manuel utilisateur

Range Master

Range Master OPLHD60 Manuel utilisateur

Range Master

Range Master RMHDT110SS Mode d’emploi

Range Master

Range Master RMIP45 Manuel utilisateur

Range Master

Range Master GLX490 RM Manuel utilisateur

Range Master

Range Master RMP1 series Manuel utilisateur

Range Master

Range Master RM51000 Series Manuel utilisateur

Range Master

Range Master 64000 series Manuel utilisateur

Range Master

Range Master HI-LITE HLTHDS90 Manuel utilisateur

Range Master

Range Master ELTSHDC110SG Mode d’emploi

Range Master

Range Master RM61000EX series Manuel utilisateur

Range Master

Range Master RMG2H60SS Manuel utilisateur

Range Master

Range Master RM65000 Series Manuel utilisateur

Range Master

Range Master LEIHDS120SC Mode d’emploi

Range Master

Range Master 63000 Series Manuel utilisateur

Range Master

Range Master RM51000 Series Manuel utilisateur

Range Master

Range Master RM50000 Series Manuel utilisateur

Range Master

Range Master ZEST HOOD Manuel utilisateur

Range Master

Range Master RM60000 SERIES Manuel

Range Master

Range Master 64000 series Manuel utilisateur

Range Master

Range Master RMG1H60SG Manuel utilisateur

Range Master

Range Master LEIHDC70BB Manuel utilisateur

Range Master

Range Master RM50000 Series Manuel utilisateur

Range Master

Range Master RMPE Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
