Raidon InTANK Series Manuel utilisateur
InTANK
iR8022
User Manual
» InTANK iR8022 User Manual ............................. 1
1. Package Contents and Product Views ..............................1
2. Operation Information........................................................2
3. Hardware Requirements and Precautions ........................2
4. Hardware Installation Procedure .......................................3
5. RAID Mode Setting............................................................4
6. Computer Setup ................................................................5
7. Hard Disk Status on LCD Screen......................................6
8. Data Rebuilding Operation ................................................7
9. GUI Monitoring Software and Firmware Update ...............8
10. Questions & Answers ......................................................10
» InTANK iR8022 產品使用說明 ........................... 12
1. 產品外觀及包裝內容 ..........................................................12
2. 環境需求 ............................................................................13
3. 硬體需求與注意事項 ..........................................................13
4. 硬體安裝 ............................................................................14
5. 設定 RAID 層級..................................................................15
6. 電腦設定 ............................................................................16
7. 訊息顯示 ............................................................................17
8. 資料重建功能說明..............................................................18
9. GUI 功能說明與韌體更新...................................................19
10. 常見問題 ..........................................................................21
iR8022 User Manual
V1.0
iR8022 User Manual
1
1. Package Contents and Product Views
Introduction
Thank you for purchasing RAIDON products. This User Manual will introduce you the InTANK iR8022
storage product. Before using your iR8022, please read it thoroughly. Although all information
contented in this User Manual had already been carefully veried before publishing, however, the
actual product and its specication will be based upon the time of delivery from RAIDON. Any update
to the product or its relevant information may be listed on www.raidon.com.tw . Product is subjected
to change without prior notications.
If you have any question regarding to the product you purchased, or you would like to know the
latest product information, User Manual’s update, please contact to your local supplier or visit to
www.raidon.com.tw for further information.
Copyright © Raidon Technology, Inc. – All right is reserved.
Open the package and you should nd the following parts:
iR8022
iR8022 x1 ( with removable drive tray enclosed x2)
SATA Cable x1
Screws & Keys
Quick Installation Guide x1
• Please check the product and accessories for any defect or missing parts. If you have any questions,
please contact your product supplier.
• Please visit the official website (www.raidon.com.tw) to download drivers and other related resources.
iR8022 User Manual
2
Product View, Front and Back
LED Indicators：
1. LCD Display
2. UP/DOWN Buttons
3. ESC Button
4. Enter Button
5. Mute Button
1. Cooling Fan
2. Fan Connector
3. RS232 Port
4. 15-pin SATA Power Connector
5. 7-pin SATA Connector
Status System Indication HDD/SSD Indication Buzzer
Fan Failure (Stop Rotating) Solid Purple ──ON
Overheat (≥50℃) Solid Purple ──ON
HDD Failure Solid Purple Solid Red ON
Standing-by Solid Blue Solid Blue ──
Formating / Accessing Data Solid Blue Flashing Blue-Purple ──
Rebuilding (Source) Solid Blue Solid Blue ──
Rebuilding (Target) Solid Blue Flashing Red ──
6. Power/False Indicator
7. Removable Drive Tray
8. HDD Tray Key Lock
And Tray Open Button
9. HDD Status Indicator
2. Operation Information
Operating Temperature : 5～35 ℃(41 ～95 ℉)
Storage Temperature : -10 ~ 70 oC (14 ~ 158 oF)
Line Voltage : 5V DC
3. Hardware Requirements and Precautions
1. Computers or servers must be with SATA I, SATA II, or SATA III.
2. Hard drive must be with SATA I, SATA II, or SATA III.
3. You are strongly advised to set the storage mode before using your iR8022.
Note:
The default (Factory) setting is the RAID 1 mode.
iR8022 User Manual
3
Note:
Once the drive mode conguration has been completed, re-conguration using the same
hard drives to set the drive mode will result in complete data loss. If you must change
the drive mode, make sure to backup all data prior to the mode change.
4. Hardware Installation Procedure
Please follow the instructions below to complete the hardware installation.
Step 1. Unlock the M.2 SATA Bridge Tray Key Lock and tray open button.
Step 2. Press HDD Tray Key Lock and tray open button.
Step 3. Pull out the M.2 SATA Bridge Tray.
Step 4. Remove the screws.
Step 5. Remove the M.2 SATA Bridge.
Step 6. Remove the screws of the upper cover of the M.2 SATA Bridge.Open the upper cover.
Step 7. Insert M.2 and x the screw.
Step 8. Remove the paper from the heat sink in the upper cover and put the upper cover back.
Step 9. Fix the screws.
Step 10. Install M.2 SATA Bridge in a Tray
Step 11. Fix the screws.
Step 12. Install the M.2 SATA Bridge tray back into the iR8022.
4. iR8022 product allows user to simultaneously use the two dierent hard drives from two dierent
manufactures.
However, if the user expects a better efficiency, we strongly recommend the user to use the two
hard drives from the same manufacturer.
5. Please make sure that the two hard drives are free from bad blocks or defects prior to installation
in order to avoid system crashes or data loss.
6. The actual storage capacity of iR202 recognized by the system may dier from the total capacity
stated on the hard drives combined once the drives have been formatted.
7. It is highly recommended for user to back up important data contained within the iR8022 unit on
a regular basis or whenever the user feels necessary to a remote or a separate storage device.
RAIDON will not be responsible for any lost of data caused during the use of the unit or the
recovery of the data lost.
Unlock
Lock
12 3 4
56 7 8
910 11 12
iR8022 User Manual
4
SATA
SATA
45cm SATA Cable
COM1
COM2
Power Supply Connector
Power Supply
Motherboard SATA Ports
Internal Case
Internal RS232 Cable
External RS232 Cable
1
1
2
2
3
3
4
4
iR8022
5. RAID Mode Setting
After placing your two hard disks, turn on power and press UP Button, you are with the RAID Setting
mode. (Since the default setting is RAID 1 mode by factory, you do not have to reset RAID if you
want to use your iR8022 with RAID 1 mode.)
1. RAID 1 mode
1). Place two new hard drives into iR8022.
We would strongly suggest you to use two identical hard drives to get the maximum memory
capacity. And if the capacities of your two hard drives are dierence, iR8022 only recognizes
the memory capacity at the small capacity hard drive.
2). Under RAID 1 mode, two hard drives will have the identical information as one from its mirroring
feature, therefore, even though one and only one of the two hard drives failed, iR8022 will
still work ne and properly. Once you replace the failed hard disk with a new one, iR8022 will
automatically do rebuilding the data from the good one to the new hard disk.
Step 13. When the hard drive installation has been completed, insert the hard drive tray into the
system horizontally and secure the latch into place.
Step 14. Use the preferred cable included to connect your computer to the relative interface
connection on the iR8022 unit.
※ Note :
1. RS232 Port and RS232 Cable: Provides hardware status monitoring to industrial control system or IPC via RS232.
2. We do not recommend users to disassemble the device without proper instructions and authorization. The manufacture warranty
will not cover the damages caused by unauthorized disassembling.
3. To prevent the device from malfunction, please make sure the device is connected with a direct and dedicated power connection of
a stable power input.
4. RS232 Port: For industrial control system or IPC to monitor the hardware status. More information, please contact your sales
iR8022 User Manual
5
6. Computer Setup
When the hardware setup for iR8022 is complete, you are now ready to turn the machine on.
After the hardware installation is complete, the iR8022 will be treated as one single hard drive. When
the computer is turned on, the system will retrieve the following information.
1. Device Manager Utility of Window OS will automatically detect the hard drive(s).
2. You can choose to format the hard drive by using the Disk Management tool of the operating
system before using the iR8022.
At this point, the installation process is completely nished. The user can freely retrieve and save
data to iR8022 just like retrieving and saving data to a regular hard drive. If the user has any problem
during the operation, please refer to the Question & Answer (Q&A) section in Appendix.
2. RAID 0 mode
1). Place two new hard drives into iR8022.
We would strongly suggest you to use two identical hard drives to get the maximum memory
capacity. And if the capacities of your two hard drives are dierence, iR8022 only recognizes
the memory capacity at the small capacity hard drive.
2). Under RAID 0 mode, the total memory capacity of iR8022 would be double from the small capacity
hard drive. And also, RAID 0 mode will perform an excellent efficiency from its high data
transfer rate for user to read & write data.
iR8022 User Manual
6
7. Hard Disk Status on LCD Screen
2. Over Heat (≥50°C)
Pri HDD : OK
Sec HDD : OK T
3. Fan Failure
Pri HDD : OK F
Sec HDD : OK
4. RAID 1 Degraded：Primary hard drive is failure, but secondary hard drive is normal.
RAID-1 degraded
Pri : X Sec : O
5. RAID 1 Failure：Primary and secondary hard drives are failure.
RAID-1 failure
Pri : X Sec : X
6. RAID 1 Failure：Double Source
RAID-1 failure
Double Source
7. RAID 0 Failure：Primary hard drive is missing, but secondary hard drive is normal.
RAID-0 failure
Pri : M Sec :O
8. Rebuilding
Rebuilding
Sec →Pri 32%
1. Booting and Normal status.
iR8022
RAID-1 vxxxxxx.x
Pri HDD : OK
Sec HDD : OK
iR8022 User Manual
7
The Hot Swappable hard drive and Auto Rebuilding features are available.
O-line Back up：When the data is stored in iR8022, user can remove one of the hard drives as
back up drive for data such as system operation le, secured les, seldom modied les or image
and music les. The user can periodically insert the hard drive back into iR8022 to execute automatic
backup to protect the system from being hit by computer virus or to avoid the risk of having both hard
drives failing at the same time.
When one of the two hard drives fails in iR8022, it will issue an alert of a hard drive failure message
in both LCD display and the monitoring software. User can remove the failed hard drive from the
system while the system is still in operation without shutting down the machine. If the failed hard
drive is replaced shortly, the system will automatically execute the Auto Rebuilding function without
aecting the system operation and also any operation command from the user.
When the iR8022 detects one hard drive missing or failure, the Buzzer starts BEEPING and the LCD
displays the following messages：
After replacing a new hard disk with the failed one, LCD displays the following messages:
After few seconds from your inserting a new hard drive, LCD displays the data rebuilding progress：
When iR8022 completes its rebuilding, LCD again displays the following messages：
8. Data Rebuilding Operation
Pri HDD : OK
Sec HDD : OK
RAID-1 degraded
Pri : X Sec : O
Pri HDD : OK
Sec HDD : Insert
Rebuilding
Sec →Pri 32%
Pri HDD :Insert
Sec HDD : OK
Rebuilding
Pri →Sec 32%
iR8022 User Manual
8

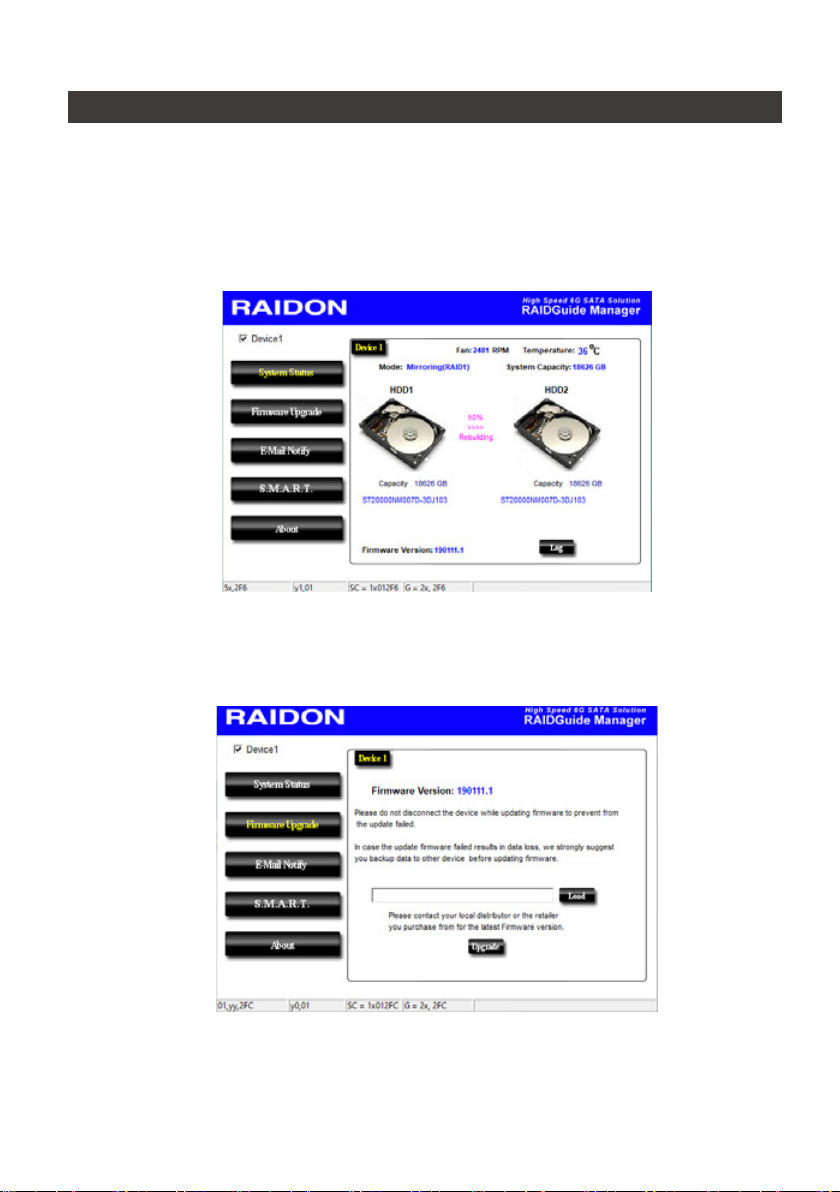

You can install GUI software to monitor the status of iR8022. And this can be done by installing
software from CD.
1. System Status:
This GUI automatically detects your iR8022 and reveals relative information accordingly.
2. Firmware Upfrade:
You may update the Firmware via this GUI, to just simply click on the “Load” button to locate the
rmware le to proceed. After completing the update, you may restart the power to work with the
new rmware.
※ Caution: Any random rmware update may cause the malfunction at your iR8022, We strongly recommend you not to change/upgrade
iR8022 rmware if still works properly.
9. GUI Monitoring Software and Firmware Update
Autres manuels pour InTANK Series
2
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Raidon Stockage
Raidon
Raidon InTANK IR8624-S3 Manuel utilisateur
Raidon
Raidon SafeTANK GT2660-TB3 Manuel utilisateur
Raidon
Raidon SafeTANK GR3660-B3 Manuel utilisateur
Raidon
Raidon InTANK iR2024 Manuel utilisateur
Raidon
Raidon SafeTANK GR3630-SB3 Manuel utilisateur
Raidon
Raidon InTANK HyBrid RunneR iH1010-2S-S2 Manuel utilisateur
Raidon
Raidon InTANK iR4300-S2 Manuel utilisateur
Raidon
Raidon SafeTANK GR5640-SB31+ Manuel utilisateur
Raidon
Raidon SafeTANK GR3680 Series Manuel utilisateur
Raidon
Raidon InTANK iR2024 Manuel utilisateur
Raidon
Raidon InTANK iR2622S Manuel utilisateur
Raidon
Raidon InTANK IR2025 Manuel utilisateur
Raidon
Raidon SafeTANK SL5640-LB2 Manuel utilisateur
Raidon
Raidon InTANK iR2771-S3 Manuel utilisateur
Raidon
Raidon iR8023 Manuel utilisateur
Raidon
Raidon InTANK iR2023 Manuel utilisateur
Raidon
Raidon intank ir2622 Manuel utilisateur
Raidon
Raidon iR8023 Manuel utilisateur
Raidon
Raidon InTANK iR2823 Instructions d'utilisation d'origine
Raidon
Raidon SafeTANK GR3660-TB2 Manuel utilisateur
Manuels Stockage populaires d'autres marques
Spectra Logic
Spectra Logic T-Series Spectra T50e Manuel utilisateur
Panasonic
Panasonic LKM-F931-1 Manuel utilisateur
Tabernus
Tabernus Enterprise Erase E2400 Manuel utilisateur
Rocstor
Rocstor COMMANDER 3F series Manuel utilisateur
HP
HP P9000 Manuel utilisateur
Western Digital
Western Digital Ultrastar Data60 Manuel utilisateur
