Rae DoseRAE 2 Manuel utilisateur

DoseRAE 2

Electronic Personal Dosimeter

For X-Ray & Gamma Radiation

User’s Guide

P/N 035-4025-000 Rev. A

March 2011

DoseRAE 2 User’s Guide

1 Read Before Operating

This manual must be carefully read by all

individuals who have or will have the responsibility

of using, maintaining, or servicing this product. The

product will perform as designed only if it is used,

maintained, and serviced in accordance with the

manufacturer’s instructions.

2 Warnings

For safety reasons, this equipment must be operated

and serviced by qualified personnel only. Read and

understand the user manual completely before

operating or servicing.

WARNING

Substitution of components may impair safety.

This product complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) This device must accept any interference

received, including interference that may cause

undesired operation.

DoseRAE 2 User’s Guide

Contents

1 Read Before Operating.................................... 1

2 Warnings ......................................................... 1

3 DoseRAE 2 Features ....................................... 5

4 General Information ........................................ 7

5 Charging The DoseRAE 2............................... 8

5.1 Charger/Reader....................................... 8

5.2 Removing The Silicone Boot ................. 9

5.3 Low Battery .......................................... 10

5.3.1 Charging With Instrument On ..... 11

5.3.2 Charging With Instrument Off..... 11

6 User Interface ................................................ 12

6.1 Display.................................................. 12

6.2 User Interface Icons.............................. 13

6.2.1 Advanced Version Icons.............. 14

7 Turning DoseRAE 2 On................................ 15

8 Turning DoseRAE 2 Off ............................... 16

8.1 Low-Voltage Shutoff............................ 16

9 Operation....................................................... 17

9.1 Normal Operating Mode....................... 17

9.1.1 Dose And Dose Rate.................... 19

9.1.2 Dose Alarm Value ....................... 23

9.1.3 Dose Rate Alarm.......................... 25

9.1.4 User ID......................................... 27

DoseRAE 2 User’s Guide

9.1.5 Clock/Calendar ............................ 27

9.1.6 Ambient Temperature .................. 28

9.2 Programming Mode.............................. 28

9.2.1 Entering Programming Mode ...... 29

9.2.2 Navigating Programming Mode .. 32

9.2.3 Alarms & Datalog Mode.............. 32

9.2.4 Dose Alarm Value ....................... 37

9.2.5 Dose Rate Alarm Value ............... 38

9.2.6 Clock & Calendar ........................ 40

9.2.7 Countdown Time ......................... 45

9.2.8 User ID......................................... 47

9.2.9 Dose Unit ..................................... 48

9.2.10 Display ......................................... 49

9.2.11 Temperature Unit......................... 50

9.2.12 End............................................... 51

10 ProRAE Dosimeter Software.................... 52

10.1 Overview .............................................. 52

10.2 Requirements........................................ 52

10.2.1 Hardware Requirements............... 52

10.2.2 Software Requirements................ 53

10.3 Installation ............................................ 53

10.3.1 USB Driver Installation ............... 59

10.3.2 Accessing The User’s Guide........ 61

10.4 Using ProRAE Dosimeter Software ..... 61

DoseRAE 2 User’s Guide

10.4.1 Connecting The DoseRAE 2

Charger/Reader To A Computer .. 62

10.5 Software Operation............................... 63

10.5.1 Open Datalog ............................... 65

10.5.2 Link Setting.................................. 66

10.5.3 System Options ............................ 67

10.5.4 Help.............................................. 69

10.5.5 Instrument List Window .............. 69

10.5.6 User Configuration ...................... 71

10.5.7 Changes And Safeguards ............. 74

10.5.8 Global Instrument Information .... 76

10.5.9 Alarm/Warning Percent ............... 76

10.5.10 Interval/Mode .......................... 78

10.5.11 Diagnosis ................................. 80

10.5.12 Current Readings ..................... 83

10.5.13 Command Buttons ................... 83

10.5.14 Firmware Version.................... 86

10.5.15 Read Event Headers ................ 87

10.5.16 Selecting An Event .................. 90

10.5.17 Datalog Buttons ....................... 92

10.6 Exiting ProRAE Dosimeter ................ 105

11 DoseRAE 2 Technical Specifications ..... 106

12 Technical Support ................................... 108

13 RAE Systems Contacts ........................... 109

DoseRAE 2 User’s Guide

3 DoseRAE 2 Features

Front View

LED alarm

MODE key Buzzer

Sensor

Location

SET key LCD

Rear View

Charger/Reader

contacts Cli

Short list o

instructions

DoseRAE 2 User’s Guide

Protective Pocket Wearing Option

Pocket clip

Protective

Pouch

Pocket Clip Wearing Option

Pocket clip

attached

directly to

DoseRAE 2

DoseRAE 2 User’s Guide

4 General Information

The DoseRAE 2 personal dosimeter is a thin

electronic monitor that can directly read X-ray or

Gamma-ray dose equivalent and dose equivalent

rate. It is specially designed for use in nuclear power

plants, nuclear fuel and nuclear components

factories, and nuclear waste-processing plants, as

well as in radiation source management, nuclear

medicine, and environmental monitoring

organizations. DoseRAE 2 has dual-channel

detectors that employ a semiconductor diode and a

scintillation crystal as sensors. It can detect radiation

rapidly in a wide range, and its energy compensation

ensures accurate readings.

DoseRAE 2 User’s Guide

5 Charging The DoseRAE 2

Charge the DoseRAE 2 before its first use, and

charge it when it is not in use. The DoseRAE 2 must

be placed in its Charger/Reader for battery charging.

5.1 Charger/Reader

The DoseRAE 2 Charger/Reader can be used for

DoseRAE 2 battery charging, parameter modification

and datalog reading (when connected to a computer

running ProRAE Dosimeter software). It can provide a

DoseRAE 2 with up to 100 mA of current. The

minimum charging time is 1.5 hours.

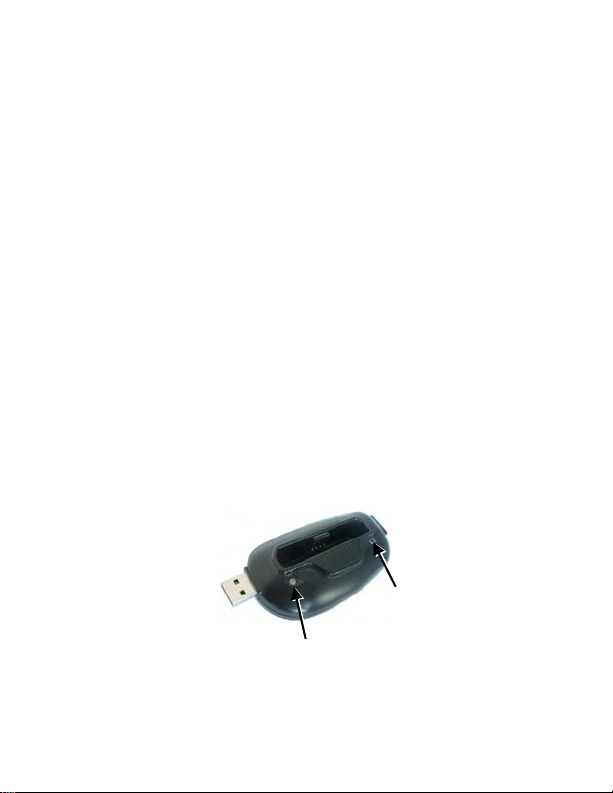

The red LED indicates the USB power supply is on

(Power). The green LED indicates the data

transferring is on (Status).

USB

Connector Green Status

LED

Red Power

LED
