RADWAG THB.Y Manuel utilisateur

THB

Ambient Conditions Module

IMMU-49-01-10-17-EN

USER MANUAL

THB.Y

THB.X

THB.PC

THB.R

www.radwag.com

OCTOBER 2017

Contents

1. GENERAL INFORMATION 4

2. THB MODULE DESIGN 4

3. UNPACKING 5

3.1. Unpacking 5

4. START-UP 6

4.1. THB.Y and THB.X Modules 6

4.2. THB.PC Modules 8

4.3. ECR Recorder and THB.R Set 9

5. MAINTENANCE, SERVICE, RECYCLING 10

5.1. Maintenance 10

5.2. Service 10

5.3. Recycling 10

1. GENERAL INFORMATION

THB module is a measuring device cooperating with laboratory balances of 3Y, 4Y, X2

series, PCs and ECR recorders. The THB module enables measurement of ambient

conditions parameters (temperature, humidity and atmospheric pressure) at the workstation.

The indications may be displayed either on an indicator screen or a computer screen.

On the basis of measurement values transferred from the THB module, the 3Y, 4Y, X2

balance program determines air density. The determined air density is displayed on the

screen too.

THB.PC module (PC version) is operated using „THB-R Single” software.

THB.R module (ECR recorder version) is operated using „THB-R Multi” software.

2. THB MODULE DESIGN

THB.x module:

1 – housing,

2 – sensors shield,

3 – connector for an additional temperature sensor (TH-W2),

4 – cable terminated with a respective connector (connector type conditioned by THB

module model):

DSUB15 – for THB.Y;

DB9 – for THB.X and THB.PC;

PS2 – for THB.R.

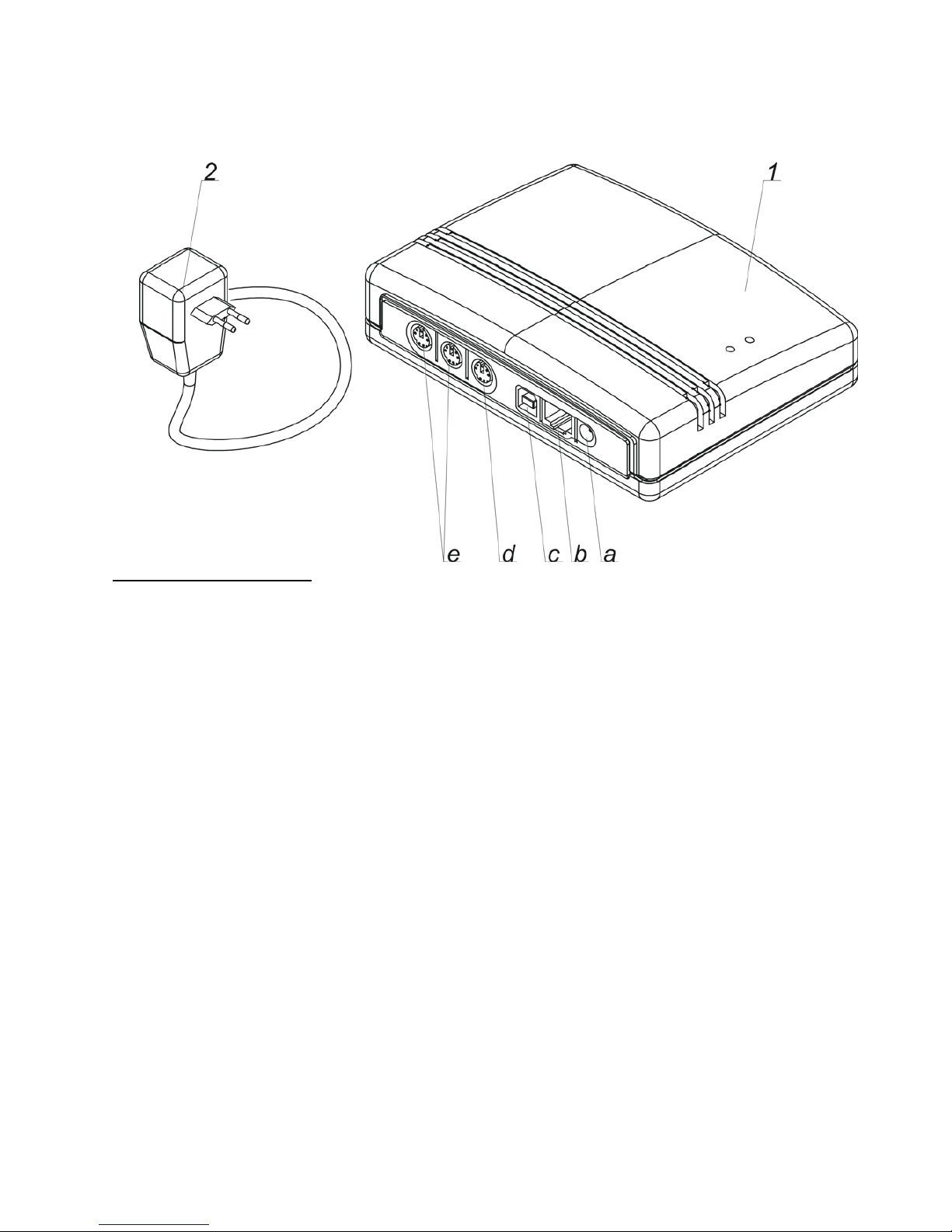

ECR recorder:

1 – housing,

2 – power supply,

Connectors arrangement:

a – power supply socket,

b – RS232 connector, recorder-computer connection via PT0228 cable,

b – USB B connector, recorder-computer connection via standard USB cable,

d – PS2 connector, for connection of liquid aspirator (weighing table for pipettes calibration),

e – 2 x PS2 connector, for connection of THB.R modules.

3. UNPACKING

3.1.Unpacking

Unpack the device, remove protection, next carefully take the THB module out of the box

and place it at its workstation.

4. START-UP

4.1. THB.Y and THB.X Modules

In order to run the module, connect it to the weighing device. Next, following instructions

provided in user manual of the balance, set communication parameters.

THB.Y

THB.Y has been designed to enable measurement of ambient conditions. It cooperates with

laboratory balances of 3Y and 4Y series. It is connected directly to COM 2 port of the

balance.

THB.Y allows to measure: air temperature, atmospheric pressure, air humidity.

Set components:

- THB.Y module, and

- TH-W2 water temperature sensor, on purchase order.

THB.X

THB.X has been designed to enable measurement of ambient conditions. It cooperates with

laboratory balances of X2 series. It is connected directly to either COM 1 or COM 2 port of

the balance. THB.X allows to measure: air temperature, atmospheric pressure, air humidity.

Set components:

- THB.X module, and

- TH-W2 water temperature sensor, on purchase order.

4.2. THB.PC Modules

In order to run the module, connect it to the computer.

On your computer install the THB-R-Single software enabling readout of measured quantities

values, next set communication parameters. In order to do it correctly, follow instructions

provided in user manual of the balance.

THB.PC

THB.PC has been designed to enable measurement of ambient conditions. It is connected

directly to a computer port via RS232.Additionally it is necessary to connect the power

supply to it (see the figure below).

THB.PC allows to measure: air temperature, atmospheric pressure, air humidity.

Set components:

- THB.PC module,

- Power supply 12V,

- THB-R-Single software, and

- TH-W2 water temperature sensor, on purchase order.

4.3. ECR Recorder and THB.R Set

In order to run the ECR recorder, connect it to the computer, next connect the THB.R module

to the recorder.

On your computer install the THB-R-Multi software enabling readout of measured quantities

values, next set communication parameters. In order to do it correctly, follow instructions

provided in user manual of the balance.

The ECR cooperates with THB.R (see the figure below). It records air temperature,

atmospheric pressure and air humidity values read from connected THB.R modules. The

ECR can record values from 2 THB.R modules simultaneously.

By standard the set comprises one THB.R module.

The ECR recorder enables readout of metrological data simultaneously from all the

connected modules within a specified time interval. The data is saved to the recorder's

internal memory.

The recorder is powered by an external 10-20VDC power supply, or USB interface.

Additionally it features an internal battery. The battery is charged when the ECR recorder is

connected to a PC using USB port (e.g. during readout of the data from the recorder's

internal memory), and when operating with use of external power supply.

RS232 and USB interfaces enable connecting the recorder to a PC with installed THB-Multi

software, which software allows preview and readout of the parameters saved to the

recorder.

Set components:

- ECR recorder,

- THB.R module - 1 pcs.,

- TH-W2 water temperature sensor,

- Power supply 12V,

- USB B cable

- RS232 cable

- THB-R-Multi software, and

- additional THB.R module, on purchase order.

5. MAINTENANCE, SERVICE, RECYCLING

Any maintenance activities (cleaning) must be performed after disconnection of the device

from both the balance and the computer.

5.1.Maintenance

Power supply housing and sensors shield can be cleaned using cloth soaked with

alcohol-based substance.

5.2.Service

Only authorized RADWAG service points are allowed to disassembly, repair and modify

the module.

5.3.Recycling

The device and the packaging must be recycled in accordance with valid state

regulations.

User Manual number:

IMMU-49-01-10-17-EN
