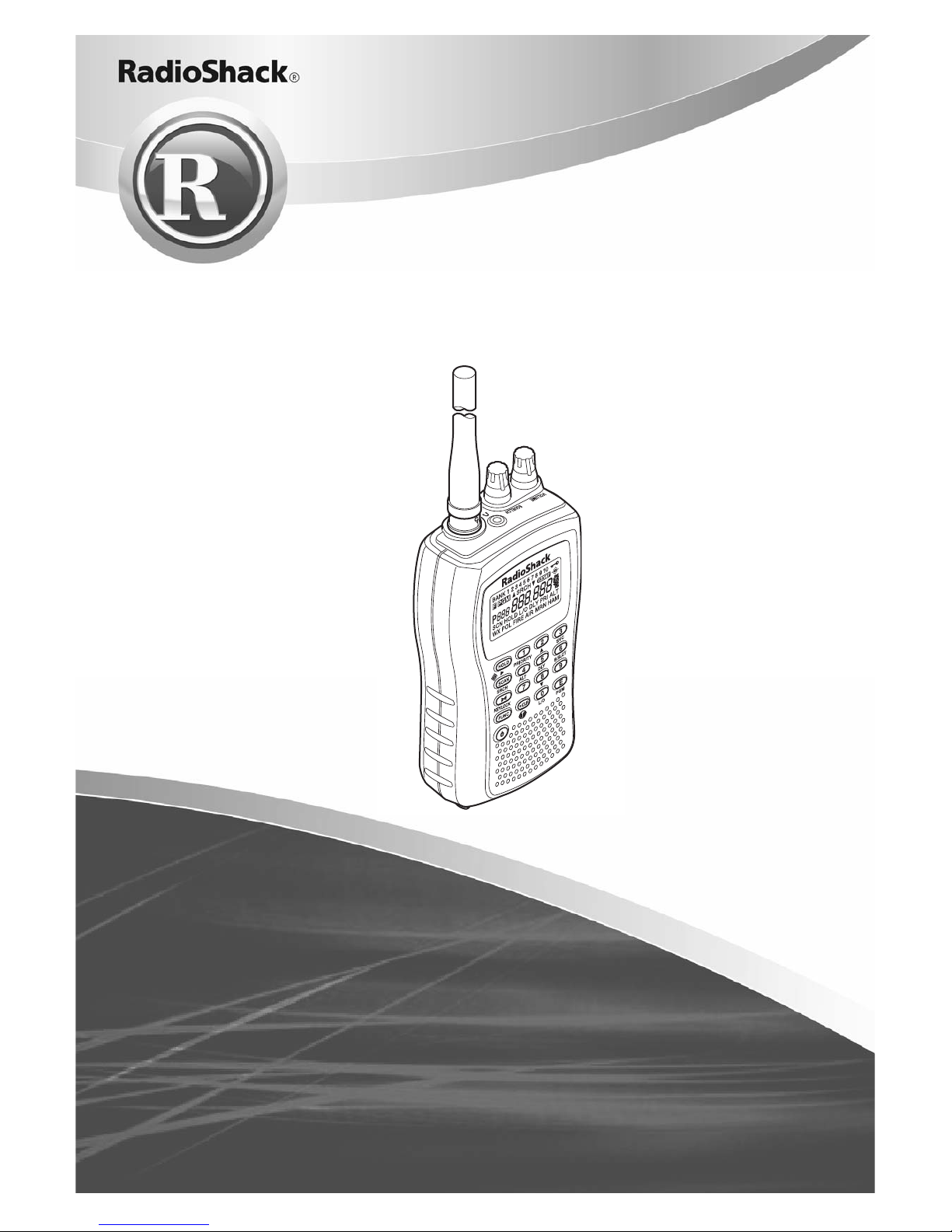

Radio Shack PRO-83 Manuel utilisateur

20-501

PRO-83 200 Channe

compact scanne

w/signal stalker search an

hted keypa

Read this user’s guide completely

before using your scanner

The Basic

Contents

The Basics

The FCC wants you to know . . . . . . . . . . . . . . . . 4

powering your scanner . . . . . . . . . . . . . . . . . . . . 5

using rechargeable batteries . . . . . . . . . . . . . . . . 7

using AC power . . . . . . . . . . . . . . . . . . . . . . . . . 10

using vehicle battery power. . . . . . . . . . . . . . . . 11

setting up your scanner . . . . . . . . . . . . . . . . . . . 13

connecting the antenna . . . . . . . . . . . . . . . . . . . 13

connecting an optional antenna . . . . . . . . . . . . 13

connecting an earphone/headphone . . . . . . . . 14

listening safely . . . . . . . . . . . . . . . . . . . . . . . . . . 14

traffic safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

connecting an extension speaker . . . . . . . . . . . 15

attaching the belt clip . . . . . . . . . . . . . . . . . . . . . 16

about your scanner . . . . . . . . . . . . . . . . . . . . . . 17

a look at the keypad . . . . . . . . . . . . . . . . . . . . . . 18

a look at the display . . . . . . . . . . . . . . . . . . . . . . 22

understanding banks . . . . . . . . . . . . . . . . . . . . . 24

service banks . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

channel storage banks . . . . . . . . . . . . . . . . . . . . 24

Beyond the Basics

operating your scanner . . . . . . . . . . . . . . . . . . . 25

turning on the scanner and setting squelch . . . 25

storing known frequencies into channels . . . . . 25

searching for and temporarily storing

active frequencies . . . . . . . . . . . . . . . . . . . . . . 28

RadioShack and RadioShack.com are trademarks used by

RadioShack Corporation.

3 The Basic

service search . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

storing frequencies into channels during

service search. . . . . . . . . . . . . . . . . . . . . . . . . . 29

scanning the stored channels. . . . . . . . . . . . . . . 30

manually selecting a channel . . . . . . . . . . . . . . . 30

signal stalker . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

setting the signal stalker options . . . . . . . . . . . . 32

using signal stalker . . . . . . . . . . . . . . . . . . . . . . . 35

Skywarn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

about skywarn . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

WX alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

turning on the weather alert feature. . . . . . . . . . 38

chain search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

chain search mode . . . . . . . . . . . . . . . . . . . . . . . 39

chain search hold mode . . . . . . . . . . . . . . . . . . . 40

storing frequencies found during chain

search into channel memory . . . . . . . . . . . . . . 41

program band select mode . . . . . . . . . . . . . . . . 41

direct entry search . . . . . . . . . . . . . . . . . . . . . . . 42

direct entry search hold mode . . . . . . . . . . . . . . 43

storing frequencies found during direct

entry search into channel memory . . . . . . . . . 44

search skip memory . . . . . . . . . . . . . . . . . . . . . . 45

delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

turning channel-storage banks on and off . . . . . 48

locking out channels . . . . . . . . . . . . . . . . . . . . . . 48

locking out frequencies . . . . . . . . . . . . . . . . . . . 49

priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

using keylock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

wired programming . . . . . . . . . . . . . . . . . . . . . . 52

using the display/key backlight. . . . . . . . . . . . . . 53

The Basic

resetting the scanner . . . . . . . . . . . . . . . . . . . . . 54

frequently asked questions . . . . . . . . . . . . . . . . 55

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

The FCC Wants You to Know

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Consult your local RadioShack store or an experienced radio/TV

technician for help.

• If you cannot eliminate the interference, the FCC requires that you stop

using your scanner.

Changes or modifications not expressly approved by RadioShack may

cause interference and void the user’s authority to operate the equipment.

You must use shielded interface cables with this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

5 The Basic

powering your scanner

You can power your scanner from any of three

sources:

• internal batteries (not supplied)

• standard AC power (using an optional

AC adapter)

• vehicle battery power (using an optional

DC adapter)

Before installing batteries, set the switch in the

battery compartment to match the type of batteries

you will use. Select ALKALINE for non-rechargeable

battery types and RECHARGEABLE for rechargeable

battery types, including Ni-Cd and Ni-MH. See also

“Using Rechargeable Batteries” on Page 7 when you

use rechargeable batteries.

XRemove battery cover and set battery switch.

The Basic

YInstall 2 AA batteries, matching the polarity

symbols (+ -).

ZReplace the cover.

7 The Basic

Warning: Set ALKALINE/RECHARGEABLE to

RECHARGEABLE for use only with nickel cadmium

(Ni-Cd) or nickel metal hydride (Ni-MH) rechargeable

batteries. Never attempt to recharge non-

rechargeable batteries. Non-rechargeable batteries

can get hot or explode if you try to recharge them.

Cautions:

• Use only fresh batteries of the required size and

recommended type.

• Always remove old or weak batteries. Batteries

can leak chemicals that destroy electronic

circuits.

• Do not mix old and new batteries, different

types of batteries (standard, alkaline, or

rechargeable), or rechargeable batteries of

different capacities.

When flashes and the scanner beeps every

15 seconds, replace both batteries.

Warning: Always dispose of old batteries promptly

and properly. Do not bury or burn them.

Using Rechargeable Batteries

You can also use two rechargeable batteries to

power your scanner. Before you use Ni-Cd or Ni-MH

batteries, you must charge them.

The Basic

The scanner has a built-in circuit that lets you

recharge Ni-Cd or Ni-MH batteries while they are in

the scanner. To charge the batteries, set ALKALINE/

RECHARGEABLE inside the battery compartment to

RECHARGEABLE, install the batteries in the scanner,

and connect an external AC or DC adapter to the

scanner's DC 6V jack (see “Using AC Power” on

Page 10 or “Using Vehicle Battery Power” on

Page 11). CHArg appears while the scanner is

charging the batteries.

Warning: Do not connect either adapter to the

scanner if non-rechargeable batteries (such as

alkaline batteries) are installed in the scanner and

ALKALINE/RECHARGEABLE is set to

RECHARGEABLE, or if you are unsure of the

switch's position. Non-rechargeable batteries will

get hot and can even explode if you try to recharge

them.

Before you use Ni-Cd or Ni-MH batteries for the first

time, charge them for 14 hours to bring them to a

full charge.

Discharged batteries take about 14 hours to fully

recharge.

Notes:

• Ni-Cd batteries last longer and deliver more

power if you occasionally let them fully

discharge. To do this, simply use the scanner

9 The Basic

until it beeps every 15 seconds and

flashes.

• To prevent damage to Ni-Cd and Ni-MH

batteries, never charge them in an area where

the temperature is above 113°F (40°C) or below

40°F (4°C).

• If you connect an external power source to the

scanner with ALKALINE/RECHARGEABLE set to

ALKALINE, CHArg appears but the scanner

does NOT charge the batteries. This is because

the scanner's microprocessor unit does not

recognize the switch position when you

incorrectly connect an external power source.

Make sure that you use the correct batteries and

set ALKALINE/RECHARGEABLE to the correct

position when you connect an external power

source.

•IfCHArg does not appear, the rechargeable

batteries might be completely discharged.

Connect the scanner to an AC or DC adapter and

wait about 1 minute. Then, unplug the adapter

from the scanner for a few seconds then plug it

back in.

Important: The EPA certified RBRC

Battery Recycling Seal on the

rechargeable battery indicates

RadioShack is voluntarily participat-

ing in an industry program to collect

The Basic

and recycle these batteries at the end of their useful

life, when taken out of service in the United States or

Canada. The RBRC program provides a convenient

alternative to placing used rechargeable batteries

into the trash or the municipal waste stream, which

may be illegal in your area. Please call

1-800-THE-SHACK (1-800-843-7422) for information

on rechargeable battery recycling and disposal

bans/restrictions in your area. RadioShack's involve-

ment in this program is part of the company's com-

mitment to preserving our environment and

conserving our natural resources.

Using AC Power

You can power the scanner using a 6V, 300 mA AC

adapter and a size B Adaptaplug™ adapter (neither

supplied). Both are available at your local

RadioShack store.

Cautions:

• You must use a Class 2 power source that

supplies 6V DC and delivers at least 300 mA.

Its center tip must be set to positive and its plug

must fit the scanner's DC 6V jack. Using an

adapter that does not meet these specifications

could damage the scanner or the adapter.

• Always connect the AC adapter to the scanner

before you connect it to AC power. When you

finish, disconnect the adapter from AC power

before you disconnect it from the scanner.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Radio Shack Scanner

Radio Shack

Radio Shack PRO-94 Manuel utilisateur

Radio Shack

Radio Shack Pro-95 Manuel utilisateur

Radio Shack

Radio Shack Pro-2032 Manuel utilisateur

Radio Shack

Radio Shack PRO-28 Manuel utilisateur

Radio Shack

Radio Shack 20-106 Manuel utilisateur

Radio Shack

Radio Shack PRO-89 Manuel utilisateur

Radio Shack

Radio Shack PRO-76 Manuel utilisateur

Radio Shack

Radio Shack PRO-106 Guide de démarrage rapide

Radio Shack

Radio Shack PRO-650 Manuel utilisateur

Radio Shack

Radio Shack PRO-160 Manuel utilisateur

Radio Shack

Radio Shack PRO-93 Manuel utilisateur

Radio Shack

Radio Shack Race Scanner Manuel utilisateur

Radio Shack

Radio Shack Racing Scanner Manuel utilisateur

Radio Shack

Radio Shack PRO-2050 Manuel utilisateur

Radio Shack

Radio Shack Pro 2055 Manuel utilisateur

Radio Shack

Radio Shack PRO-528 Manuel utilisateur

Radio Shack

Radio Shack REALISTIC PRO-2042 Manuel utilisateur

Radio Shack

Radio Shack PRO-67 Mode d’emploi

Radio Shack

Radio Shack PRO-2039 Manuel utilisateur

Radio Shack

Radio Shack Pro-2035 Manuel utilisateur

Radio Shack

Radio Shack PRO-651 Manuel utilisateur

Radio Shack

Radio Shack Pro-60 Manuel utilisateur

Radio Shack

Radio Shack HANDHELD TRUNKING 20-521 Manuel utilisateur

Radio Shack

Radio Shack FU62ED Manuel utilisateur

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur
