Use Manual for model

Premix condensing system boiler

only heating

R1K 75

R1K 75_Man.Ut._AHS_EN

Contact Details

Office Address: 10 Frankston Gardens Drive,

Carrum Downs, Victoria, Australia, 3201

Email Address: sales@hydronicsupplies.com.au

Website: www.hydronicsupplies.com.au

Phone: (+61 3) 9708 2600

Fax: (+61 3) 9708 2700

R1K 75 - RAD - ING - Man.Ut. - 1901.1_con_PA_AHS

R1K 75_Man.Ut._AHS_EN

TABLE OF CONTENTS

1.1. USE 5

1.1.1. GENERAL USE WARNINGS 5

1.1.2. CONTROL PANEL 6

3.1.3. DISPLAY ICONS 7

3.1.4. INFO MENU DISPLAY DATA 8

3.1.5. START-UP 9

3.1.6. OPERATING MODE 9

3.1.7. INFORMATIONAL NOTE ON ANTI-FREZZE FUNCTION 10

3.1.8. FAULT SIGNALLING CODES 11

3.1.9. ACTIVE FUNCTIONS SIGNALLING CODES 13

R1K 75 - RAD - ING - Man.Ut. - 1901.1_con_PA_AHS

R1K 75_Man.Ut._AHS_EN

TABLE OF CONTENTS

R1K 75 - RAD - ING - Man.Ut. - 1901.1_con_PA_AHS

3 Avvertenze generali per l'utilizzo_EN

3. USE

USER

1.1. USE

1.1.1. GENERAL USE WARNINGS

WARNING

Before starting the boiler the User must

make sure that the First start-up certificate has the

stamp of the technical Support Centre proving the

testing and the first start-up of the boiler.

WARNING

To validate the warranty, the boiler must

be started by a technical Support Centre authorized

by RADIANT no later than 30 days from the date of

installation.

WARNING

In order to take advantage of the guarantee

provided by the manufacturer, the customer should

carefully and exclusively observe the instructions

given in the USER section of the manual.

ATTENTION

This machine may be used only for the

purpose for which it has been designed: heat water

to a temperature below boiling point at atmospheric

pressure. Any other use is considered wrong and

dangerous. The manufacturer is excluded from

any contractual or out of contract responsibility for

damage caused to people, animals or property due to

incorrect use.

DANGER

The boiler should not be used by persons

(including children) with reduced physical, sensory or

mental capacities or without suitable knowledge or

experience unless they are instructed on the device

use or monitored by a person responsible for their

safety.

DANGER

DO NOT obstruct the air vents of the

location in which the gas device is installed to prevent

the formation of toxic explosive mixes.

DANGER

If you sense a gas odour in the location in

which the boiler is installed, proceed as follows:

› DO NOT use electrical switches, the telephone or

any other device that might generate electrical

discharges or sparks;

› Immediately open all doors and windows to

create an air exchange that can quickly clean the

location;

› Close the gas valves;

› Request immediate intervention of qualified

staff.

DANGER

The use of the electrical power boiler

implies respecting some fundamental rules such as:

› DO NOT touch the device with wet and/or humid

parts and/or with bare feet;

› DO NOT pull the electrical cables;

› DO NOT leave the device exposed to atmospheric

agents (rain, sun, etc.) unless specifically

intended;

› in case of cable damage, turn off the device and

contact qualified professional staff to replace it.

R1K 75 - RAD - ING - Man.Ut. - 1901.1_con_PA_AHS

3Pannellocomandi_solorisc_MIAH4_R2_G_EN

3. USE

USER

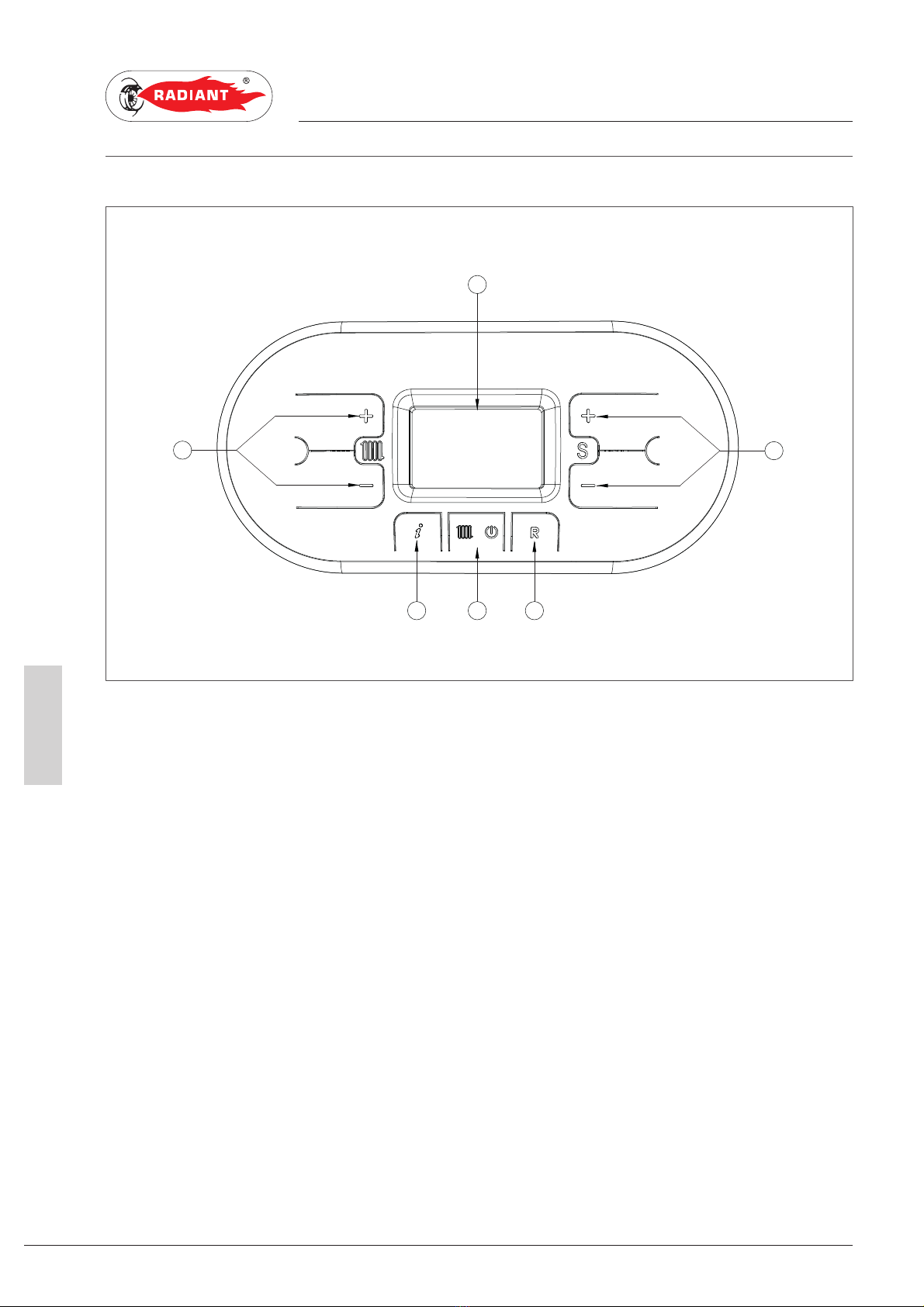

1.1.2. CONTROL PANEL

KEY

1. HEATING TEMPERATURE ADJUSTMENT KEYS

2. INFO KEY: PRESS ONCE TO VIEW THE

TEMPERATURES AND OTHER INFORMATION

(see chapter ‘INFO MENU DISPLAY) - HOLD

FOR 5 SECONDS, IN OFF OPERATING MODE,

TO VIEW THE LAST 5 FAULTS

3. OPERATING MODE SELECTION KEY: ONLY

HEATING / OFF

4. RESET KEY: FAULTS RESET - CHIMNEY

SWEEP FUNCTION ACTIVATION (HOLD FOR 7

SECONDS)

5. VALUE OF THE PARAMETERS ADJUSTMENT

KEY / HOLD THE KEYS AT THE SAME TIME

FOR 5 SECONDS TO ACTIVATE DISPLAY BACK

LIGHT FOR 10 MINUTES

6. DISPLAY

2 3 4

R1K 75 - RAD - ING - Man.Ut. - 1901.1_con_PA_AHS

3Iconedeldisplay_combinata_MIAH406_R1K100_EN

3. USE

USER

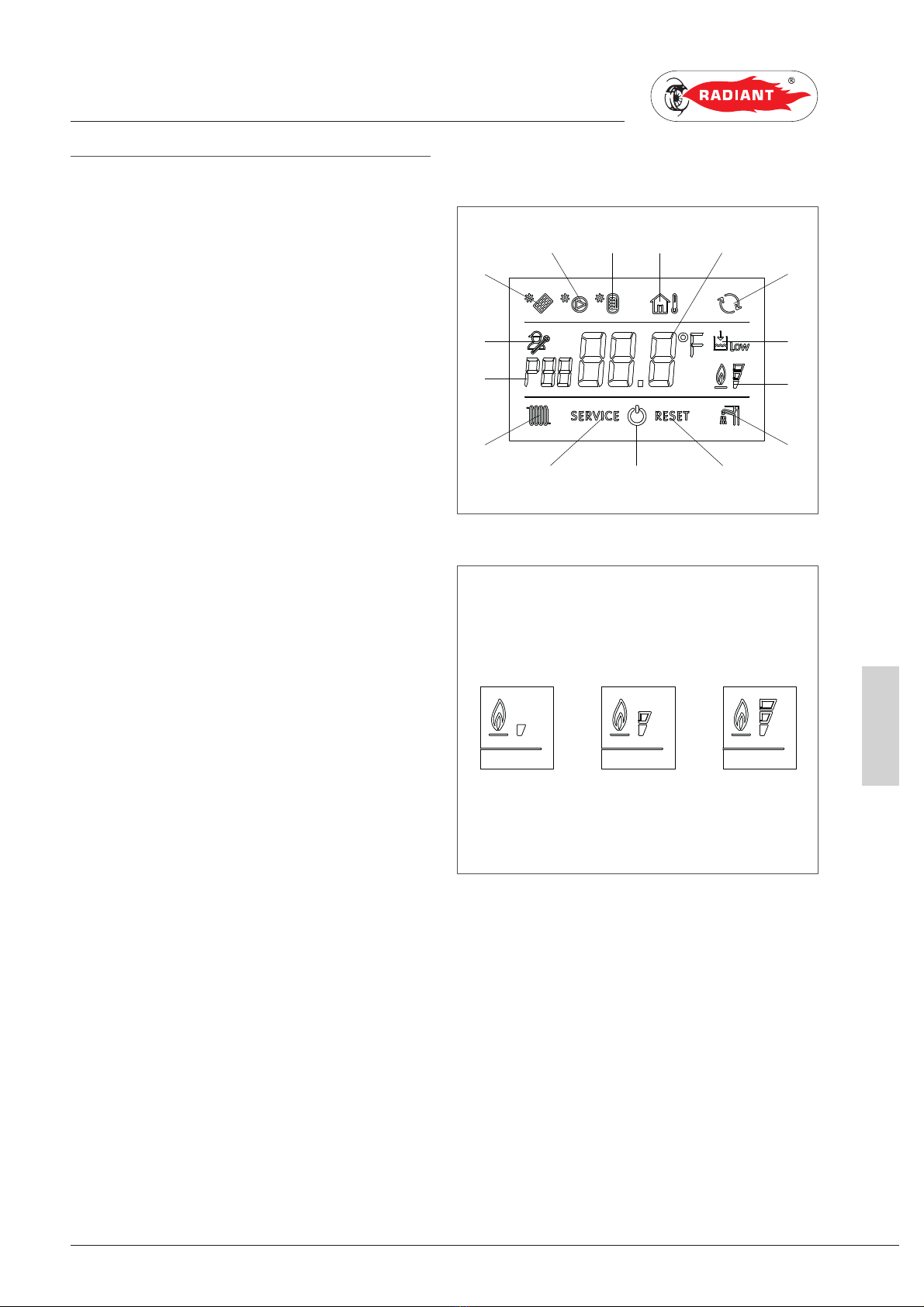

3.1.3. DISPLAY ICONS

KEY

1. PARAMETER NUMBER INDICATION /

DISPLAYED INFO CODE / UNIT IN WHICH THE

FAULT CODE IS PRESENT

2. ACTIVE PARAMETER PROGRAMMING

FUNCTION / INDICATES THAT A SINGLE UNIT

WAS DEACTIVATED BY PARAMETER P06

3. SIGNALLING CONNECTED SOLAR BOARD /

SOLAR COLLECTOR TEMPERATURE DISPLAY

(d5)

4. SOLAR PUMP ACTIVE

5. BOILER LOWER TEMPERATURE DISPLAY (d6)

/ BOILER UPPER TEMPERATURE DISPLAY (d7)

6. EXTERNAL PROBE INSTALLED / EXTERNAL

PROBE TEMPERATURE (d1)

7. TEMPERATURE DISPLAY / SET POINT /

PARAMETER VALUE

8. OPEN THERM COMMUNICATION PRESENT

(REMOTE CONTROL / AREA CONTROL UNIT)

9. INSUFFICIENT SYSTEM WATER PRESSURE

SIGNALLING

10. FLAME PRESENT SIGNALLING / IT ALSO

INDICATES, ON 3 PERCENTAGE LEVELS, THE

MODULATING POWER LEVEL OF THE BOILER

(fig.2)

11. OPERATION IN DOMESTIC CIRCUIT MODE

ENABLED (ONLY FOR THE VERSION WITH

REMOTE BOILER SUPPLY SYSTEM).

12. ERROR DISPLAY THAT CAN BE RESET

13. OFF OPERATING MODE

14. ERROR DISPLAY THAT CAN NOT BE RESET

15. OPERATION IN HEATING MODE ENABLED

456 7

121314

≤ 33% >33%<66% >66%<100%

fig. 1

fig. 2

R1K 75 - RAD - ING - Man.Ut. - 1901.1_con_PA_AHS

3VisualizzazionidelmenùInfo_MIAH406_R1K100_EN

3. USE

USER

3.1.4. INFO MENU DISPLAY DATA

To view the boiler data from info menu you just have to press the INFO ‘ ’ key. The info code will be

displayed on the left side of the screen and its relative value will be displayed on the centre of the screen.

Use keys ‘ ’ and ‘ ’ of the heating circuit to scroll through the list of displayed data. To exit display

mode press the INFO ‘ ’ key.

LIST OF DISPLAYED DATA

INFO CODE ICON DESCRIPTION

d00 DOMESTIC CIRCUIT PROBE TEMPERATURE (ONLY FOR THE VERSION WITH REMOTE BOILER SUPPLY

SYSTEM).

d01 EXTERNAL PROBE TEMPERATURE

d02 BOTTOM AREA PROBE TEMPERATURE [IF CRAD AREA BOARD INSTALLED]

d03 TOTAL POWER PERCENTAGE SUPPLIED BY THE BOILER

d10 DELIVERY PROBE TEMPERATURE OF THE MASTER UNIT

d11 RETURN PROBE TEMPERATURE OF THE MASTER UNIT

d12 FAN SPEED OF THE MASTER UNIT

d20 DELIVERY PROBE TEMPERATURE OF THE SLAVE UNIT

d21 RETURN PROBE TEMPERATURE OF THE SLAVE UNIT

d22 FAN SPEED OF THE SLAVE UNIT

R1K 75 - RAD - ING - Man.Ut. - 1901.1_con_PA_AHS

3Accensione_Modalitàdifunzionamento_Antigelo_MIAH4_R1K100_EN

3. USE

USER

3.1.5. START-UP

Before starting the boiler make sure that it is

powered and that the gas tap below the boiler is

open.

To start the boiler press the function key ‘ ’ and

select the desired operating mode. If the symbol

is displayed fixed, it means that the function was

activated.

3.1.6. OPERATING MODE

SUMMER MODE

(ONLY FOR THE VERSION WITH REMOTE BOILER

SUPPLY SYSTEM).

In this mode the boiler meets only the demands of

domestic hot water.

To switch the boiler to SUMMER operating mode,

press the function key ‘ ’, the symbol ‘ ’

will appear fixed on the display, indicating that the

function is enabled.

Whenever hot domestic water is needed the

automatic start-up system will start the burner;

this is indicated by displaying the symbol ‘ ’

blinking.

HEATING ONLY MODE

In this mode the boiler meets only the demands of

heating.

To switch the boiler to HEATING ONLY operating

mode, press the function key ‘ ’, the symbol ‘

’ will appear fixed on the display, indicating that

the function is enabled.

Whenever heating energy is needed to heat the

rooms the automatic start-up system will start the

burner; this is indicated by displaying the symbol ‘

’ blinking.

WINTER MODE

(ONLY FOR THE VERSION WITH REMOTE BOILER

SUPPLY SYSTEM).

In this mode the boiler meets the demands of

heating and of domestic hot water.

To switch the boiler to WINTER operating mode,

press the function key ‘ ’, the symbols ‘

and ’ will appear fixed on the display, indicating

that the function is enabled.

Whenever heating energy and domestic hot water

are needed the automatic start-up system will

start the burner; this is indicated by displaying the

symbol ‘ e ’ blinking.

ADJUSTING THE HEATING TEMPERATURE

You can adjust the temperature using keys ‘ ’ and

‘’ of the heating circuit :

· press key ‘ ’ to decrease the temperature.

· press key ‘ ’ to increase the temperature.

The heating temperature adjustment field ranges

from 30 °C to 80 °C (25 °C – 45 °C for floor systems).

R1K 75 - RAD - ING - Man.Ut. - 1901.1_con_PA_AHS

3Accensione_Modalitàdifunzionamento_Antigelo_MIAH4_R1K100_EN

3. USE

USER

DOMESTIC HOT WATER TEMPERATURE

ADJUSTMENT

You can adjust the temperature using keys ‘ ’ and

‘’ of the ‘S’ symbol:

· press key ‘ ’ to decrease the temperature.

· press key ‘ ’ to increase the temperature.

The hot domestic water temperature adjustment

field ranges from 35 °C to 60 °C.

OFF MODE

In this mode the boiler no longer meets the heating

and domestic hot water demands, the anti-freeze,

pump anti-locking and diverter valve anti-locking

systems still remain active.

To switch the boiler to OFF operating mode, press

the function key ‘ ’, the symbol ‘ ’ will

appear fixed on the display, indicating that the

function is enabled.

If the boiler was previously running, it will be turned

off and the post-ventilation and post-circulation

functions will be enabled.

If you have to deactivate the boiler for a long period

of time, proceed as follows:

› contact the Technical support centre that will

empty the water system, where no anti-freeze is

intended, and will cut off the power, water and

gas supply.

› Or leave the boiler in OFF operating mode

keeping active the electrical and gas supplies so

that the anti-freeze function may activate.

3.1.7. INFORMATIONAL NOTE ON

ANTI-FREZZE FUNCTION

The boiler is protected against freezing thanks to

the electronic board preparation with functions

that start the burner and heat the concerned parts

when their temperature goes below the minimum

pre-set values.

WARNING

This function is available only if:

› the boiler is powered;

› the gas supply is open;

› the pressure of the system is proper;

› the boiler is not blocked.

Autres manuels pour R1K 75

Table des matières

Autres manuels Radiant Chaudière

Radiant

Radiant R1KG 24 Manuel de service

Radiant

Radiant RK 100 Manuel utilisateur

Radiant

Radiant RSF 30 E Manuel utilisateur

Radiant

Radiant Slim RBA CS 100 E Manuel utilisateur

Radiant

Radiant RMAS 21 E Manuel utilisateur

Radiant

Radiant R2KA 34 Manuel de service

Radiant

Radiant RBS 20 E Manuel utilisateur

Radiant

Radiant RS 24 E 70/90 Manuel

Radiant

Radiant RMA Manuel utilisateur

Radiant

Radiant R1BK 75 Manuel utilisateur

Radiant

Radiant RBS 20 E Manuel utilisateur

Radiant

Radiant RK 34/B Ekobox Manuel utilisateur

Radiant

Radiant R1K 50 Manuel utilisateur

Radiant

Radiant Ekoflux RK 34/B Manuel utilisateur

Radiant

Radiant R1KR Manuel de service

Radiant

Radiant R2K 55 Manuel

Radiant

Radiant RK 18 Manuel utilisateur

Radiant

Radiant RS 20 E Manuel utilisateur

Radiant

Radiant RKR 25 Manuel utilisateur

Radiant

Radiant R1K 34 Manuel utilisateur

Radiant

Radiant R1K 50 Manuel

Radiant

Radiant RK 50 Manuel utilisateur

Radiant

Radiant R1K 120 Manuel de service

Radiant

Radiant R1CR 24 Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
