Racking Solutions CU005 Manuel utilisateur

CU005

Heavy Duty Corner

Steel Shelving Unit

[2]

SAFETY

Information

If in doubt contact the supplier.

Allow adequate working space and

be aware of others working around

you.

Please read these instructions

thoroughly before starting

assembly.

Take care when handling heavy

items particularly when lifting or

stretching.

Inspect all packages for damage

and check that all components

have been supplied.

Warning

Rules for safe use of shelving.

Assembly should be undertaken

by at least two people.

Not suitable for use in damp or wet

environments.

Caution

During assembly

Ensure that the maximum load

carrying capacities are not

exceeded.

Wear appropriate clothing -

protective gloves and footwear

are recommended.

Shelves must be loaded evenly.

Load heavier items on the bottom.

Dispose of packaging materials

responsibly.

Never climb or stand on the

shelves.

Make sure the floor is level.

01977 555007

sales@rackingsolutions.co.uk www.rackingsolutions.co.uk

TOTAL RACKING SOLUTIONS LTd,

UNIT B2, WHITWOOD ENTERPRISE PARK, WHITWOOD LANE, CASTELFORD WF10 5PX

Racking Solutions specialises in all types of racking and shelving for a huge variety of uses. We are a family run

business and we really go the extra mile for our customers. We pride ourselves on offering superb quality products

at exceptionally competitive prices.

Whether you’re looking to fit out your garden shed / garage / shop / office unit / school / college / workshop / public

office / Army barracks / power station / Industrial factory and thousands more we really do have the right priced

solution and quality product just for you.

Our products really are second to none. We over engineer everything we sell compared to many of our

competitors. You won’t be disappointed in our racking and it is very easy to assemble.

Give our friendly Sales Team a ring we're here to help.

[3]

SPECIFICATIONS

Description

The CU005 Heavy Duty Corner Steel Shelving unit with 5 levels is ideal for the corner of garage, home, warehouse,

workshop or even office.

The racking frame is made from 1.2mm thick graded steel, powder coated in a Blue Gloss for long lasting finish. The

shelves are made from super smooth solid 7mm MDF and can hold a massive 275kg UDL per shelf.

The CU005 corner unit is boltless and its assembly only requires the use of a rubber mallet.

Contents

CU005 Heavy Duty Corner Steel Shelving unit

includes:

6 x upright L-shaped beams 90cm, 90o

4 x upright L-shaped beams 90cm, 120o

10 x long back beams 90cm,

5 x medium front beams 63cm,

10 x short side beams 45cm,

3 x upright connectors 90o,

2 x upright connectors 120o,

6 x plastic feet 90o,

4 x plastic feet 120o

5 x MDF boards

Specifications

Dimensions: 180cm H x 90cm/63cm W x 45cm D

Capacity: 275kg UDL per shelf

Materials: 1.2mm thick graded steel, 7mm MDF

Weight: 36kg

Guarantee

A 5 years guarantee applies to all our products. If for any reason a part is missing please get in touch within 7 days on

receipt of your order. You can call or email our helpful Customer Support Team.

If you wish to return a product in perfect working order, we provide a 60 day returns policy as long as the item is

unopened and in a resalable condition.

PRODUCT FEATURES

1) upright L-shaped beam 90cm, 90o

2) upright L-shaped beams 90cm, 120o

3) long back beam 90cm,

4) medium front beam 63cm,

5) short side beam 45cm,

6) upright connector 90o,

7) upright connector 120o,

8) plastic feet 90o,

9) plastic feet 120o

10) MDF board,

(4)

(2)

(3)

(7)

(10)

(1)

(9)

(5)

(6)

(8)

[4]

ASSEMBLY INSTRUCTIONS

1) Group parts together and lay them on the floor.

2) Attach 5 plastic feet to the end of 5 L-shaped upright beams

(3x90o and 2x120o)

3) Before assembling, ensure the short, medium and long

beams are the correct way up. They should create an upside

down L-shape in profile.

4) Take two of the L-shaped upright beams (90o) and attach a

long beam across the bottom to connect them, creating a U-

shape. Push the beams into the bar locking system.

Remember to have them the right way up and then tap with

a rubber mallet into place.

5) Connect to the U-shape a third L-shaped upright beam (90o)

with a long beam. This will create the back corner.

6) Connect to each side one L-shaped upright beam (120o) with

a short beam.

7) Complete the level by inserting one medium beam.

Make sure the beams, that form each shelf, are levelled

otherwise your shelf will not be straight.

8) Slot one MDF board into this metal shelf securing with a tap

of the mallet. Your base and first shelf is complete.

9) For the second shelf slot the 2 short beams then the medium

beam and then the 2 long back beams. Make sure the

beams, that form each shelf, are levelled otherwise your

shelf will not be straight.

Slot one MDF board into this metal shelf securing with a tap

of the mallet. Your second shelf is complete. It is

recommended to evenly distribute the shelf height to gain

maximum strength.

10) At the top of the first set of the uprights attach a 90obeam

connector to each of the three 90oupright corner beams. And

a 120obeam connector to each of the two 120oupright

corner beams. Push the bars into the slots and tap with a

rubber mallet into place.

11) To each of these connectors you are now able to attach the

remaining 5 L-shaped upright beams (3x90o and 2x120o).

12) Then continue to build the rest of the shelves attaching the

short, medium and long beams. Slot in each of the remaining

MDF boards as you go.

13) For the last shelf we recommend slotting and locking it at the

top key hole. This will add to the racking strength and rigidity.

14) Attach the remaining 5 feet to the top of the uprights if

desired (3x90o and 2x120o).

15) Your CU005 Heavy Duty Corner Steel Shelving Unit should

now be complete.

Table des matières

Autres manuels Racking Solutions Support et étagère

Racking Solutions

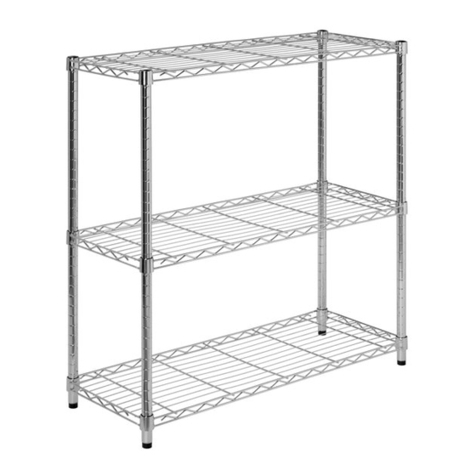

Racking Solutions HST003 Manuel utilisateur
