Rack Pool Tables T401G Manuel utilisateur
RACK LUXOR 7.5-FOOT 4-IN-1 MULTI-GAME SWIVEL BILLIARD/POOL
TABLE-GREEN FELT WITH BROWN BODY
T401G
RACK LUXOR 7.5-FOOT 4-IN-1 MULTI-GAME SWIVEL BILLIARD/POOL TABLE
ASSESSORISS
HARDWARE
1 piece
1 piece 1 piece 1 piece
1 piece
2 pieces
2 pieces
36 pieces 24 pieces 8 pieces 8 pieces
16 pieces
2 pieces 2 pieces
2 pieces
2 pieces
2 pieces 2 pieces
INSTRUCTIONS FOR THE 7.5FT SWIVEL 4-IN-1 MULTIGAMES TABLE
Please keep these instructions for future reference. Adult assembly required.
This table is not a toy & is intended for use by or under the
supervision of adults.
Tools required
Philips Screwdriver-not included
Standard (flat head)Screwdriver- not included
Allen Wrench -included
Note: electric screwdrivers may be helpful during assembly however please set a low torque
& use extreme caution.

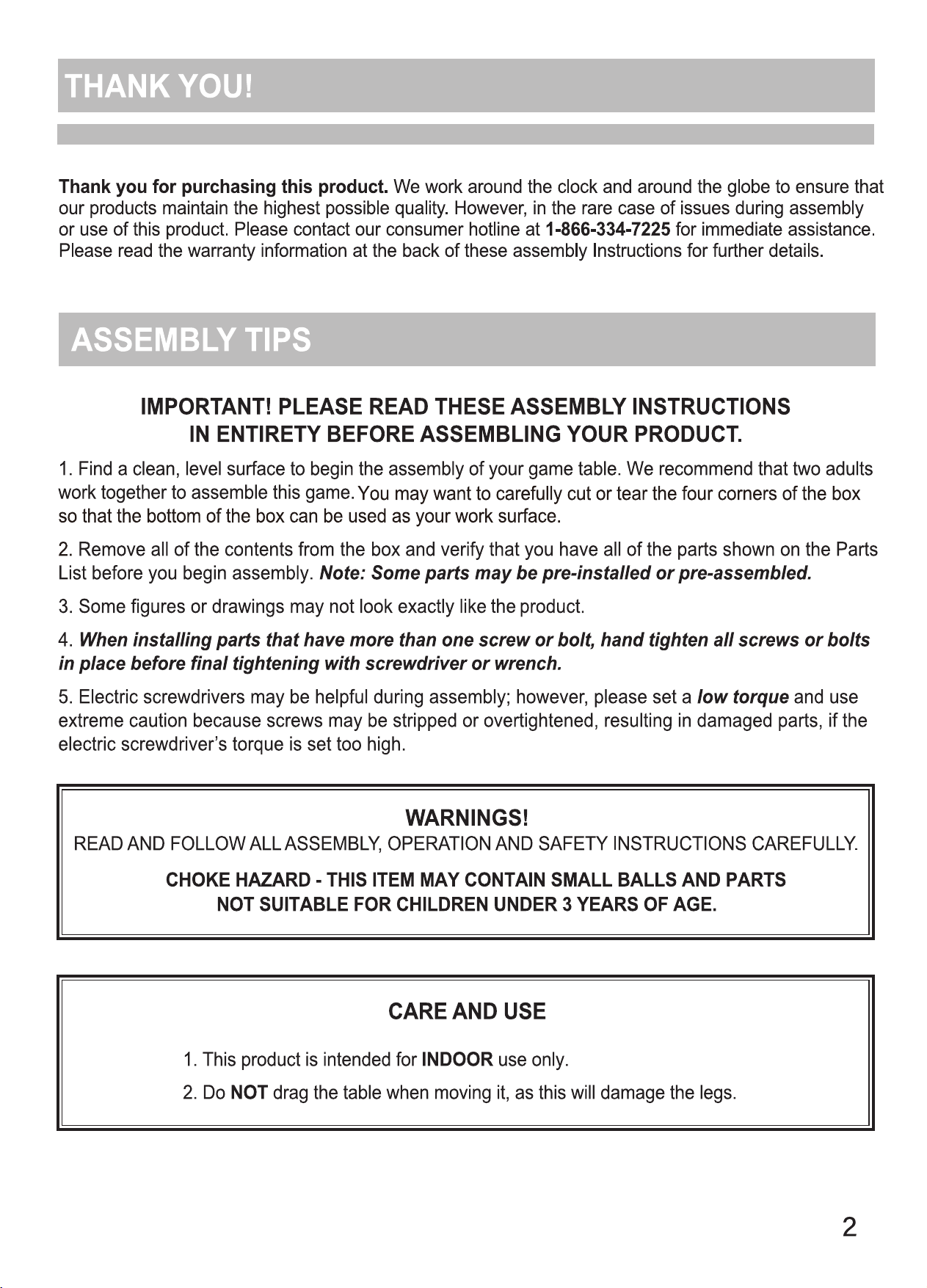

Assembly Tips
Make sure you understand the following before you begin to assemble your games table.
1. Save all packing materials until the parts have been inspected & the table is
assembled.
2. Lay the box on a flat surface (the floor). You may want this near your area of assembly.
3. If any parts are missing please contact RACK POOL TABLES immediately.
4. Note that some parts are stored inside the table top.
Table Body Air Hockey Playsurface
1 piece
Locker
Pre-Installed Rotational Bolt
Pre-Installed Pre-Installed
Leg Base Board
5
4 pieces
4 pieces 4 pieces
Air Blower
Pre-Installed
1 piece
2 pieces 2 pieces 6 pieces
4 pieces 4 pieces 2 pieces 1 piece 1 piece

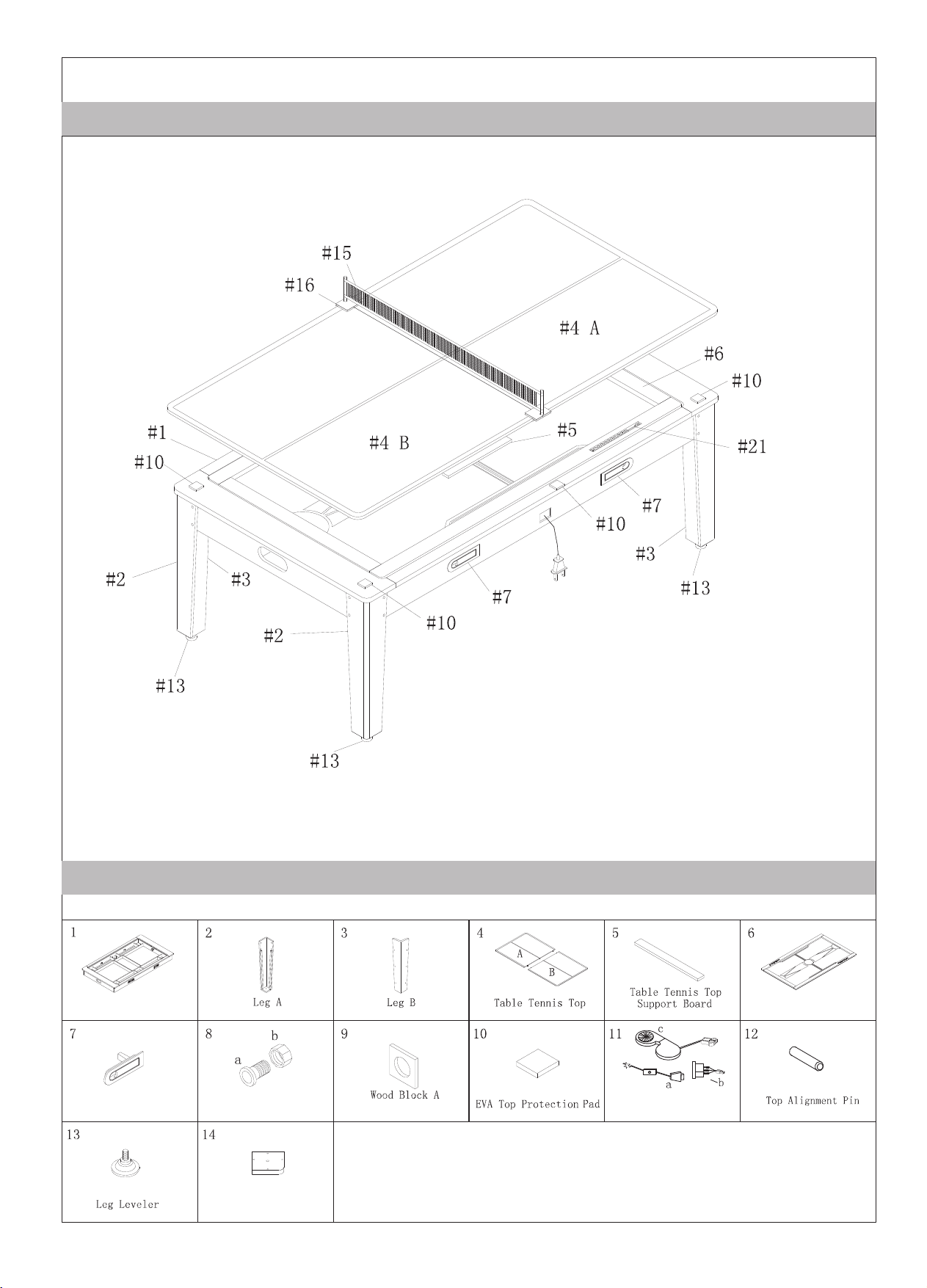

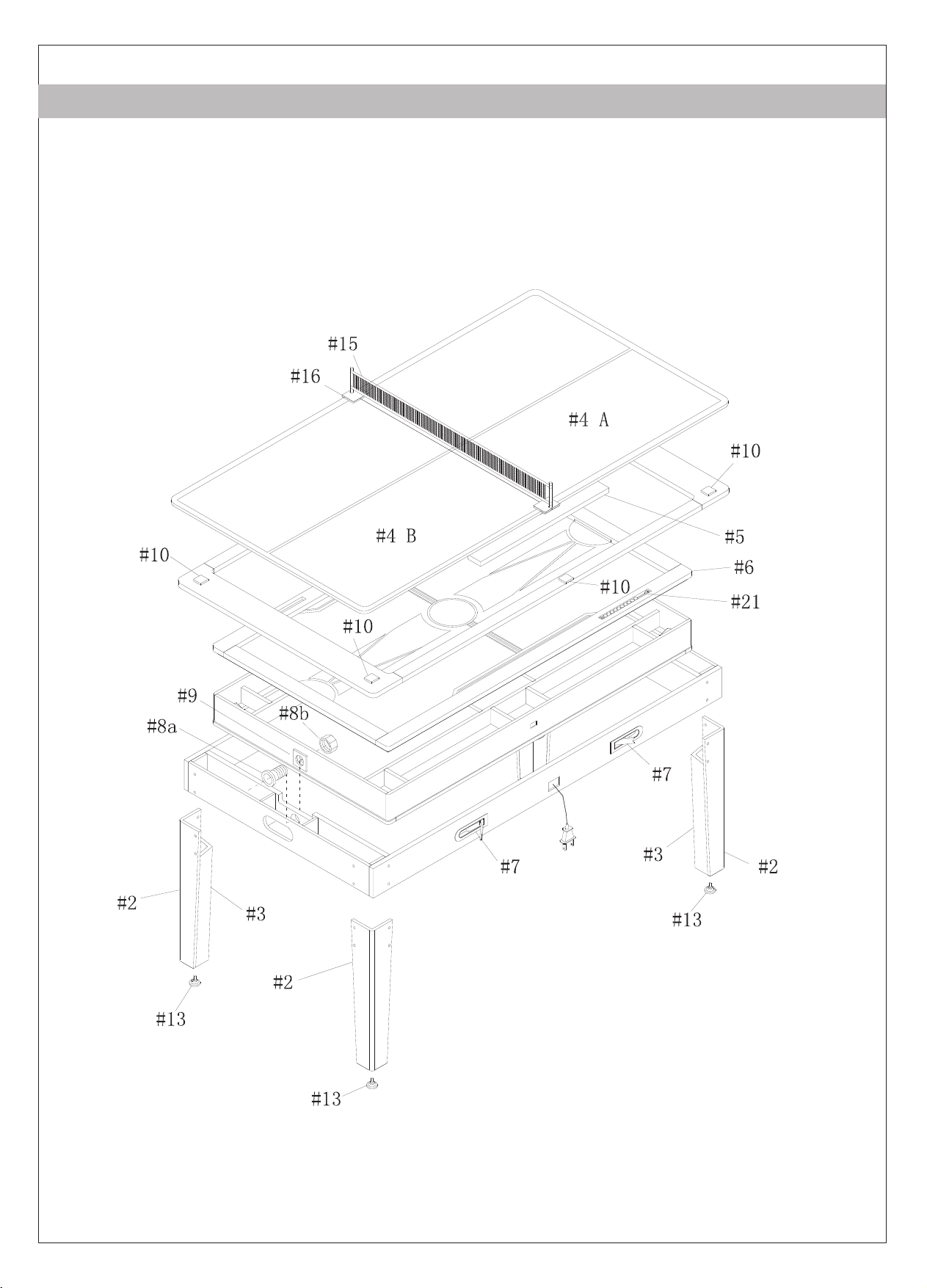

DISTRIBUTION DIAGRAM OF ALL THE PARTS

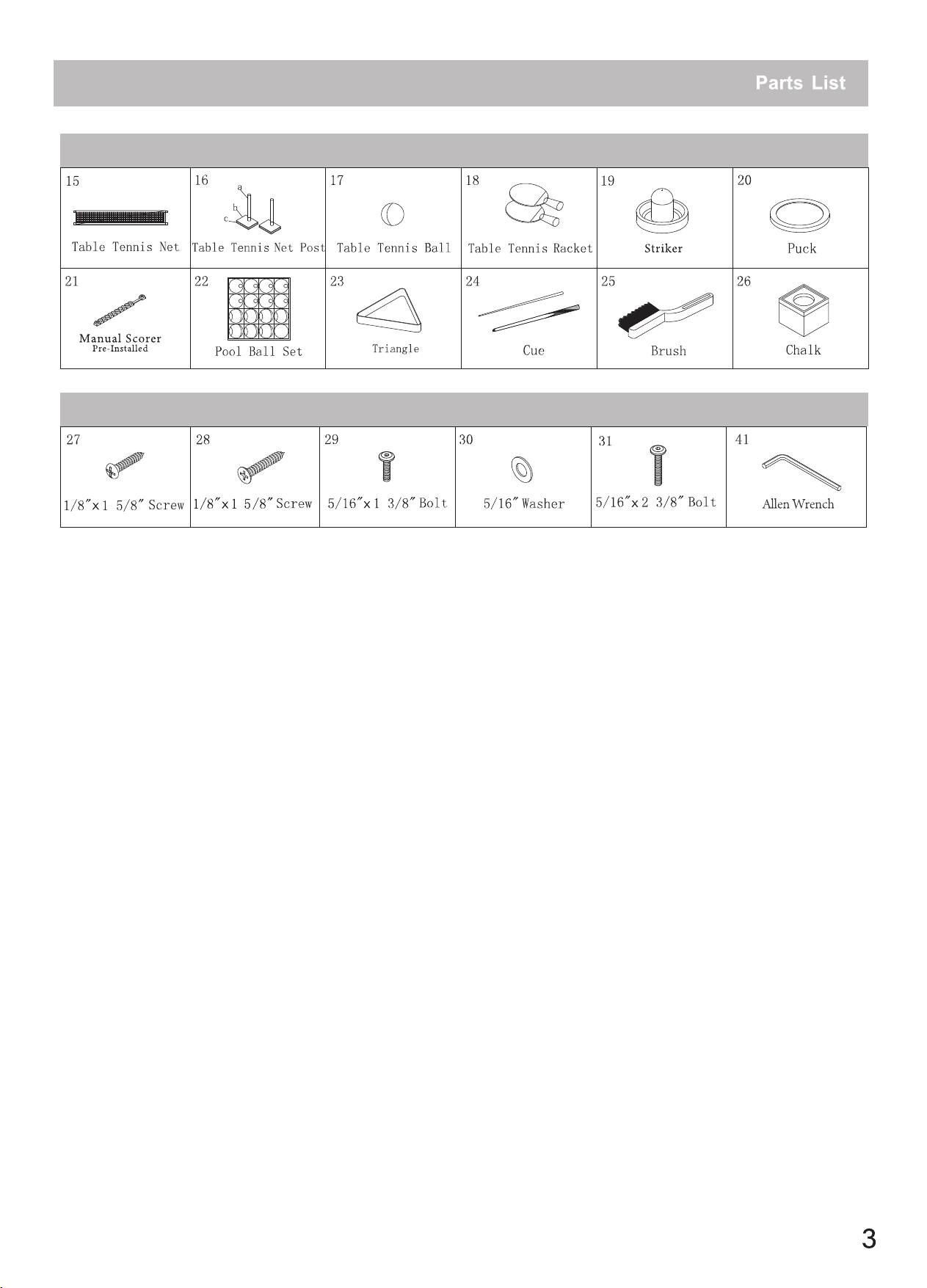

ASSEMBLY PARTS
4 pieces
6
ASSEMBLY VIEW

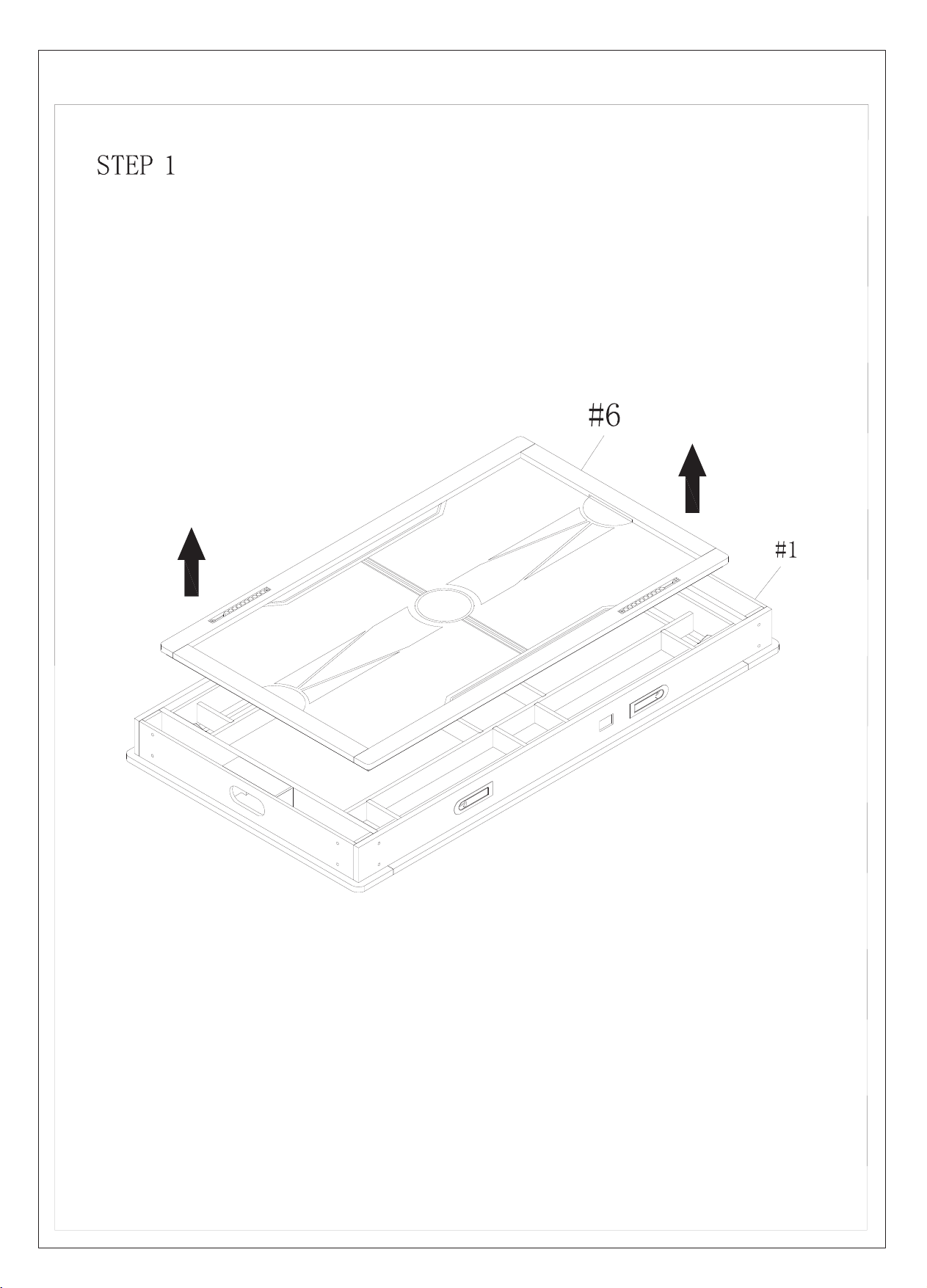

Lift the air hockey table top off the pool table & Keep it aside safe for the time being, be careful not
to damage the fan motor.
Remove all accessories and boxes from the inside of the pool table cabinet.
7
8

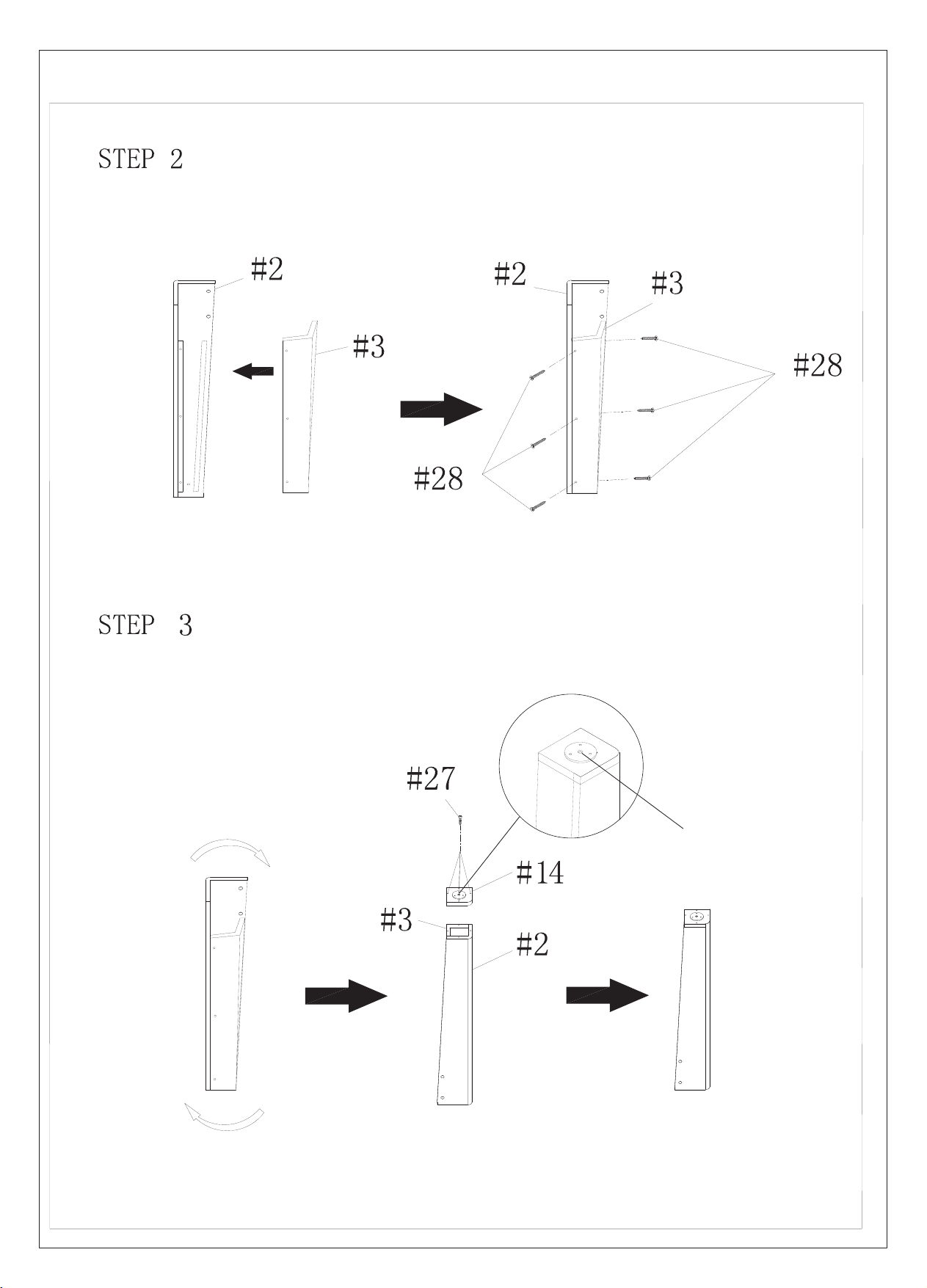

Attach the Leg B ( #3) to the Leg A ( #2) using the Screw ( #28) as shown
Attach the Leg Base Board (#14) to the bottom of the leg using the Screw (#27) as shown
The nut for leg leveler is on this side
9

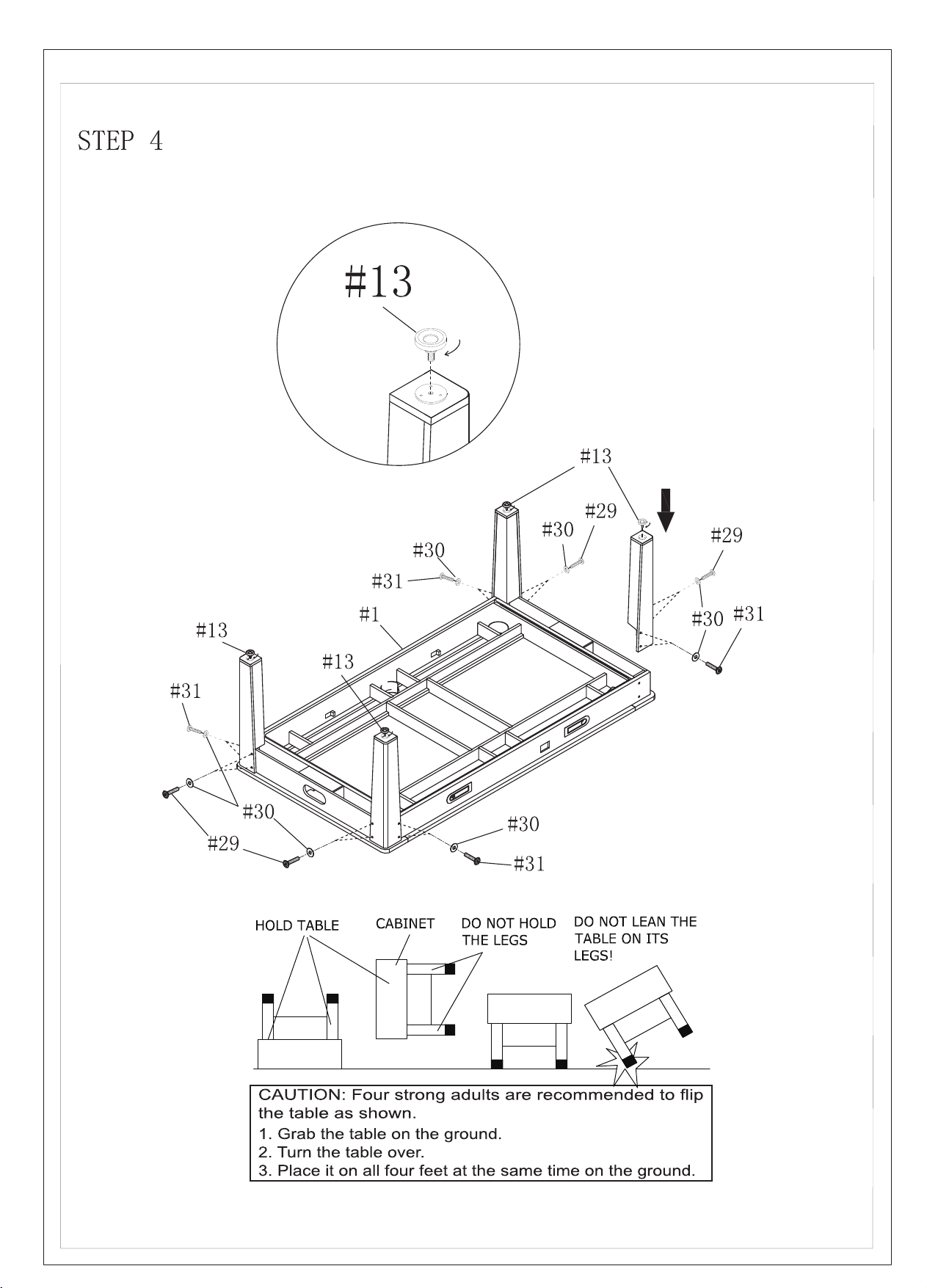

Attch the 4 assembled legs to the corners of the Table Body (#1) using the Bolt (#30) and Washer (#31).
Attach the Leg Leveler (#13) to the bottom of the leg as shown.
Place it in the ground in such a way that all the 4 legs hit the ground at the same time to avoid damages
