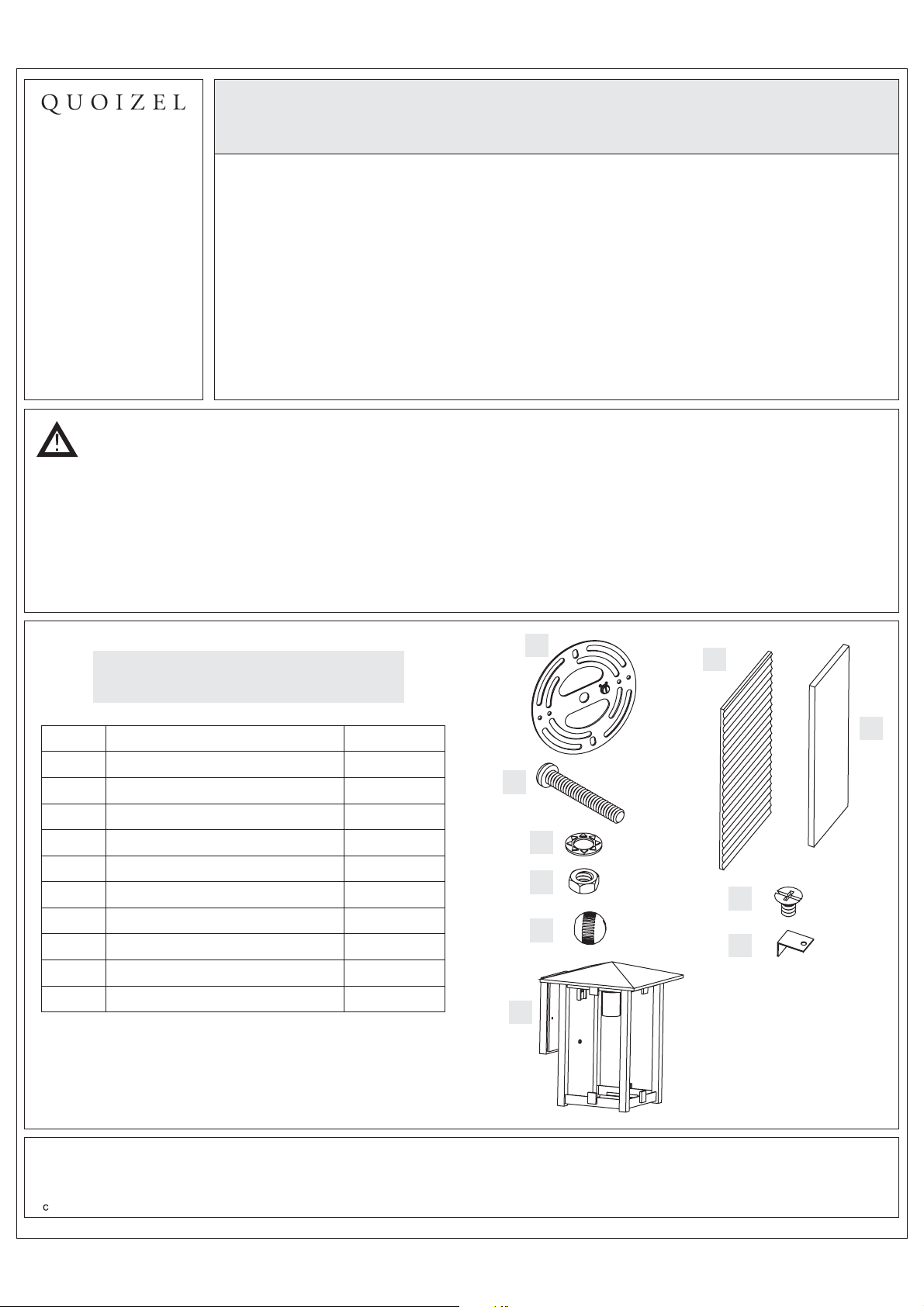

Quoizel CYP8409WT Instructions de montage

Part Description Quantity

A Crossbar 1pc.

1pc.

2 pcs.

Rippled Glass

Hex Nut

Lock Washer

Package Contents

Quoizel, Inc.

6 Corporate Parkway

Goose Creek, SC

29445

Customer Service

Phone 631.273.2700

Fax 631.231.7102

www.quoizel.com

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing

the fixture. We strongly recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool

before removal. Do not subject glass parts to any shock while in operation or shattering may result.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2011 QuoizelInc.

Mounting Ball

Mounting Screw

1of6

October2011

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wire

strippers,electricaltape,safetyglasses.

EstimatedAssemblyTime:20-30 minutes

BulbRecommended: (1)MediumBase100WMaximum

Preparation:Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage

contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing

ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer

serviceforreplacementparts.

3pc.

Fixture Body

Sandblasted Glass 3pc.

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Lock Screw 3pc.

3pc.

JTab

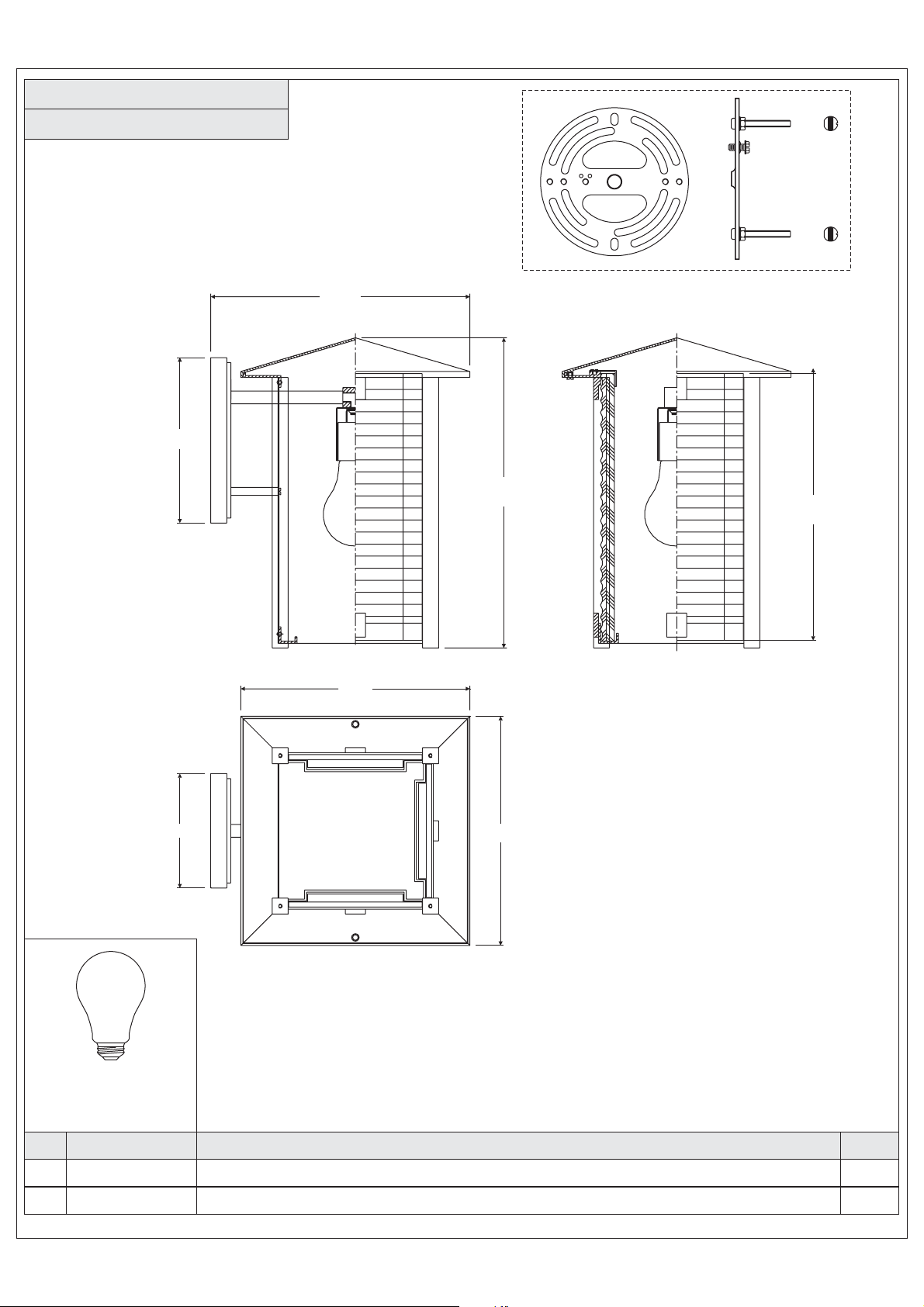

Assembly Instruction Sheet #IS-CYP8409WT

For Style CYP8409WT

PART NUMBER

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"

REPLACEMENT PART DESCRIPTION REQ.

NO.

2of6

GND

2.4mm

13Ga

QUOIZEL R

(1)100W A19

Medium Base Bulb

(Not Supplied)

G2997PA PANEL CLEAR THICK /SANDBLASTED 3

G2996PA PANEL RIPPLED GLASS 5.5"W 3

CYP8409WT

FINISH: WESTERN BRONZE

4.5"

12"

10"

6.5"

10.5"

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2011 QuoizelInc.

3of6

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

October2011

STEP 1 Remove Cap from Fixture Hood-

A. Remove the Fixture Hood from the Fixture Body by

unscrewing the Screw.

Fixture Body

Fixture

Hood

Screw

Figure 1

Figure 2

Crossbar

Mounting

Screw

Lock Washer

Hex Nut

Fixture

Body

STEP 2 -Attach Mounting Screws, Lock

Washers and Hex Nuts to Crossbar

A. Line up a set of holes on the Crossbar (A) and Holes on

the backplate of the Fixture Body (F).

B. Thread Mounting Screws (B) into the holes on the

Crossbar (A), pass Lock Washers (C) and thread Hex

Nut (D) onto the Mounting Screws (B). Hand tighten

until snug.

STEP 3 -Attach Crossbar to Outlet Box

A. Attach the Crossbar (A) to Outlet Box and secure by

threading Outlet Box Screws (not supplied) into the

Mounting Holes on the Outlet Box. Tighten until snug.

Crossbar

Outlet

Box

Outlet Box

Screw

Mounting

Hole

Figure 3

Assembly Instruction Sheet #IS-CYP8409WT

For Style CYP8409WT

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2011 QuoizelInc.

4of6

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

October2011

Figure 4

STEP 4 Make Wire Connections-

A. Use standard wire connectors to make all wire

connections. (Connectors are not included with fixture.)

Strip and prepare wire ends according to instructions

supplied with connectors.

B. Connect White Supply Wire from the Outlet Box to White

Wire from fixture.

C. Connect Black (or Red) Supply Wire from the Outlet Box

to Black Wire from fixture.

D. Connect Ground Wire from the Outlet Box to Ground

Wire from fixture.

E. Twist connectors until wires are tightly joined together.

F. Wrap each connection with approved electrical tape and

carefully stuff all the connected wires into the Outlet Box.

Figure 5

White wire from supply White wire from fixture

Black wire from supply

(or Red)

Black wire from fixture

Ground wire from supply Ground wire from fixture

STEP 5 -Attach Fixture Body to Mounting

Screw

A. Place the backplate of the Fixture Body (F) over the

Mounting Screws (B) and secure with Mounting Balls

(E). Hand tighten until snug.

Mounting Screw

Mounting Ball

Backplate Figure 6

Assembly Instruction Sheet #IS-CYP8409WT

For Style CYP8409WT

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2011 QuoizelInc.

5of6

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

October2011

Figure 8

Socket

Bulb

STEP 7 Install Bulb-

A. This fixture uses standard bulb with a standard screw base.

Maximum 100 watts.

B. Insert bulb and screw properly into place.

STEP 6 Attach Shade to Shade Frame-

A. Place the Rippled Glass (G) and the Sandblasted Glass H

into the Shade Frame properly, Place the Tab (J) pinned

thethe Rippled Glass (G) and the Sandblasted Glass H .

By using the Flathead screwdriver, thread the Lock screw (I)

into the lock hole of Tab on the top of Shade Frame to secure

the the Rippled Glass (G) and the Sandblasted Glass H .

Tighten until snug.

()

Rippled Glass

Sandblasted Glass

Tab

Lock Screw

Shade Frame

Figure 7

Assembly Instruction Sheet #IS-CYP8409WT

For Style CYP8409WT

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2011 QuoizelInc.

6of6

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

October2011

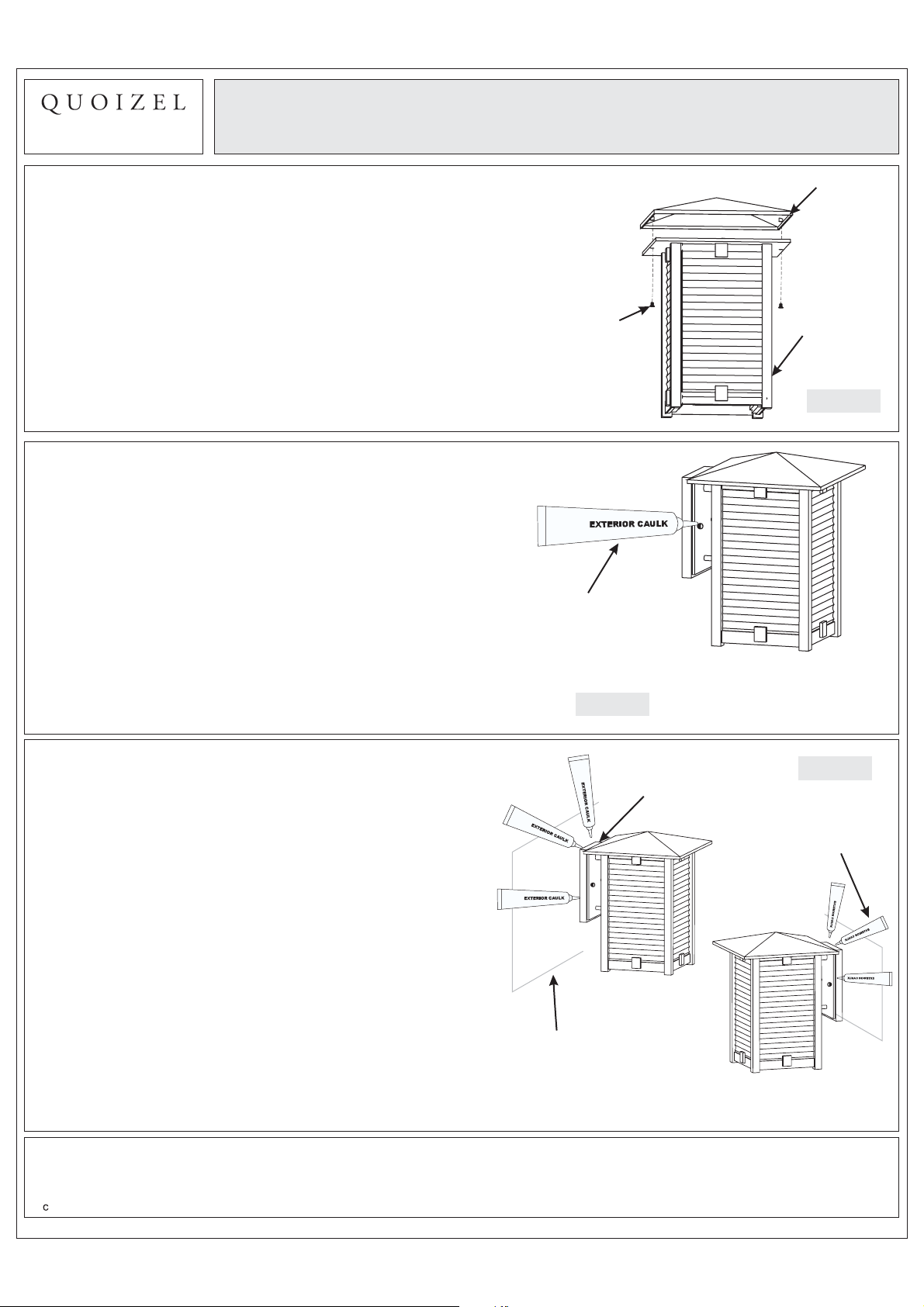

STEP 9 Apply Silicone Sealer to Mounting

Balls

A. To prevent moisture from entering the wire

compartment, apply a small amount of silicone sealer

(not included) to the threaded side of the mounting

balls (E) and then install them onto the mounting

screws (B). Wipe off excess caulk.

Figure 10

Mounting Ball

STEP 10 Apply Silicone Sealer to Backplate-

A. Make sure exterior wall surface and fixture backplate

are free of dirt before applying caulk. Using exterior

grade caulk, start on one side of fixture backplate and

follow contour, where the fixture backplate meets the

exterior wall surface upward. Proceed to caulk over top

of backplate and down other side. Do not caulk bottom

of fixture backplate to ensure proper moisture

drainage.

Your lamp wall fixture is now assembled and ready to

use. Enjoy!

Exterior

Grade Caulk

Outdoor Fixture

Backplate

Exterior

Wall Surface

Figure 11

Fixture

Hood

Screw

STEP 8 -Attach Fixture Hood

A. Secure the Fixture Body to the Shade Holder with Lock

Screws.

Fixture Body

Figure 9

Assembly Instruction Sheet #IS-CYP8409WT

For Style CYP8409WT
