Quidel Sofia Manuel utilisateur

CUSTOMER SERVICE

If the Sofia Analyzer does not perform as expected, contact Quidel Technical Support (800) 874-1517 (in the U.S.),

(858) 552-1100 (outside the U.S.) or your local distributor. T[email protected]

Study the User Manual

thoroughly before using

the QuickStart Guide

QuickStart Guide

ANALYZER

Paper Roll

Calibration

Cassette

Pouch

Calibration

Cassette

AC Power Cord DC Power Cord

SD Cards:

Test Type Files (Blue)

Language Files (Yellow)

Blank SD Card

UNPACK ANALYZER

◗

Inspect the shipping container for obvious shipping damage prior to opening.

◗

Unpack the shipping container and inspect the unit for damage.

UNPACK INSTALLATION PACK

◗

Inspect the shipping container for obvious shipping damage prior to opening.

◗

Unpack the shipping container and inspect the contents for damage.

Sofia Analyzer

Barcode Scanner

Paper Cover

Literature Translations

quidel.com/fluorescence

1205700 (09/11)

BATTERYGold

LRG AA SIZE 1.5V

SUPER ALKALINE

BATTERYGold

LRG AA SIZE 1.5V

SUPER ALKALINE

BATTERYGold

LRG AA SIZE 1.5V

SUPER ALKALINE

BATTERYGold

LRG AA SIZE 1.5V

SUPER ALKALINE

4x LR6-AA + 6V, 4.16 A

Barcode Scanner Stand

ScannerStand

code

Scanner

Stand

CONNECT TO POWER AND TURN ON

Place the Sofia Analyzer on the counter top within reach of an electrical outlet.

The unit is portable and can be moved to a suitable location for testing.

INSTALLING TEST TYPE FILES

Test files must be loaded prior to performing testing. A new test type file is needed for

each new assay. Select “Load Test Types” from the Supervisor menu. Then insert the

appropriate SD Card with the test type files (blue) into the slot in the back of the analyzer.

Follow the analyzer prompts to complete the installation.

Plug the Barcode scanner

into the PS2 port in the back

of the analyzer. Note: The

Barcode scanner may have

2 plugs; one will remain

unplugged.

Turn the analyzer on using the power

switch located on the rear panel. Hold

the toggle switch down until the

screen illuminates (1–2 seconds).

Plug the appropriate, country specific

AC power cord into the DC Power

Cord and appropriate electrical outlet.

Plug the DC power cord

into the power port in the

back of the analyzer.

Power Switch

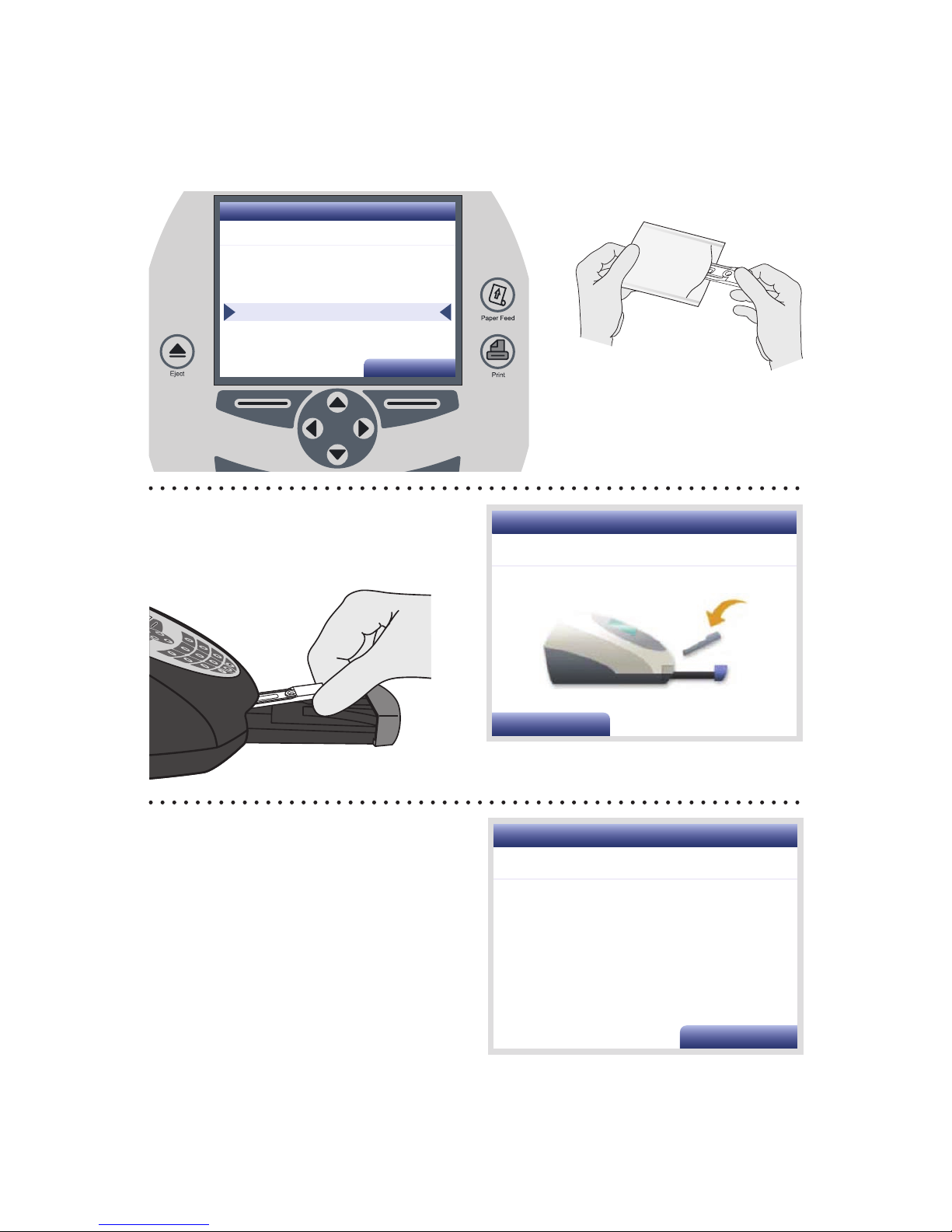

CALIBRATION CHECK

◗

Use the up/down keys to highlight CALIBRATION from the menu.

◗

Press the soft key under the lower right corner of the display screen under SELECT.

◗

Remove Calibration Cassette from the pouch.

Insert the Calibration Cassette into the

analyzer and close the drawer. The analyzer

will perform the Calibration Check

automatically.

The analyzer display will indicate when the

Calibration Check is completed.

NOTE: If Calibration Check cannot be

completed successfully, notify the on-site

Supervisor or contact Quidel Technical

Support for assistance.

The Calibration Cassette will automatically

eject when calibration is complete. Remove

and return the Calibration Cassette to the

storage pouch.

Select OK to return to the Main Menu after

calibration is complete.

Important: Store the Calibration Cassette in

the provided storage pouch between uses.

Run QC according to assay specific package insert.

Select

Run Test

Run QC

Review Data

Calibration

Supervisor Menu

Change Mode

Main Menu

06-01-2011 | 14:46

Calibration Results

Calibration passed.

06-01-2011 | 14:46

Cancel

Please insert cassette and close drawer.

Start Calibration

06-01-2011 | 14:46

MENU STRUCTURES

Main Menu Structure

Main Menu

Run Test

Run QC

Review Data

Calibration

Supervisor

Change

Mode

User ID

Patient ID

Order #

User ID

Review Patient

Results

Review QC Results

Review Calibration

Results

View Lot Status

View Test Types

Send Results

User ID

See Supervisor

Structure

WALK AWAY

Mode

READ NOW

Mode

Send Unsent

Results

Send

Last Results

Send

All Results

Send All

Patient

Results

Send All QC

Results

Test LIS

Connection

Send Unsent

Results

Send

Last Results

Send

All Results

Test SURV

Connection

Sent Results

to LIS

Send Results

to SURV

Receiver

Quidel Corporation

San Diego, CA 92121 USA 1201101EN00 (09/13)

Supervisor Menu Structure

Add User

Edit User

Delete User

Hide Options

Set Location

Name

Set Language

& Sound

Set Date

Set Time

Set Network

Conﬁguration

Set LIS

Parameters

Options

Load Settings

from SD Card

Save Settings

to SD Card

Save Test Records

to SD Card

Load Analyzer

Software

Load

Language File

View

Analyzer Info

View

User History

View

Message Log

View Network

Settings

Set Default Mode

& Print Option

Set Entry Requirement

and Timeout

Set Calibration

and QC

Set User

Access Rights

General

Settings

Surveillance

Settings

Load

Test Types

Manage

Users

Load/Save

Update

Statistics

Settings

Supervisor

Main Menu
