Queclink ZK105L Series Manuel utilisateur
ZK105LUser Manual
DocumentTitleZK105L User Manual
VersionN/A
AuthorBruce.Chen
Date2019‐04‐18
StatusRelease
DocumentControlID
ZK105L User Manual
1
GeneralNotes
Queclinkoffersthisinformationasaservicetoitscustomers,tosupportapplicationand
engineeringeffortsthatusetheproductsdesignedbyQueclink.Theinformationprovidedis
baseduponrequirementsspecificallyprovidedtoQueclinkbythecustomers.Queclinkhas
notundertakenanyindependentsearchforadditionalrelevantinformation,includingany
informationthatmaybeinthecustomer’spossession.Furthermore,systemvalidationof
thisproductdesignedbyQueclinkwithinalargerelectronicsystemremainsthe
responsibilityofthecustomerorthecustomer’ssystemintegrator.Allspecifications
suppliedhereinaresubjecttochange.
Copyright
ThisdocumentcontainsproprietarytechnicalinformationwhichisthepropertyofQueclink
WirelessSolutionsCo.,Ltd.Thecopyingofthisdocument,distributiontoothers,and
communicationofthecontentsthereof,areforbiddenwithoutexpressauthority.Offenders
areliabletothepaymentofdamages.Allrightsarereservedintheeventofapatentgrant
ortheregistrationofautilitymodelordesign.Allspecificationssuppliedhereinaresubject
tochangewithoutnoticeatanytime.
Copyright©QueclinkWirelessSolutionsCo.,Ltd.2018
ZK105L User Manual
1 Introduction
This document describes how the ZK105 enters transparent mode to debug module instructions.
The ZK105LSeries are a series of water resistant GPS tracker designed for Scooter. Their built-in GPS
receiver has superior sensitivity and fast time to first fix (TTFF). Their LTEallows the ZK105L Series'
location to be monitoredin real time or periodically tracked bya backend server or other specified
terminals. Their built-in 3-axis accelerometer allows motion detection and extends battery life through
sophisticated power management algorithms.It built-in high brightness color indicator and audio
broadcastfunction. It built-in high brightness color indicator and audio broadcastfunction.System
integration is straightforward as complete documentation isprovided for the full featured @Track protocol.
The @Track protocol supports a wide variety of reports including emergency, low battery and scheduled
GPS position.
2
2. Product Overview
2.1. Appearance
3Hardware
3.1.1partslist:
Name Picture
DebugCable
Table1.PartsList
ZK105L User Manual
3

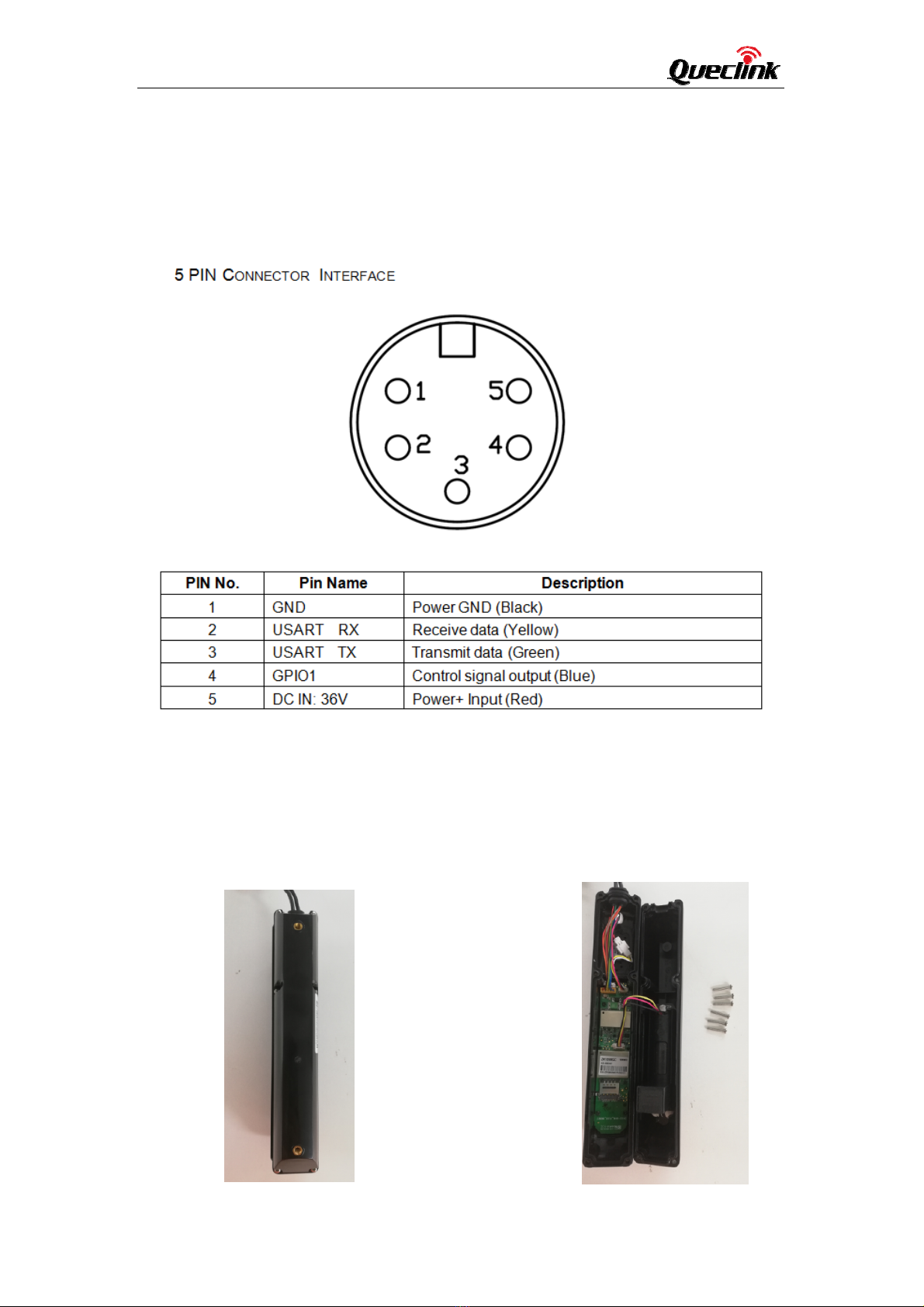

3.1.2Interface Definition
Thepowercableinput36V,redwirefor positive,blackwirefornegative
4 Getting Start
4.1 Install SIM Card
- Turn off the ZK105L ;
- Open ZK105L and insert SMI card as follows
1Go screw down. Turn on the machine
Find card slot
Insert SMI card
Close the machine
4
ZK105L User Manual
5
WCDMA/LTE use:
1 ZK105LcancommunicatewiththebackendserverthroughLTE
network,andtransferreportsofemergency,Geo‐fencing,device
statusandscheduledGPSpositionetc…Serviceprovideriseasyto
setuptheirtrackingplatformbasedonthefunctionalwireless
trackingprotocol.
2 DeviceStatusLED
ZK105LLEDDefinition
No.WhiteLEDRedLEDDescription
1OffOffInINACTIVEmode
2AlternatingFlashingInTESTmode
3BreathingOffInNORMALmode:normal
4OffFlashingInNORMALmode:ECUfault
4OffOnInNORMALmode:IoTfault
3 BLE
3.1 BLEworkingmodeexplanation
3.2 BLEinstructions
Heartbeat packet uploaded from ZK105 to Server includes 20 bytes dynamic password (BLE Command
Password).After successfully connected with the BLE of ZK105,It is able to send command <AT
+BKSCT=BLE Command Password,0$> to unlock Scooter or <AT+BKSCT=BLE Command Password,1$>to
lock Scooter by BLE channel.
ZK105 isinstalled in the SharedScooter and supplied by the main battery of Scooter. With the external
power(main battery of Scooter) supplying , the BLE of ZK105 works. Otherwise with the backup battery of
ZK105 supplying, BLE stops working.
ZK105L User Manual
6
FCC Certification
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and(2) This device must
accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.
IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
