Queclink GMT100 Manuel utilisateur

GMT100 User manual

TRACGMT100UM001-10-

GSM/GPRS/GPS Tracker

GMT100

User Manual

TRACGMT100UM001

Revision: 1.00

http://www.queclink.com

sales@queclink.com

GMT100 User manual

TRACGMT100UM001- 2 -

Document Title GMT100 User Manual

Version 1.00

Date 2011-11-12

Status Release

Document Control ID TRACGMT100UM001

General Notes

Queclink offers this information as a service to its customers, to support application and

engineering efforts that use the products designed by Queclink. The information provided

is based upon requirements specifically provided to Queclink by the customers. Queclink

has not undertaken any independent search for additional relevant information, including

any information that may be in the customer’s possession. Furthermore, system validation

of this product designed by Queclink within a larger electronic system remains the

responsibility of the customer or the customer’s system integrator. All specifications

supplied herein are subject to change.

This document contains proprietary technical information which is the property of Queclink

Limited., copying of this document and giving it to others and the using or communication

of the contents thereof, are forbidden without express authority. Offenders are liable to the

registration of a utility model or design. All specification supplied herein are subject to

change without notice at any time.

Queclink

Confidential

GMT100 User manual

TRACGMT100UM001- 3 -

Contents

1. Introduction...................................................................................................................................7

1.1. Reference.............................................................................................................................7

1.2. TermsandAbbreviations.....................................................................................................7

2. Product Overview .........................................................................................................................8

2.1. Appearance..........................................................................................................................8

2.2. Parts List..............................................................................................................................9

2.3. Interface Definition.............................................................................................................9

3. Getting Started ............................................................................................................................10

3.1. Installing a SIM Card........................................................................................................10

3.2. Reset Key..........................................................................................................................11

3.3. USB connector..................................................................................................................11

3.4. Power Connection.............................................................................................................11

3.5. Ignition Detection..............................................................................................................12

3.6. Digital Inputs.....................................................................................................................12

3.7. Analog Inputs ....................................................................................................................13

3.8. Digital Outputs..................................................................................................................13

3.9. Cut Relay Output...............................................................................................................14

3.10. Device Status LED..........................................................................................................15

Queclink

Confidential

GMT100 User manual

TRACGMT100UM001- 4 -

Table Index

TABLE 1: GMT100 PROTOCOL REFERENCE....................................................................................7

TABLE 2: TERMS AND ABBREVIATIONS..........................................................................................7

TABLE 3: PART LIST .............................................................................................................................9

TABLE 4: DESCRIPTION OF GMT100 USER CABLE........................................................................9

TABLE 5: ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION.................................12

TABLE 6: ELECTRICAL CHARACTERISTICS OF THE DIGITAL INPUTS...................................12

TABLE 7: ELECTRICAL CHARACTERISTICS OF DIGITAL OUTPUT..........................................13

TABLE 8: DEFINITION OF DEVICE STATUS AND LED.................................................................16

Queclink

Confidential

GMT100 User manual

TRACGMT100UM001- 5 -

Figure Index

FIGURE 1. APPEARANCE OF GMT100.........................................................................................8

FIGURE 2. SIM CARD INSTALLATION.......................................................................................10

FIGURE 3. TYPICAL POWER CONNECTION.............................................................................11

FIGURE 4. TYPICAL IGNITION DETECTION............................................................................12

FIGURE 5. TYPICAL DIGITAL INPUT CONNECTION ..............................................................13

FIGURE 6. TYPICALANALOG INPUT CONNECTION .............................................................13

FIGURE 7. TYPICAL CONNECTION WITH RELAY ..................................................................14

FIGURE 8. GMT100 LED ON THE CASE.....................................................................................15

Queclink

Confidential

GMT100 User manual

TRACGMT100UM001- 6 -

Revision History

Revision Date Author Description of change

V1.0.0 2011-11-12 Lei Initial

Queclink

Confidential

GMT100 User manual

TRACGMT100UM001-10-

1. Introduction

The GMT100 is a powerful GPS locator designed for vehicle or asset tracking. It has

superior receiver sensitivity, fast TTFF (Time to First Fix) and supports Quad-Band GSM

frequencies 850/900/1800/1900, its location can be monitored in real time or be

periodically tracked by a backend server or other specified terminals. The GMT100 has

multiple input/output interfaces that can be used for monitoring or controlling external

devices. Based on the integrated @Track protocol, the GMT100 can communicate with a

backend server through the GPRS/GSM network to transfer reports of Emergency,

geo-fence boundary crossings, low backup battery or scheduled GPS position as well as

many other useful functions. Users can also use GMT100 to monitor the status of a

vehicle and control the vehicle by its external relay output. System Integrators can easily

setup their tracking systems based on the full-featured @Track protocol.

This device complies with part 15B, part 22 and part 24 of the FCC rules. Operation

is subject to the following two conditions: (1) this device may not cause harmful

interference (2) this device must accept any interference, including interference

that may cause undesired operation.

1.1. Reference

Table 1: GMT100 Protocol Reference

SN Document name Remark

[1] GMT100 @Track Air Interface Protocol The air protocol interface between

GMT100 and backend server.

1.2. Terms and Abbreviations

Table 2: Terms and Abbreviations

Abbreviation

Description

AIN Analog Input

DIN Digital Input

DOUT Digital Output

GND Ground

Queclink

Confidential

GMT100 User manual

TRACGMT100UM001-10-

2. Product Overview

2.1. Appearance

Figure 1. Appearance of GMT100

Queclink

Confidential

GMT100 User manual

TRACGMT100UM001- 9 -

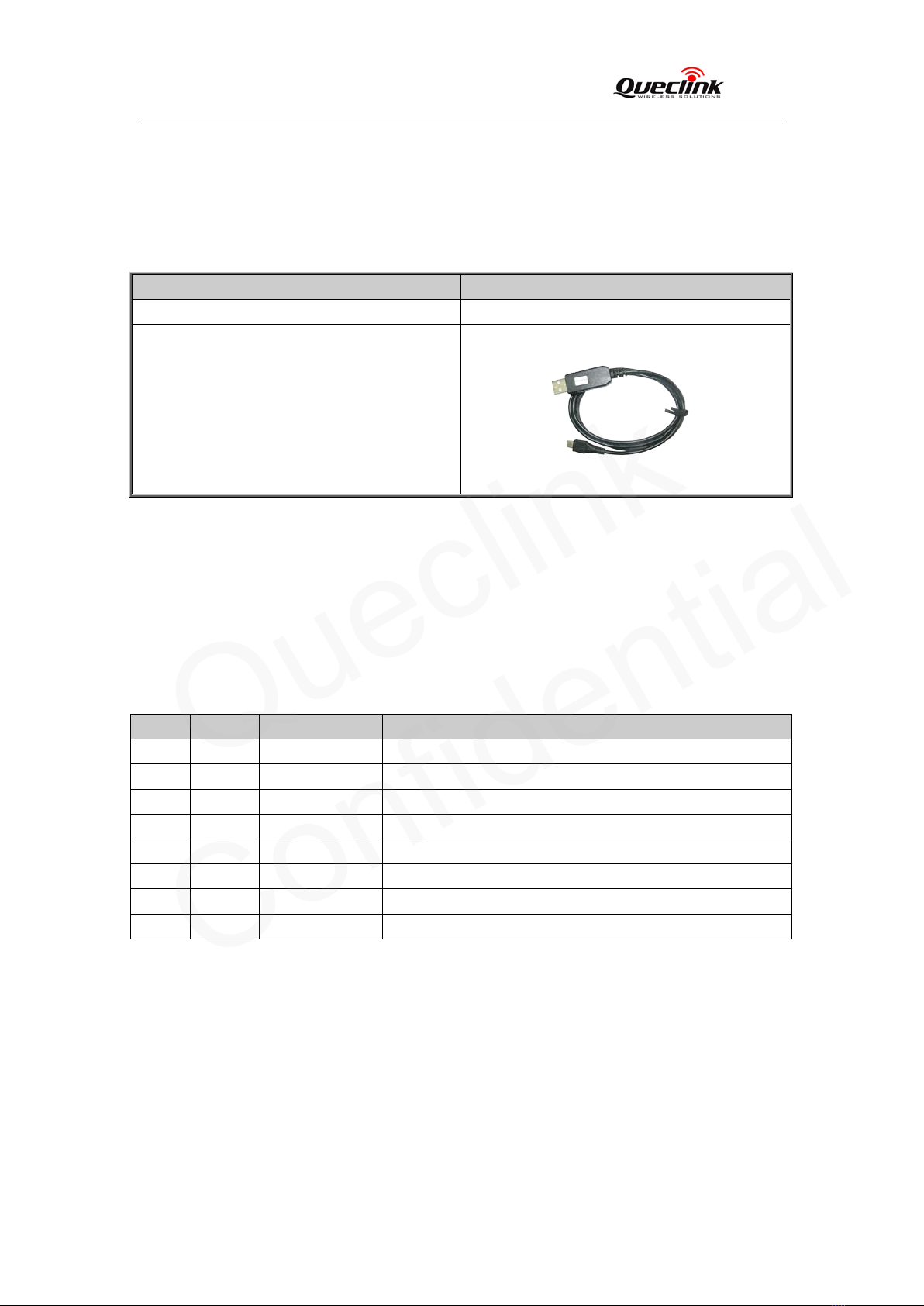

2.2. Parts List

Table 3: Part List

Name Picture

GMT100 Locator mm

DATA_CABLE_M (Optional)

2.3. Interface Definition

There are 8 wires on GMT100 User Cable which contain the connection for power, ignition

input, digital input, analog input, siren output, cut output etc. The user cable’s definition

are shown in following table.

Table 4: Description of GMT100 User Cable

Index Colour Description Comment

1 Red Power External DC power input, 8-32V

2 Black Ground System ground, connect to the vehicle’s frame directly

3 White Ignition Ignition input, positive trigger

4 Blue Digital input Digital input, negative trigger

5 Green Analog input Analog input, 0-32V

6 Brown Siren output Siren output, high end

7 Yellow Relay ouput1 Internal relay output1.

8 Yellow Relay ouput2 Internal relay output2

Queclink

Confidential

GMT100 User manual

TRACGMT100UM001-10-

3. Getting Started

3.1. Installing a SIM Card

Step 1: Remove the cover by screwdriver.

Step 2: Make sure the contact area is facing down, insert the SIM into the slot.

Step 3: Install the SIM card cover.

Figure 2. SIM Card Installation

3.2. Switch the set on/off

There are two methods to Power on GMT100:

- GMT100 external power turned on.

- Connect GMT100 to PC with user cable.

When the external power or USB cable power be removed,GMT100 will switch to internal

backup battery and keep on running. When internal backup battery is exhausted, GMT100

will give a report and then turn off.

Note:

1-External power and User USB power can be present at same time.

2-For USB port current limitation, when configuring GMT100 by user cable, please let

backup battery on using.

Queclink

Confidential
