QNAP QBoat Sunny Manuel utilisateur
QBoat Sunny
User Guide
Document Version: 2
15/12/2017
Contents
1. Preface
About This Guide.......................................................................................................................................... 3
Audience.......................................................................................................................................................3
Document Conventions................................................................................................................................ 3
2. Product Overview
About QBoat Sunny...................................................................................................................................... 4
Hardware Specifications............................................................................................................................... 4
Package Contents........................................................................................................................................ 5
Components................................................................................................................................................. 5
System Board - Top Side..........................................................................................................................6
System Board - Bottom Side.................................................................................................................... 7
Heatsink Base.......................................................................................................................................... 8
M.2 Solid State Drive Numbering........................................................................................................... 11
Installation Requirements............................................................................................................................11
Setting Up the QBoat..................................................................................................................................12
3. Installation and Configuration
Hardware Installation.................................................................................................................................. 13
Installing M.2 Solid State Drives.............................................................................................................13
Installing M.2 Expansion Cards..............................................................................................................16
Installing the Wall Mounting Kit...............................................................................................................18
QTS Lite Installation................................................................................................................................... 19
Installing QTS Lite Using Qfinder Pro.....................................................................................................20
Installing QTS Lite Using the Cloud Key................................................................................................ 21
4. Basic Operations
Power Button.............................................................................................................................................. 23
Reset Button............................................................................................................................................... 23
LEDs........................................................................................................................................................... 23
5. Troubleshooting
Forcing Qfinder Pro or myQNAPcloud to Locate the QBoat.......................................................................26
Replacing Failed Drives..............................................................................................................................26
Recovering Unintentionally Removed Healthy Drives................................................................................ 27
Support and Other Resources.................................................................................................................... 27
6. Glossary
CloudKey.................................................................................................................................................... 28
myQNAPcloud............................................................................................................................................ 28
Qfinder Pro................................................................................................................................................. 28
QTS Lite......................................................................................................................................................28
7. Notices
Limited Warranty.........................................................................................................................................29
Disclaimer................................................................................................................................................... 29
GNU Public License....................................................................................................................................29
FCC Notice................................................................................................................................................. 37
CE Notice....................................................................................................................................................37
SJ/T 11364-2006.........................................................................................................................................37
QBoat Sunny User Guide
1
1. Preface
About This Guide
This guide provides information on the QNAP QBoat Sunny and step-by-step instructions on installing the
hardware. It also provides instructions on basic operations and troubleshooting information.
Audience
This document is intended for Internet of Things (IoT) makers. This guide assumes that the user has a basic
understanding of storage and backup concepts.
Document Conventions
Symbol Description
Notes provide default configuration settings and other supplementary
information.
Important notes provide information on required configuration settings and other
critical information.
Tips provide recommendations or alternative methods of performing a task or
configuring settings.
Warnings provide information, that when ignored, may result to potential loss,
injury, or even death.
QBoat Sunny User Guide
Preface 3
2. Product Overview
This chapter provides basic information about the QNAP QBoat Sunny.
About QBoat Sunny
The QBoat Sunny is powered by an Annapurna Labs Alpine AL-314 quad-core 1.7 GHz processor and 2 GB
DDR3L memory. The QBoat Sunny provides three Gigabit Ethernet ports, two M.2 SSD slots, one M.2
expansion slot, and a full set of I/O ports. Running QTS Lite, the QBoat Sunny functions as an application
server and an IoT gateway, enabling makers to create their own custom platforms.
Hardware Specifications
Important
Modifying the hardware or software of your QNAP product invalidates the warranty. QNAP
is not responsible for any damage or data loss caused by unauthorized modifications and
installation of unsupported third-party applications.
Component QBoat Sunny
Ordering P/N QBoat Sunny
Processor
CPU Annapurna Labs Alpine AL-314 quad-core 1.7 GHz processor
Memory
Pre-installed memory 2 GB DDR3L memory (on-board)
Storage
M.2 SSD type 2 x SATA 6 Gbps (M key)
M.2 SSD form factor • 2280
• 2260
Network
Gigabit Ethernet ports 3 x RJ45
External I/O Ports & Expansion Slots
M.2 slot 1 x M.2 expansion slot (A key)
USB ports 2 x USB 3.0
Audio • 1 x 3.5 mm line-out jack
• 1 x 3.5 mm microphone jack
Interface
Maintenance port 1 x 3.5 mm
Fan connector 1 x 4-pin
Note
QBoat Sunny does not include a system fan. To
purchase fan modules, go to http://shop.qnap.com/
index.php?route=product/product&product_id=190.
The QBoat may also support third-party 4-pin fan
modules. However, QNAP cannot be held responsible
for any damage that may occur due to the usage of
untested devices.
QBoat Sunny User Guide
Product Overview 4
Component QBoat Sunny
RTC power port 1 x 2-pin
Dimensions
Dimensions (H x W x D) 144.0 x 126.0 x 33.5 mm
5.67 x 4.96 x 1.32 in
Note
The dimensions include the heatsink base.
Net weight 1.05 kg (2.32 lbs)
Note
The net weight includes the heatsink base.
Other
Power supply unit 36W, 100-240V AC, 50/60Hz
RTC battery 1 x 3V lithium battery
Operating temperature 0 to 35˚C (32 to 95˚F)
Relative humidity • Non-condensing relative humidity: 5 to 95%
• Wet-bulb temperature: 27˚C (80.6˚F)
Note
Model specifications are subject to change without prior notice. To see the latest
specifications, go to https://www.qnap.com.
Package Contents
Item Quantity
QBoat Sunny with heatsink base 1
Power cord 1
Ethernet cable 1 x gigabit RJ45
AC power adapter 1
Screws for M.2 SSDs • 3 x riser screws
• 3 x flat-head screws
Heatsinks for M.2 SSDs 2
Wall mounting kit • 2 x wall mounting brackets
• 4 x M3 screws
Quick Installation Guide (QIG) 1
Components
QBoat Sunny User Guide
Product Overview 5

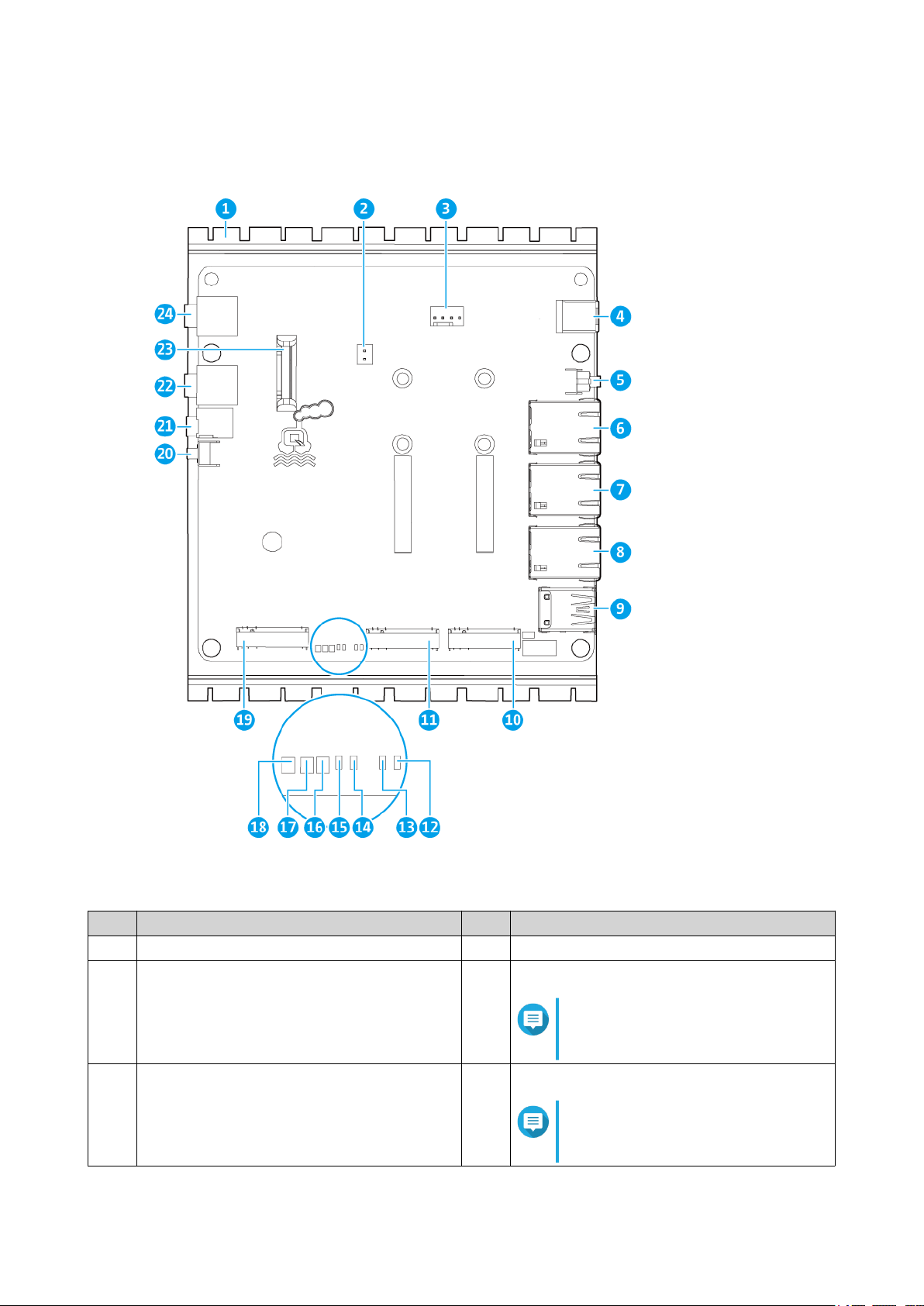

System Board - Top Side
No. Component No. Component
1 Heatsink base 13 User-defined LED 1
2 RTC power port 14 Bluetooth LED
Note
QBoat Sunny does not include a
Bluetooth module.
3 Fan connector 15 Wireless LAN LED
Note
QBoat Sunny does not include a
wireless LAN module.
QBoat Sunny User Guide
Product Overview 6
No. Component No. Component
4 12V power port 16 M.2 SSD LED 2
5 Power button 17 M.2 SSD LED 1
6 Gigabit Ethernet port 1 18 Status LED
7 Gigabit Ethernet port 2 19 M.2 expansion slot
8 Gigabit Ethernet port 3 20 Reset button
9 USB 3.0 ports 1 and 2 21 Maintenance port
10 M.2 SSD slot 2 22 3.5 mm headphone jack
11 M.2 SSD slot 1 23 RTC battery
12 User-defined LED 2 24 3.5 mm microphone jack

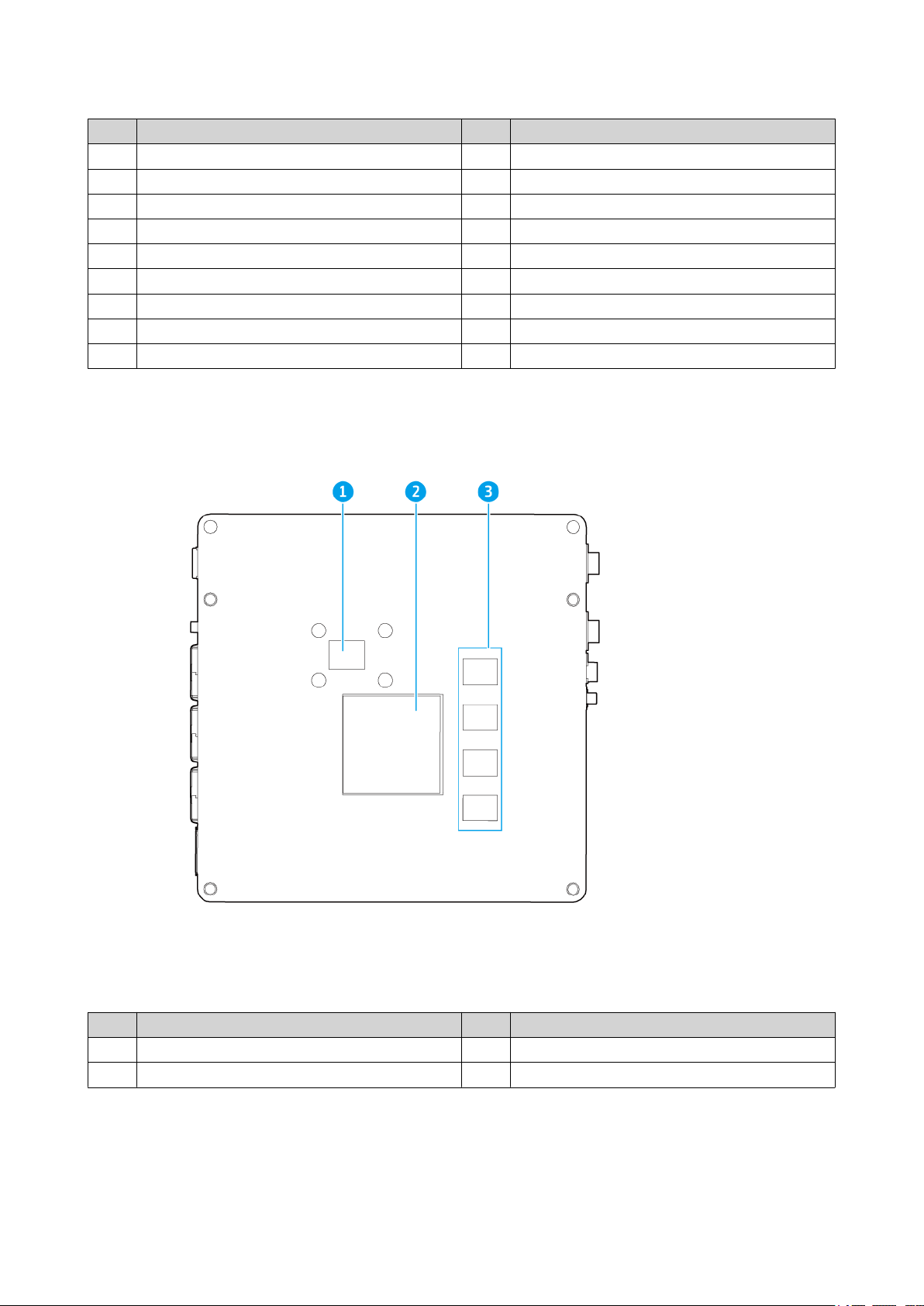

System Board - Bottom Side
No. Component No. Component
1 512 MB NAND flash memory 3 DDR3L memory
2 Annapurna Labs AL-314 processor - -
QBoat Sunny User Guide
Product Overview 7

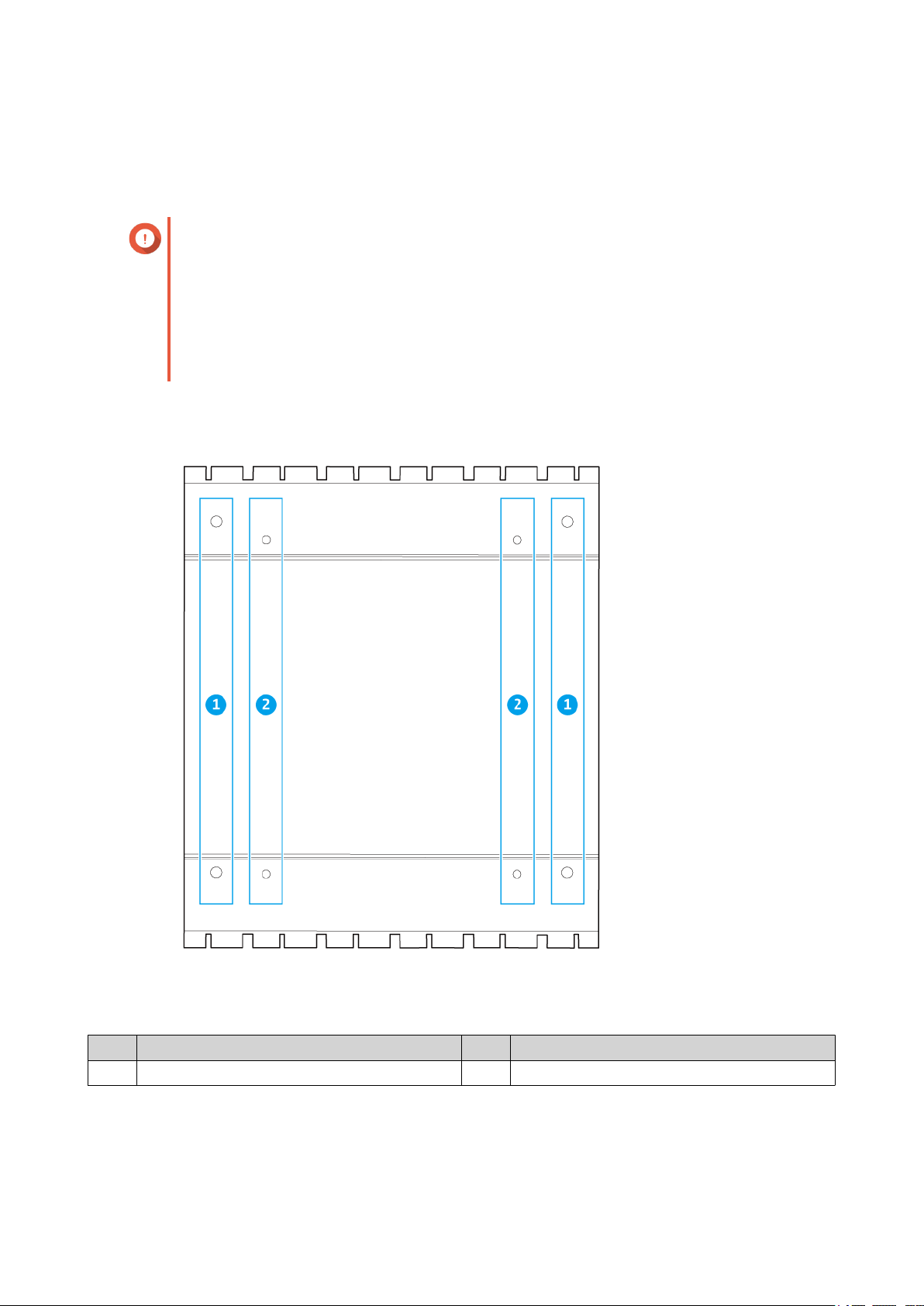

Heatsink Base
The screw holes on the heatsink base enable you to attach the QBoat to various surfaces or connect it to
other devices.
Important
Verify the following:
• You can securely attach and connect the QBoat to the selected surfaces and devices.
• The surfaces can support the weight of the QBoat.
• The sizes and positions of the screw holes on the devices match the screw holes on
the heatsink base.
No. Component No. Component
1 M4 screw holes 2 M3 screw holes
QBoat Sunny User Guide
Product Overview 8
QBoat Sunny User Guide
Product Overview 9
